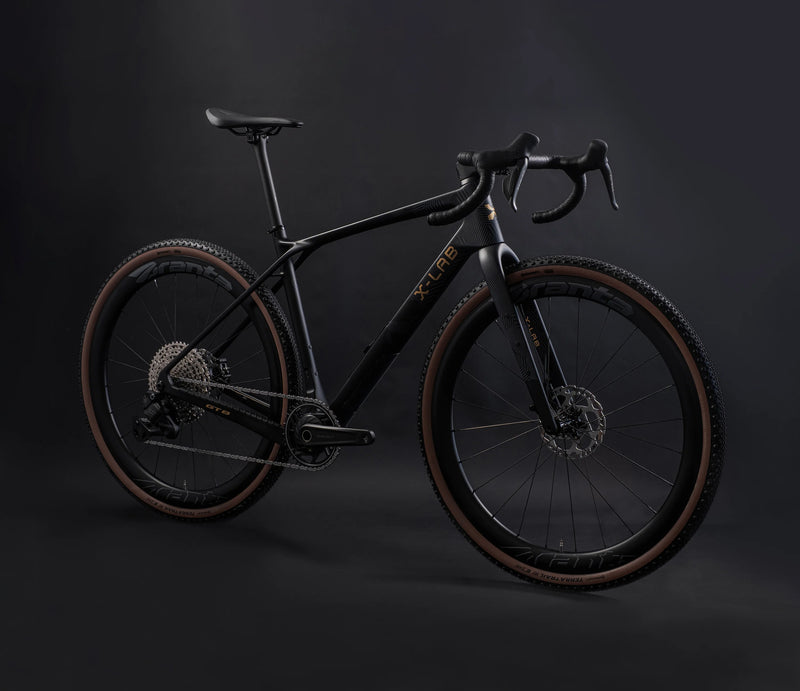

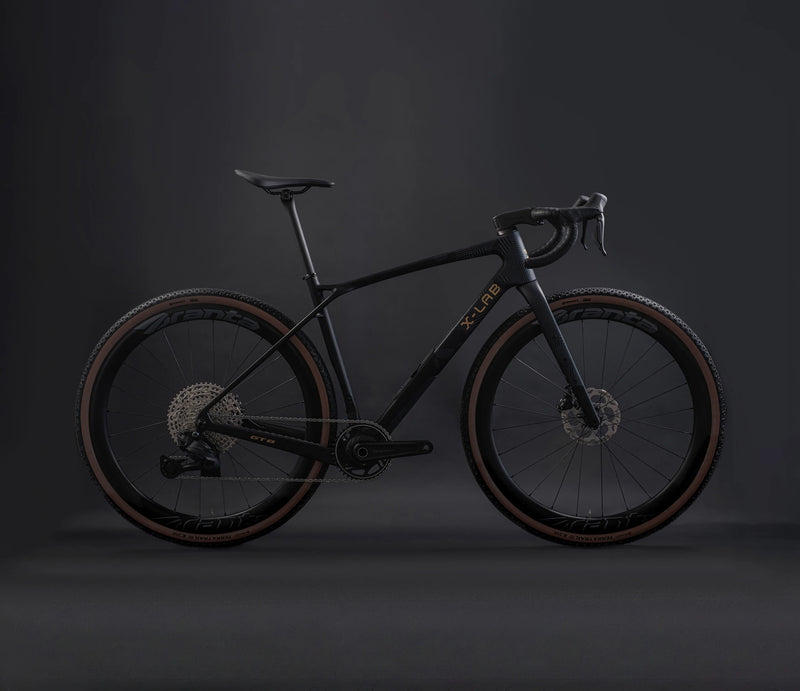

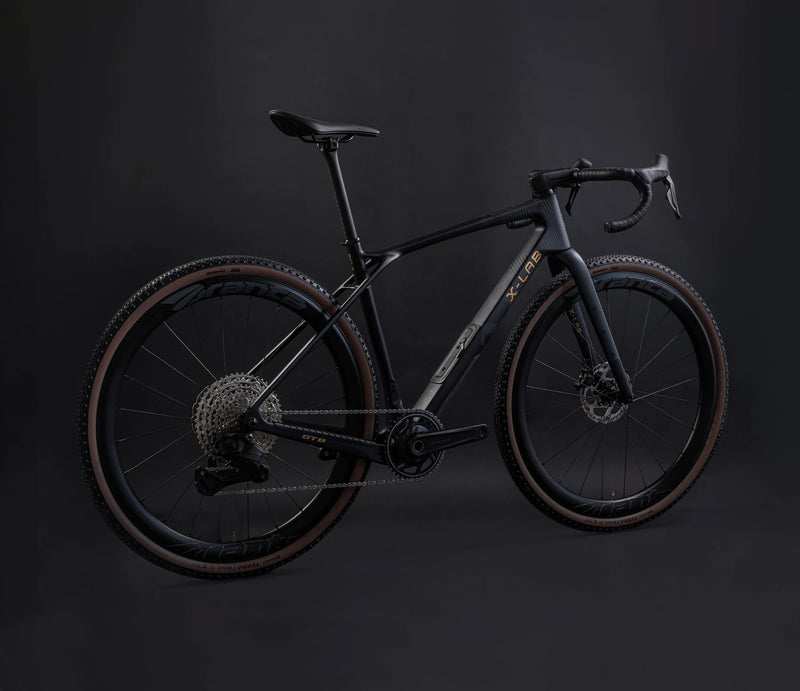

X-LAB GT8 GRX820
X-LAB GT8 GRX820
X-LAB GT8 GRX820
X-LAB GT8 GRX820
X-LAB GT8 GRX820
X-LAB GT8 GRX820
X-LAB GT8 GRX820

X-LAB GT8 GRX820

SKU BXL9250-00902
$4,790.00 - $4,790.00
$4,790.00
$4,790.00 - $4,790.00
$4,790.00

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

Color: AFTERBURNER
Size: S
ENQUIRY

The GT8 is X-LAB’s first gravel platform, built for riders who see every road as an invitation.

Designed for stability, control, and long-distance comfort, the GT8 transitions effortlessly from pavement to dirt, city streets to open trails.

With confident handling and durable carbon construction, it’s a gravel bike that encourages exploration without limits.

Wherever the road disappears, the GT8 keeps going.

<div class="tech-specs">

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Model</p>
<p class="value">GT8</p>
</div>

<div class="spec-item">
<p class="label">Frame</p>
<p class="value">X-LAB Carbon Frame, Toray T800, UDH Compatible</p>
</div>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">X-LAB Carbon Fork, 100x12mm Thru-axle</p>
</div>

</div>

<div class="spec-section">
<h4>Drivetrain</h4>

<div class="spec-item">
<p class="label">Rear Derailleur</p>
<p class="value">Shimano GRX RD-RX820</p>
</div>

<div class="spec-item">
<p class="label">Front Derailleur</p>
<p class="value">Shimano GRX RD-RX820</p>
</div>

<div class="spec-item">
<p class="label">Shifters</p>
<p class="value">Shimano GRX ST-RX610</p>
</div>

<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">Shimano CS-HG710-12, 11-36T</p>
</div>

<div class="spec-item">
<p class="label">Crankset</p>
<p class="value">Shimano FC-RX610-2, 46-30T</p>
</div>

<div class="spec-item">
<p class="label">Bottom Bracket</p>
<p class="value">T47 24mm</p>
</div>

<div class="spec-item">
<p class="label">Chain</p>
<p class="value">Shimano CN-M7100</p>
</div>

</div>

<div class="spec-section">
<h4>Brakes</h4>

<div class="spec-item">
<p class="label">Brakes</p>
<p class="value">Shimano GRX BR-RX410</p>
</div>

<div class="spec-item">
<p class="label">Rotors</p>
<p class="value">Shimano SM-RT70, Front: 160mm, Rear: 160mm</p>
</div>

</div>

<div class="spec-section">
<h4>Wheels &amp; Tires</h4>

<div class="spec-item">
<p class="label">Wheelset</p>
<p class="value">Branta C45 GT Carbon Wheelset, Steel Spokes</p>
</div>

<div class="spec-item">
<p class="label">Tires</p>
<p class="value">Continental Terra Trail 700x45C</p>
</div>

</div>

<div class="spec-section">
<h4>Cockpit</h4>

<div class="spec-item">
<p class="label">Stem</p>
<p class="value">Branta Aluminum Stem</p>
</div>

<div class="spec-item">
<p class="label">Handlebar</p>
<p class="value">Branta Gravel Carbon Handlebar</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">XDS Carbon 27.2mm Seatpost</p>
</div>

<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">Fizik Terra Argo X7</p>
</div>

</div>

<div class="spec-section">
<h4>Weight</h4>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">8.78 kg (Size M)</p>
</div>

</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col">Measurement</th>
<th>XS</th>
<th>S</th>
<th>M</th>
<th>L</th>
<th>XL</th>
<th>XXL</th>
</tr>
</thead>
<tbody>
<tr>
<td class="sticky-col">Stack (mm)</td>
<td>519</td>
<td>540</td>
<td>565</td>
<td>584</td>
<td>607</td>
<td>631</td>
</tr>
<tr>
<td class="sticky-col">Reach (mm)</td>
<td>370</td>
<td>379</td>
<td>384</td>
<td>392</td>
<td>399</td>
<td>408</td>
</tr>
<tr>
<td class="sticky-col">Head Tube Angle (°)</td>
<td>70</td>
<td>70</td>
<td>71</td>
<td>71</td>
<td>71</td>
<td>71</td>
</tr>
<tr>
<td class="sticky-col">Head Tube Length (mm)</td>
<td>80</td>
<td>100</td>
<td>120</td>
<td>140</td>
<td>165</td>
<td>190</td>
</tr>
<tr>
<td class="sticky-col">Seat Tube Angle (°)</td>
<td>76</td>
<td>75</td>
<td>74</td>
<td>74</td>
<td>73</td>
<td>73</td>
</tr>
<tr>
<td class="sticky-col">Seat Tube Length (mm)</td>
<td>435</td>
<td>447</td>
<td>471</td>
<td>491</td>
<td>532</td>
<td>577</td>
</tr>
<tr>
<td class="sticky-col">Chainstay Length (mm)</td>
<td>435</td>
<td>435</td>
<td>435</td>
<td>435</td>
<td>435</td>
<td>435</td>
</tr>
<tr>
<td class="sticky-col">BB Drop (mm)</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
</tr>
<tr>
<td class="sticky-col">Wheelbase (mm)</td>
<td>1020</td>
<td>1032</td>
<td>1031</td>
<td>1046</td>
<td>1061</td>
<td>1078</td>
</tr>
<tr>
<td class="sticky-col">Top Tube Length (mm)</td>
<td>506</td>
<td>525</td>
<td>547</td>
<td>566</td>
<td>585</td>
<td>605</td>
</tr>
<tr>
<td class="sticky-col">Front Center (mm)</td>
<td>598</td>
<td>610</td>
<td>609</td>
<td>624</td>
<td>638</td>
<td>655</td>
</tr>
<tr>
<td class="sticky-col">Stand-over Height (mm)</td>
<td>715</td>
<td>730</td>
<td>755</td>
<td>773</td>
<td>807</td>
<td>838</td>
</tr>
<tr>
<td class="sticky-col">Fork Rake / Offset (mm)</td>
<td>55</td>
<td>55</td>
<td>50</td>
<td>50</td>
<td>50</td>
<td>50</td>
</tr>
<tr>
<td class="sticky-col">Trail (mm)</td>
<td>75</td>
<td>72</td>
<td>70</td>
<td>70</td>
<td>70</td>
<td>70</td>
</tr>
<tr>
<td class="sticky-col">Stem Length (mm)</td>
<td>70</td>
<td>70</td>
<td>80</td>
<td>90</td>
<td>100</td>
<td>100</td>
</tr>
<tr>
<td class="sticky-col">Handlebar Width (mm)</td>
<td>370/430</td>
<td>370/430</td>
<td>390/450</td>
<td>390/450</td>
<td>410/470</td>
<td>410/470</td>
</tr>
<tr>
<td class="sticky-col">Crankset Length (mm)</td>
<td>165</td>
<td>165</td>
<td>170</td>
<td>170</td>
<td>172.5</td>
<td>172.5</td>
</tr>
<tr>
<td class="sticky-col">Seatpost Length (mm)</td>
<td>300</td>
<td>300</td>
<td>350</td>
<td>350</td>
<td>350</td>
<td>350</td>
</tr>
<tr>
<td class="sticky-col">Recommended Rider Height</td>
<td>148–158 cm<br>4'10"–5'2"</td>
<td>158–168 cm<br>5'2"–5'6"</td>
<td>168–176 cm<br>5'6"–5'9"</td>
<td>176–183 cm<br>5'9"–6'0"</td>
<td>183–191 cm<br>6'0"–6'3"</td>
<td>191–202 cm<br>6'3"–6'7"</td>
</tr>
</tbody>
</table>
</div>
</div>
