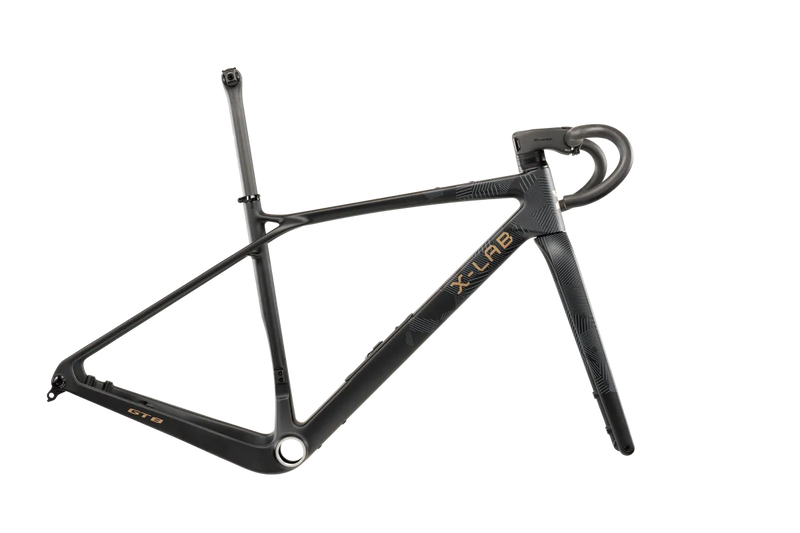

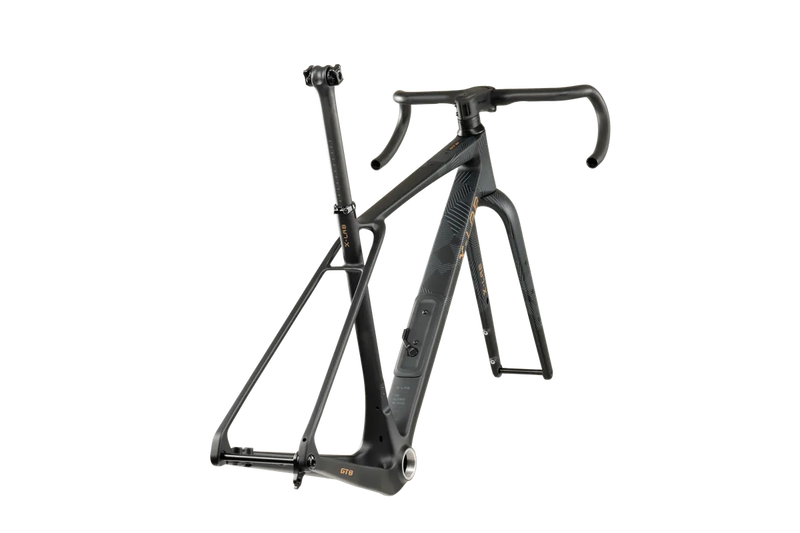

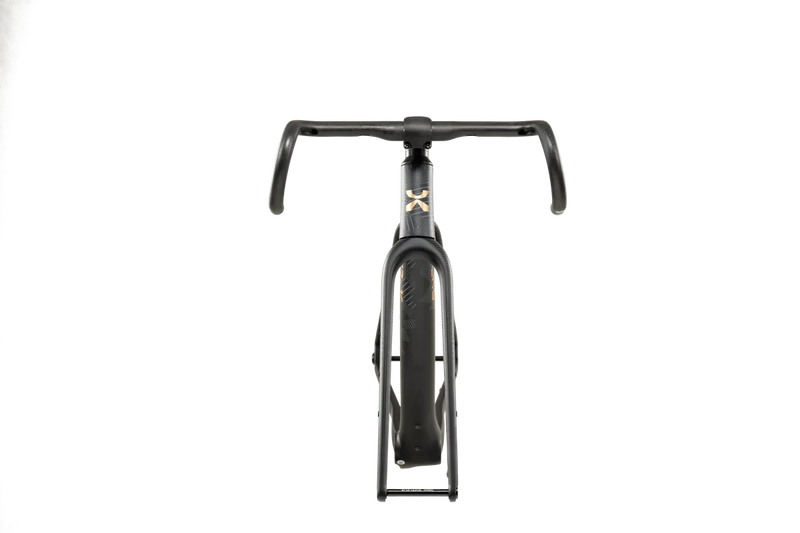

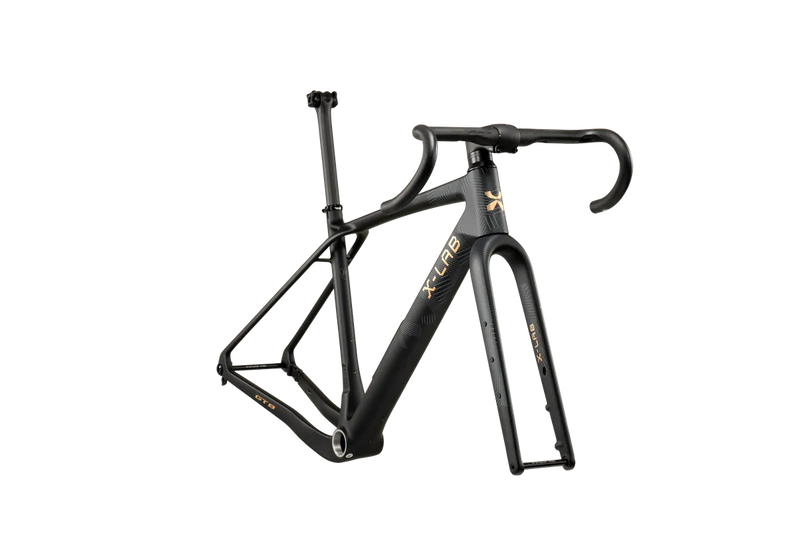

X-LAB GT8 Frameset Afterburner
X-LAB GT8 Frameset Afterburner
X-LAB GT8 Frameset Afterburner
X-LAB GT8 Frameset Afterburner

X-LAB GT8 Frameset Afterburner

SKU FXL9301-00035
$3,299.90 - $3,299.90
$3,299.90
$3,299.90 - $3,299.90
$3,299.90

Please email us or use the ENQUIRY FORM below to check your size and availability.

The frame may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY NATIONWIDE.

NOTE: Afterpay is unavailable on frame purchases.

Size: XS
ENQUIRY

A carbon gravel platform built for riders who want speed, clearance, storage, and versatility in one system. With internal downtube storage, generous tire clearance, and adventure-ready geometry, the GT8 frameset is ready for race days, long routes, and everything off the map.

<div class="tech-specs">

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Frame</p>
<p class="value">XDS Carbon Frame, Toray T-800, UDH Compatible</p>
</div>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">XDS Carbon Fork, Toray T-800, 100x12mm Thru-Axle</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">XDS Carbon 27.2mm</p>
</div>
</div>

<div class="spec-section">
<h4>Product Details</h4>

<div class="spec-item">
<p class="label">Size Options</p>
<p class="value">XS / S / M / L / XL / XXL</p>
</div>
</div>

<div class="spec-section">
<h4>Weight</h4>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">1.78 kg / 3.92 lbs (Size M, w/o headsets)</p>
</div>
</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col">Measurement</th>
<th>XS</th>
<th>S</th>
<th>M</th>
<th>L</th>
<th>XL</th>
<th>XXL</th>
</tr>
</thead>
<tbody>

<tr>
<td class="sticky-col">A — Seat Tube Length (mm)</td>
<td>435</td><td>447</td><td>471</td><td>491</td><td>532</td><td>577</td>
</tr>

<tr>
<td class="sticky-col">B — Top Tube Length (mm)</td>
<td>506</td><td>525</td><td>547</td><td>566</td><td>585</td><td>605</td>
</tr>

<tr>
<td class="sticky-col">C — Head Tube Length (mm)</td>
<td>80</td><td>100</td><td>120</td><td>140</td><td>165</td><td>190</td>
</tr>

<tr>
<td class="sticky-col">D — Seat Tube Angle (°)</td>
<td>76</td><td>75</td><td>74</td><td>74</td><td>73</td><td>73</td>
</tr>

<tr>
<td class="sticky-col">E — Head Tube Angle (°)</td>
<td>70</td><td>70</td><td>71</td><td>71</td><td>71</td><td>71</td>
</tr>

<tr>
<td class="sticky-col">F — Chainstay (mm)</td>
<td>435</td><td>435</td><td>435</td><td>435</td><td>435</td><td>435</td>
</tr>

<tr>
<td class="sticky-col">G — Wheelbase (mm)</td>
<td>1020</td><td>1032</td><td>1031</td><td>1046</td><td>1061</td><td>1078</td>
</tr>

<tr>
<td class="sticky-col">H — Bottom Bracket Drop (mm)</td>
<td>80</td><td>80</td><td>80</td><td>80</td><td>80</td><td>80</td>
</tr>

<tr>
<td class="sticky-col">I — Stack (mm)</td>
<td>519</td><td>540</td><td>565</td><td>584</td><td>607</td><td>631</td>
</tr>

<tr>
<td class="sticky-col">J — Reach (mm)</td>
<td>370</td><td>379</td><td>384</td><td>392</td><td>399</td><td>408</td>
</tr>

<tr>
<td class="sticky-col">K — Front Center (mm)</td>
<td>598</td><td>610</td><td>609</td><td>624</td><td>638</td><td>655</td>
</tr>

<tr>
<td class="sticky-col">O — Standover (mm)</td>
<td>715</td><td>730</td><td>755</td><td>773</td><td>807</td><td>838</td>
</tr>

</tbody>
</table>
</div>
</div>
