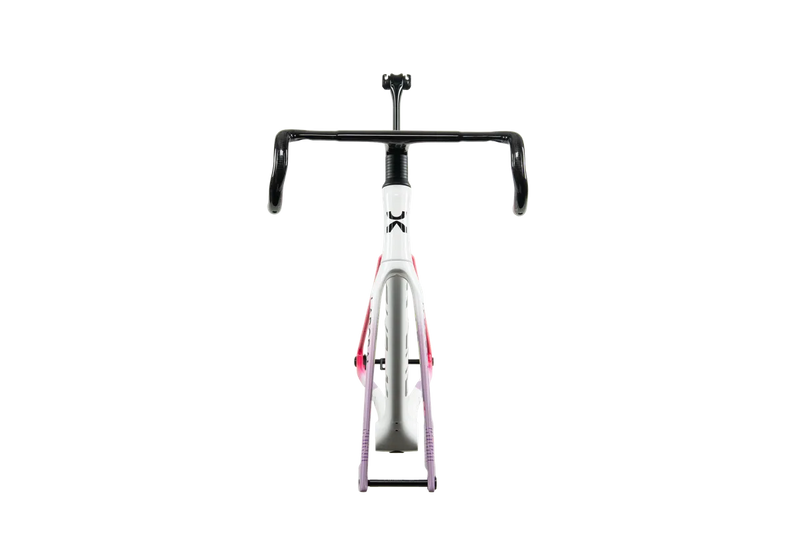

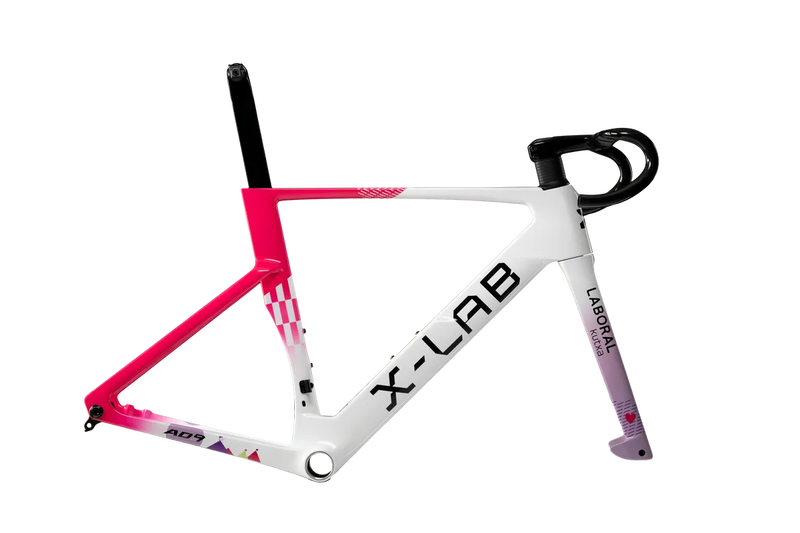

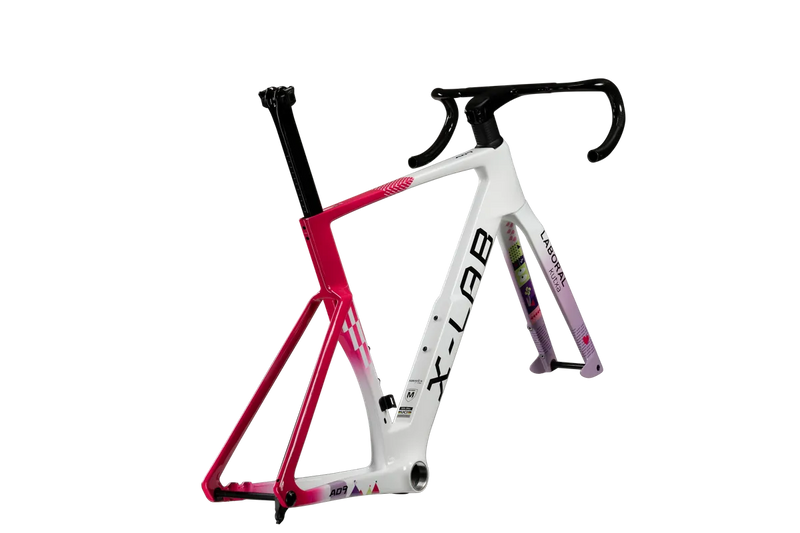

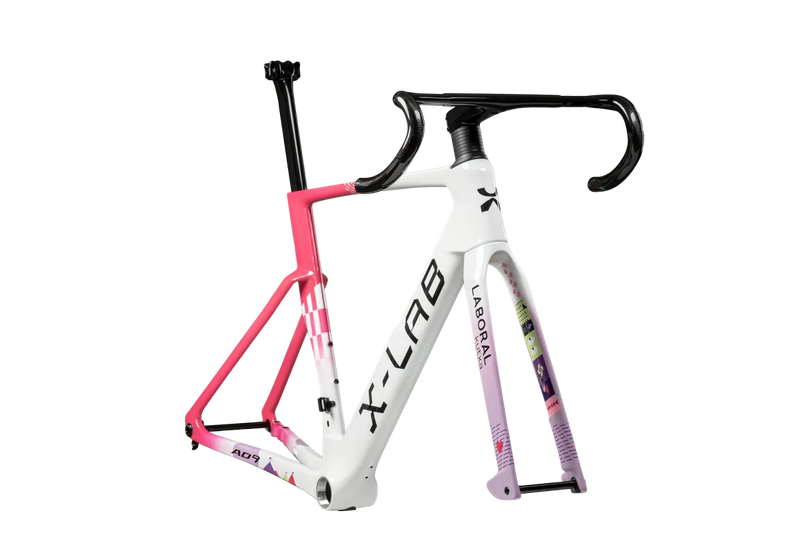

X-LAB AD9 Frameset Laboral Kutxa
X-LAB AD9 Frameset Laboral Kutxa
X-LAB AD9 Frameset Laboral Kutxa
X-LAB AD9 Frameset Laboral Kutxa

X-LAB AD9 Frameset Laboral Kutxa

SKU FXL9302-02076
$4,290.90 - $4,290.90
$4,290.90
$4,290.90 - $4,290.90
$4,290.90

Please email us or use the ENQUIRY FORM below to check your size and availability.

The frame may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY NATIONWIDE.

NOTE: Afterpay is unavailable on frame purchases.

Size: XS
ENQUIRY

Every tube profile, surface transition, and structural element has been refined to minimize drag and maximize speed.When the road opens up and the pace rises, the AD9 delivers what matters most: pure aerodynamic advantage, tested to the fullest by CFD and by wind tunnel.

Aerodynamic Efficiency: 45 km/h Saves 1.5W

Our aerodynamic engineering team meticulously optimized the frame’s streamlined design using CFD (Computational Fluid Dynamics) and wind tunnel testing. By compressing the windward area of the frame tubes, airflow seamlessly passes over the frame surface, enhancing aerodynamic performance. This results in a 1.5W power saving compared to the Canyon Aeroad CFR, making it one of the most efficient frames on the market.

Ultra-Light Frameset: 850g (Size M)

Crafted with precision, the frame combines Toray T1100G and M40X carbon fiber through advanced layering techniques. The T1100G ensures exceptional strength, while the M40X enhances rigidity. This innovative carbon layup delivers a perfect balance of lightweight performance and structural integrity, making it ideal for competitive road cycling.

<div class="tech-specs">

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Frame</p>
<p class="value">XDS Carbon Frame, Toray T-1100, UDH Compatible</p>
</div>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">XDS Carbon Seatpost, Aero Profile</p>
</div>
</div>

<div class="spec-section">
<h4>Product Details</h4>

<div class="spec-item">
<p class="label">Size Options</p>
<p class="value">XS / S / M / L / XL</p>
</div>
</div>

<div class="spec-section">
<h4>Weight</h4>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">1.58 kg / 3.48 lbs (Size M, w/o headsets)</p>
</div>
</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col">Measurement</th>
<th>XS</th>
<th>S</th>
<th>M</th>
<th>L</th>
<th>XL</th>
</tr>
</thead>
<tbody>

<tr>
<td class="sticky-col">A — Seat Tube Length (mm)</td>
<td>470</td><td>495</td><td>515</td><td>540</td><td>565</td>
</tr>

<tr>
<td class="sticky-col">B — Top Tube Length (mm)</td>
<td>504</td><td>523</td><td>540</td><td>559</td><td>579</td>
</tr>

<tr>
<td class="sticky-col">C — Head Tube Length (mm)</td>
<td>105</td><td>118</td><td>130</td><td>148</td><td>171</td>
</tr>

<tr>
<td class="sticky-col">D — Seat Tube Angle (°)</td>
<td>75</td><td>75</td><td>74</td><td>74</td><td>73</td>
</tr>

<tr>
<td class="sticky-col">E — Head Tube Angle (°)</td>
<td>71</td><td>72</td><td>73</td><td>73</td><td>73</td>
</tr>

<tr>
<td class="sticky-col">F — Chainstay (mm)</td>
<td>410</td><td>410</td><td>410</td><td>410</td><td>410</td>
</tr>

<tr>
<td class="sticky-col">G — Wheelbase (mm)</td>
<td>970</td><td>978</td><td>982</td><td>992</td><td>1007</td>
</tr>

<tr>
<td class="sticky-col">H — Bottom Bracket Drop (mm)</td>
<td>72</td><td>72</td><td>70</td><td>70</td><td>70</td>
</tr>

<tr>
<td class="sticky-col">I — Stack (mm)</td>
<td>505</td><td>520</td><td>534</td><td>553</td><td>575</td>
</tr>

<tr>
<td class="sticky-col">J — Reach (mm)</td>
<td>371</td><td>379</td><td>387</td><td>395</td><td>405</td>
</tr>

<tr>
<td class="sticky-col">K — Front Center (mm)</td>
<td>575</td><td>582</td><td>583</td><td>592</td><td>607</td>
</tr>

<tr>
<td class="sticky-col">O — Standover (mm)</td>
<td>753</td><td>774</td><td>792</td><td>811</td><td>834</td>
</tr>

<tr>
<td class="sticky-col">Fork Rake / Offset (mm)</td>
<td>48</td><td>48</td><td>43</td><td>43</td><td>43</td>
</tr>

<tr>
<td class="sticky-col">Trail (mm)</td>
<td>67</td><td>63</td><td>64</td><td>61</td><td>59</td>
</tr>

</tbody>
</table>
</div>
</div>
