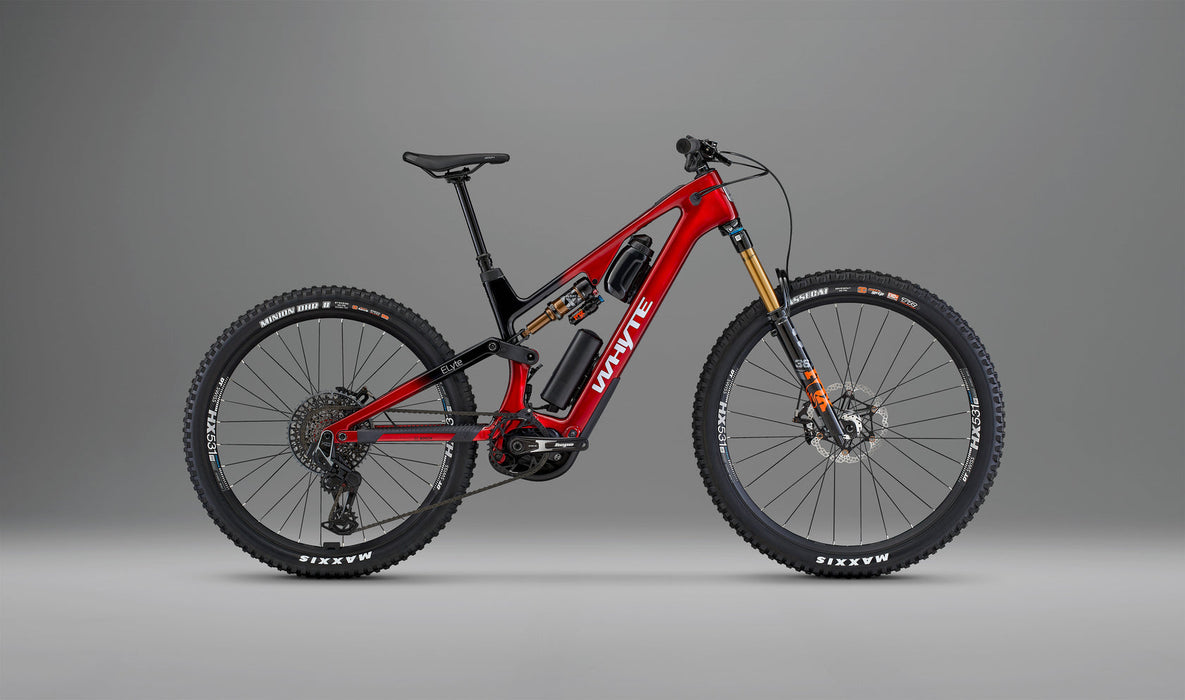

Whyte E-Lyte 150 Evo Stag Works

Whyte E-Lyte 150 Evo Stag Works

SKU WHEL150SW-L
Save 16% Save 16%
$18,999.00
$18,999.00 - $18,999.00
$18,999.00
$15,999.00
$15,999.00 - $15,999.00
$15,999.00
Color: RED/BLK
Size: L

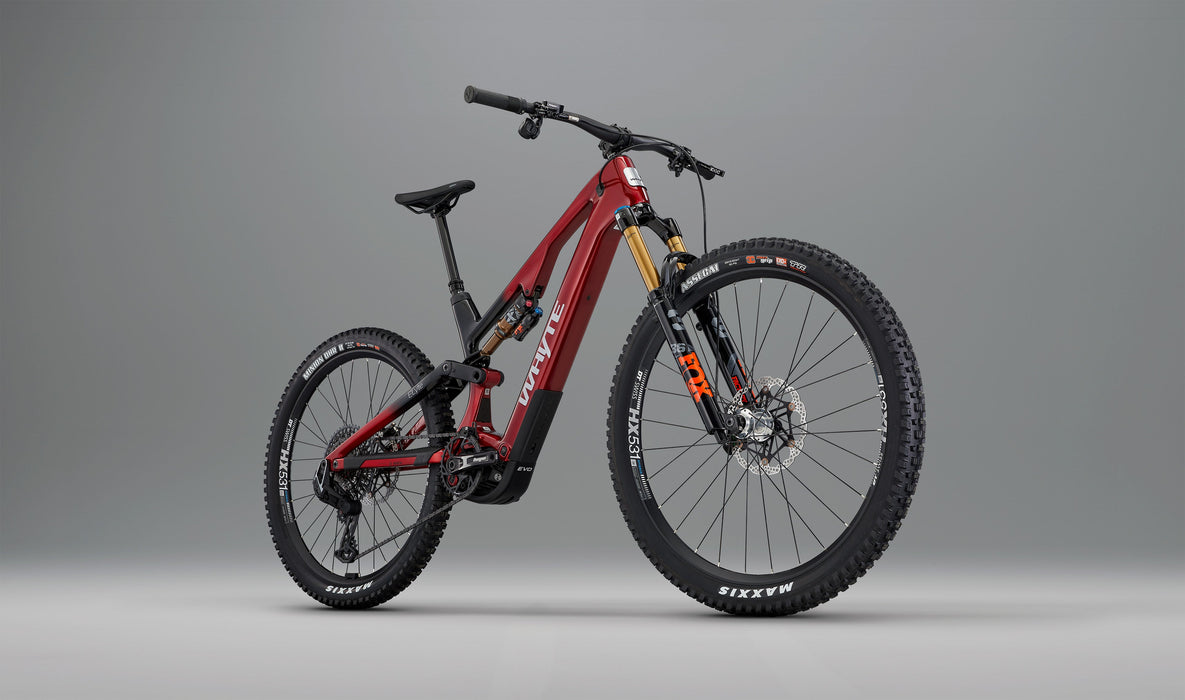

Head turning, mind blowing
Our top of the range ELyte EVO Stag Works is the dream bike of our design and engineering team, made real for you: full-power (600W), full-torque (85Nm) – all the time – so you can make the most of your precious time. With a full carbon frame, our lowest centre of gravity ever for the finest, most capable handling, mixed (MX) wheels (29er front, 27.5in rear), and the latest Bosch CX motor, ELyte EVO Stag Works delivers the very best mountain bike handling and ride feel with full-power capability so you can get more out of every ride.

  • 150mm front + 142mm rear of custom-tuned suspension travel.
  • Uni-directional carbon fibre frame is light and reassuringly strong
  • Bosch's new Performance Line CX full-torque (85Nm), full-power (600W) motor.
  • 650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further.
  • MX wheels (29er front, 27.5in rear) so you can tackle the techiest terrain.
  • 492.28mm complete bike centre of gravity for the best handling possible.
Colour Gloss ruby red with black fade

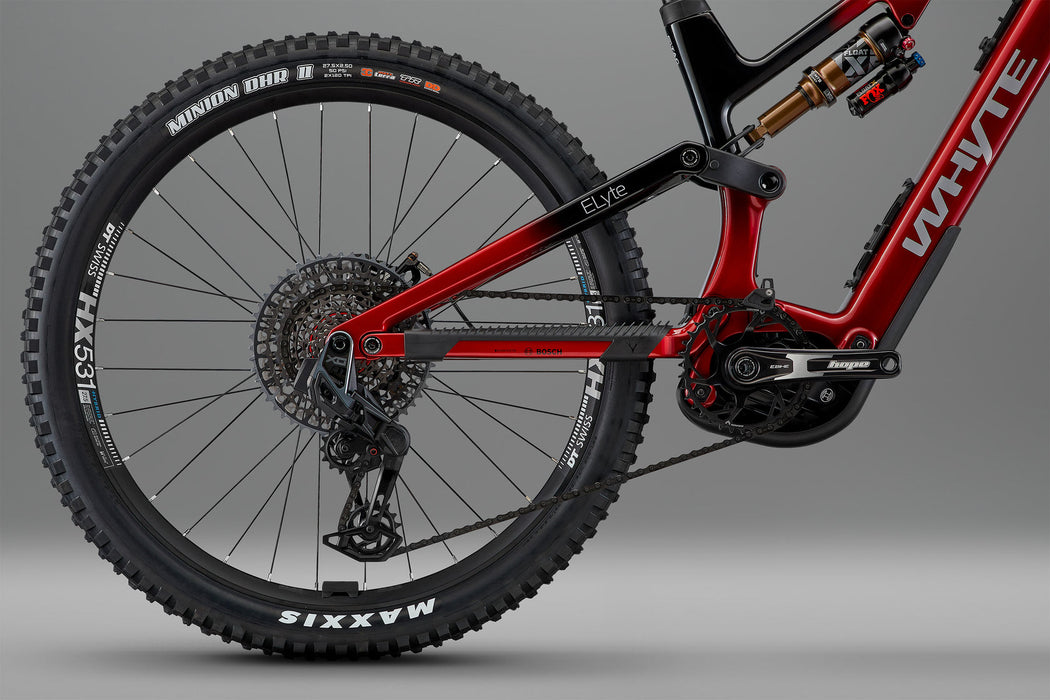

Cassette SRAM XS 1295, T-Type, 10-52T, 12 speed

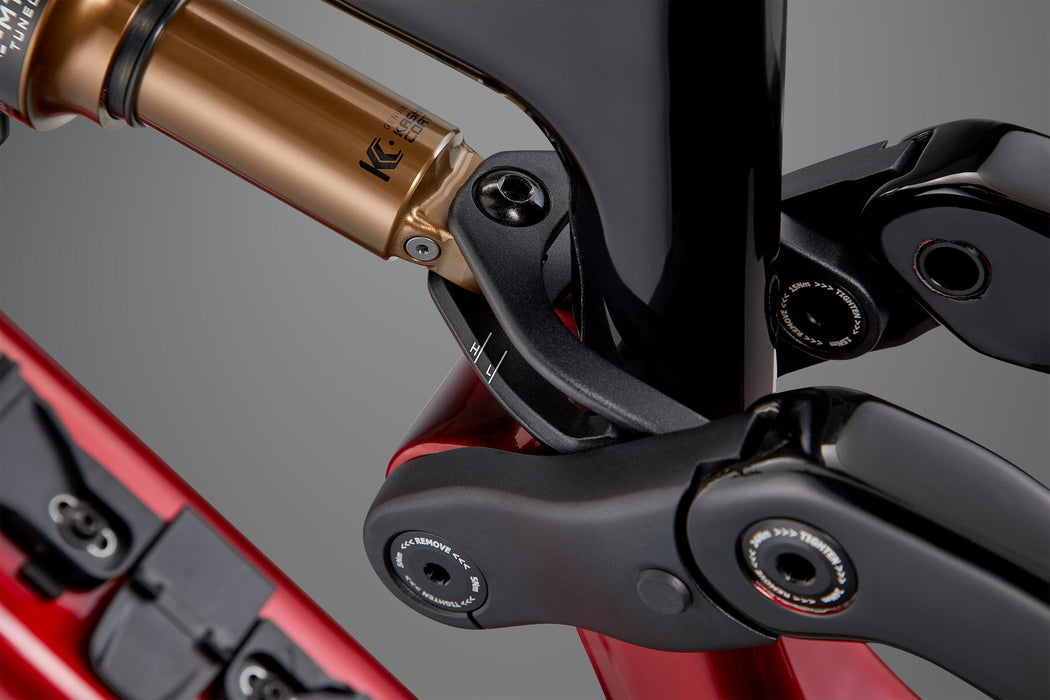

Frame Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Chain SRAM XO T-Type, 12 speed
Fork Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 15mm Kabolt axle
Crankset Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type

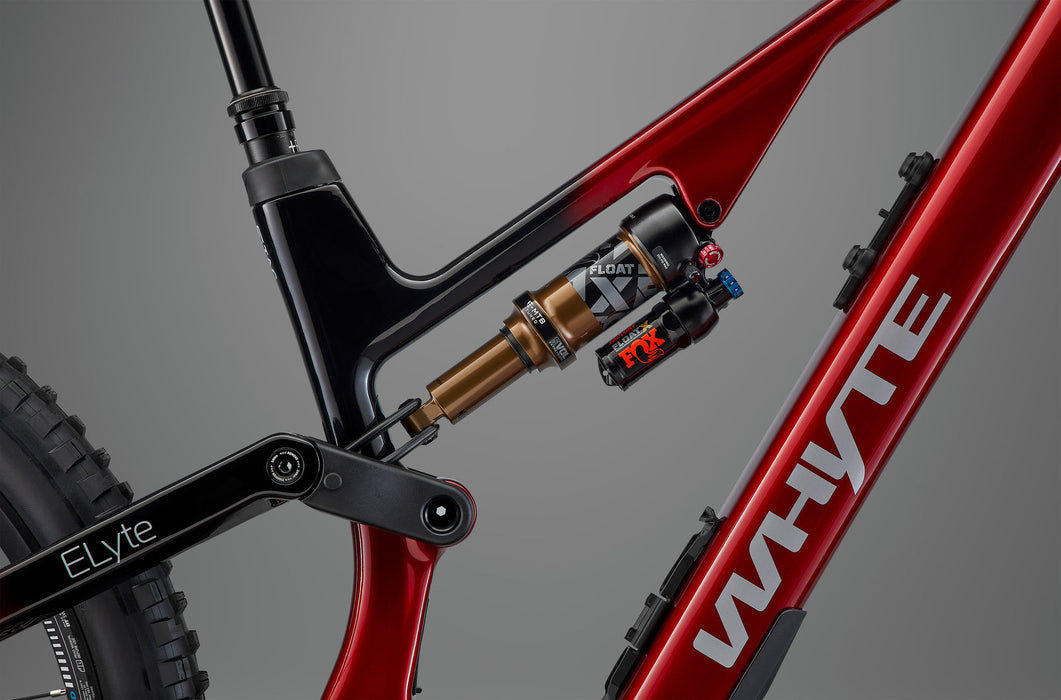

Rear Shock Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm, custom tuned for Whyte
Bottom Bracket N/A
Headset FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing

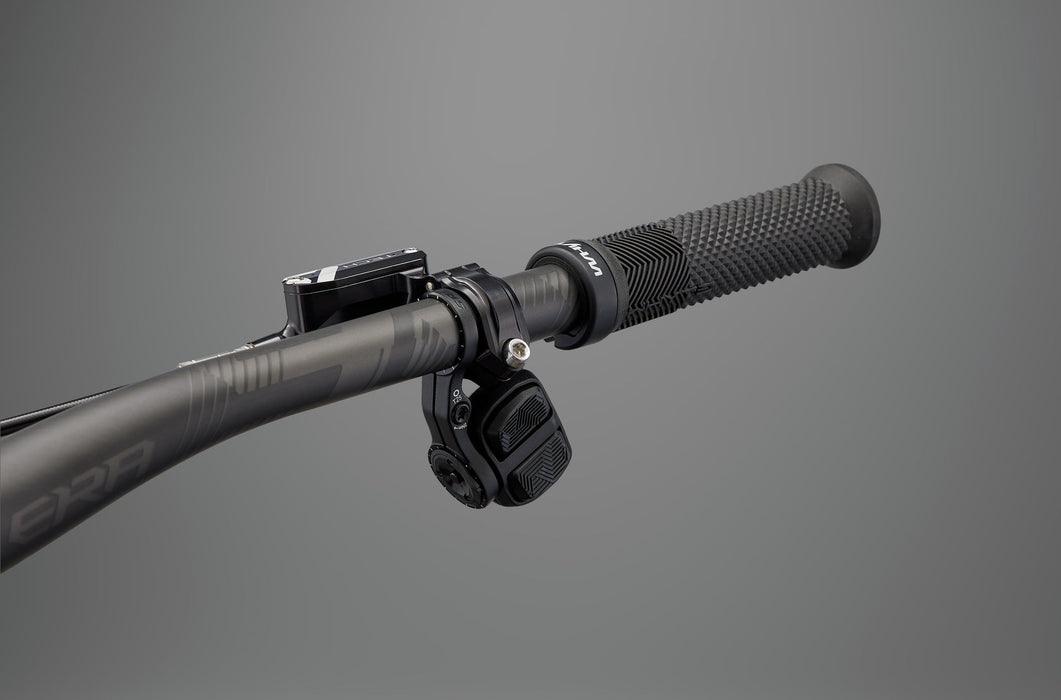

Seatpost Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
Rear Hub Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
Saddle Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Front Hub Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole
Handlebar Race Face ERA Carbon, 20mm rise, 35mm bar bore, 800mm wide
Spokes DT Swiss Elemental
Stem Whyte Trail full CNC, 32mm extension, 35mm bar bore
Rims DT HX531, 30mm Internal
Grips Whyte Enduro lock-on
Tyre Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear

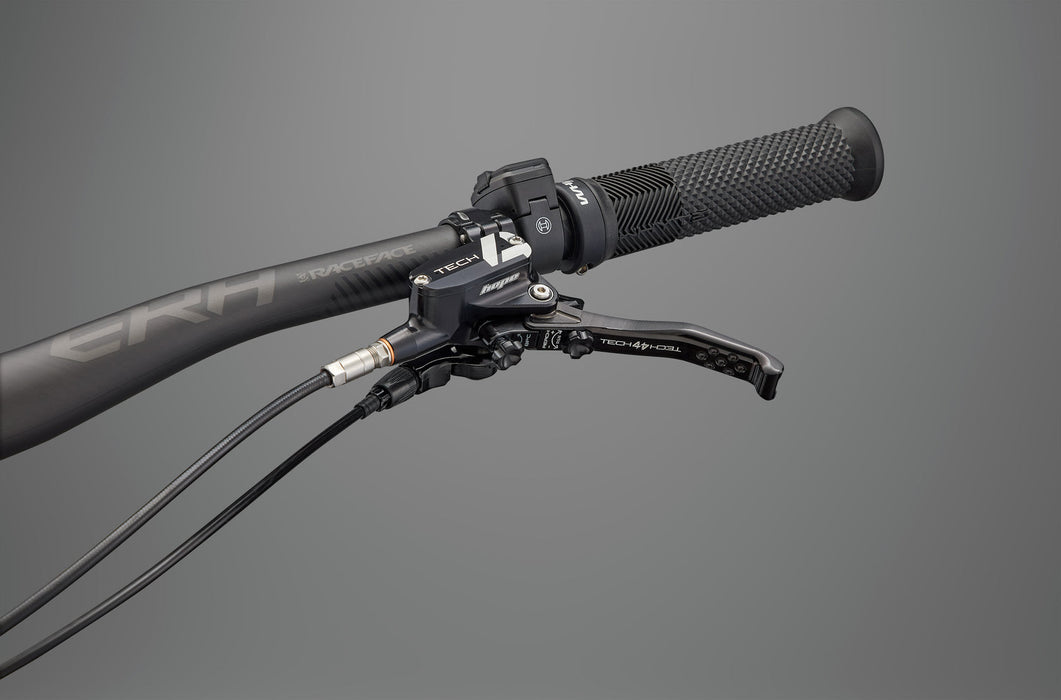

Brakes Front Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor

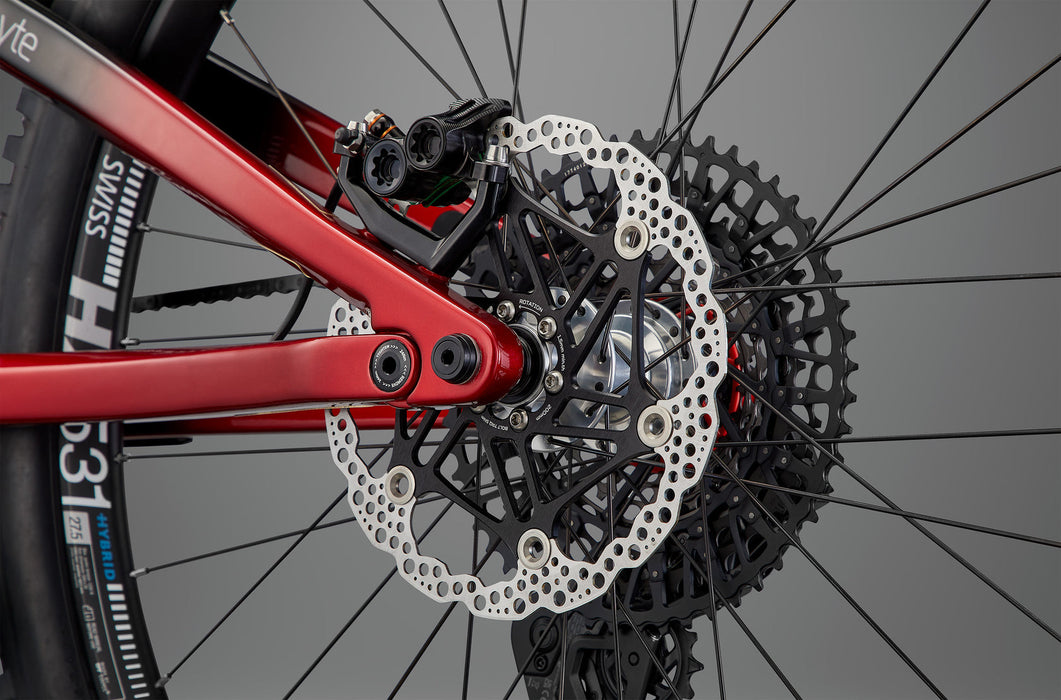

Brakes Rear Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor
Shift Levers SRAM AXS Pod, right, MMX, 12 speed
Front Mech N/A
Rear Mech SRAM XO T-Type AXS, 12 speed
Pedals Fibre reinforced composite platform
Weight 20.8kg (size M, with innertubes + without pedals or PowerMore)
E-Bike Specs
Drive Unit Bosch Performance Line CX (Smart System) Drive Unit, ready for the latest free software upgrade to unlock 100Nm torque + 750W peak power + the all-new E-MTB+ mode. Features four power mode settings including Tour+ and eMTB+.
Battery Bosch Compact PowerTube 400Wh, integrated within the downtube as the lowest point for stability and control.
Charger 4A Compact Charger (230V). Charges to 50% in 1.5hrs, and to 100% in 3.5hrs.
Range Extender Bosch PowerMore 250Wh (included).
Display Bosch System controller mounted in the top tube, paired with discrete bar-mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
