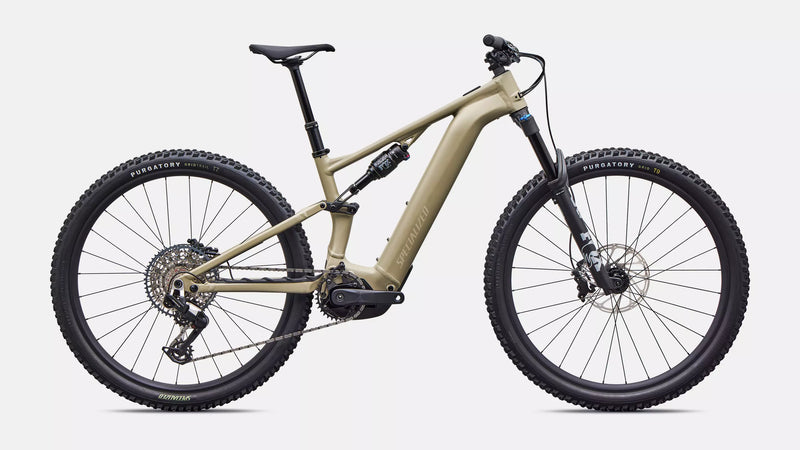

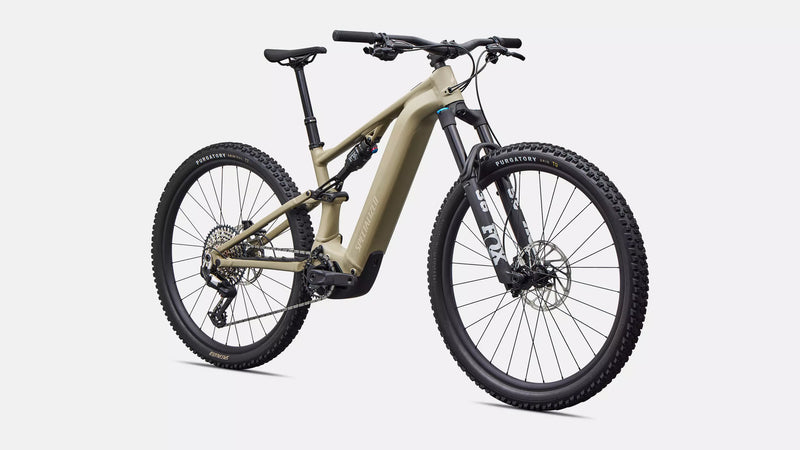

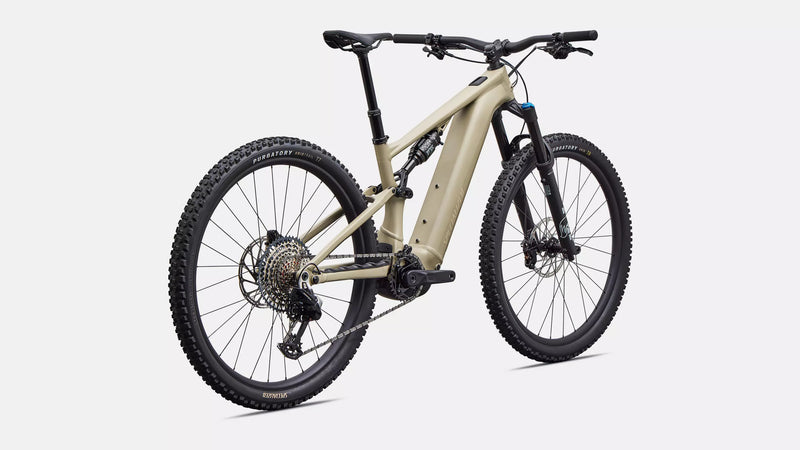

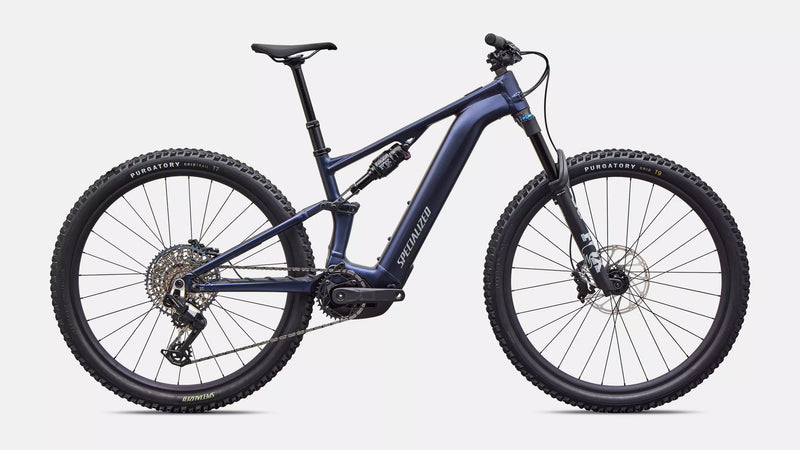

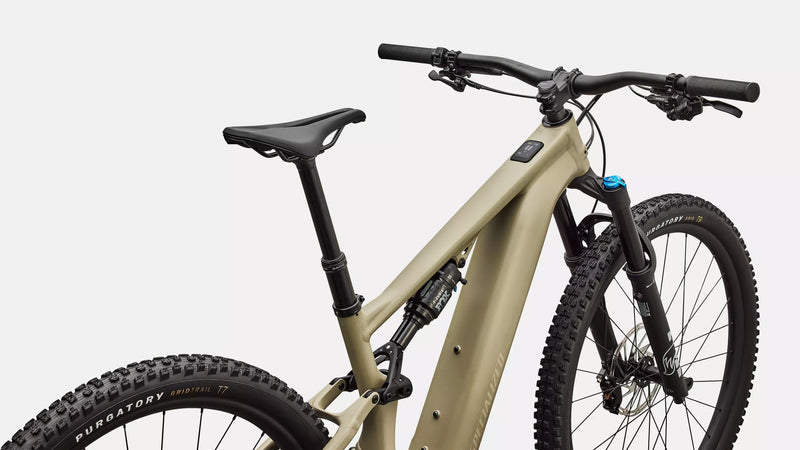

Name: Specialized Turbo Levo R Comp Alloy
Brand: SPECIALIZED
SKU: 95727-5201
Price: 10900.0 NZD
Availability: InStock

Get Ready To Rally

Levo R

Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, the Levo R e-MTB channels the SuperNatural power of Levo 4—but sheds its manners. And with complete builds up to 2 kg lighter than Levo 4, it brings an even more responsive, lively feel to every trail. Its purpose‑built chassis and XC Trail‑tuned suspension make it feel like a rally car unleashed on dirt: you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean.

At a Glance

Use- Full Power Electric XC Trail
E-System- Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
Frame- M5 Aluminum, Geo Adj & SWAT Storage
Suspension- Front: 140mm FOX 36 SL Performance GRIP<br>Rear: 130mm GENIE - FOX FLOAT Performance
Drivetrain- SRAM Eagle 90 Transmission
Wheels- Specialized Alloy Wheels

<div class="tech-specs">

<div class="spec-section">
<h4>E-bike</h4>

<div class="spec-item">
<p class="label">Battery</p>
<p class="value">840Wh battery</p>
</div>

<div class="spec-item">

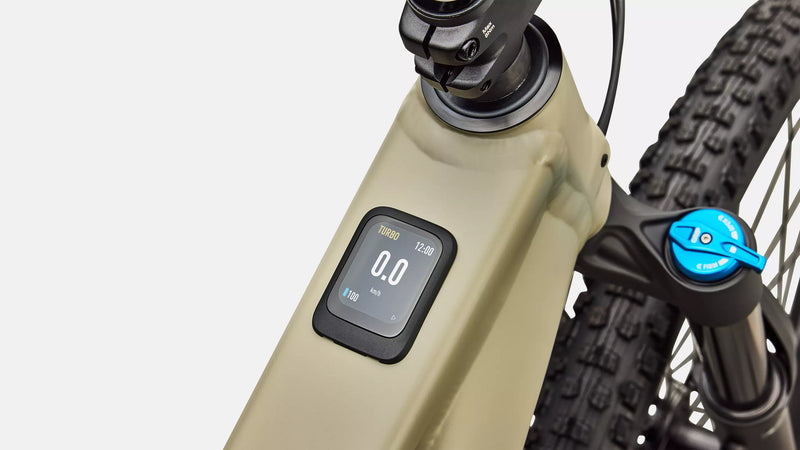

<p class="label">UI / Remote</p>
<p class="value">MasterMind TCU with 2.2" high-resolution display, fully customizable via the Specialized app, compatible with Apple Find My</p>
</div>

<div class="spec-item">

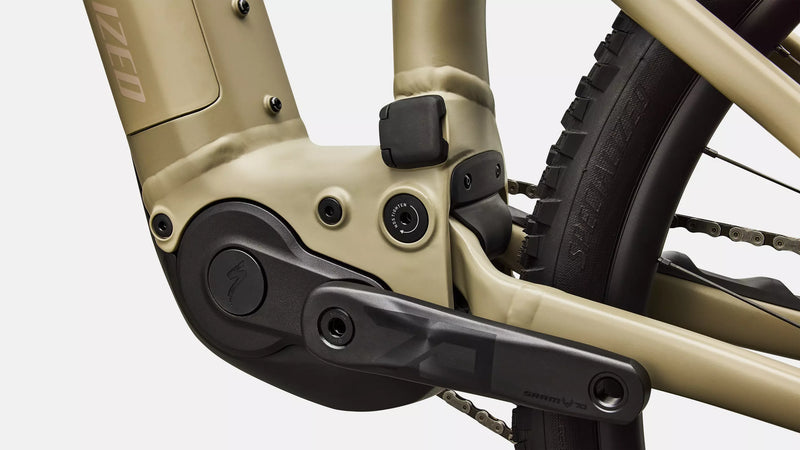

<p class="label">Motor</p>
<p class="value">Specialized 3.1 Motor, 105Nm torque, 810W power</p>
</div>

<div class="spec-item">
<p class="label">Charger</p>
<p class="value">Specialized 4A Charger</p>
</div>

</div>

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Frame</p>
<p class="value">M5 Aluminum frame with SWAT™ downtube storage, 12x148mm UDH-compatible rear dropout, side-entry battery, adjustable geometry, 130mm travel</p>
</div>

<div class="spec-item">
<p class="label">Seat Binder</p>
<p class="value">Alloy, 38.6mm</p>
</div>

</div>

<div class="spec-section">
<h4>Suspension</h4>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">FOX 36 SL Performance, GRIP damper, 140mm travel, 44mm offset, 15x110mm thru-axle</p>
</div>

<div class="spec-item">

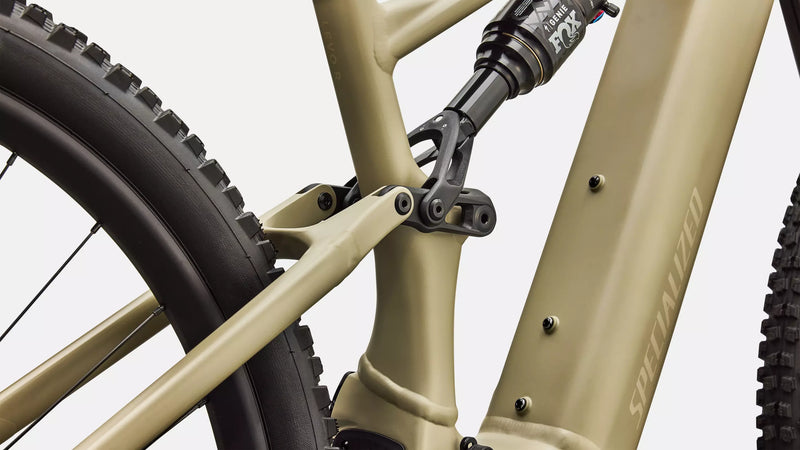

<p class="label">Rear Shock</p>

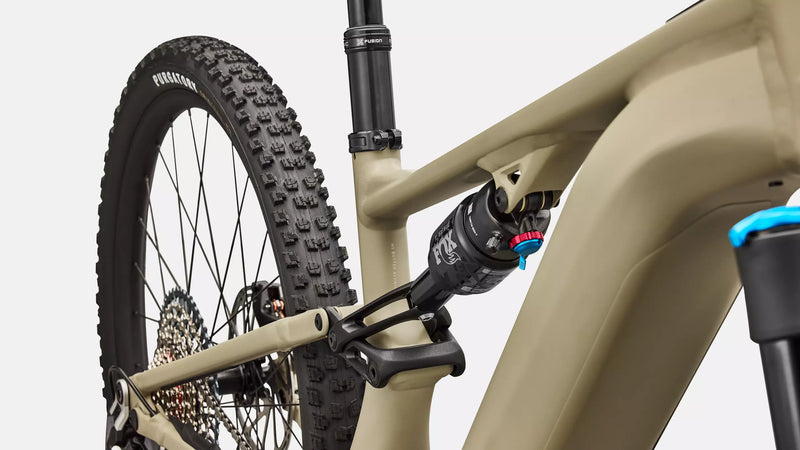

<p class="value">FOX FLOAT Performance GENIE, Ride Dynamics developed, 2-position compression adjust, 190x45mm</p>
</div>

</div>

<div class="spec-section">
<h4>Brakes</h4>

<div class="spec-item">
<p class="label">Front Brake</p>
<p class="value">SRAM Motive Bronze, 4-piston hydraulic disc, 200mm rotor</p>
</div>

<div class="spec-item">
<p class="label">Rear Brake</p>
<p class="value">SRAM Motive Bronze, 4-piston hydraulic disc, 200mm rotor</p>
</div>

</div>

<div class="spec-section">
<h4>Drivetrain</h4>

<div class="spec-item">
<p class="label">Crankset</p>
<p class="value">SRAM Eagle 70, BROSE/ISIS, 160mm, 32T</p>
</div>

<div class="spec-item">
<p class="label">Chainring</p>
<p class="value">SRAM 34T T-Type chainring, 104 BCD, steel</p>
</div>

<div class="spec-item">
<p class="label">Rear Derailleur</p>
<p class="value">SRAM Eagle 90 T-Type</p>
</div>

<div class="spec-item">
<p class="label">Shift Levers</p>
<p class="value">SRAM Eagle 90T, single click, with MMX</p>
</div>

<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">SRAM GX Transmission XS-1275, 10-52T</p>
</div>

<div class="spec-item">
<p class="label">Chain</p>
<p class="value">SRAM 70 Transmission 12-speed Flattop Chain</p>
</div>

</div>

<div class="spec-section">
<h4>Wheels & Tyres</h4>

<div class="spec-item">
<p class="label">Rims</p>
<p class="value">Specialized hookless alloy rims, 30mm internal width, tubeless ready</p>
</div>

<div class="spec-item">
<p class="label">Front Hub</p>
<p class="value">Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32H</p>
</div>

<div class="spec-item">
<p class="label">Rear Hub</p>
<p class="value">Specialized alloy rear hub, sealed cartridge bearings, 6-bolt, 12x148mm thru-axle, 32H, XD steel freehub</p>
</div>

<div class="spec-item">
<p class="label">Spokes</p>
<p class="value">DT Swiss Elemental</p>
</div>

<div class="spec-item">
<p class="label">Front Tyre</p>
<p class="value">Specialized Trail Control, GRID casing, T9 compound, tubeless ready, 29x2.4</p>
</div>

<div class="spec-item">
<p class="label">Rear Tyre</p>
<p class="value">Specialized Purgatory, GRID Trail casing, T7 compound, tubeless ready, 29x2.4 (S1: 27.5x2.4)</p>
</div>

<div class="spec-item">
<p class="label">Inner Tubes</p>
<p class="value">Standard, Presta valve</p>
</div>

</div>

<div class="spec-section">
<h4>Cockpit</h4>

<div class="spec-item">

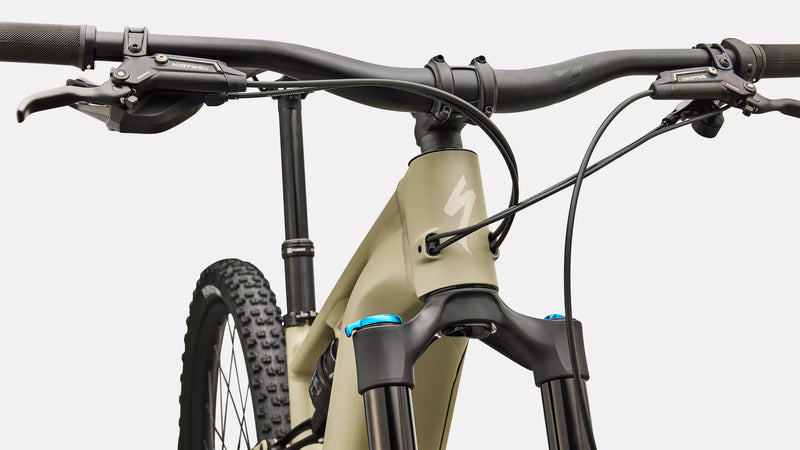

<p class="label">Handlebars</p>
<p class="value">Specialized alloy, 35mm clamp, 800mm width, 30mm/40mm rise</p>
</div>

<div class="spec-item">
<p class="label">Stem</p>
<p class="value">Alloy Trail Stem, 35mm bar bore</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">X-Fusion Manic, 34.9mm, 0mm offset, travel: S1-S2 125mm, S3 150mm, S4 170mm, S5-S6 190mm</p>
</div>

<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">Body Geometry Power Comp, steel rails</p>
</div>

<div class="spec-item">
<p class="label">Grips</p>
<p class="value">Specialized Trail Grips</p>
</div>

</div>

<div class="spec-section">
<h4>Accessories</h4>

<div class="spec-item">
<p class="label">SWAT</p>
<p class="value">SWAT™ internal downtube storage</p>
</div>

</div>

<div class="spec-section">
<h4>Product Details</h4>

<div class="spec-item">
<p class="label">Compliance Certification</p>
<p class="value">Certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS where applicable.</p>
</div>

</div>

<div class="spec-section">
<h4>Weight</h4>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">24.24 kg (53 lb, 7.0 oz)</p>
</div>

<div class="spec-item">
<p class="label">Weight Size</p>
<p class="value">S3</p>
</div>

</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col">Measurement</th>
<th>S1 - 27.5</th>
<th>S2 - 29</th>
<th>S3 - 29</th>
<th>S4 - 29</th>
<th>S5 - 29</th>
<th>S6 - 29</th>
</tr>
</thead>
<tbody>

<tr>
<td class="sticky-col">Crank Length (mm)</td>
<td>160</td>
<td>160</td>
<td>160</td>
<td>160</td>
<td>160</td>
<td>160</td>
</tr>

<tr>
<td class="sticky-col">Handlebar Width (mm)</td>
<td>800</td>
<td>800</td>
<td>800</td>
<td>800</td>
<td>800</td>
<td>800</td>
</tr>

<tr>
<td class="sticky-col">Stem Length (mm)</td>
<td>50</td>
<td>50</td>
<td>50</td>
<td>50</td>
<td>50</td>
<td>50</td>
</tr>

<tr>
<td class="sticky-col">Saddle Width (mm)</td>
<td>155</td>
<td>155</td>
<td>143</td>
<td>143</td>
<td>143</td>
<td>143</td>
</tr>

<tr>
<td class="sticky-col">Seatpost Length (mm)</td>
<td>125</td>
<td>125</td>
<td>150</td>
<td>170</td>
<td>200</td>
<td>200</td>
</tr>

<tr>
<td class="sticky-col">Stack (mm)</td>
<td>602</td>
<td>607</td>
<td>616</td>
<td>630</td>
<td>644</td>
<td>657</td>
</tr>

<tr>
<td class="sticky-col">Reach (mm)</td>
<td>400</td>
<td>420</td>
<td>450</td>
<td>475</td>
<td>500</td>
<td>525</td>
</tr>

<tr>
<td class="sticky-col">Head Tube Length (mm)</td>
<td>95</td>
<td>100</td>
<td>110</td>
<td>125</td>
<td>140</td>
<td>155</td>
</tr>

<tr>
<td class="sticky-col">Head Tube Angle (°)</td>
<td>64.8</td>
<td>65</td>
<td>65</td>
<td>65</td>
<td>65</td>
<td>65</td>
</tr>

<tr>
<td class="sticky-col">BB Height (Low) (mm)</td>
<td>339</td>
<td>339</td>
<td>339</td>
<td>339</td>
<td>339</td>
<td>339</td>
</tr>

<tr>
<td class="sticky-col">BB Drop (mm)</td>
<td>36</td>
<td>36</td>
<td>36</td>
<td>36</td>
<td>36</td>
<td>36</td>
</tr>

<tr>
<td class="sticky-col">Trail (mm)</td>
<td>128</td>
<td>126</td>
<td>126</td>
<td>126</td>
<td>126</td>
<td>126</td>
</tr>

<tr>
<td class="sticky-col">Fork Length, Full (mm)</td>
<td>550</td>
<td>550</td>
<td>550</td>
<td>550</td>
<td>550</td>
<td>550</td>
</tr>

<tr>
<td class="sticky-col">Fork Rake / Offset (mm)</td>
<td>44</td>
<td>44</td>
<td>44</td>
<td>44</td>
<td>44</td>
<td>44</td>
</tr>

<tr>
<td class="sticky-col">Front Center (mm)</td>
<td>716</td>
<td>736</td>
<td>770</td>
<td>801</td>
<td>833</td>
<td>863</td>
</tr>

<tr>
<td class="sticky-col">Chainstay Length (mm)</td>
<td>447</td>
<td>447</td>
<td>447</td>
<td>447</td>
<td>447</td>
<td>447</td>
</tr>

<tr>
<td class="sticky-col">Wheelbase (mm)</td>
<td>1160</td>
<td>1181</td>
<td>1215</td>
<td>1246</td>
<td>1277</td>
<td>1309</td>
</tr>

<tr>
<td class="sticky-col">Top Tube Length, Horizontal (mm)</td>
<td>539</td>
<td>560</td>
<td>592</td>
<td>620</td>
<td>649</td>
<td>677</td>
</tr>

<tr>
<td class="sticky-col">Bike Stand-Over Height (mm)</td>
<td>761</td>
<td>763</td>
<td>773</td>
<td>783</td>
<td>793</td>
<td>803</td>
</tr>

<tr>
<td class="sticky-col">Seat Tube Length (mm)</td>
<td>375</td>
<td>385</td>
<td>405</td>
<td>425</td>
<td>445</td>
<td>465</td>
</tr>

<tr>
<td class="sticky-col">Seat Tube Angle (°)</td>
<td>77</td>
<td>77</td>
<td>77</td>
<td>77</td>
<td>77</td>
<td>77</td>
</tr>

<tr>
<td class="sticky-col">Seatpost Max Insertion (mm)</td>
<td>292</td>
<td>312</td>
<td>210</td>
<td>227</td>
<td>249</td>
<td>271</td>
</tr>

<tr>
<td class="sticky-col">Seatpost Min Insertion (mm)</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
</tr>

<tr>
<td class="sticky-col">Saddle Height for Effective ST Angle (mm)</td>
<td>645</td>
<td>690</td>
<td>735</td>
<td>780</td>
<td>825</td>
<td>870</td>
</tr>

</tbody>
</table>
</div>
</div>
