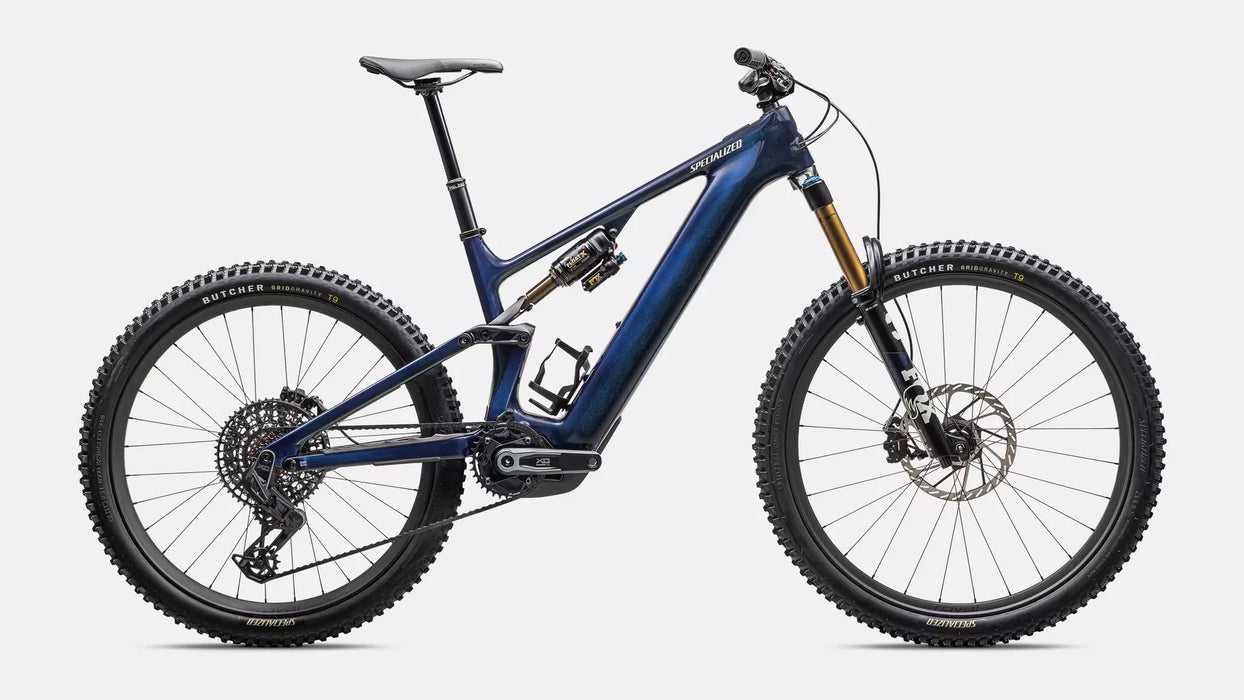

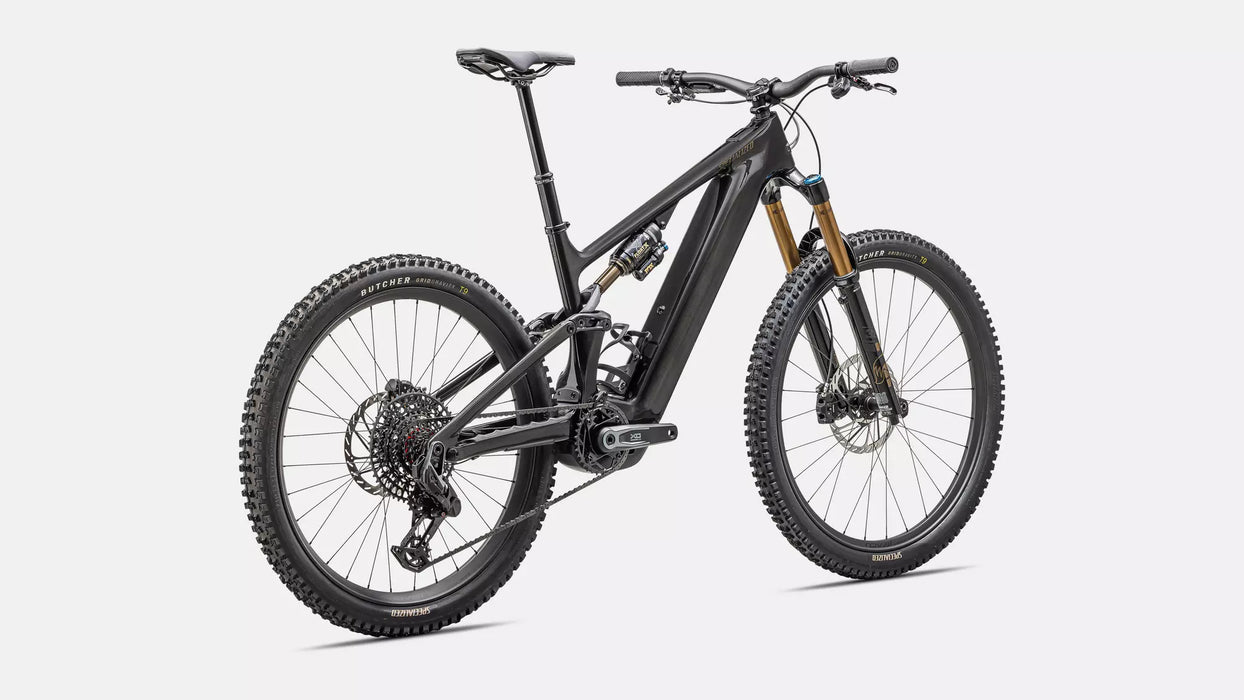

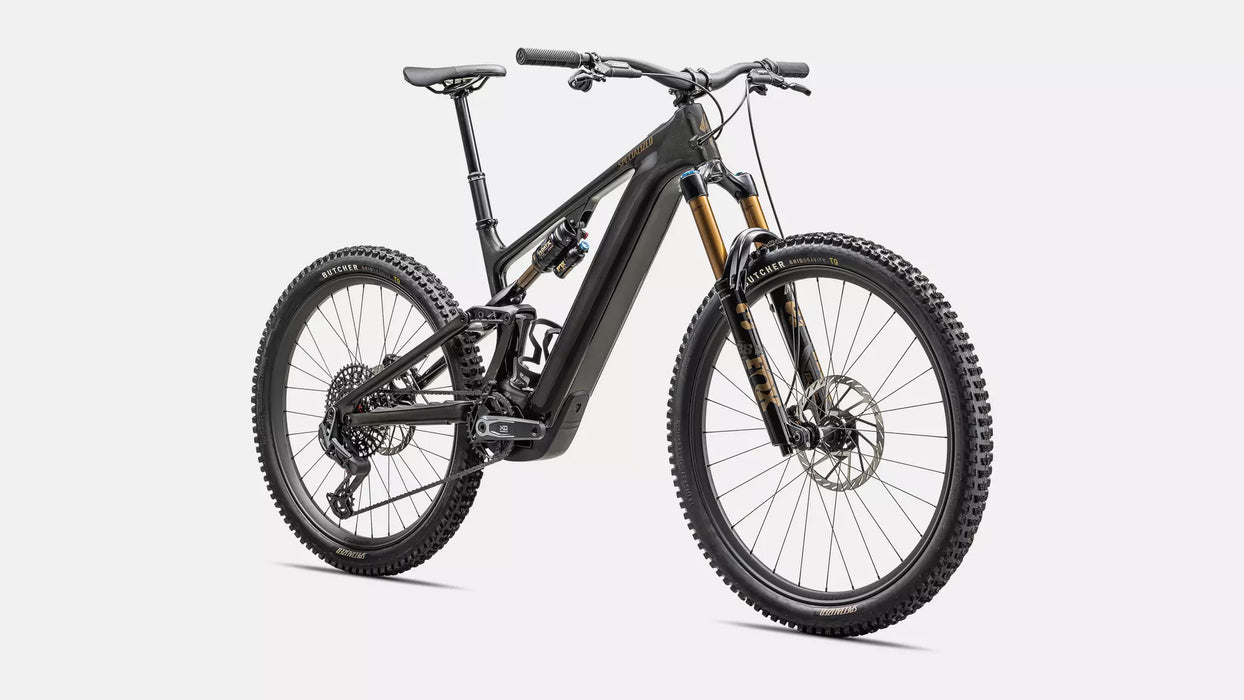

Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
At a Glance
Use
Full Power E-MTB Trail
E-System

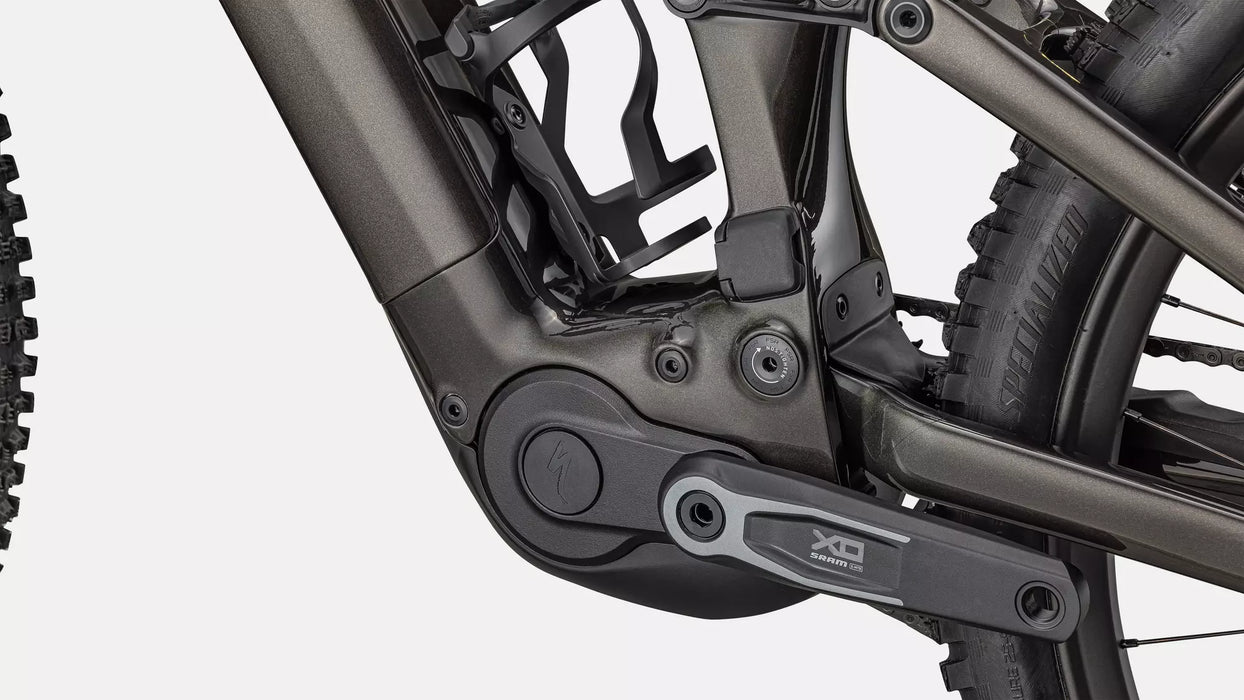

Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to 5.33 hour range
Frame
FACT 11m Carbon, Geo Adj & SWAT Storage
Suspension
Front: 160mm FOX 38 FACTORY GRIPX2

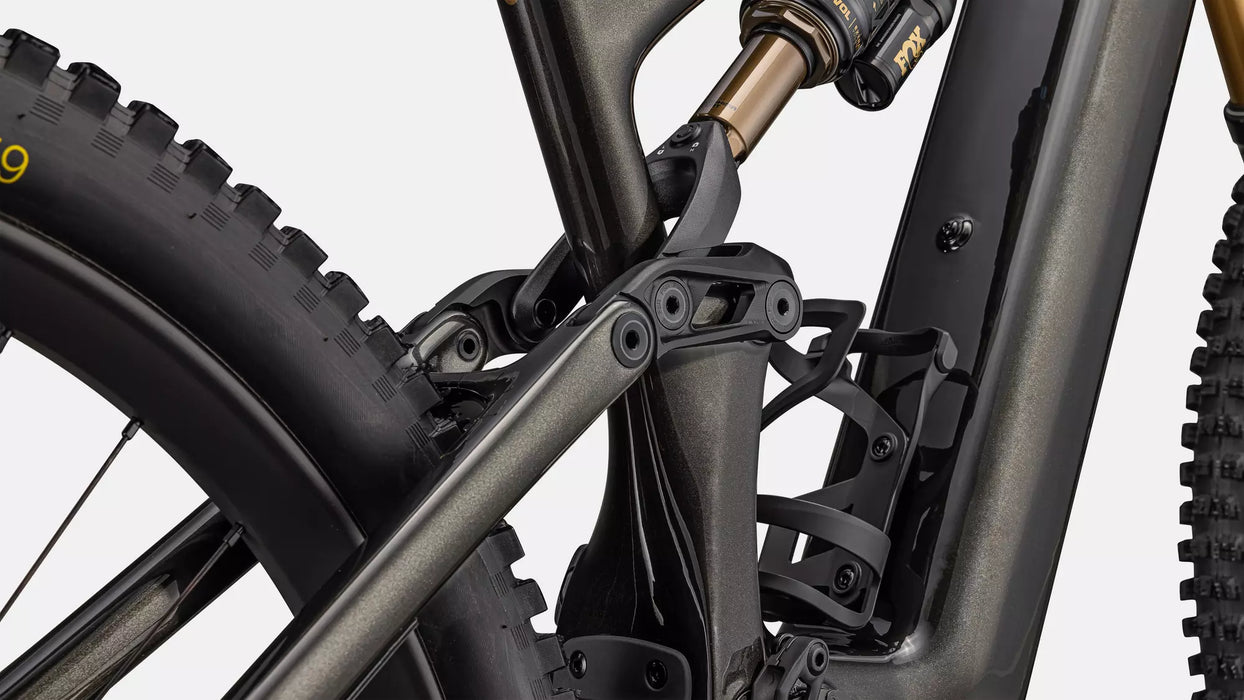

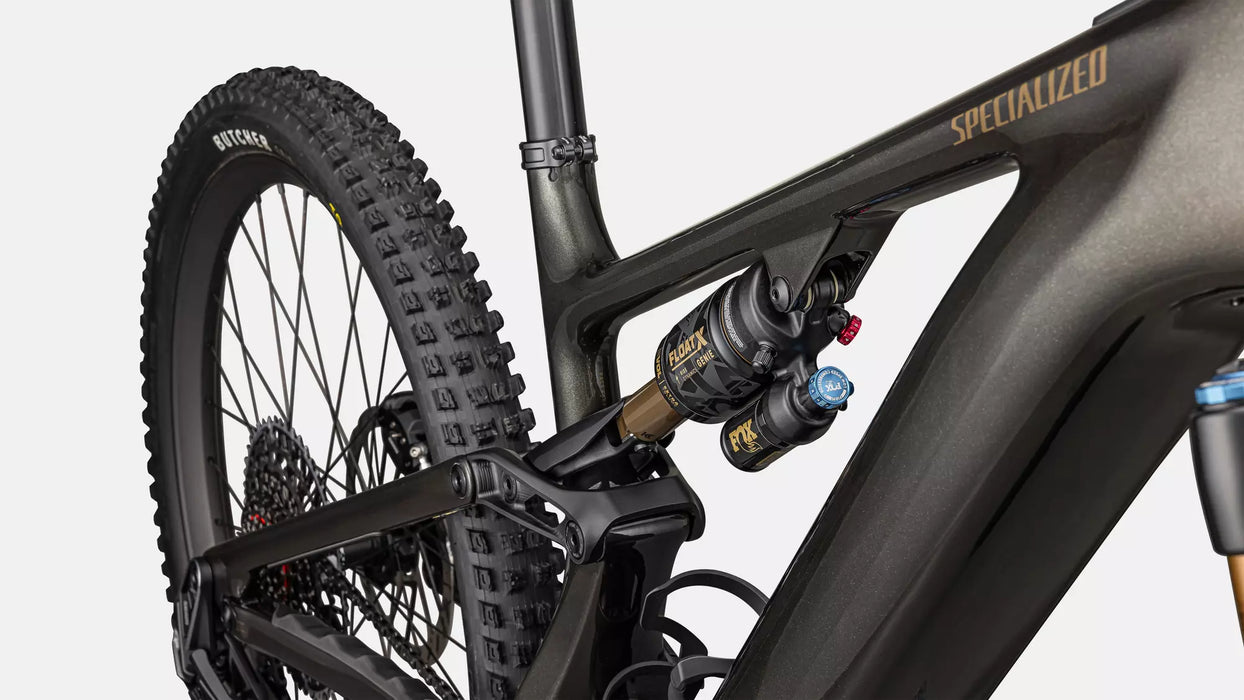

Rear: 150mm GENIE - FOX FLOAT X FactoryDrivetrain
SRAM XO Eagle T-Type AXS
Wheels
Roval Traverse HD Carbon / DT 350

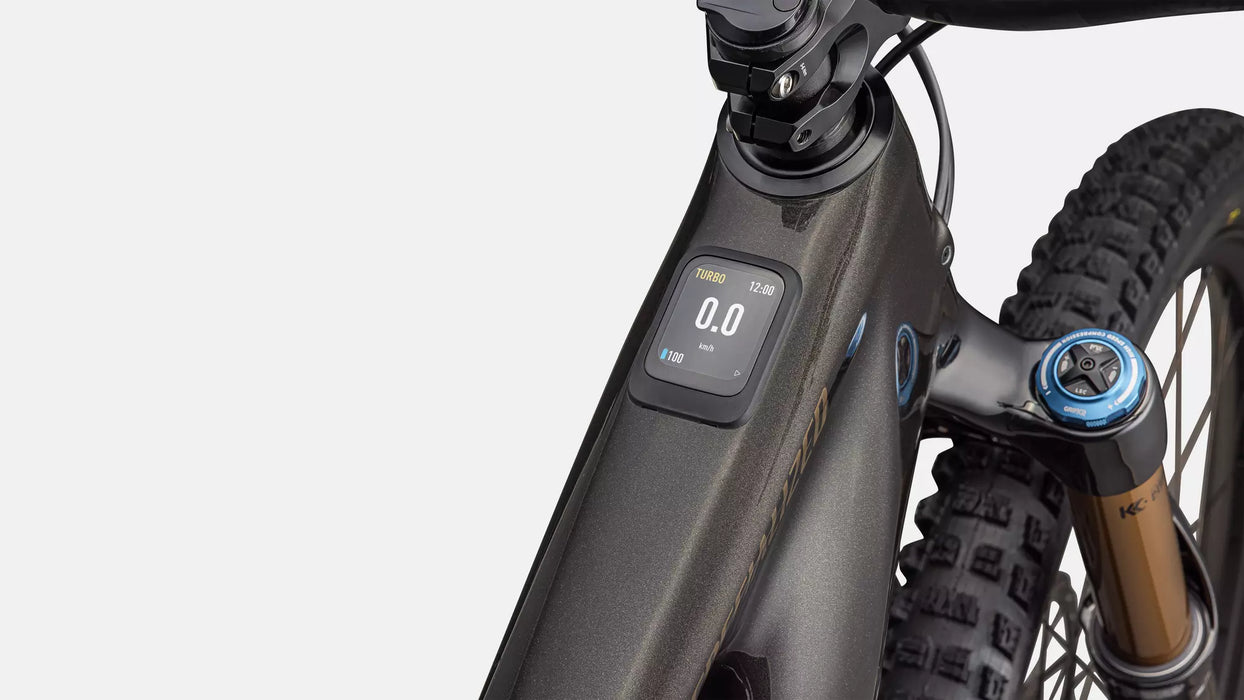

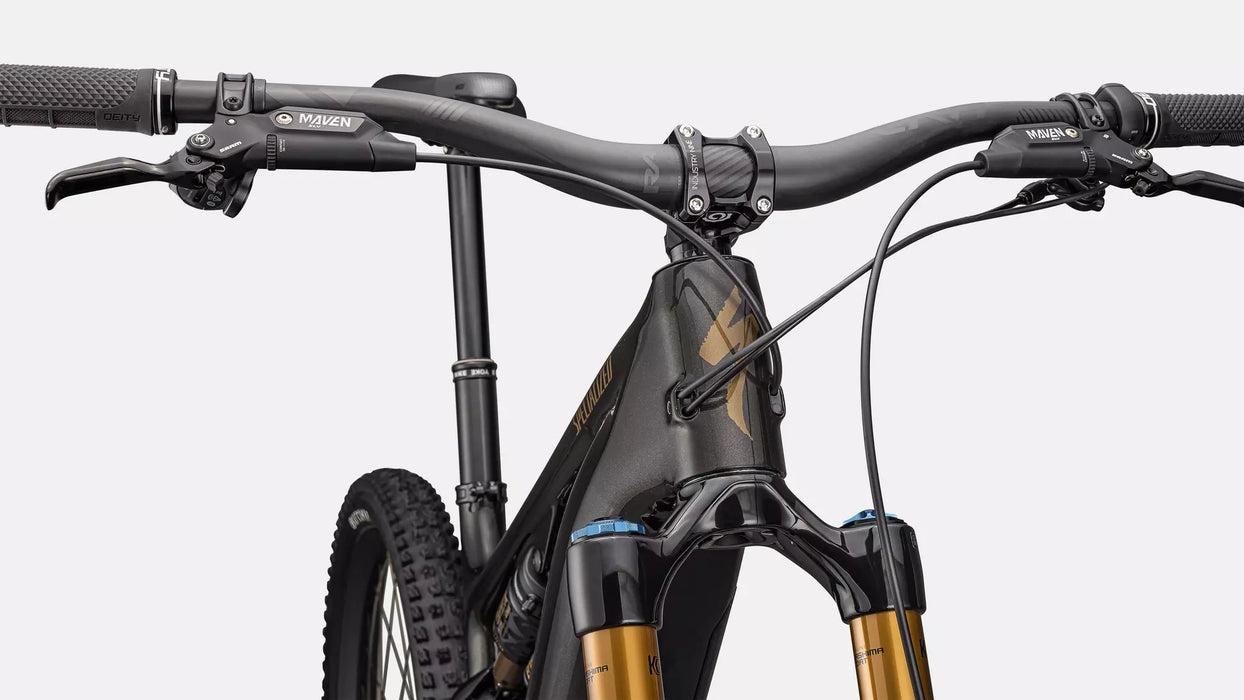

E-Bike MOTOR All New Specialized 3.1 Motor, 101Nm torque, 666W power UI/REMOTE All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app BATTERY 840wh battery CHARGER Specialized 4amp charger Suspension REAR SHOCK FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment FORK FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel Frameset FRAME All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm SEAT BINDER Alloy, 38.6mm Cockpit SEATPOST Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm STEM Industry 9 Mountain stem, 35mm clamp, 40mm length SADDLE Bridge Mimic Expert, Hollow Ti rails HANDLEBARS RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm GRIPS Deity Lockjaw grips Brakes FRONT BRAKE SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor REAR BRAKE SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor Drivetrain SHIFT LEVERS SRAM AXS POD Controller CASSETTE SRAM XO 1295, 12 speed, 10-52 REAR DERAILLEUR SRAM X0 Eagle Transmission CRANKSET SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm CHAIN SRAM X0 CHAINRINGS SRAM 34T T-Type chainring, 104 BCD, steel Wheels & Tires FRONT WHEEL Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h REAR WHEEL Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h FRONT TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" REAR TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3" INNER TUBES Standard, Presta Valve Accessories SWAT SWAT internal downtube storage PRODUCT DETAILS Product ID 218702 COMPLIANCE CERTIFICATION As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteriesWeight WEIGHT 23.94kg (52 lb, 12.5 oz) WEIGHT SIZE S4 * Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
* Specifications are subject to change without notice
S2 S3 S4 S5 S6 Crank Length 155 155 155 155 155 Handlebar Width 800 800 800 800 800 Stem Length 40 40 40 40 40 Saddle Width 155 143 143 143 143 Seatpost Length 125 160 185 213 213 Stack 618 626 638 652 667 Reach 435 455 480 505 535 Headtube Length 95 103 117 132 149 Headtube Angle 64.5 64.5 64.5 64.5 64.5 BB Height 350 350 350 350 350 BB Drop 29.5 29.5 29.5 29.5 29.5 Trail 132 132 132 132 132 Fork Length (full) 577 577 577 577 577 Fork Rake/Offset 44 44 44 44 44 Front Center 765 789 820 851 888 Chainstay Length 435 435 435 435 435 Wheelbase 1200 1223 1254 1286 1323 Top-tube Length (horizontal) 578 599 627 655 689 Bike Standover Height 753 754 753 758 761 Seat Tube Length 390 405 425 445 465 Seat Tube Angle 77 77 77 77 77 Saddle Height for Effective ST Angle 690 735 780 825 870 Max Seatpost Insertion 274 289 313 337 357 Min Seatpost Insertion 80 80 80 80 80 All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.
The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.
Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
