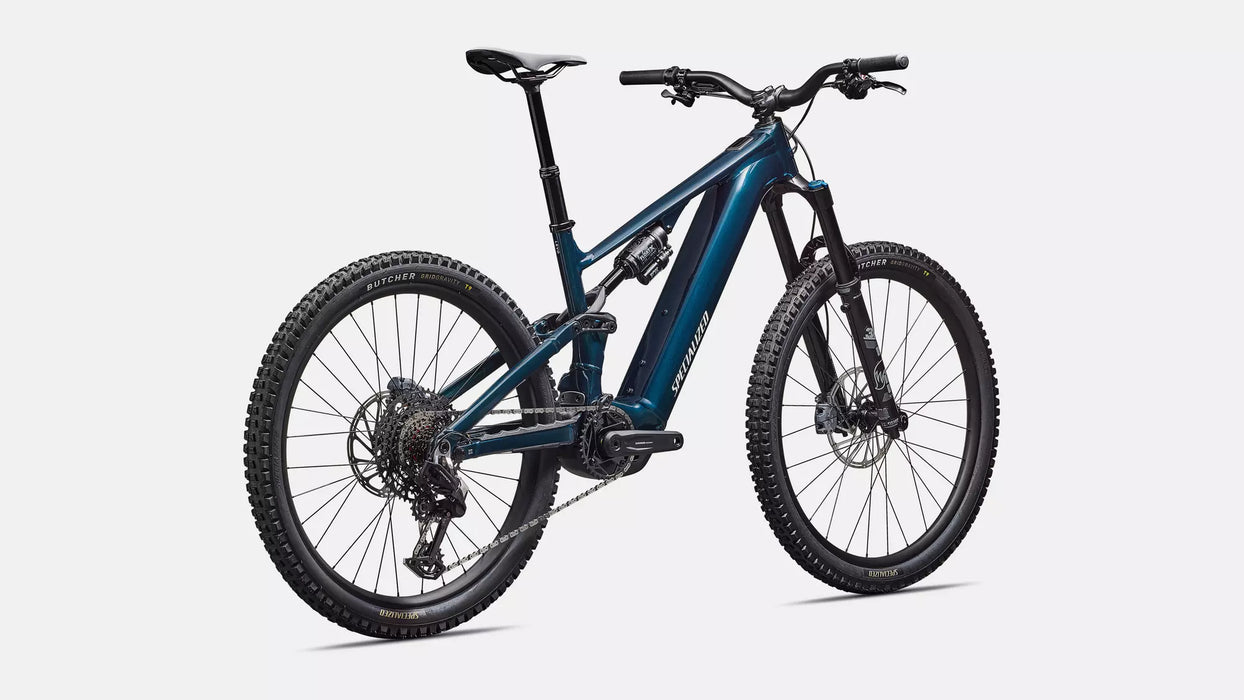

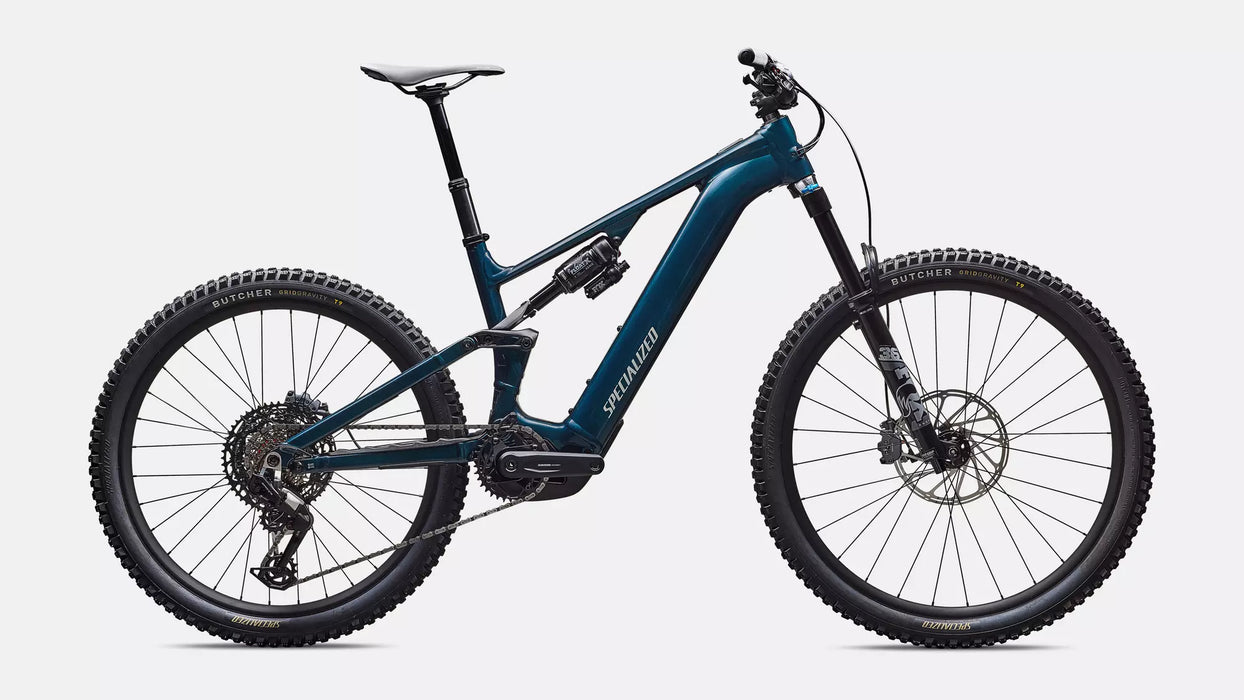

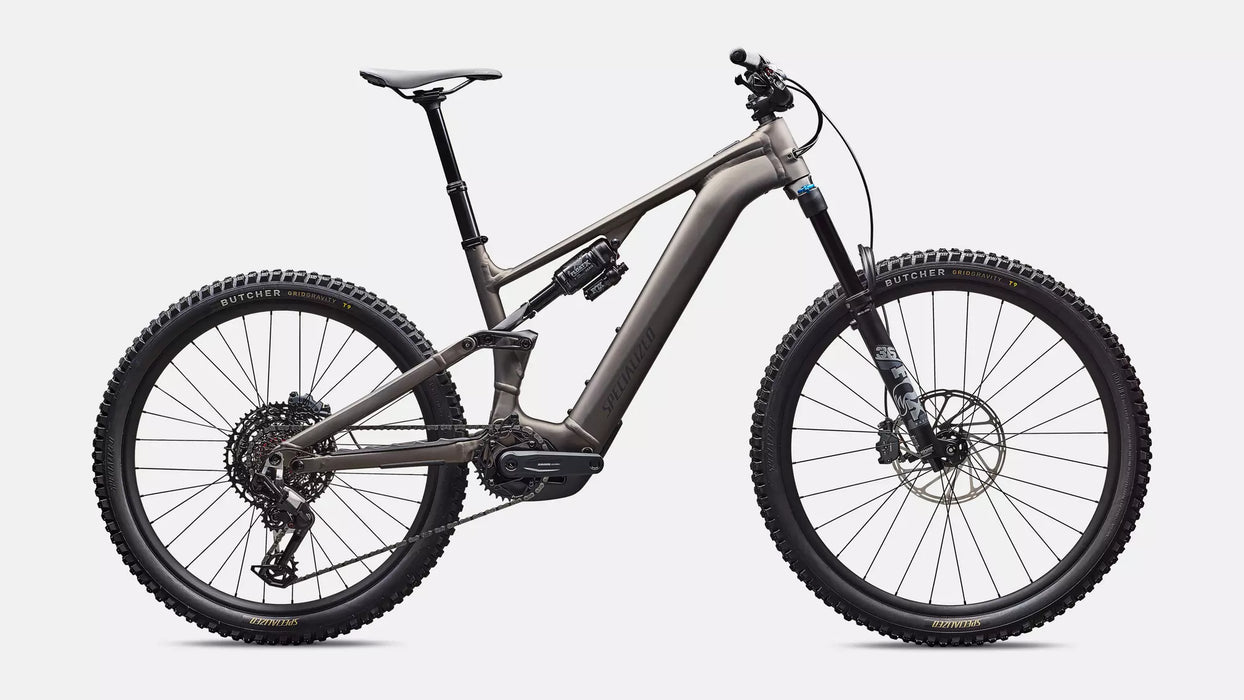

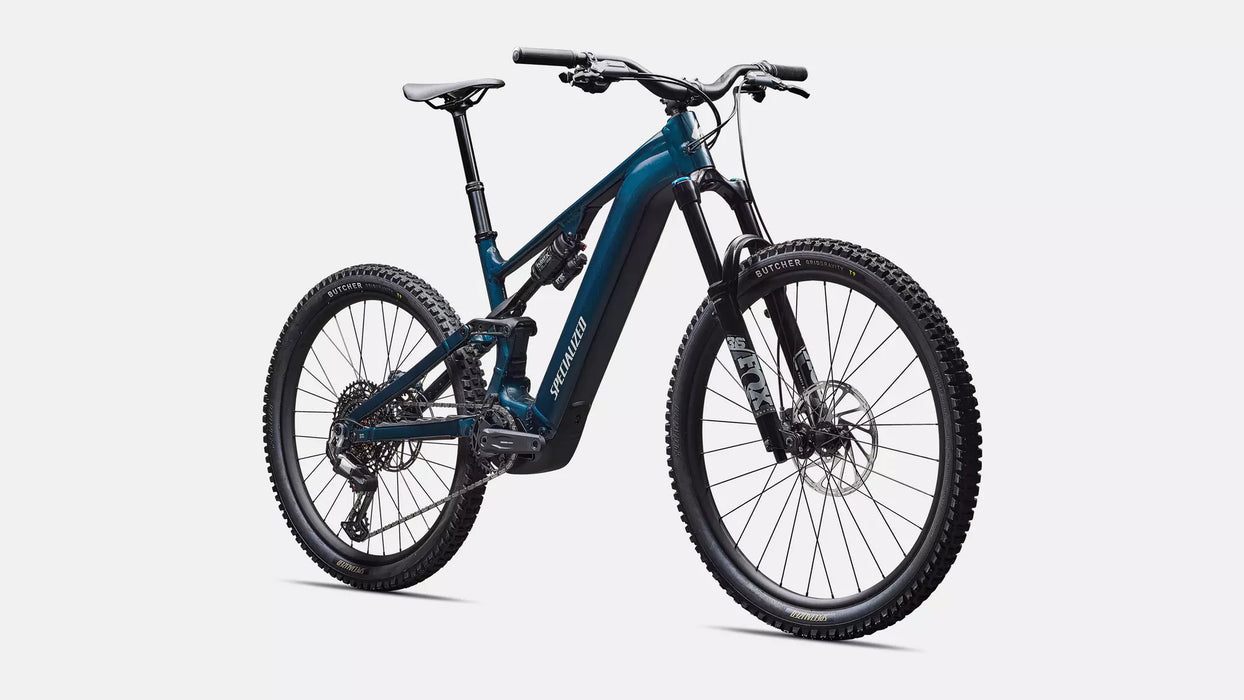

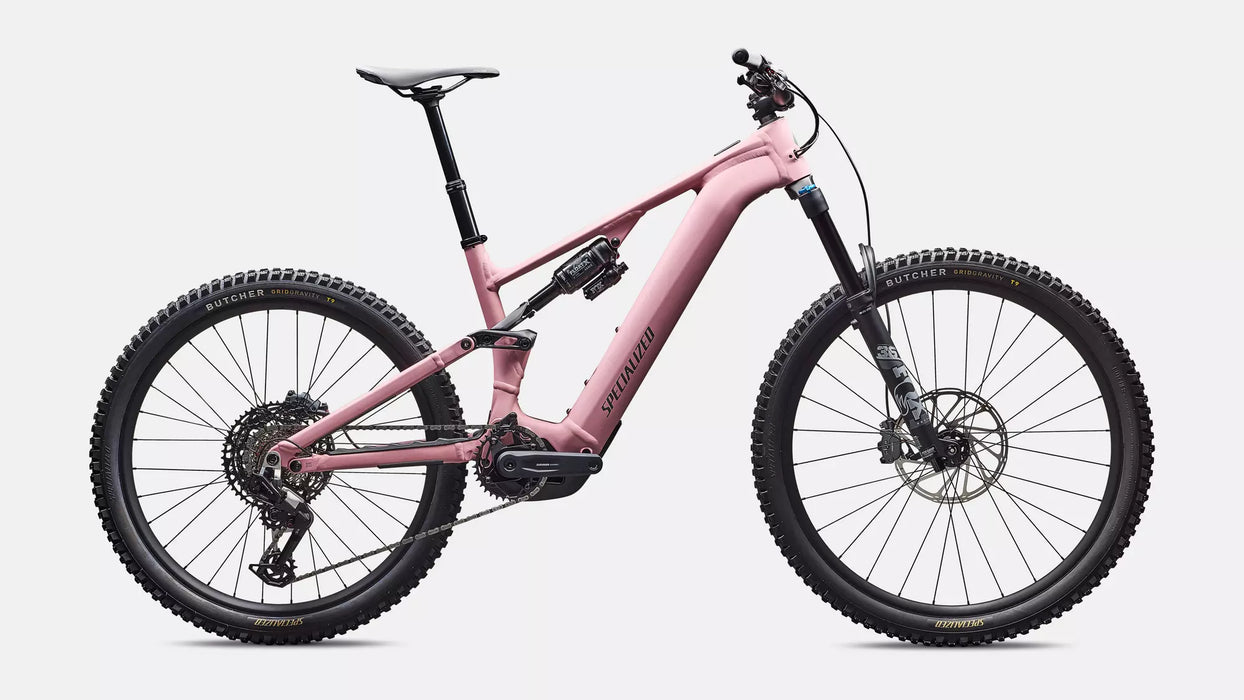

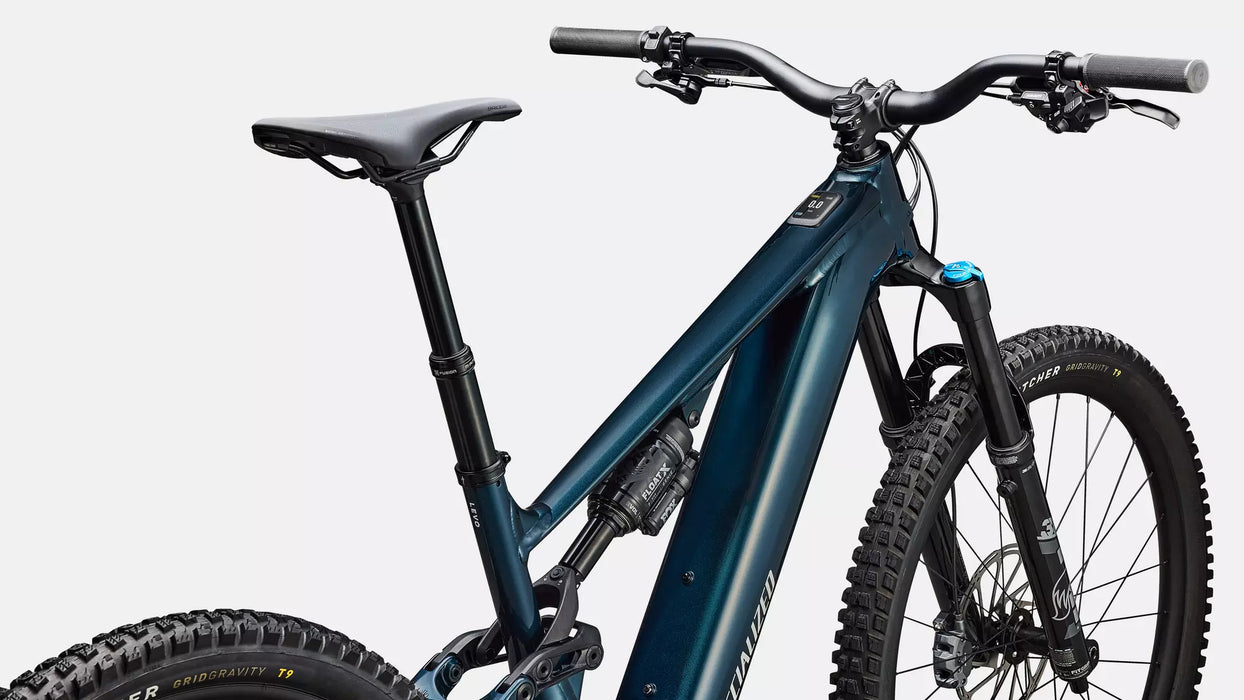

Name: Specialized Turbo Levo 4 Comp Alloy
Brand: SPECIALIZED
SKU: 95226-5001
Price: 11900.0 NZD
Availability: InStock

❯ ❯ ❯ DESCRIPTION

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

At a Glance

Use

Full Power E-MTB Trail

E-System

Specialized 3.1 Motor w/ 666 Watts & 101Nm, 840Wh Battery, up to 5.33 hour range

Frame

Premium M5 Alloy, Geo Adj & SWAT Storage

Suspension

Front: 160mm FOX FLOAT 36 Rhythm GRIP

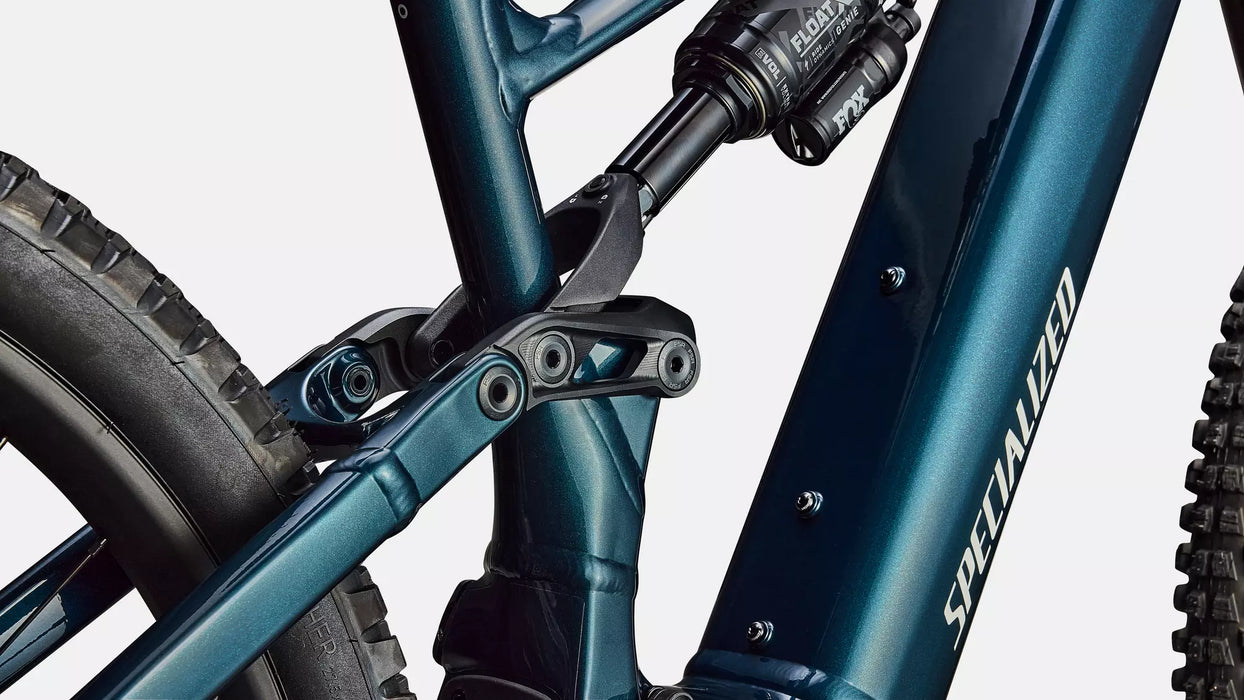

Rear: 150mm GENIE - FOX FLOAT X Performance

Drivetrain

SRAM 90 Eagle T-Type Mechanical

Wheels

Specialized Alloy Rims / Bear Pawls hubs

❯ ❯ ❯ SPECIFICATIONS

Frameset
FRAME	All new Levo 4 M5 Alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
SEAT BINDER	Alloy, 38.6mm
E-Bike

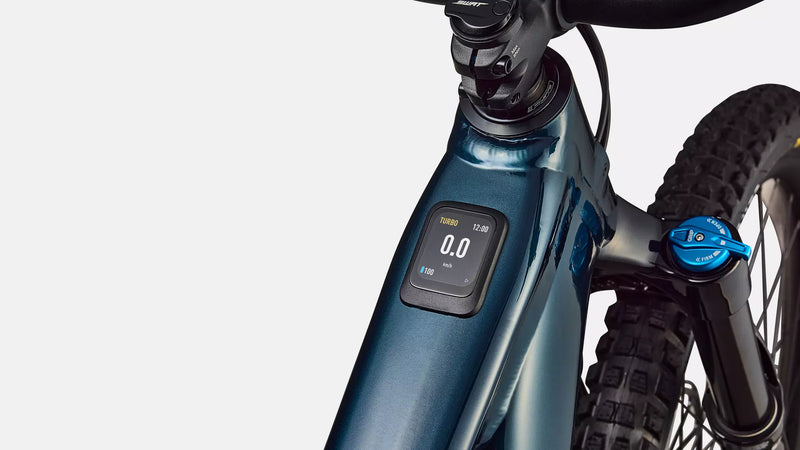

UI/REMOTE	All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

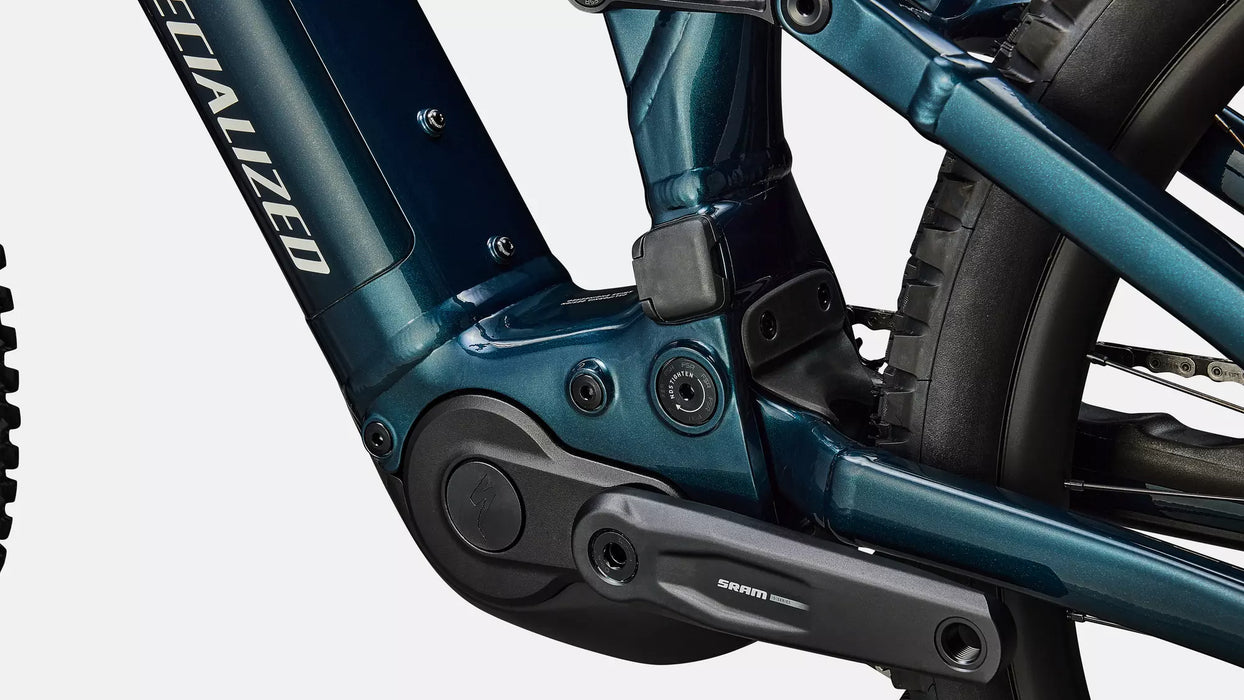

MOTOR	All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
CHARGER	Specialized 4amp charger
BATTERY	840Wh battery
Suspension

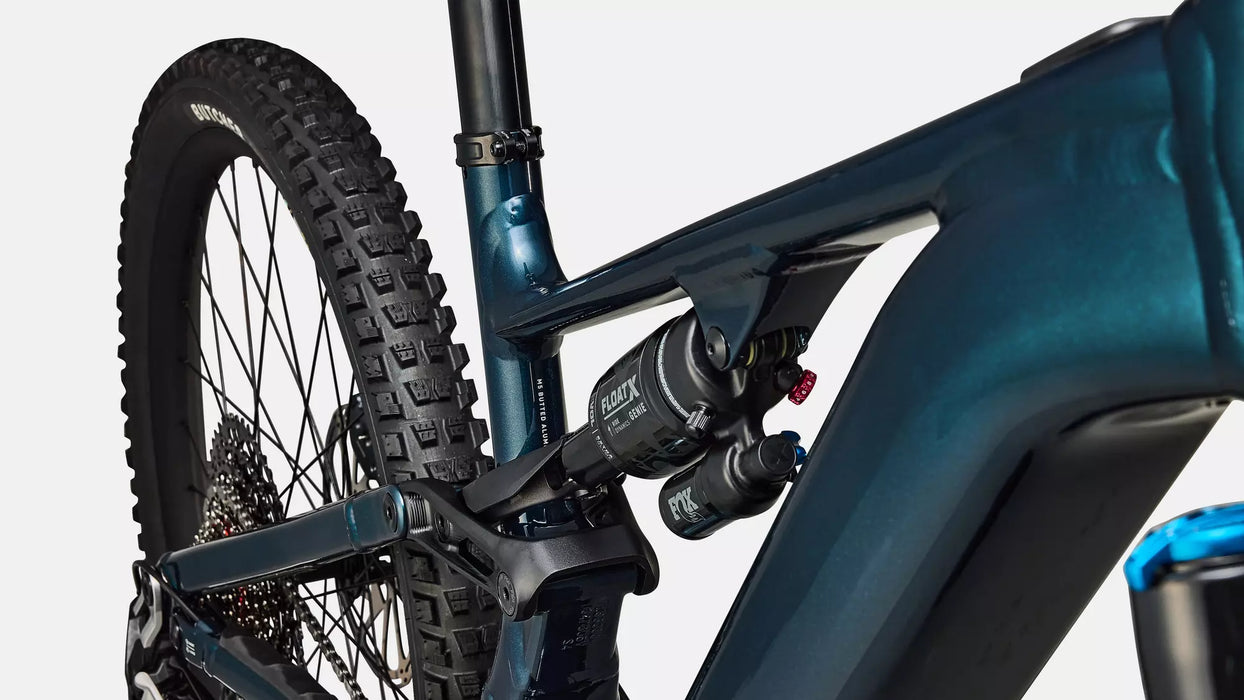

REAR SHOCK	S2-S6: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm, S1: FOX FLOAT Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment 210x55mm
FORK	FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle
Cockpit
SEATPOST	X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm
STEM	Alloy Trail Stem, 35mm bar bore
SADDLE	Bridge Comp, Hollow Cr-mo rails 155/143
GRIPS	Specialized Trail Grips

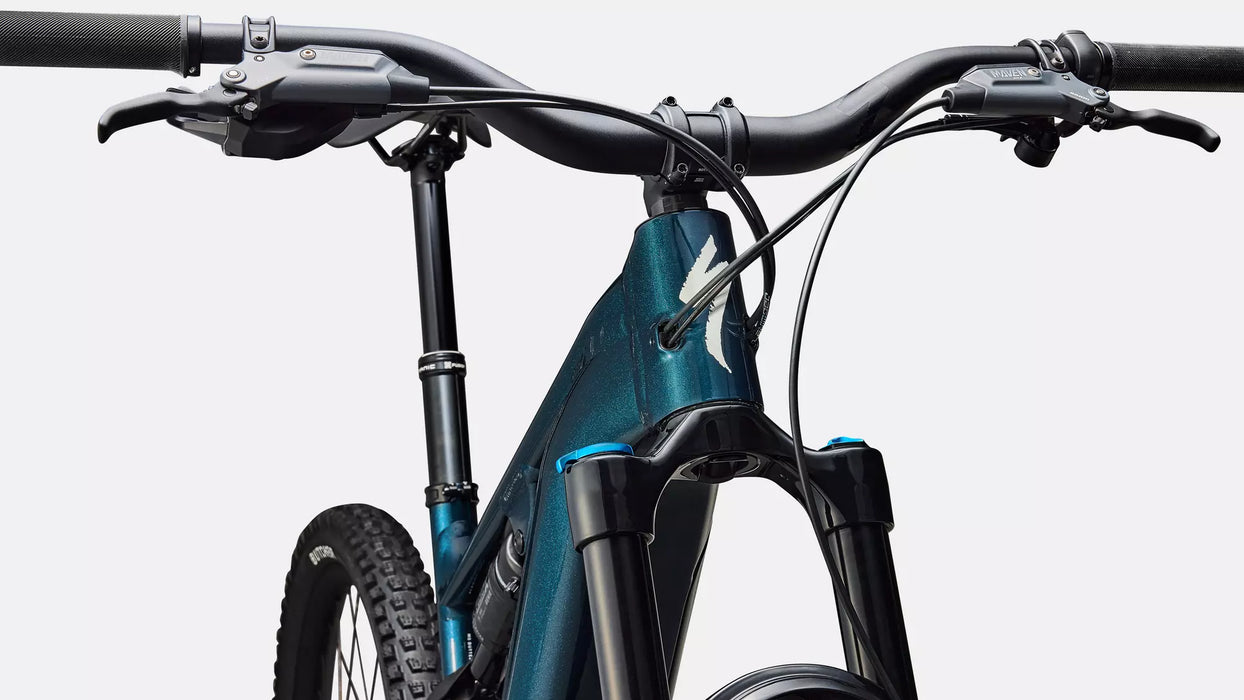

HANDLEBARS	Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm width and 30mm rise, S3-S6 800mm width and 50mm rise
Brakes
FRONT BRAKE	SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
REAR BRAKE	SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
SHIFT LEVERS	SRAM 90 trigger, 12-speed, single click
REAR DERAILLEUR	SRAM Eagle 90 T-Type
CASSETTE	SRAM 1270 Transmission Cassette, 12 Spd,10-52t
CHAIN	SRAM 70 Transmission Chain
CRANKSET	SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
CHAINRINGS	SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
RIMS	Specialized, hookless alloy, 30mm inner width, tubeless ready
FRONT HUB	Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
REAR HUB	Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
SPOKES	DT Swiss Industry
FRONT TIRE	Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
REAR TIRE	Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
INNER TUBES	Standard, Presta valve
Accessories
SWAT	SWAT internal downtube storage
Product Details
PRODUCT ID	221343
COMPLIANCE CERTIFICATION	As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
WEIGHT	25.70 kg (56 lb, 11.2 oz)
WEIGHT SIZE	S4

*Specifications are subject to change without notice

❯ ❯ ❯ GEOMETRY

	S1	S2	S3	S4	S5	S6
Crank Length	155	155	155	155	155	155
Handlebar Width	780	780	800	800	800	800
Stem Length	40	40	40	40	40	40
Saddle Width	155	155	143	143	143	143
Seatpost Length	100	125	150	170	190	190
Stack	609	618	626	638	652	667
Reach	407	435	455	480	505	535
Headtube Length	94	95	103	117	132	149
Headtube Angle	64	64.5	64.5	64.5	64.5	64.5
BB Height	355	350	350	350	350	350
BB Drop	24.13	29.5	29.5	29.5	29.5	29.5
Trail	132	132	137	132	132	132
Fork Length (full)	577	577	577	577	577	577
Fork Rake/Offset	44	44	44	44	44	44
Front Center	744	765	789	820	851	888
Chainstay Length	435	435	435	435	435	435
Wheelbase	1179	1200	1223	1254	1286	1323
Top-tube Length (horizontal)	556	578	599	627	655	689
Bike Standover Height	753	753	754	753	758	761
Seat Tube Length	379	390	405	425	445	465
Seat Tube Angle	76	77	77	77	77	77
Saddle Height for Effective ST Angle	645	690	735	780	825	870
Max Seatpost Insertion	264	274	289	313	337	357
Min Seatpost Insertion	80	80	80	80	80	80

❯ ❯ ❯ BUYING A BIKE

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
