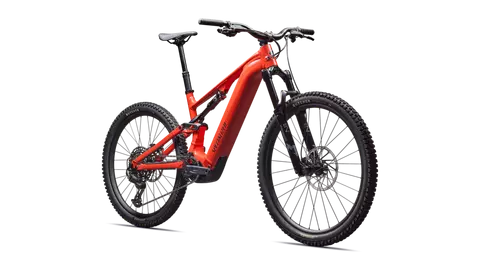

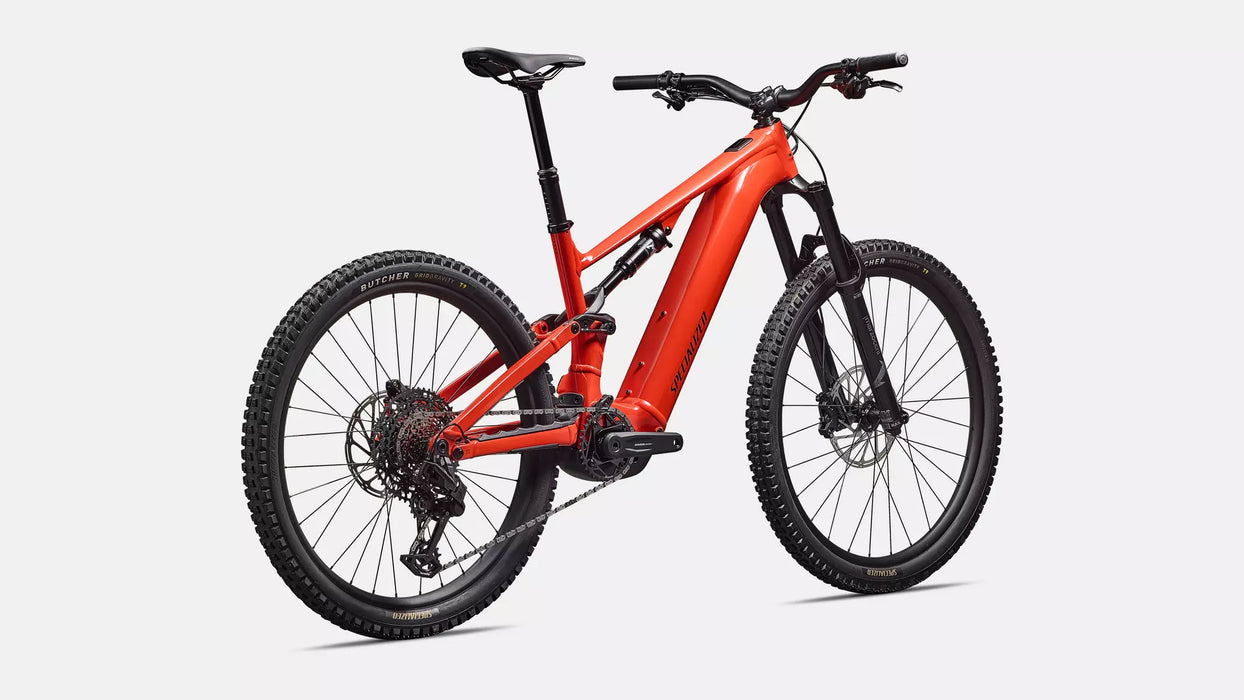

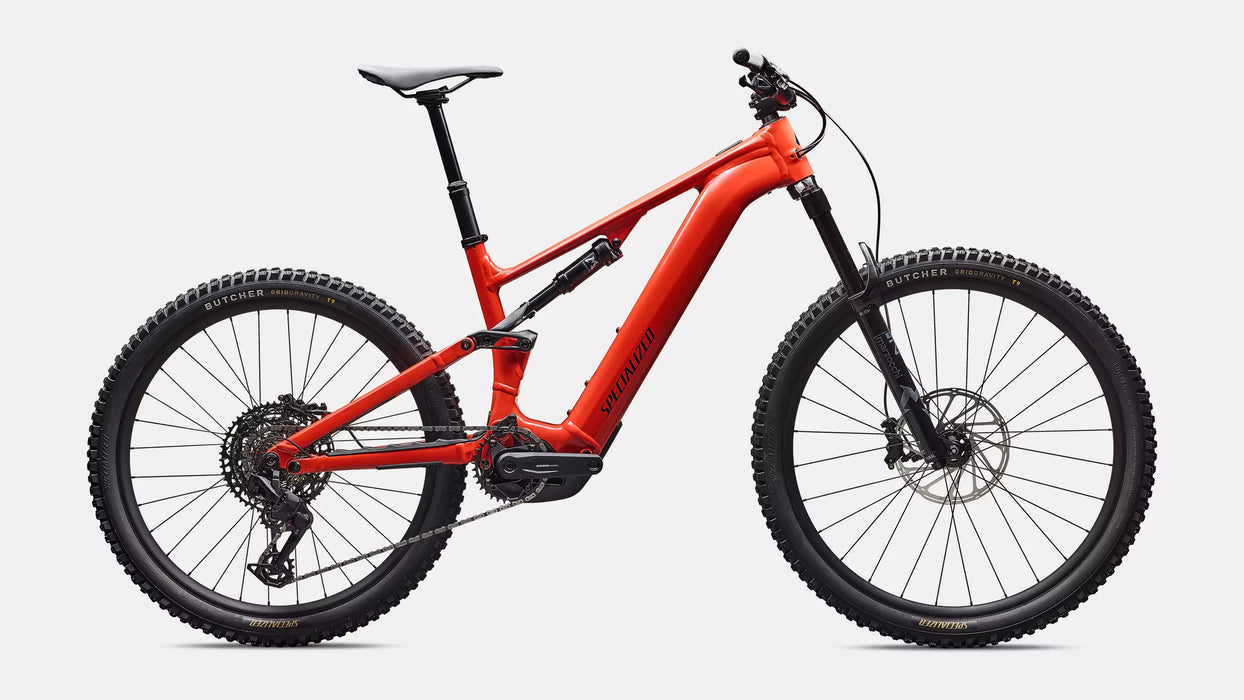

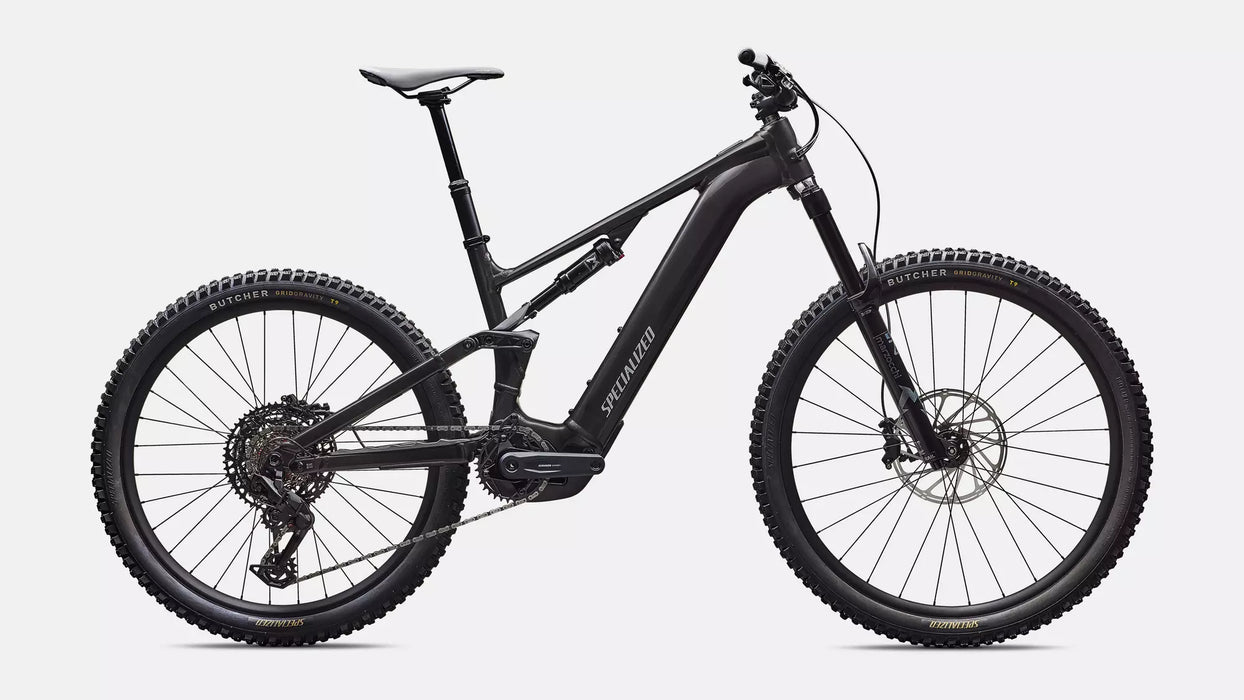

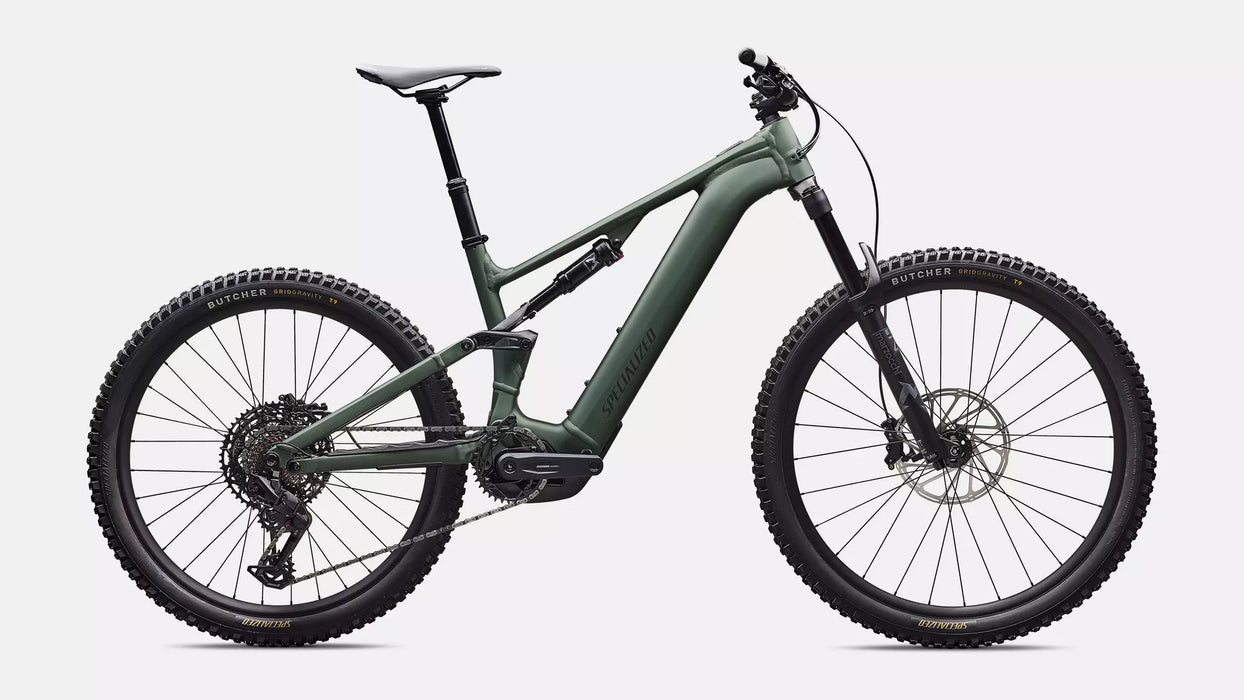

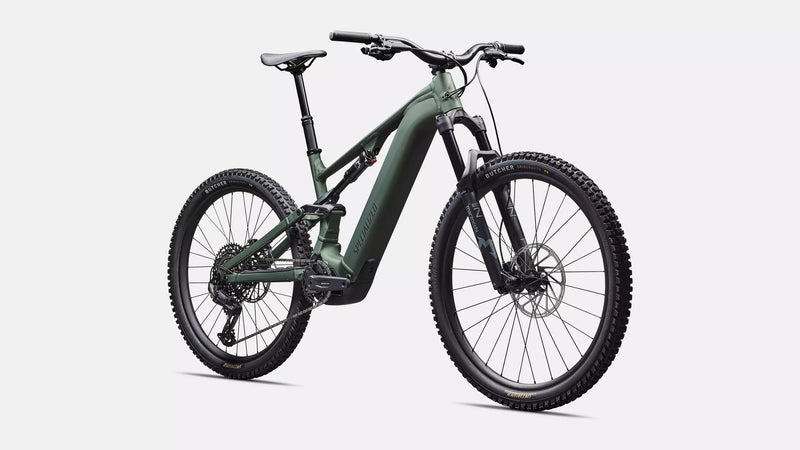

Specialized Turbo Levo 4 Alloy

Specialized Turbo Levo 4 Alloy

SKU 95226-7001
$0.00 - $0.00
$9,900.00
$9,900.00 - $9,900.00
$9,900.00
Colour: Gloss Deep Orange / Deep Lake
Size: S1
Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.


At a Glance

Use

Full Power E-MTB Trail

E-System

Specialized 3.1 Motor w/ 666 Watts & 101Nm, 840Wh Battery, up to 5.33 hour range

Frame

Premium M5 Alloy, Geo Adj & SWAT Storage

Suspension

Front: 160mm Marzocchi Bomber Z1
Rear: 150mm Marzocchi Bomber Inline (shock subject to upgrade)

Drivetrain

SRAM 70 Eagle T-Type Mechanical

Wheels

Specialized Alloy Rims / Bear Pawls hubs

Frameset
FRAME All new Levo 4 M5 Alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
SEAT BINDER Alloy, 38.6mm
E-Bike

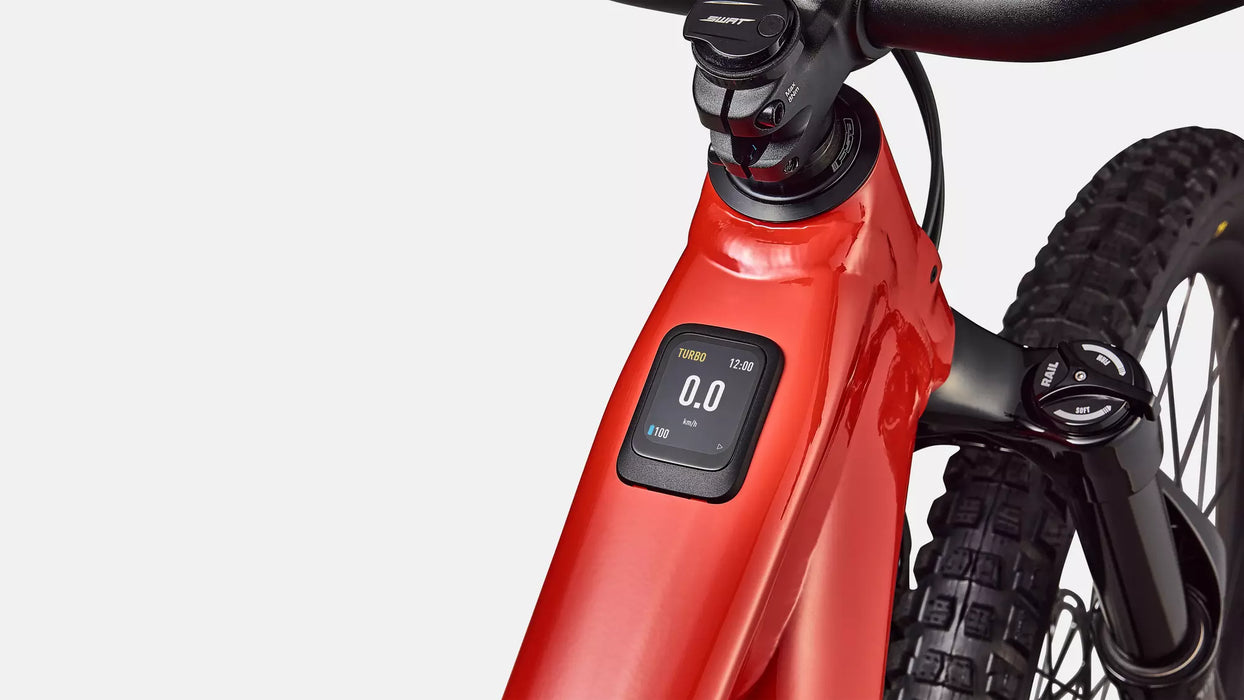

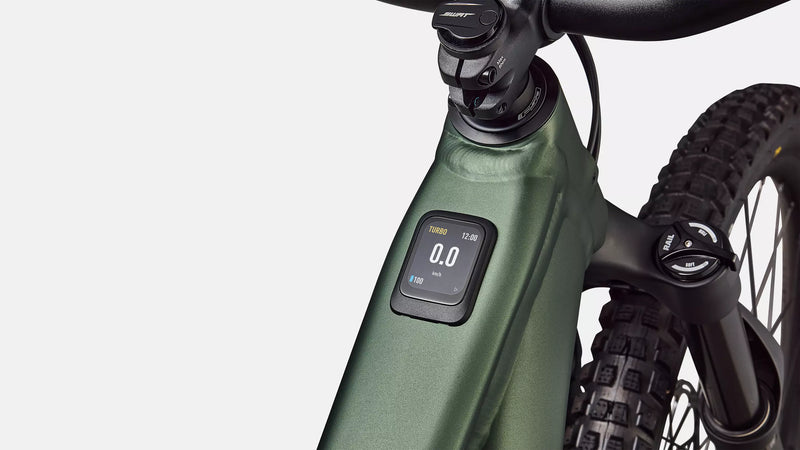

UI/REMOTE All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

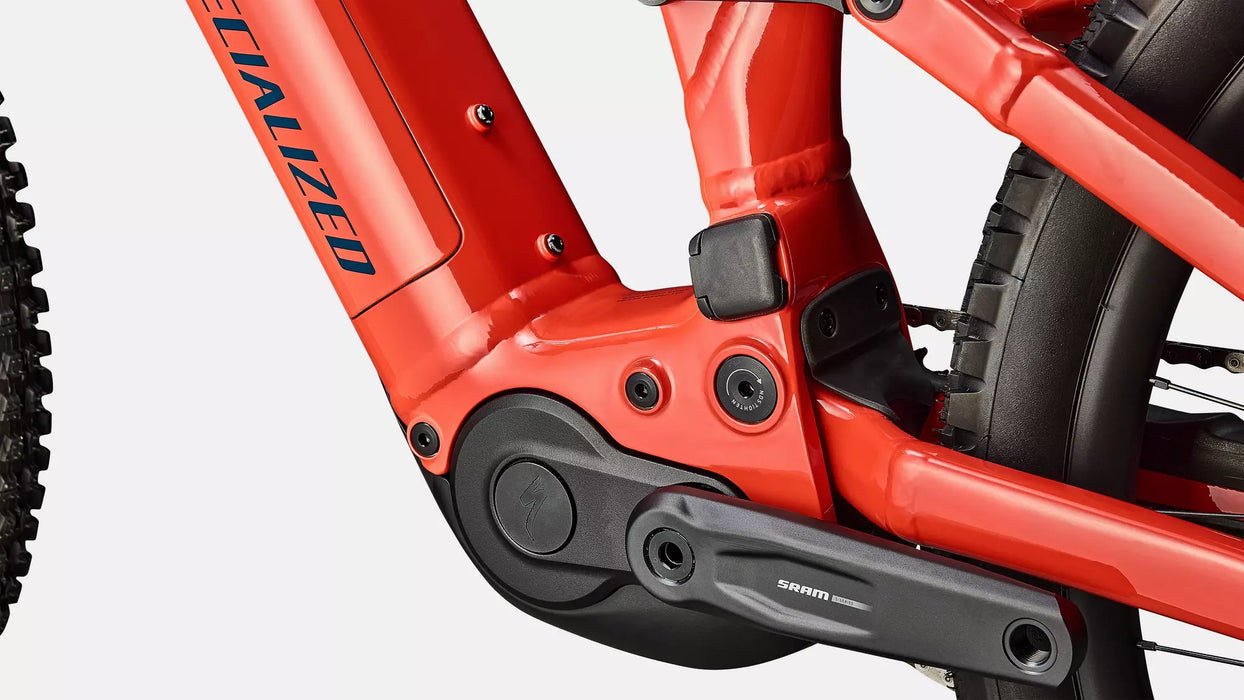

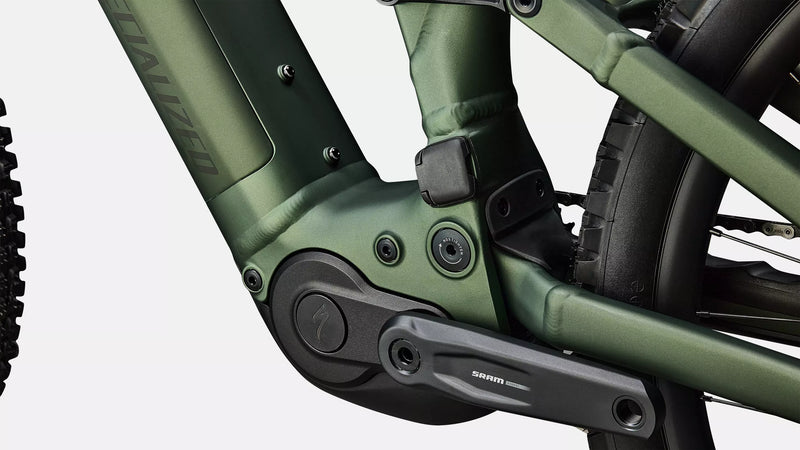

MOTOR All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
CHARGER Specialized 4amp charger
BATTERY 840Wh battery
Suspension

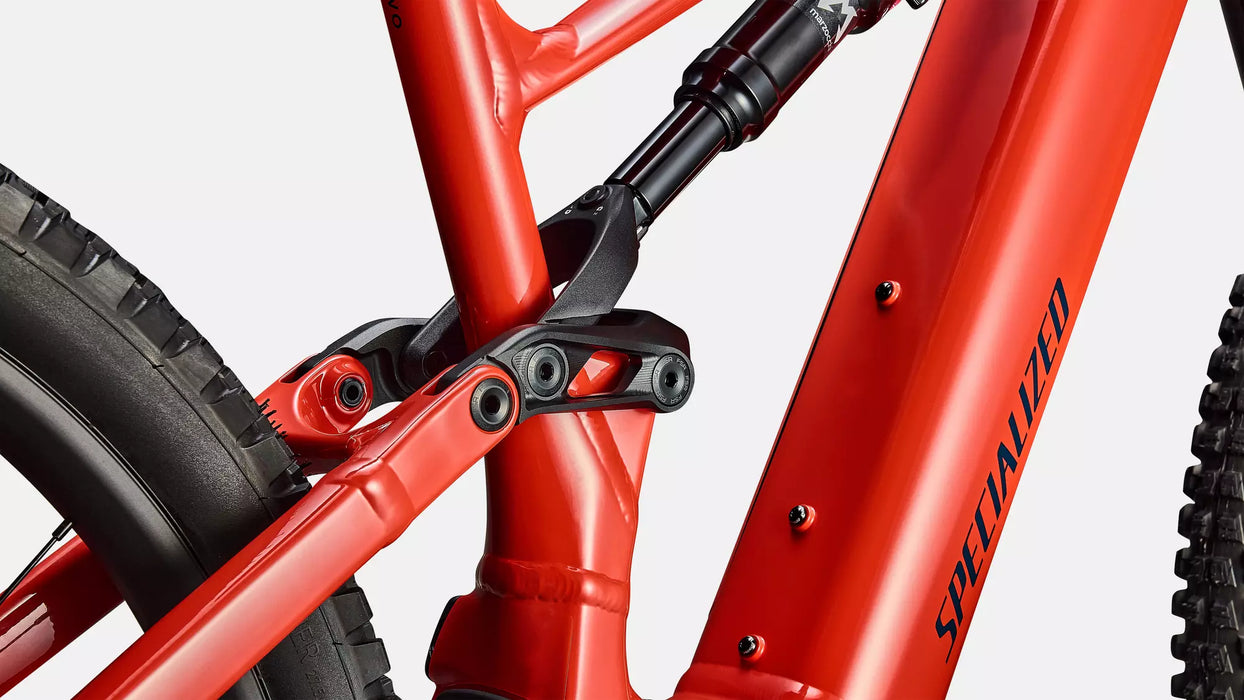

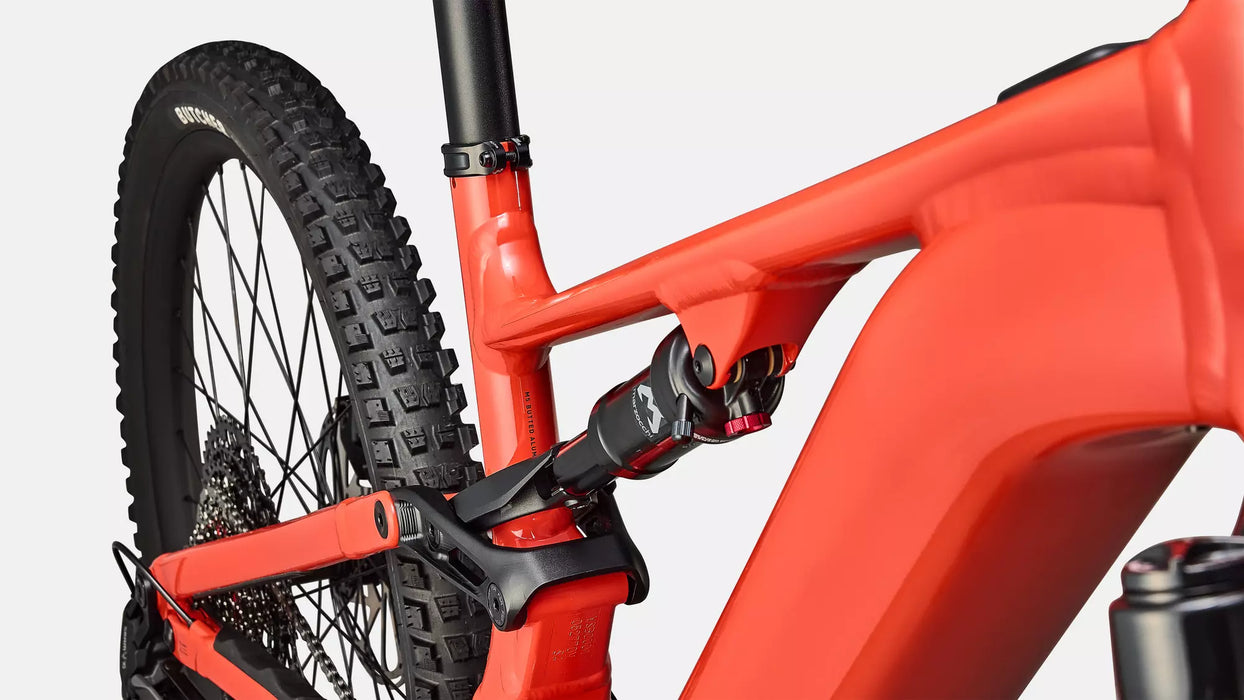

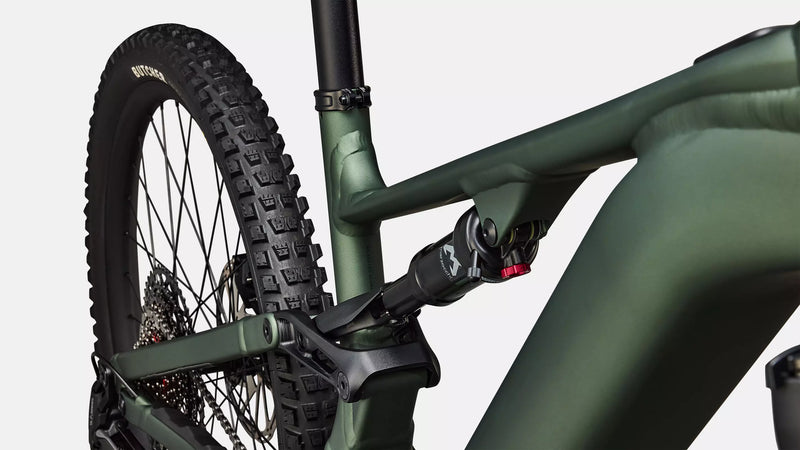

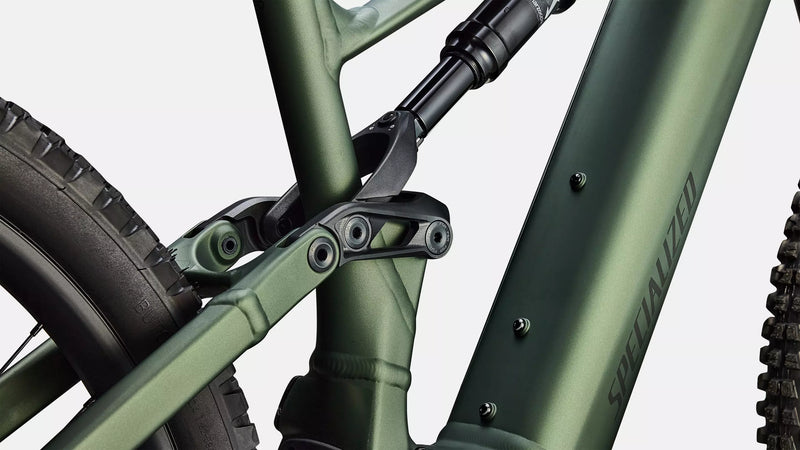

REAR SHOCK Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
FORK SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Cockpit

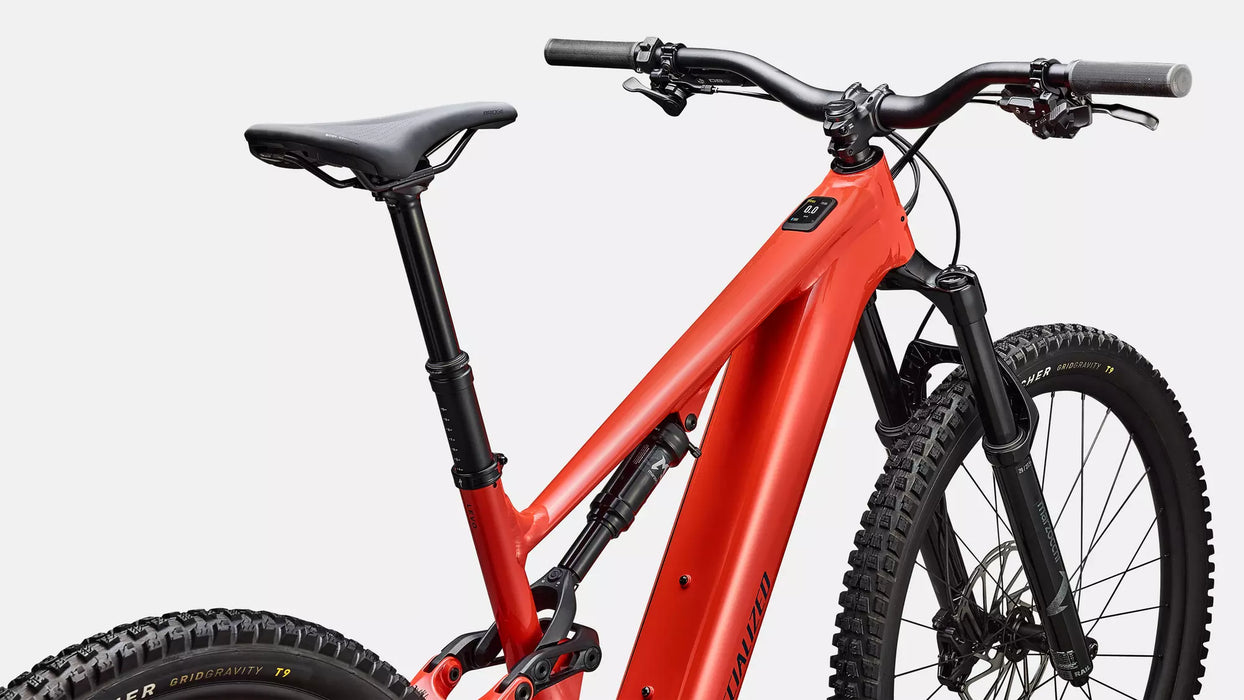

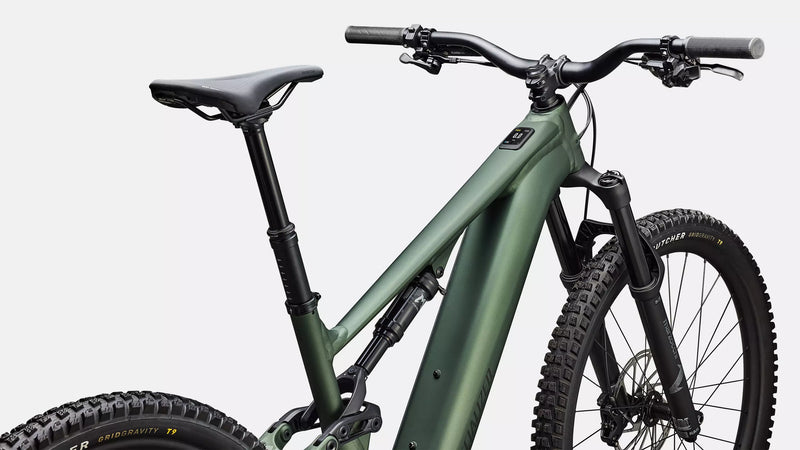

SEATPOST TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
STEM Alloy Trail Stem, 35mm bar bore
SADDLE Body Geometry Bridge Saddle, steel rails
GRIPS Specialized Trail Grips

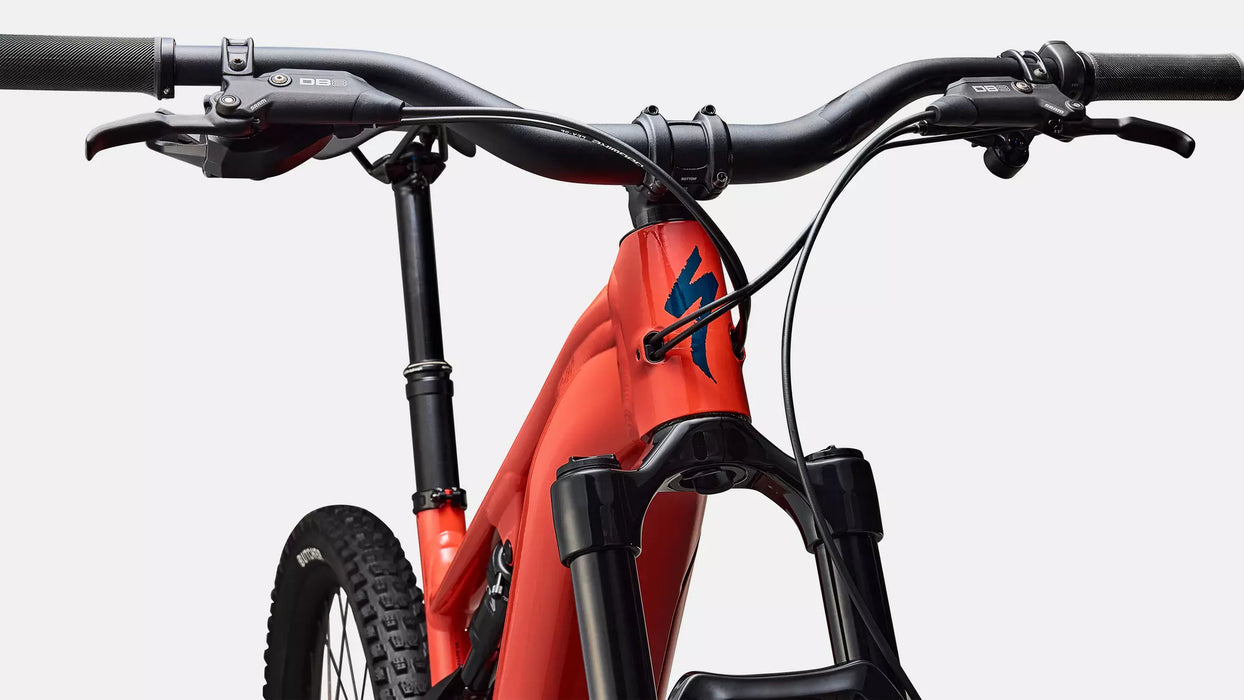

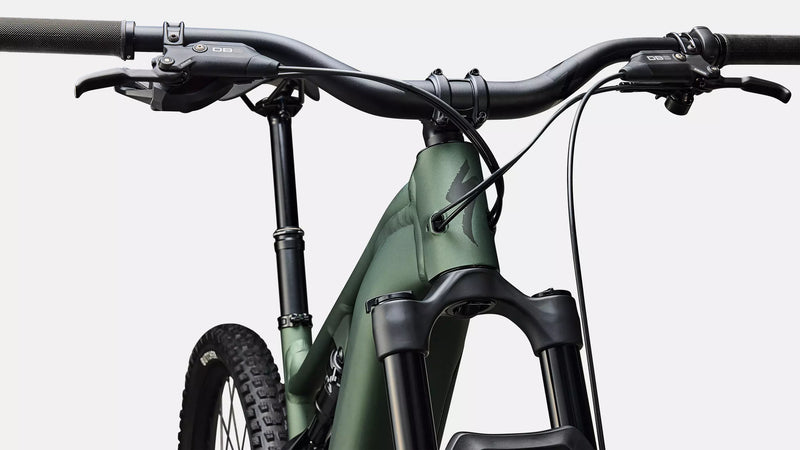

HANDLEBARS Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Brakes
FRONT BRAKE SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
REAR BRAKE SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
SHIFT LEVERS SRAM 70 trigger, 12-speed, single click
REAR DERAILLEUR SRAM Eagle 70 T-Type
CASSETTE XS-1270, 12-speed, 10-52t
CHAIN SRAM Eagle 70 T-Type Flattop Chain
CRANKSET SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
CHAINRINGS SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
RIMS Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
FRONT HUB Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
REAR HUB DT Swiss 370, 12x148mm, 32h
SPOKES DT Swiss Industry
FRONT TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
REAR TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
INNER TUBES Standard, Presta valve
Accessories
SWAT SWAT internal downtube storage
Product Details
PRODUCT ID 221347

COMPLIANCE CERTIFICATION

 As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
WEIGHT 26.08 kg (57 lb, 7.8 oz)
WEIGHT SIZE S4

*Specifications are subject to change without notice

S1S2S3S4S5S6
Crank Length155155155155155155
Handlebar Width780780800800800800
Stem Length404040404040
Saddle Width155155143143143143
Seatpost Length100125150170190190
Stack609618626638652667
Reach407435455480505535
Headtube Length9495103117132149
Headtube Angle6464.564.564.564.564.5
BB Height355350350350350350
BB Drop24.1329.529.529.529.529.5
Trail132132137132132132
Fork Length (full)577577577577577577
Fork Rake/Offset444444444444
Front Center744765789820851888
Chainstay Length435435435435435435
Wheelbase117912001223125412861323
Top-tube Length (horizontal)556578599627655689
Bike Standover Height753753754753758761
Seat Tube Length379390405425445465
Seat Tube Angle767777777777
Saddle Height for Effective ST Angle645690735780825870
Max Seatpost Insertion264274289313337357
Min Seatpost Insertion808080808080

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
