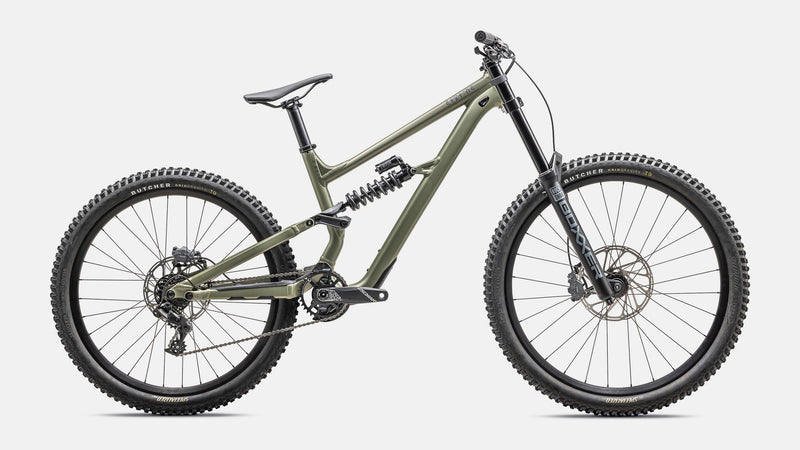

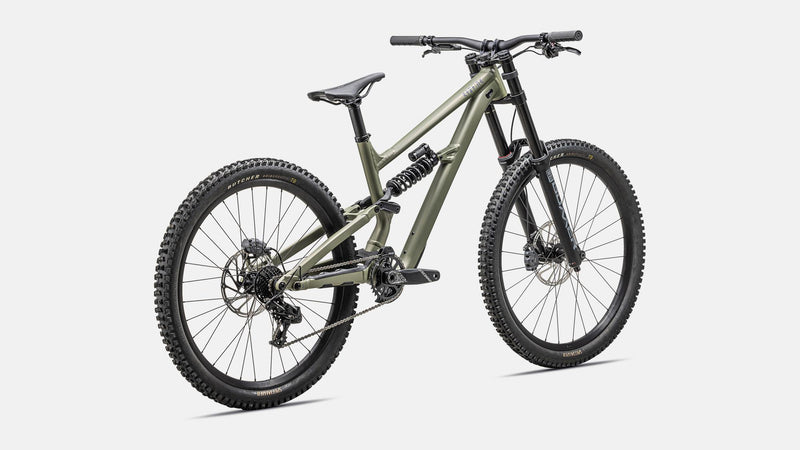

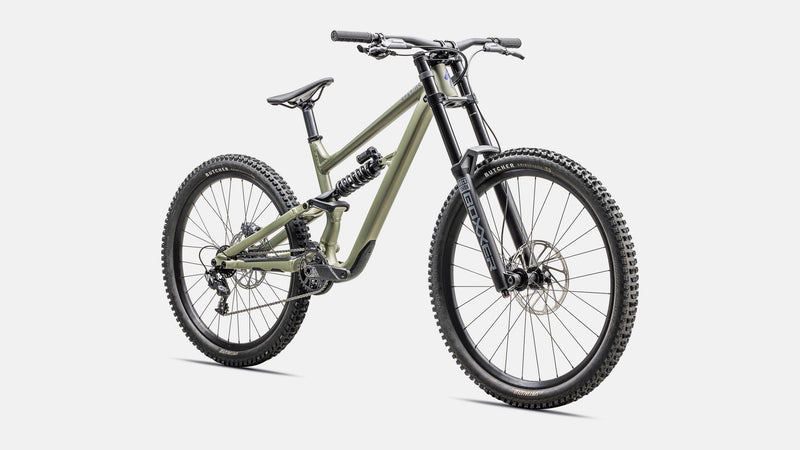

Specialized - STATUS 2 170 DH

SKU 93724-7003
Original price $0.00 - Original price $0.00
Original price
$6,900.00
$6,900.00 - $6,900.00
Current price $6,900.00
Colour: Satin Metallic Spruce / Purple Haze
Size: S3

STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.

Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

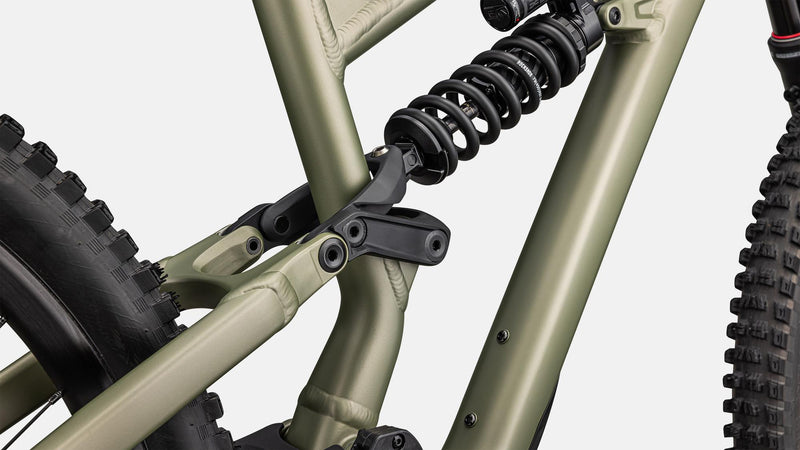

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.

  • 100% Redesigned durable alloy chassis

  • New, more durable alloy rims

  • Horst Link geometry adjust flip chip

  • Updated geometry for more usability

  • Curated parts spec for your desired ride experience

Frameset
FRAME M5 Alloy chassis and rear-end, Trail Geometry for 27.5 Front" and 26" rear wheels , horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
SEAT BINDER Alloy, 38.6mm
Suspension
REAR SHOCK RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel
FORK RockShox Super Deluxe Select Coil, external rebound adjust, hydraulic bottom out, 230x62.5mm
Cockpit
SEATPOST Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm
SADDLE Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
STEM Descendant 35mm Direct Mount Stem, 50mm length
GRIPS Deity Lockjaw
HANDLEBARS Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S2: 780mm, S3-S5: 800mm
Brakes
FRONT BRAKE SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm
REAR BRAKE SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm
Drivetrain
SHIFT LEVERS SRAM GX DH, trigger, 7-speed
REAR DERAILLEUR SRAM GX DH, 7-speed, trigger
CASSETTE SRAM GX DH, 7-speed, 11-24t
CHAIN SRAM PC1110 w/ Powerlink™
CRANKSET SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm
BOTTOM BRACKET SRAM DUB Threaded Wide
Wheels & Tires
RIMS Roval Alloy DH, 28mm internal width, tubeless ready. Front: 29", 28H, Rear: 27.5", 32H
FRONT HUB Alloy, sealed cartridge bearings, 20x110mm, 28h
REAR HUB Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
SPOKES DT Swiss Industry
FRONT TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
REAR TIRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
INNER TUBES Standard, Presta valve
Product Details
PRODUCT ID 221356
Weight
WEIGHT 17.18kg (37 lb, 14 oz)
WEIGHT SIZE S3

* Specifications are subject to change without notice

S2S3S4S5
Crank Length165165165165
Handlebar Width780800800800
Stem Length50505050
Saddle Width130130130130
Seatpost Length375375375375
Stack (low)625634643652
Stack (high)620629638647
Reach (low)445470495520
Reach (high)451476501526
Headtube Length100110120130
Headtube Angle (low)63.563.563.563.5
Headtube Angle (high)64646464
BB Height (low)342342342342
BB Height (high)350350350350
BB Drop (low)34343434
BB Drop (high)26262626
Trail (low)138138138138
Trail (high)133133133133
Fork Length (full)581581581581
Fork Rake/Offset44444444
Front Center789819848878
Chainstay Length (low)432432437437
Chainstay Length (high)436436441441
Wheelbase1221125012851314
Top-tube Length (horizontal)595635676716
Bike Standover Height735742748752
Seat Tube Length440465400420
Seat Tube Angle (low)77777777
Seat Tube Angle (high)77.677.677.677.6

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
