Specialized - S-Works Turbo Levo 4

Name: Specialized - S-Works Turbo Levo 4
Brand: SPECIALIZED
SKU: 95224-0002
Price: 25900.0 NZD
Availability: InStock

SKU 95224-0002

$0.00 - $0.00

$25,900.00

$25,900.00 - $25,900.00

$25,900.00

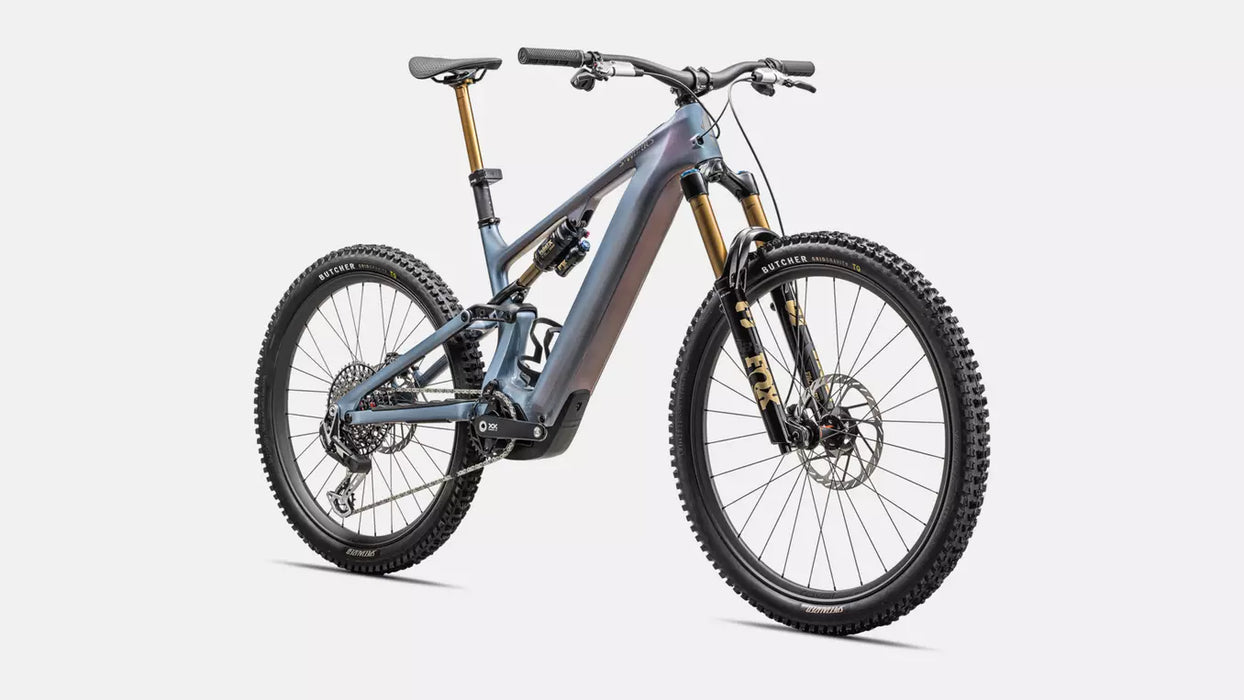

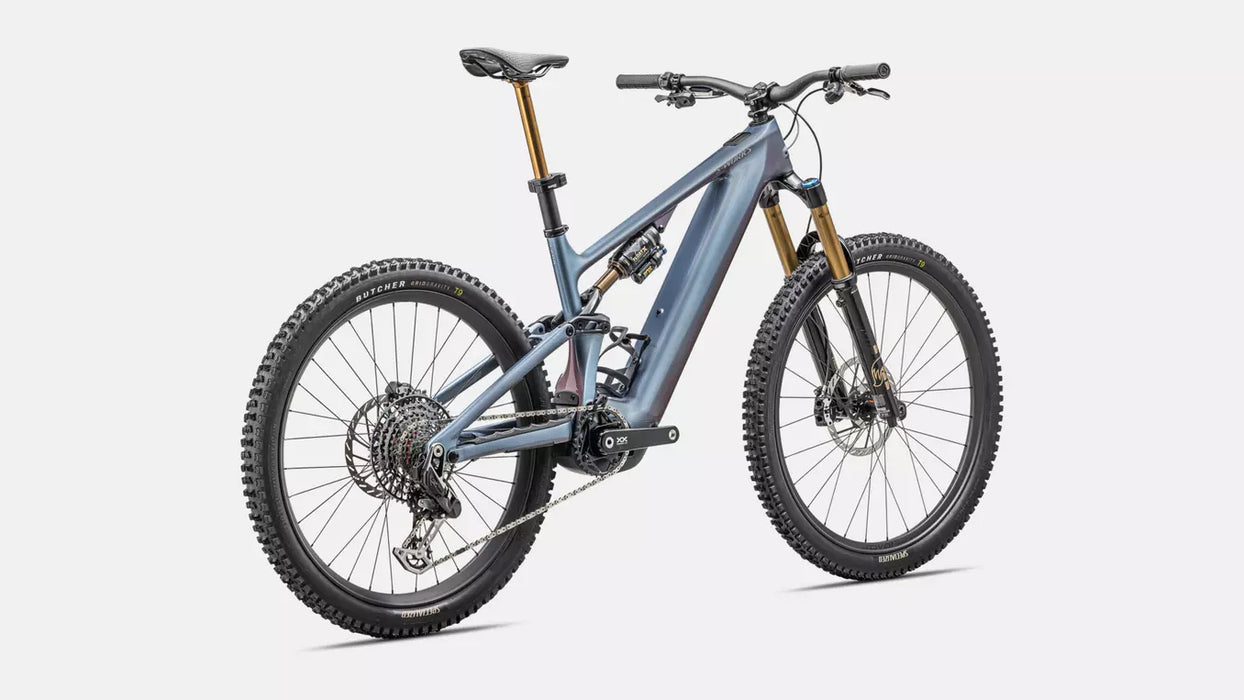

Colour: Gloss Glacial Metallic / Red Pearl / Black Pearl

Gloss Glacial Metallic / Red Pearl / Black Pearl

GCLMET/REDPRL/BLKPRL

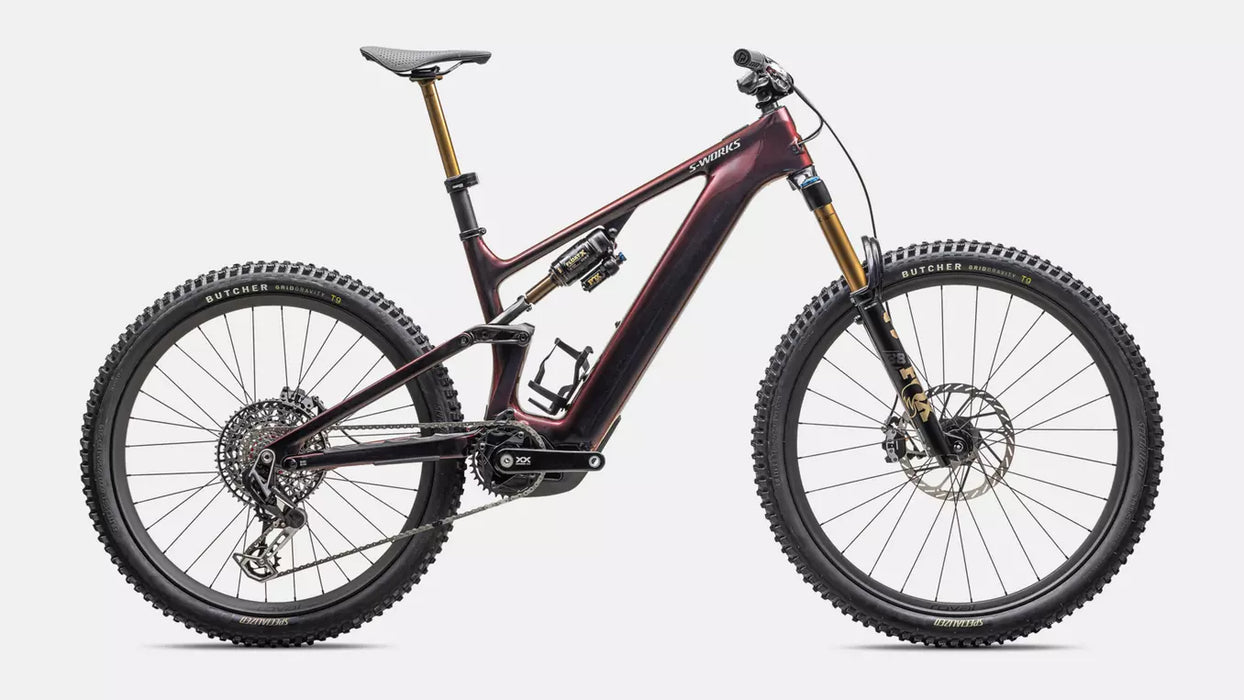

Gloss Red Pearl / Black / Metallic White Silver

Size: S2

S2

S3

S4

S5

❯ ❯ ❯ DESCRIPTION

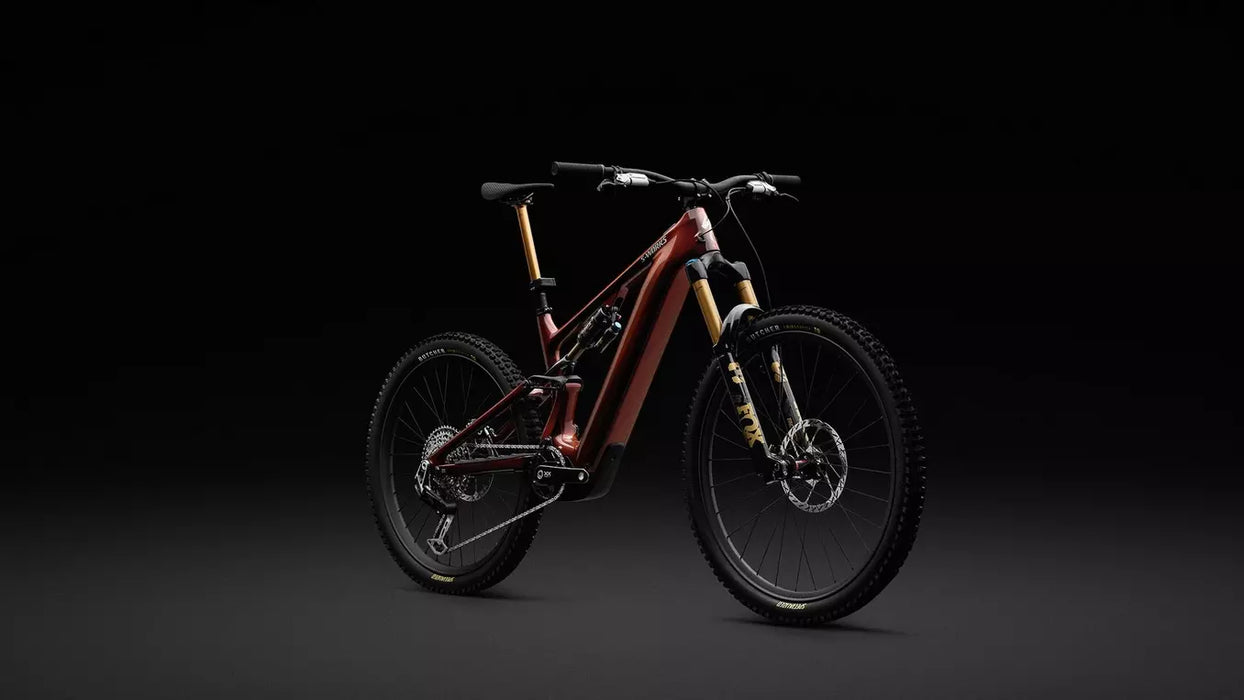

S-Works Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

❯ ❯ ❯ FEATURES

At a Glance

Use

Full Power E-MTB Trail

E-System

S-Works 3.1 Motor w/ 720 Watts & 111 Nm, 840 Wh battery, up to 4.75 hour range

Frame

FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage

Suspension

Front: 160mm FOX 38 FACTORY GRIPX2<br>Rear: 150mm GENIE - FOX FLOAT X Factory

Drivetrain

SRAM XX Eagle T-Type AXS

Wheels

Roval Traverse HD Carbon / DT 240 DEG

❯ ❯ ❯ SPECIFICATION

E-Bike

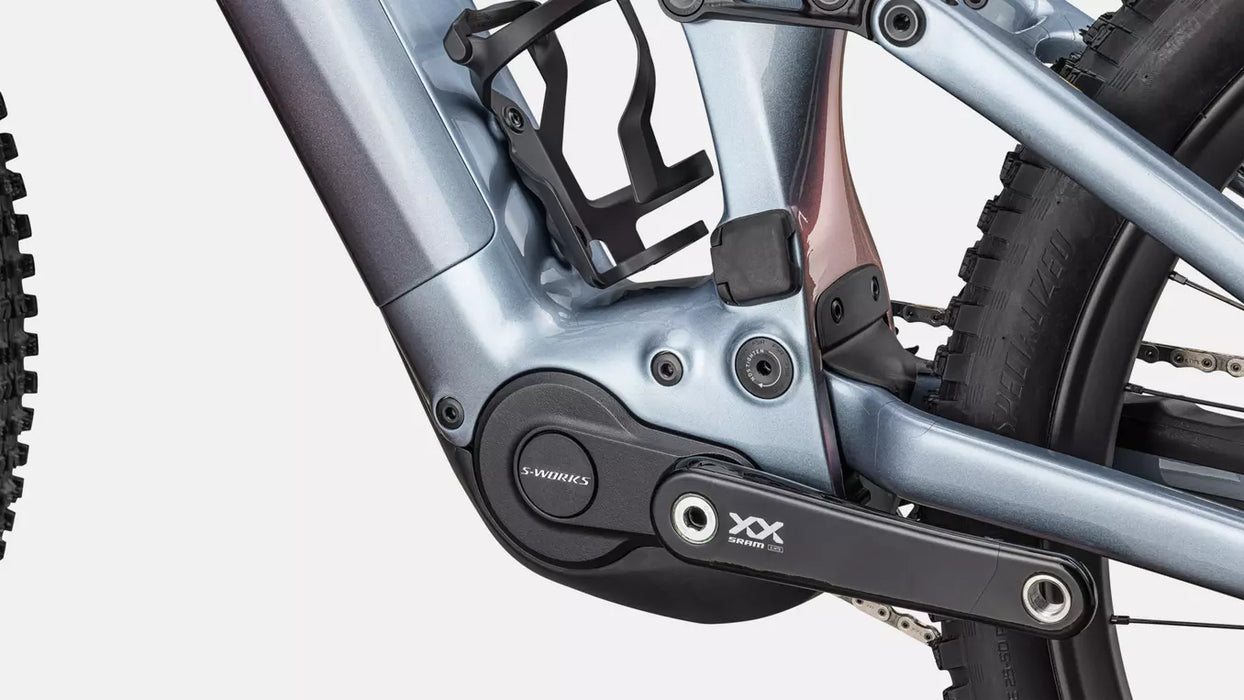

MOTOR	All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power

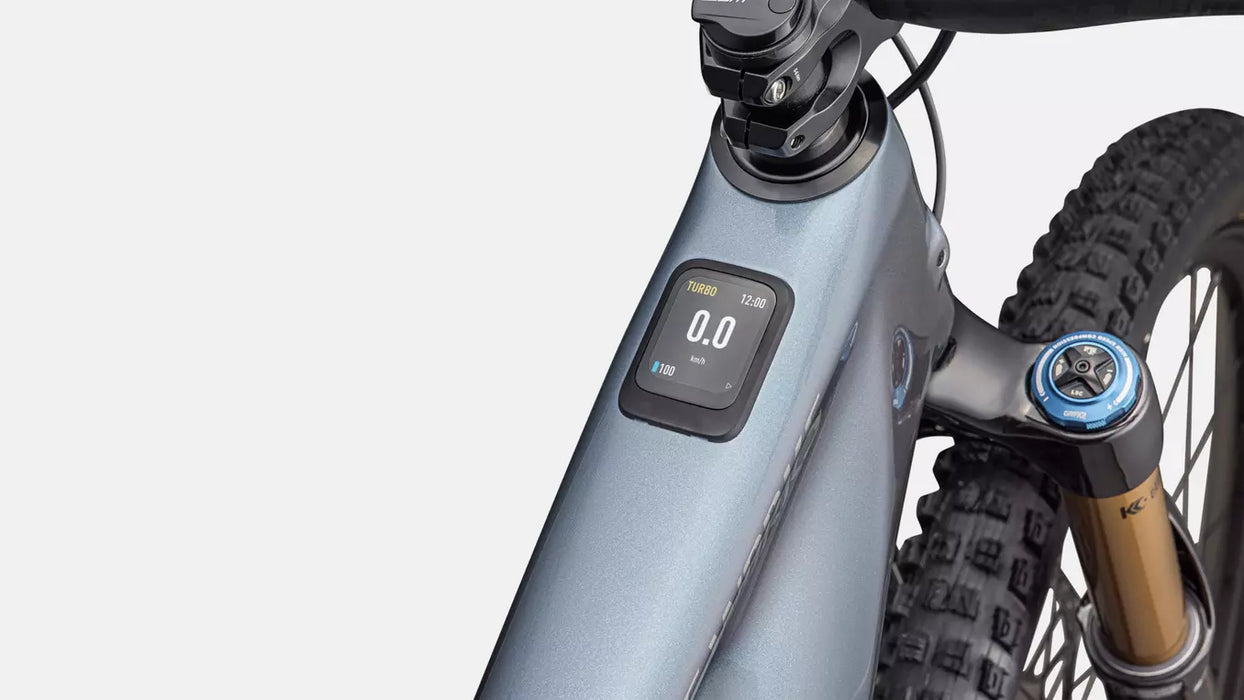

UI/REMOTE	All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
BATTERY	840wh battery
CHARGER	Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
Suspension

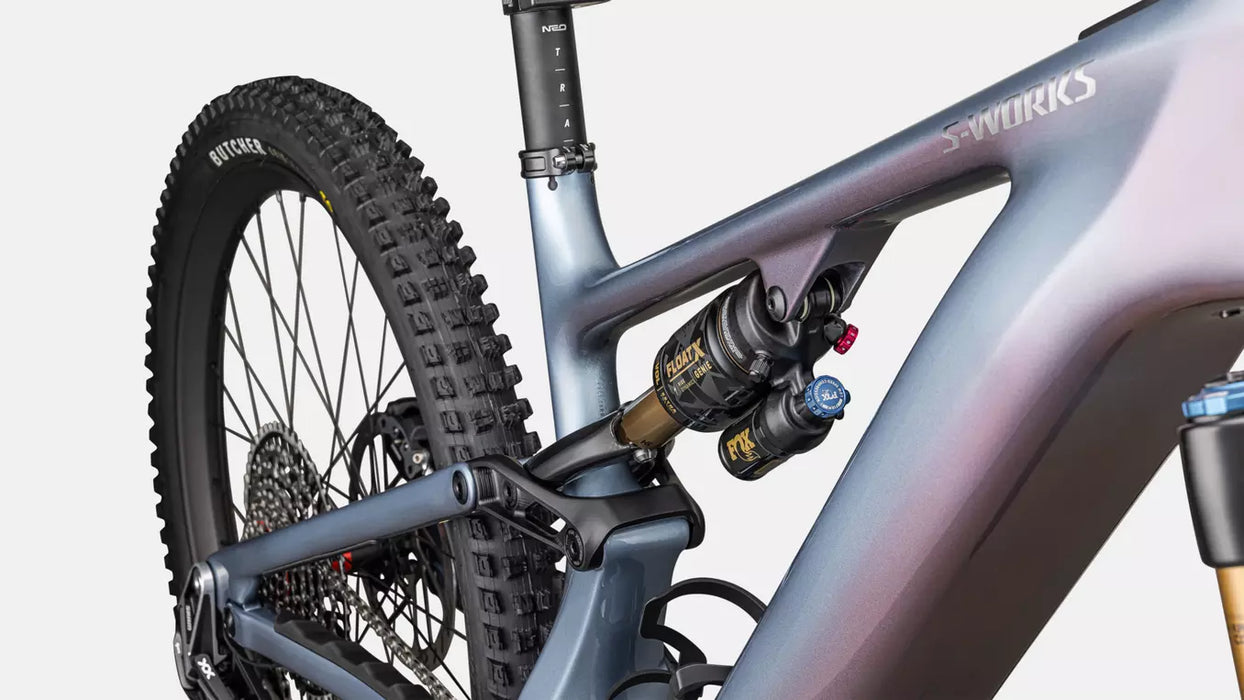

REAR SHOCK	FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel
FORK	FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Frameset
FRAME	All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
SEAT BINDER	Alloy, 38.6mm
Cockpit
SEATPOST	FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm
STEM	Industry 9 Mountain stem, 35mm clamp, 40mm length
SADDLE	Specialized Power Pro Mirror w/hollow Ti rails

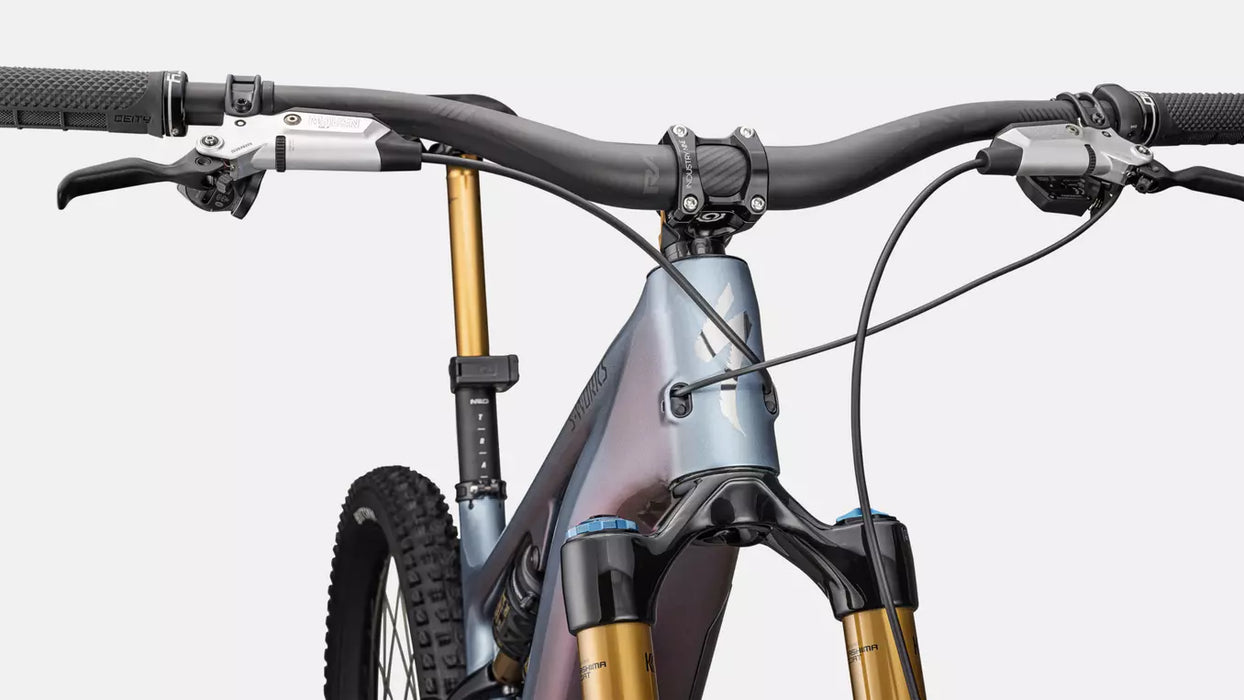

HANDLEBARS	RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
GRIPS	Deity Lockjaw grips
Brakes
FRONT BRAKE	SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
REAR BRAKE	SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
SHIFT LEVERS	SRAM AXS POD ULTIMATE with DISCRETE CLAMP
CASSETTE	SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
REAR DERAILLEUR	SRAM XX Eagle Transmission Derailleur
CRANKSET	SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm
CHAIN	SRAM XX EagleTransmission Flattop Chain
CHAINRINGS	SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
FRONT WHEEL	Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h
REAR WHEEL	Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h
FRONT TIRE	Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
REAR TIRE	Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
INNER TUBES	Standard, Presta Valve
Accessories
SWAT	SWAT internal downtube storage
PRODUCT DETAILS
Product ID	218698
COMPLIANCE CERTIFICATION	As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
WEIGHT	23.68kg (52 lb, 3.3 oz)
WEIGHT SIZE	S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

* Specifications are subject to change without notice

❯ ❯ ❯ GEOMETRY

	S2	S3	S4	S5	S6
Crank Length	160	160	160	160	160
Handlebar Width	800	800	800	800	800
Stem Length	40	40	40	40	40
Saddle Width	155	143	143	143	143
Seatpost Length	125	175	200	200	200
Stack	618	626	638	652	667
Reach	435	455	480	505	535
Headtube Length	95	103	117	132	149
Headtube Angle	64.5	64.5	64.5	64.5	64.5
BB Height	350	350	350	350	350
BB Drop	29.5	29.5	29.5	29.5	29.5
Trail	132	132	132	132	132
Fork Length (full)	577	577	577	577	577
Fork Rake/Offset	44	44	44	44	44
Front Center	765	789	820	851	888
Chainstay Length	435	435	435	435	435
Wheelbase	1200	1223	1254	1286	1323
Top-tube Length (horizontal)	578	599	627	655	689
Bike Standover Height	753	754	753	758	761
Seat Tube Length	390	405	425	445	465
Seat Tube Angle	77	77	77	77	77
Saddle Height for Effective ST Angle	690	735	780	825	870
Max Seatpost Insertion	274	289	313	337	357
Min Seatpost Insertion	80	80	80	80	80

❯ ❯ ❯ BUYING A BIKE

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
