Name: Specialized S-Works Levo 4 X
Brand: iRIDE Store
SKU: 95226-0803
Price: 24900.0 NZD
Availability: InStock

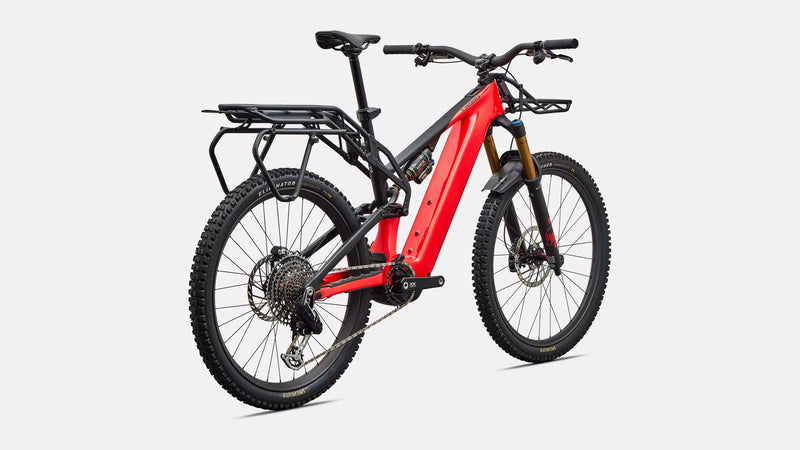

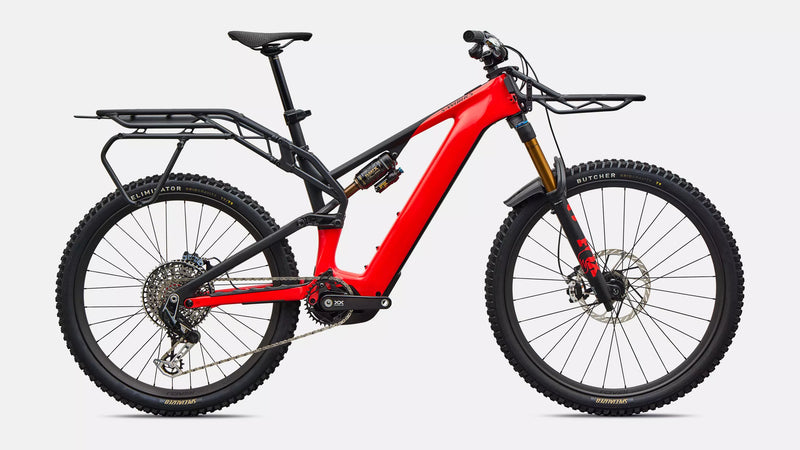

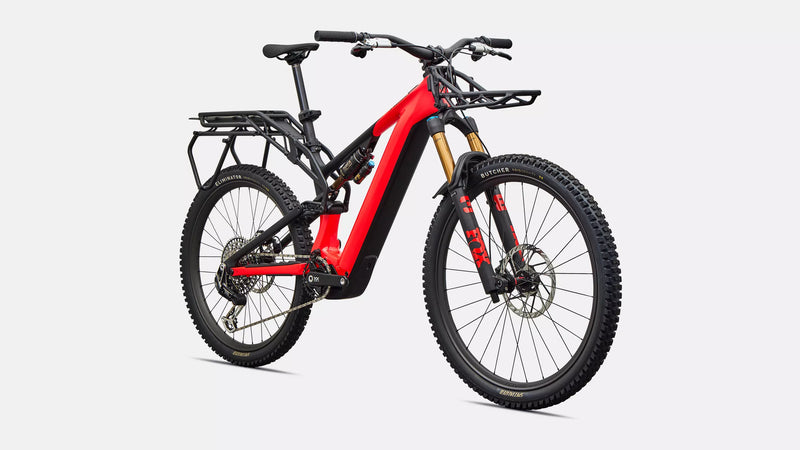

Specialized S-Works Levo 4 X

SKU 95226-0803

$24,900.00 - $24,900.00

$24,900.00

$24,900.00 - $24,900.00

$24,900.00

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

SuperNatural Adventure

Load Up. Drop In. Disappear.

Levo 4 X is more than a new bike. It’s the birth of Electric Overland. Built on the award-winning SuperNatural power, control, and range of Levo 4, it adds high-performance carrying capacity so you can rip singletrack, cross town, cross continents, and turn every ride into an adventure. It’s your full-bore, ride-anywhere freedom machine.

At a Glance

Use- Electric Overland
E-System- S-Works 3.1 Motor w/ 850 Watts & 111 Nm, 840 Wh battery, up to 4.40 hour range
Frame-FACT 11m Carbon, Geo Adj & SWAT Storage
Suspension- Front: 160mm FOX 38 FACTORY GRIP X2<br>Rear: 150mm GENIE FOX FLOAT X Factory
Drivetrain- SRAM XX Eagle T-Type AXS

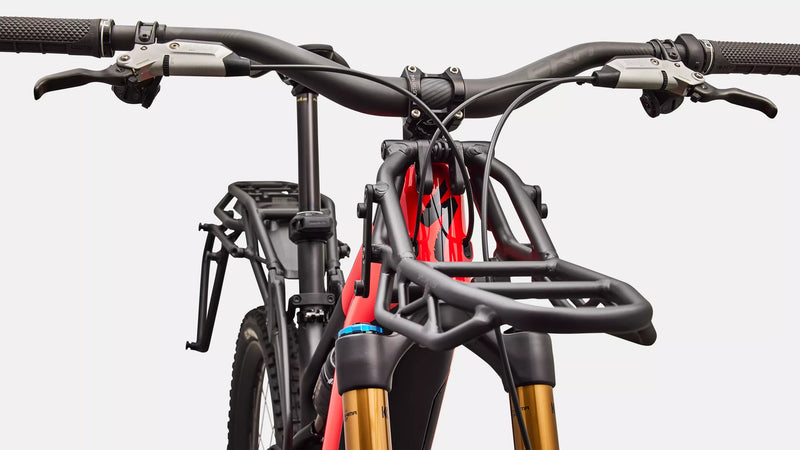

Carrying Capacity- Front and Rear High-Performance Racks

<div class="tech-specs">

<div class="spec-section">
<h4>E-Bike System</h4>

<div class="spec-item">
<p class="label">Battery</p>
<p class="value">840Wh battery</p>
</div>

<div class="spec-item">

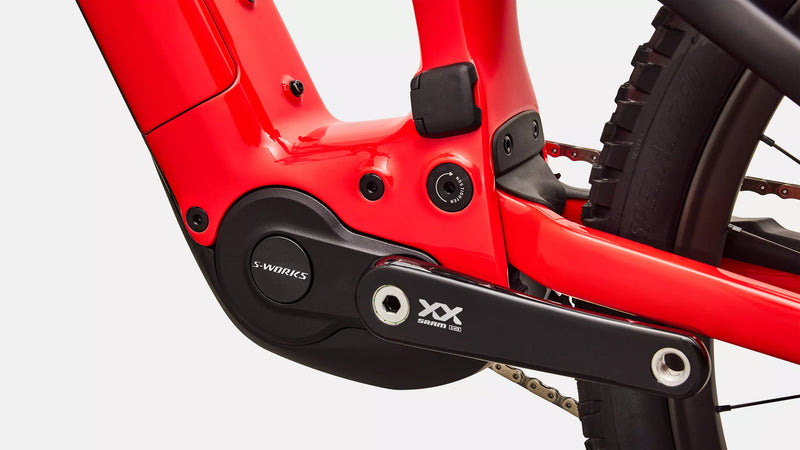

<p class="label">Motor</p>
<p class="value">Specialized 3.1 S-Works motor, 111Nm torque, 850W power</p>
</div>

<div class="spec-item">
<p class="label">UI / Remote</p>
<p class="value">Mastermind TCU, 2.2" high-resolution display, fully customizable through the Specialized App, compatible with Apple Find My</p>
</div>

<div class="spec-item">
<p class="label">Charger</p>
<p class="value">Specialized 12-amp Smart Charger with Standard, Fast, Eco, and Charge-to-80% modes</p>
</div>
</div>

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Frame</p>
<p class="value">Levo 4 carbon frame, 150mm rear travel, SWAT internal storage, side-entry battery, compatible with forks up to 180mm travel, adjustable head angle, bottom bracket height, and chainstay length</p>
</div>

<div class="spec-item">
<p class="label">Seat Binder</p>
<p class="value">Alloy, 38.6mm</p>
</div>
</div>

<div class="spec-section">
<h4>Suspension</h4>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">FOX Factory 38, GRIP X2 damper, high/low-speed compression and rebound adjustment, 15x110mm axle, 44mm offset, 160mm travel</p>
</div>

<div class="spec-item">

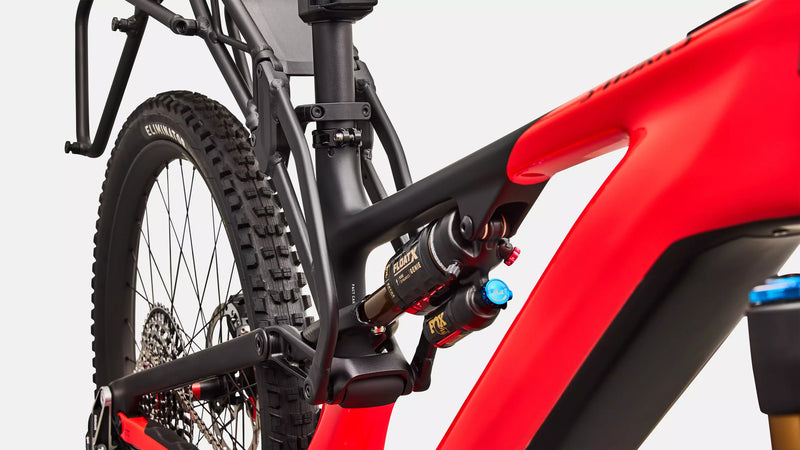

<p class="label">Rear Shock</p>
<p class="value">FOX Float X Factory with Specialized GENIE Shock Technology, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm</p>
</div>
</div>

<div class="spec-section">
<h4>Brakes</h4>

<div class="spec-item">
<p class="label">Front Brake</p>
<p class="value">SRAM Maven Ultimate, 4-piston hydraulic disc brake, 220mm HS2 rotor</p>
</div>

<div class="spec-item">
<p class="label">Rear Brake</p>
<p class="value">SRAM Maven Ultimate, 4-piston hydraulic disc brake, 200mm HS2 rotor</p>
</div>
</div>

<div class="spec-section">
<h4>Drivetrain</h4>

<div class="spec-item">
<p class="label">Shift Levers</p>
<p class="value">SRAM AXS Pod Ultimate with Discrete Clamp</p>
</div>

<div class="spec-item">
<p class="label">Crankset</p>
<p class="value">SRAM XX Carbon crankset, 160mm, ISIS interface</p>
</div>

<div class="spec-item">
<p class="label">Chainrings</p>
<p class="value">SRAM 34T T-Type chainring, 104 BCD, steel</p>
</div>

<div class="spec-item">
<p class="label">Rear Derailleur</p>
<p class="value">SRAM XX Eagle Transmission Derailleur</p>
</div>

<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">SRAM XX Transmission XS-1297, 10-52T</p>
</div>

<div class="spec-item">
<p class="label">Chain</p>
<p class="value">SRAM XX T-Type</p>
</div>
</div>

<div class="spec-section">
<h4>Wheels & Tires</h4>

<div class="spec-item">
<p class="label">Front Wheel</p>
<p class="value">Roval Traverse HD 29", hookless carbon rim, 30mm internal width, tubeless ready, DT Swiss 240 hub, 15x110mm, 28h</p>
</div>

<div class="spec-item">
<p class="label">Rear Wheel</p>
<p class="value">Roval Traverse HD 27.5", hookless carbon rim, 30mm internal width, tubeless ready, DT Swiss 240 hub, 12x148mm, 32h</p>
</div>

<div class="spec-item">
<p class="label">Front Tire</p>
<p class="value">Butcher, GRID Gravity, T9 compound, TLR, 29x2.4"</p>
</div>

<div class="spec-item">
<p class="label">Rear Tire</p>
<p class="value">Eliminator, GRID Gravity casing, Gripton T7/T9 compound, 27.5x2.4"</p>
</div>

<div class="spec-item">
<p class="label">Inner Tubes</p>
<p class="value">Standard, Presta Valve</p>
</div>
</div>

<div class="spec-section">
<h4>Cockpit</h4>

<div class="spec-item">
<p class="label">Handlebars</p>
<p class="value">Race Face Era Carbon, 35mm clamp, 8° backsweep, 5° upsweep, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise</p>
</div>

<div class="spec-item">
<p class="label">Stem</p>
<p class="value">Industry 9 A35 Mountain Stem, 35mm clamp, 40mm length</p>
</div>

<div class="spec-item">
<p class="label">Grips</p>
<p class="value">Deity Lockjaw Lock-On, 32mm OD, 133mm length, Black</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-S6: 200mm travel</p>
</div>

<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">Specialized S-Works Power Mirror, Titanium Rails, 143mm / 155mm</p>
</div>
</div>

<div class="spec-section">
<h4>Accessories</h4>

<div class="spec-item">
<p class="label">SWAT</p>
<p class="value">SWAT Internal Downtube Storage</p>
</div>
</div>

<div class="spec-section">
<h4>Product Details</h4>

<div class="spec-item">
<p class="label">Compliance Certification</p>
<p class="value">Certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS where applicable. Compatible with applicable lithium-ion battery regulations.</p>
</div>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">27.25 kg (60 lb, 1.2 oz)</p>
</div>

<div class="spec-item">
<p class="label">Weight Size</p>
<p class="value">S4</p>
</div>
</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col">Measurement</th>
<th>S2</th>
<th>S3</th>
<th>S4</th>
<th>S5</th>
<th>S6</th>
</tr>
</thead>
<tbody>

<tr>
<td class="sticky-col">Crank Length (mm)</td>
<td>160</td>
<td>160</td>
<td>160</td>
<td>160</td>
<td>160</td>
</tr>

<tr>
<td class="sticky-col">Handlebar Width (mm)</td>
<td>800</td>
<td>800</td>
<td>800</td>
<td>800</td>
<td>800</td>
</tr>

<tr>
<td class="sticky-col">Stem Length (mm)</td>
<td>40</td>
<td>40</td>
<td>40</td>
<td>40</td>
<td>40</td>
</tr>

<tr>
<td class="sticky-col">Saddle Width (mm)</td>
<td>155</td>
<td>143</td>
<td>143</td>
<td>143</td>
<td>143</td>
</tr>

<tr>
<td class="sticky-col">Seatpost Length (mm)</td>
<td>125</td>
<td>175</td>
<td>200</td>
<td>200</td>
<td>200</td>
</tr>

<tr>
<td class="sticky-col">Stack (mm)</td>
<td>618</td>
<td>626</td>
<td>638</td>
<td>652</td>
<td>667</td>
</tr>

<tr>
<td class="sticky-col">Reach (mm)</td>
<td>435</td>
<td>455</td>
<td>480</td>
<td>505</td>
<td>535</td>
</tr>

<tr>
<td class="sticky-col">Headtube Length (mm)</td>
<td>95</td>
<td>103</td>
<td>117</td>
<td>132</td>
<td>149</td>
</tr>

<tr>
<td class="sticky-col">Headtube Angle (°)</td>
<td>64.5</td>
<td>64.5</td>
<td>64.5</td>
<td>64.5</td>
<td>64.5</td>
</tr>

<tr>
<td class="sticky-col">BB Height (mm)</td>
<td>350</td>
<td>350</td>
<td>350</td>
<td>350</td>
<td>350</td>
</tr>

<tr>
<td class="sticky-col">BB Drop (mm)</td>
<td>29.5</td>
<td>29.5</td>
<td>29.5</td>
<td>29.5</td>
<td>29.5</td>
</tr>

<tr>
<td class="sticky-col">Trail (mm)</td>
<td>132</td>
<td>132</td>
<td>132</td>
<td>132</td>
<td>132</td>
</tr>

<tr>
<td class="sticky-col">Fork Length (Full) (mm)</td>
<td>577</td>
<td>577</td>
<td>577</td>
<td>577</td>
<td>577</td>
</tr>

<tr>
<td class="sticky-col">Fork Rake / Offset (mm)</td>
<td>44</td>
<td>44</td>
<td>44</td>
<td>44</td>
<td>44</td>
</tr>

<tr>
<td class="sticky-col">Front Center (mm)</td>
<td>765</td>
<td>789</td>
<td>820</td>
<td>851</td>
<td>888</td>
</tr>

<tr>
<td class="sticky-col">Chainstay Length (mm)</td>
<td>435</td>
<td>435</td>
<td>435</td>
<td>435</td>
<td>435</td>
</tr>

<tr>
<td class="sticky-col">Wheelbase (mm)</td>
<td>1200</td>
<td>1223</td>
<td>1254</td>
<td>1286</td>
<td>1323</td>
</tr>

<tr>
<td class="sticky-col">Top-Tube Length (Horizontal) (mm)</td>
<td>578</td>
<td>599</td>
<td>627</td>
<td>655</td>
<td>689</td>
</tr>

<tr>
<td class="sticky-col">Bike Standover Height (mm)</td>
<td>753</td>
<td>754</td>
<td>753</td>
<td>758</td>
<td>761</td>
</tr>

<tr>
<td class="sticky-col">Seat Tube Length (mm)</td>
<td>390</td>
<td>405</td>
<td>425</td>
<td>445</td>
<td>465</td>
</tr>

<tr>
<td class="sticky-col">Seat Tube Angle (°)</td>
<td>77</td>
<td>77</td>
<td>77</td>
<td>77</td>
<td>77</td>
</tr>

<tr>
<td class="sticky-col">Saddle Height for Effective ST Angle (mm)</td>
<td>690</td>
<td>735</td>
<td>780</td>
<td>825</td>
<td>870</td>
</tr>

<tr>
<td class="sticky-col">Max Seatpost Insertion (mm)</td>
<td>274</td>
<td>289</td>
<td>313</td>
<td>337</td>
<td>357</td>
</tr>

<tr>
<td class="sticky-col">Min Seatpost Insertion (mm)</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
</tr>

</tbody>
</table>
</div>
</div>
