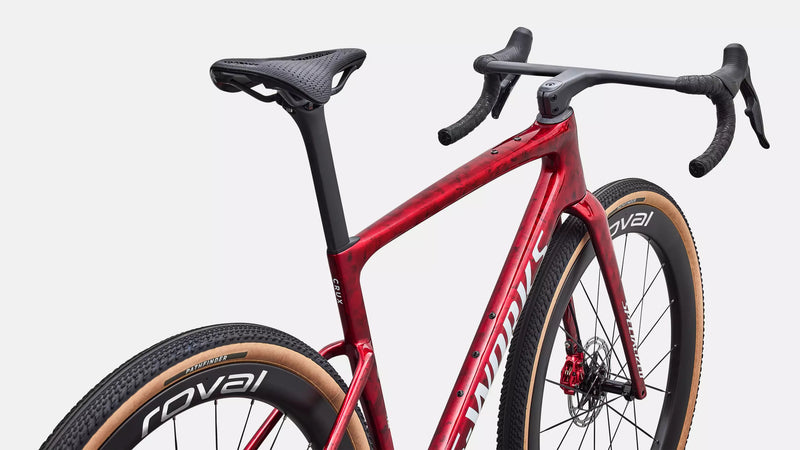

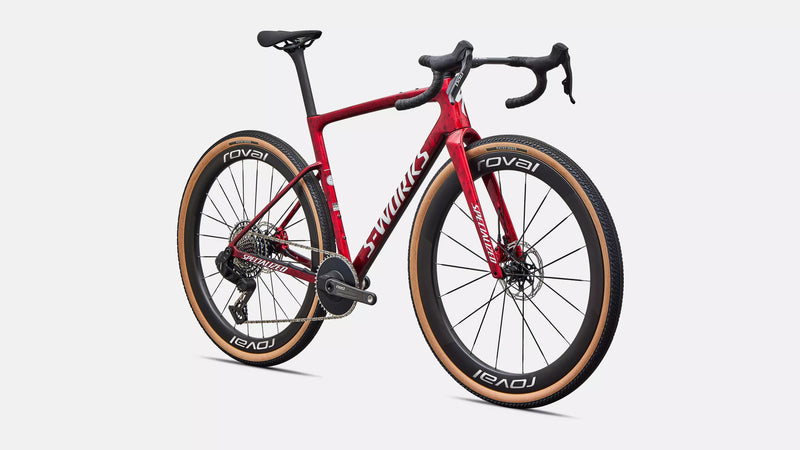

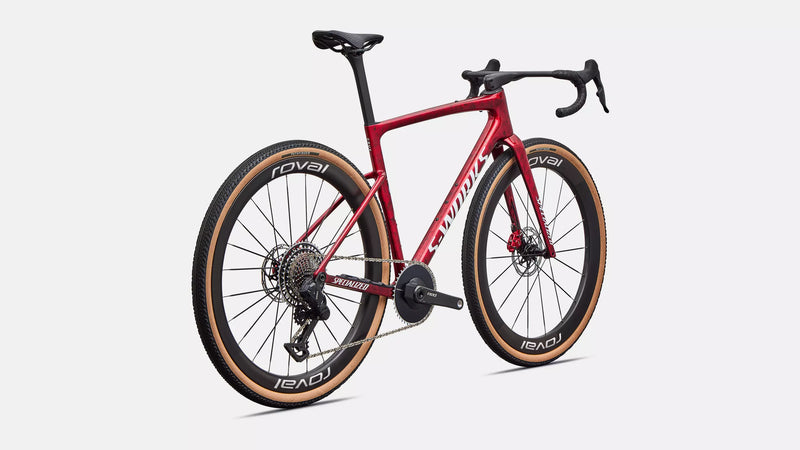

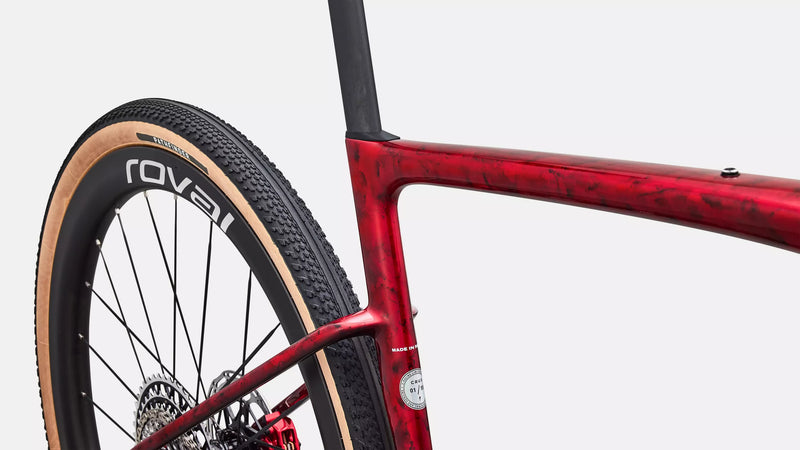

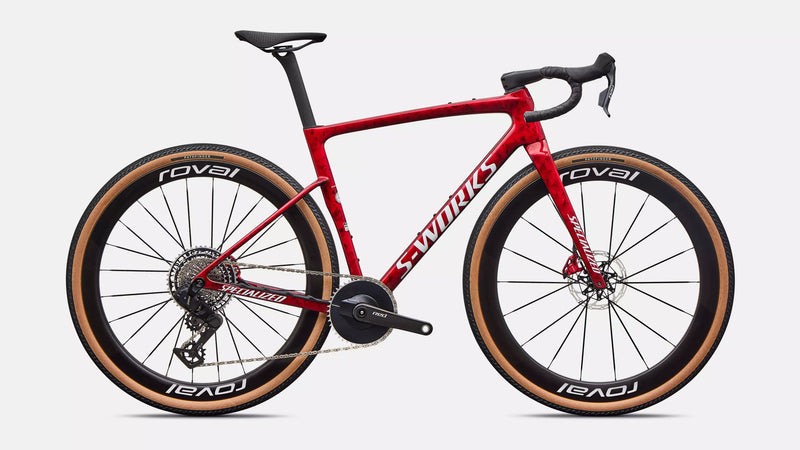

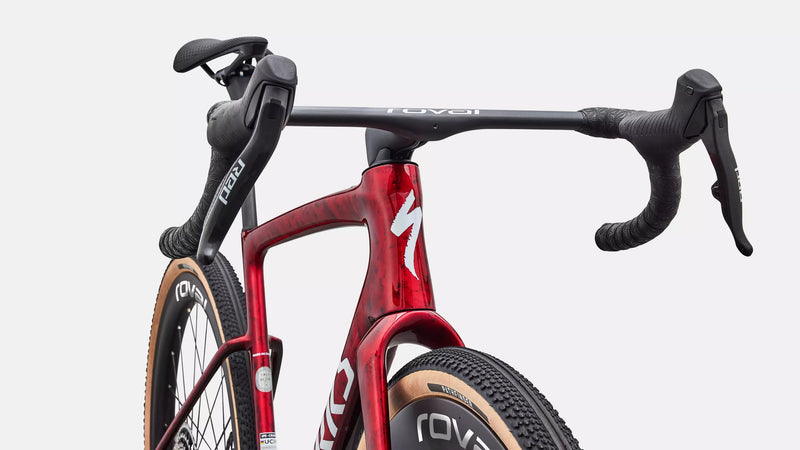

Specialized S-Works Crux 5 LTD
Specialized S-Works Crux 5 LTD
Specialized S-Works Crux 5 LTD
Specialized S-Works Crux 5 LTD
Specialized S-Works Crux 5 LTD
Specialized S-Works Crux 5 LTD

Specialized S-Works Crux 5 LTD

SKU 91427-0256
$22,500.00 - $22,500.00
$22,500.00
$22,500.00 - $22,500.00
$22,500.00

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

Color: Race Red Vapor
Size: 56
ENQUIRY

S-Works Crux 5 LTD - Built for Legends

Eat My Dust

The S-Works Crux 5 is the fastest gravel race bike ever made, turning more of your effort into pure speed.

The Built for Legends LTD celebrates the Crux bike's Made in Racing roots with an exclusive colorway, custom blacked-out SRAM groupset with red brake calipers, and unique details inspired by the winningest race bikes ever made. Limited to just 55 individually numbered bikes worldwide, it is as rare as it is fast. Once they’re gone, they’re gone forever.

When the only destination is the top step, nothing in gravel gets you there faster than the S-Works Crux 5 Built for Legends LTD.

At a Glance

  • Use-mGravel Racing
  • Exclusive LTD Edition- Only 55 Individually Numbered Bikes
  • Frame- FACT 12r Carbon: 789 grams
  • Wheels / Cockpit- Roval Terra Aero CLX and Terra Integrated
  • Drivetrain-Custom SRAM RED XPLR
  • Weight- 7.1kg

<div class="tech-specs">

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Frame</p>
<p class="value">S-Works Crux 5 FACT 12r Carbon, Rider First Engineeredâ„¢, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout</p>
</div>
</div>

<div class="spec-section">
<h4>Suspension</h4>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc</p>
</div>
</div>

<div class="spec-section">
<h4>Brakes</h4>

<div class="spec-item">
<p class="label">Front Brake</p>
<p class="value">SRAM RED E1, hydraulic disc</p>
</div>

<div class="spec-item">
<p class="label">Rear Brake</p>
<p class="value">SRAM RED E1, hydraulic disc</p>
</div>
</div>

<div class="spec-section">
<h4>Drivetrain</h4>

<div class="spec-item">
<p class="label">Bottom Bracket</p>
<p class="value">Ceramic Speed BB Alpha, BSA DUB</p>
</div>

<div class="spec-item">
<p class="label">Shift Levers</p>
<p class="value">SRAM RED AXS E1, hydraulic disc</p>
</div>

<div class="spec-item">
<p class="label">Crankset</p>
<p class="value">SRAM RED XPLR E1, Aero-X Sync chainring with Quarq power meter, 44t</p>
</div>

<div class="spec-item">
<p class="label">Rear Derailleur</p>
<p class="value">SRAM RED AXS XPLR E1, 13-speed</p>
</div>

<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">SRAM RED XPLR E1, 13-speed, 10-46t</p>
</div>

<div class="spec-item">
<p class="label">Chain</p>
<p class="value">SRAM RED E1</p>
</div>
</div>

<div class="spec-section">
<h4>Wheels &amp; Tires</h4>

<div class="spec-item">
<p class="label">Inner Tubes</p>
<p class="value">700x32-50mm, 60mm Presta valve</p>
</div>

<div class="spec-item">
<p class="label">Front Tire</p>
<p class="value">Pathfinder 700x45, Tubeless Ready</p>
</div>

<div class="spec-item">
<p class="label">Rear Tire</p>
<p class="value">Pathfinder 700x45, Tubeless Ready</p>
</div>

<div class="spec-item">
<p class="label">Front Wheel</p>
<p class="value">Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth, 18h, Roval LF18-F hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces</p>
</div>

<div class="spec-item">
<p class="label">Rear Wheel</p>
<p class="value">Roval Terra Aero CLX, 27mm internal width, tubeless ready, 45mm depth, 24h, Roval LF19-R hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces</p>
</div>
</div>

<div class="spec-section">
<h4>Cockpit</h4>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp</p>
</div>

<div class="spec-item">
<p class="label">Handlebars</p>
<p class="value">Roval Terra Cockpit, Integrated Bar/Stem</p>
</div>

<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">S-Works Power with Mirror</p>
</div>

<div class="spec-item">
<p class="label">Tape</p>
<p class="value">Supacaz Super Sticky Kush</p>
</div>

<div class="spec-item">
<p class="label">Seat Binder</p>
<p class="value">Integrated Wedge</p>
</div>
</div>

<div class="spec-section">
<h4>Weight</h4>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">7.1 kg (15 lb, 10.4 oz)</p>
</div>

<div class="spec-item">
<p class="label">Weight Size</p>
<p class="value">56</p>
</div>
</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col">Measurement</th>
<th>49</th>
<th>52</th>
<th>54</th>
<th>56</th>
<th>58</th>
<th>61</th>
</tr>
</thead>
<tbody>

<tr>
<td class="sticky-col">Crank Length (mm)</td>
<td>165</td><td>165</td><td>170</td><td>170</td><td>172.5</td><td>172.5</td>
</tr>

<tr>
<td class="sticky-col">Handlebar Width (mm)</td>
<td>380</td><td>380</td><td>400</td><td>400</td><td>420</td><td>420</td>
</tr>

<tr>
<td class="sticky-col">Stem Length (mm)</td>
<td>75</td><td>90</td><td>90</td><td>100</td><td>100</td><td>100</td>
</tr>

<tr>
<td class="sticky-col">Saddle Width (mm)</td>
<td>155</td><td>155</td><td>143</td><td>143</td><td>143</td><td>143</td>
</tr>

<tr>
<td class="sticky-col">Seatpost Length (mm)</td>
<td>300</td><td>300</td><td>380</td><td>380</td><td>380</td><td>380</td>
</tr>

<tr>
<td class="sticky-col">Stack (mm)</td>
<td>530</td><td>547</td><td>560</td><td>578</td><td>598</td><td>621</td>
</tr>

<tr>
<td class="sticky-col">Reach (mm)</td>
<td>375</td><td>382</td><td>388</td><td>400</td><td>412</td><td>425</td>
</tr>

<tr>
<td class="sticky-col">Head Tube Length (mm)</td>
<td>95</td><td>110</td><td>125</td><td>142</td><td>163</td><td>188</td>
</tr>

<tr>
<td class="sticky-col">Head Tube Angle (°)</td>
<td>70.5</td><td>70.75</td><td>71</td><td>71.5</td><td>71.5</td><td>71.5</td>
</tr>

<tr>
<td class="sticky-col">BB Height (mm)</td>
<td>278</td><td>278</td><td>280</td><td>280</td><td>280</td><td>280</td>
</tr>

<tr>
<td class="sticky-col">BB Drop (mm)</td>
<td>80</td><td>80</td><td>78</td><td>78</td><td>78</td><td>78</td>
</tr>

<tr>
<td class="sticky-col">Trail (mm)</td>
<td>72</td><td>71</td><td>69</td><td>66</td><td>66</td><td>66</td>
</tr>

<tr>
<td class="sticky-col">Fork Length, Full (mm)</td>
<td>401</td><td>401</td><td>401</td><td>401</td><td>401</td><td>401</td>
</tr>

<tr>
<td class="sticky-col">Fork Rake / Offset (mm)</td>
<td>51</td><td>51</td><td>51</td><td>51</td><td>51</td><td>51</td>
</tr>

<tr>
<td class="sticky-col">Front Center (mm)</td>
<td>594</td><td>604</td><td>613</td><td>626</td><td>644</td><td>665</td>
</tr>

<tr>
<td class="sticky-col">Chainstay Length (mm)</td>
<td>425</td><td>425</td><td>425</td><td>425</td><td>425</td><td>425</td>
</tr>

<tr>
<td class="sticky-col">Wheelbase (mm)</td>
<td>1008</td><td>1016</td><td>1026</td><td>1039</td><td>1057</td><td>1078</td>
</tr>

<tr>
<td class="sticky-col">Top Tube Length, Horizontal (mm)</td>
<td>512</td><td>534</td><td>543</td><td>566</td><td>583</td><td>603</td>
</tr>

<tr>
<td class="sticky-col">Bike Standover Height (mm)</td>
<td>753</td><td>766</td><td>781</td><td>803</td><td>823</td><td>849</td>
</tr>

<tr>
<td class="sticky-col">Seat Tube Length (mm)</td>
<td>445</td><td>456</td><td>473</td><td>497</td><td>515</td><td>545</td>
</tr>

<tr>
<td class="sticky-col">Seat Tube Angle (°)</td>
<td>75.5</td><td>74.5</td><td>74.5</td><td>74</td><td>74</td><td>74</td>
</tr>

</tbody>
</table>
</div>
</div>
