This totally redesigned P.Series frame gives riders of all sizes a jumping off point to a life on bikes. The lightweight, but tough alloy frame is designed to take all the hits and keep rolling—across all frame sizes. Our approach to these robust bikes centers around delivering a simple, high-quality platform that's versatile for all riders, and packs in category-first features that make a difference to the rider.
SLEEK SIMPLICITY — For the rider focusing on progression, eliminating every other variable is paramount. The durable lightweight alloy frame of the P.Series stands up to the tough demands of a modern DJ rig and accepts internally routed cables.
SIZED FOR ALL — Frames available in dedicated 20”, 24”, and 26” configurations as well as the P.4 that can run both 26” and 27.5” (P.4 is spec’d with 27.5”).
REIMAGINE YOUR RIDE — P.Series frames are dropper ready, derailleur compatible, and use adjustable dropouts.
TOUGH TECH — Boost spacing in the rear, a tapered headtube, and threaded bottom-bracket make P.Series stiff and easy to maintain.

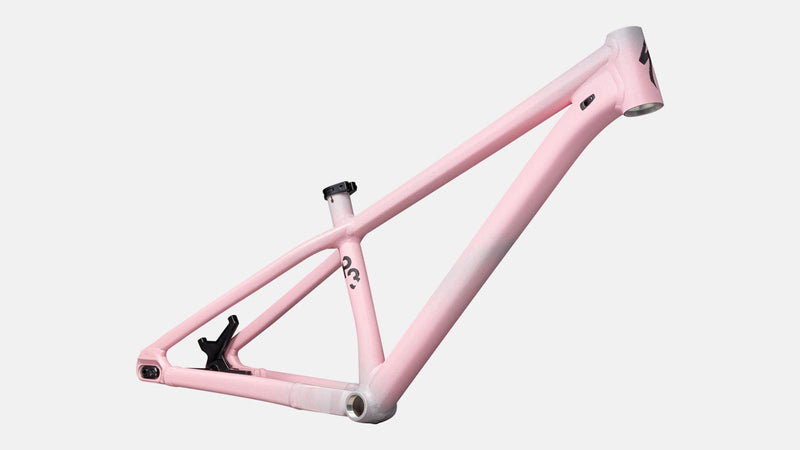

- Specialized P.3, A1 Premium Alloy, 26", fully-butted tubing, dropper post compatible and 27.5" wheel compatible.
FRAMESET SEAT BINDER Alloy, single-bolt, 34.9mm FRAME Specialized P.3, A1 Premium Alloy, 26", Fully Butted Tubing, Tapered Head Tube, BSA 73mm BB Shell, 12x148TA Sliding Dropouts, Single Speed or Geared Compatible, 52mm CL, Internal cable routing, 30.9 Seat Tube, Dropper Post Compatible, 27.5" Wheel Compatible * Specifications are subject to change without notice
Seatpost Length 0 Stack 563 Reach 415 Head-Tube Length 115 Head-Tube Angle 68.5 B-B Height 318 B-B Drop 22 Trail 94 Fork Length (full) 480 Fork Rake/Offset 37 Front-Center 668 Chain-Stay Length 385 Wheelbase 1052 Top-Tube Length (horizontal) 598 Bike Stand-Over Height 691 Seat-Tube Length 335 Seat-Tube Angle 72 All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.
The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.
Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
