Specialized - Fuse 27.5

SKU 96022-7105
Save 20% Save 20%
Original price $1,490.00
Original price $1,490.00 - Original price $1,490.00
Original price $1,490.00
Current price $1,199.00
$1,199.00 - $1,199.00
Current price $1,199.00

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

Color: GLOSS ARCTIC BLUE / BLACK
Size: XL

Calm under pressure, yet deft and precise, the Fuse is an entirely different kind of hardtail. Featuring an all-new longer, lower, and rowdier chassis and 27.5x2.3 wheels and tires, the Fuse 27.5 handles rough, sketchy descents and steep, technical climbs with absolute confidence.

  • 130-millimeters of suspension courtesy of an X-Fusion fork.
  • Highlights include hydraulic disc brakes, a dropper post, and single-ring drivetrain.
  • Durable 29mm interal width alloy wheelset.
FRAMESET
FRAME Specialized A1 Premium Aluminum, 148mm thru-axle, tapered head tube, internal cable routing
SEAT BINDER Alloy, 38.6mm
Suspension
FORK X-Fusion MIG 27.5, External Rebound and Compression adjust, coil spring, 46mm Offset, 130mm of travel
COCKPIT
STEM Stout 3D-forged alloy, 31.8mm, 6-degree rise
HANDLEBARS Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
GRIPS Specialized Trail Grips, lock-on
SADDLE Body Geometry Bridge Saddle, steel rails
SEATPOST TranzX Dropper, 30.9mm, S: 100mm, M-XL: 120mm
BRAKES
FRONT BRAKE Shimano BR-MT200, hydraulic disc, 180mm
REAR BRAKE Shimano BR-MT200, hydraulic disc, 160mm
DRIVETRAIN
REAR DERAILLEUR microSHIFT Advent, 1x9 w/ clutch
SHIFT LEVERS microSHIFT Advent, 9-speed
CASSETTE microSHIFT Advent, 9-speed, 11-42t
CHAIN KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™
CRANKSET Stout, forged alloy, 76mm BCD, 30T
BOTTOM BRACKET Square-tapered, 73mm, internal bearings, 122.5mm spindle
WHEELS
RIMS Alloy, disc only, double-wall, 29mm internal width, 28h, tubeless compatible
FRONT HUB Shimano MT400-B, Centerlock 28h, 15x110 Boost
REAR HUB Shimano MT400-B, Centerlock, 12x148 Boost, 32h
FRONT TIRE Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
REAR TIRE Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
INNER TUBES Presta, 40mm valve
WHEELS & TIRES
SPOKES Stainless, 14g

* Specifications are subject to change without notice

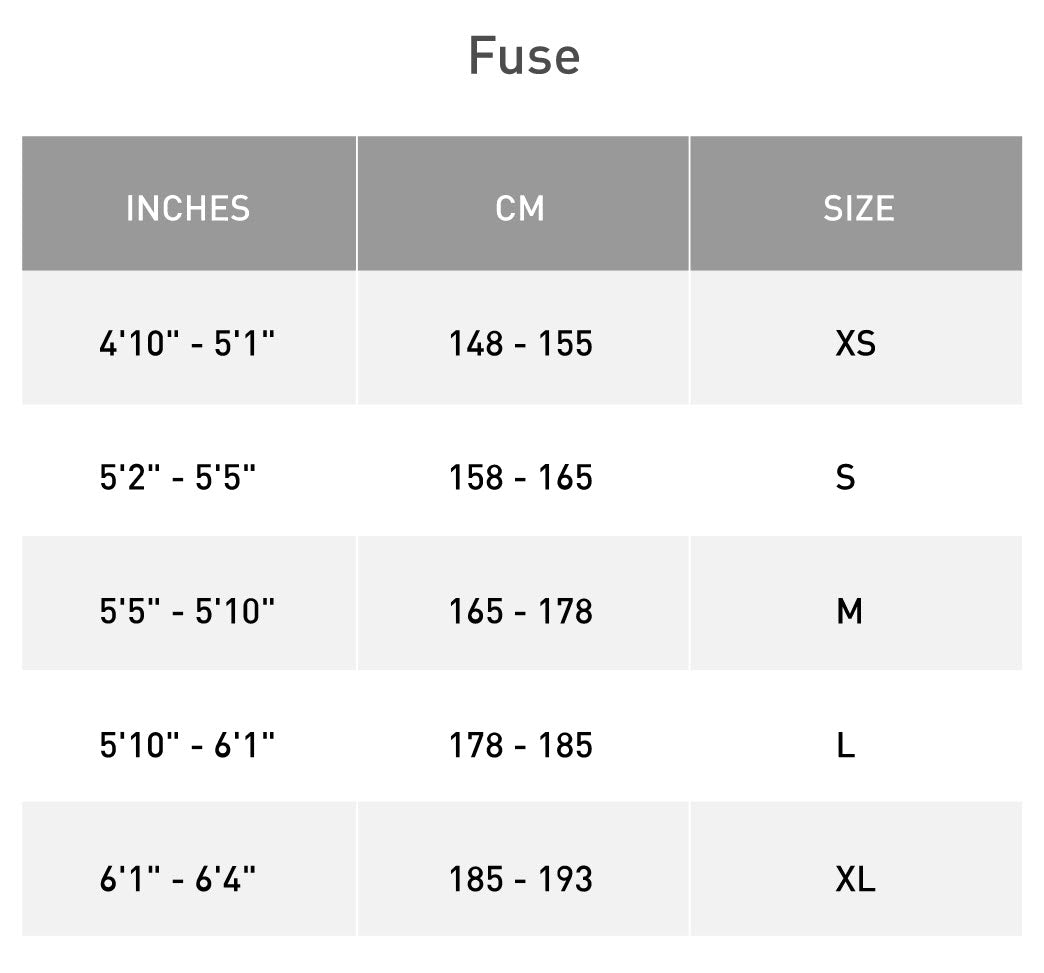

XSSMLXL
Crank Length170170170170175
Handlebar Width750750780780780
Stem Length4545454545
Saddle Width155143143143143
Seatpost Length360360400400400
Head-Tube Length105105105120135
Head-Tube Angle6666666666
Trail113113113113113
Front-Center695715735761787
B-B Height315315315315315
Fork Rake/Offset4242424242
B-B Drop4848484848
Bike Stand-Over Height717736739744789
Reach400420440460480
Wheelbase11201140116011861213
Top-Tube Length (horizontal)573593613637661
Stack603603603615630
Chain-Stay Length430430430430430
Seat-Tube Length340375410455505
Seat-Tube Angle7474747474
Fork Length (full)520520520520520

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.

  • Calm under pressure, yet deft and precise, the Fuse is an entirely different kind of hardtail. Featuring an all-new longer, lower, and rowdier chassis and 27.5x2.3 wheels and tires, the Fuse 27.5 handles rough, sketchy descents and steep, technical climbs with absolute confidence.
