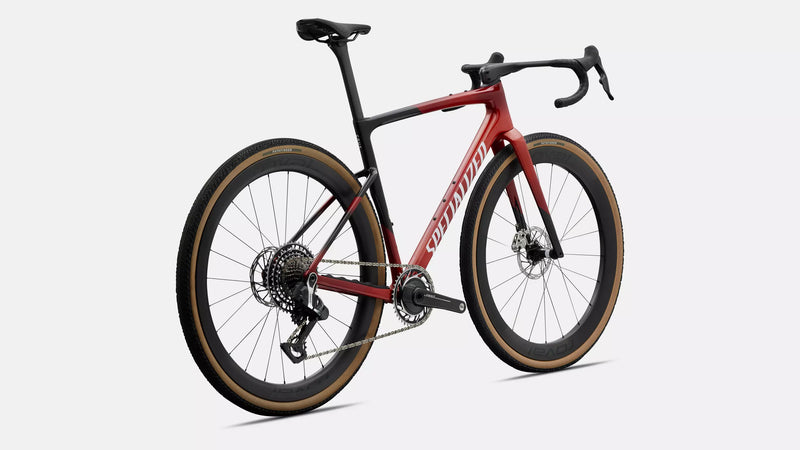

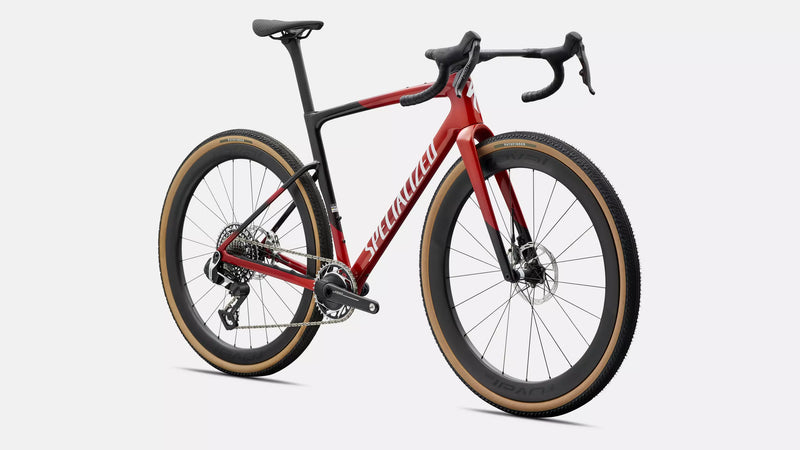

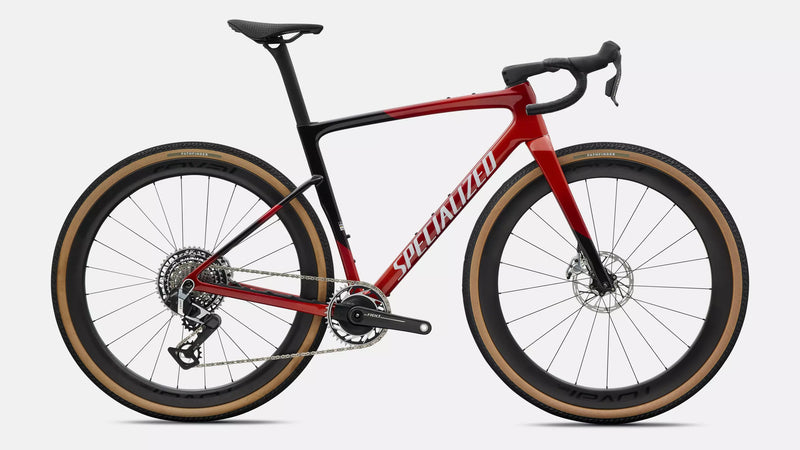

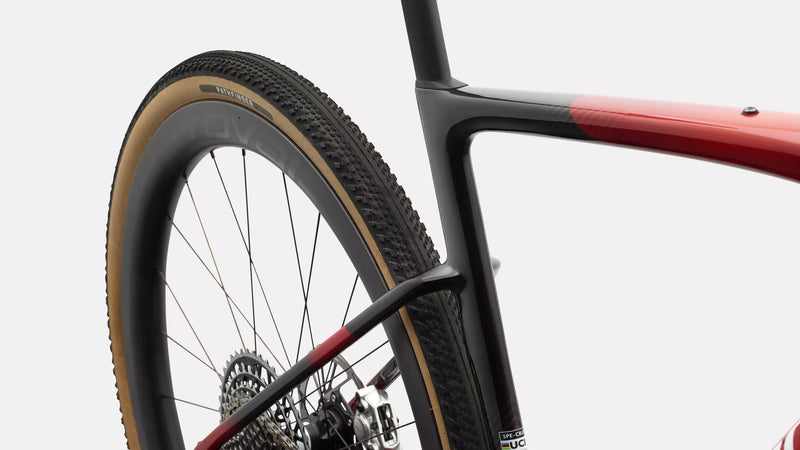

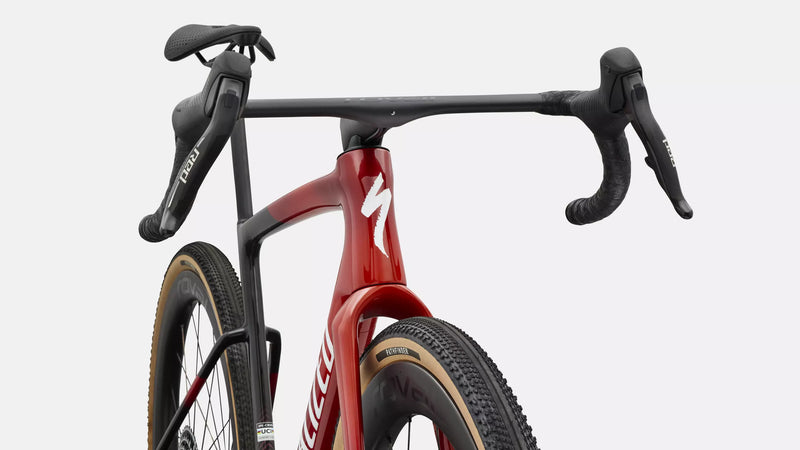

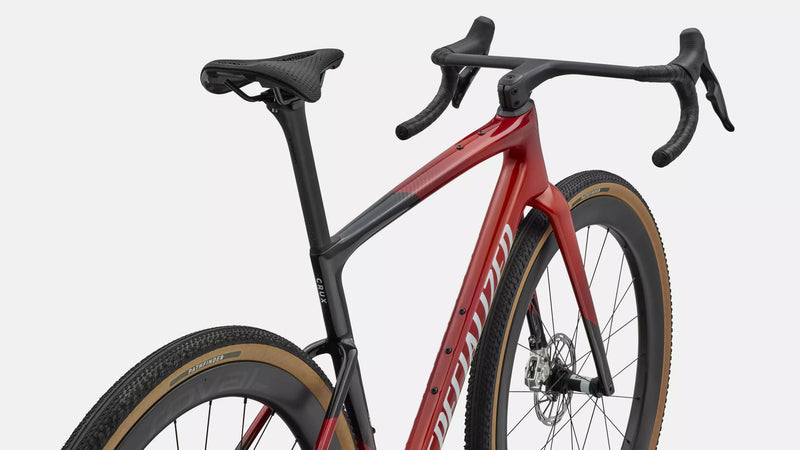

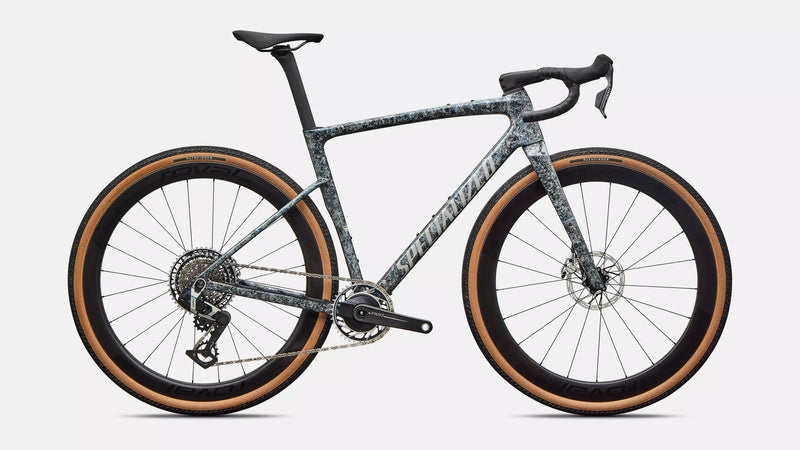

Crux 5 S-Level

Eat My Dust

The Crux 5 S-Level was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

<div class="tech-specs">

<!-- Frameset -->
<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Frame</p>
<p class="value">Crux 5 FACT 10r Carbon, Rider First Engineeredâ„¢, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout</p>
</div>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc</p>
</div>

</div>

<!-- Brakes -->
<div class="spec-section">
<h4>Brakes</h4>

<div class="spec-item">
<p class="label">Front Brake</p>
<p class="value">SRAM RED E1, hydraulic disc</p>
</div>

<div class="spec-item">
<p class="label">Rear Brake</p>
<p class="value">SRAM RED E1, hydraulic disc</p>
</div>

</div>

<!-- Drivetrain -->
<div class="spec-section">
<h4>Drivetrain</h4>

<div class="spec-item">
<p class="label">Bottom Bracket</p>
<p class="value">SRAM DUB BSA 68 Wide</p>
</div>

<div class="spec-item">
<p class="label">Shift Levers</p>
<p class="value">SRAM RED AXS E1, hydraulic disc</p>
</div>

<div class="spec-item">
<p class="label">Rear Derailleur</p>
<p class="value">SRAM RED AXS XPLR E1, 13-speed</p>
</div>

<div class="spec-item">
<p class="label">Chain</p>
<p class="value">SRAM RED E1</p>
</div>

<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">SRAM RED XPLR E1, 13-speed, 10-46t</p>
</div>

<div class="spec-item">
<p class="label">Crankset</p>
<p class="value">SRAM RED XPLR E1, Quarq power meter, 40t</p>
</div>

</div>

<!-- Wheels & Tires -->
<div class="spec-section">
<h4>Wheels & Tires</h4>

<div class="spec-item">
<p class="label">Front Wheel</p>
<p class="value">Roval Terra Aero CL, 27mm internal width, tubeless ready, 50mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes</p>
</div>

<div class="spec-item">
<p class="label">Rear Wheel</p>
<p class="value">Roval Terra Aero CL, 27mm internal width, tubeless ready, 45mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes</p>
</div>

<div class="spec-item">
<p class="label">Front Tire</p>
<p class="value">Pathfinder 700x45, Tubeless Ready</p>
</div>

<div class="spec-item">
<p class="label">Rear Tire</p>
<p class="value">Pathfinder 700x45, Tubeless Ready</p>
</div>

<div class="spec-item">
<p class="label">Inner Tubes</p>
<p class="value">700x32-50mm, 60mm Presta valve</p>
</div>

</div>

<!-- Cockpit -->
<div class="spec-section">
<h4>Cockpit</h4>

<div class="spec-item">
<p class="label">Handlebars</p>
<p class="value">Roval Terra Cockpit, Integrated Bar/Stem</p>
</div>

<div class="spec-item">
<p class="label">SeatPost</p>
<p class="value">S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset</p>
</div>

<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">Power Pro Mirror, Hollow Ti rails</p>
</div>

<div class="spec-item">
<p class="label">Tape</p>
<p class="value">Supacaz Super Sticky Kush</p>
</div>

<div class="spec-item">
<p class="label">Seat Binder</p>
<p class="value">Integrated Wedge</p>
</div>

</div>

<!-- Weight -->
<div class="spec-section">
<h4>Weight</h4>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">7.7 kg (16 lb, 15.6 oz)</p>
</div>

<div class="spec-item">
<p class="label">Weight Size</p>
<p class="value">56</p>
</div>

</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col label-col"></th>
<th>49</th>
<th>52</th>
<th>54</th>
<th>56</th>
<th>58</th>
<th>61</th>
</tr>
</thead>

<tbody>
<tr>
<td class="sticky-col label-col">Crank Length</td>
<td>165</td>
<td>165</td>
<td>170</td>
<td>170</td>
<td>172.5</td>
<td>172.5</td>
</tr>

<tr>
<td class="sticky-col label-col">Handlebar Width</td>
<td>380</td>
<td>380</td>
<td>400</td>
<td>400</td>
<td>420</td>
<td>420</td>
</tr>

<tr>
<td class="sticky-col label-col">Stem Length</td>
<td>75</td>
<td>90</td>
<td>90</td>
<td>100</td>
<td>100</td>
<td>100</td>
</tr>

<tr>
<td class="sticky-col label-col">Saddle Width</td>
<td>155</td>
<td>155</td>
<td>143</td>
<td>143</td>
<td>143</td>
<td>143</td>
</tr>

<tr>
<td class="sticky-col label-col">Seatpost Length</td>
<td>300</td>
<td>300</td>
<td>380</td>
<td>380</td>
<td>380</td>
<td>380</td>
</tr>

<tr>
<td class="sticky-col label-col">Stack</td>
<td>530</td>
<td>547</td>
<td>560</td>
<td>578</td>
<td>598</td>
<td>621</td>
</tr>

<tr>
<td class="sticky-col label-col">Reach</td>
<td>375</td>
<td>382</td>
<td>388</td>
<td>400</td>
<td>412</td>
<td>425</td>
</tr>

<tr>
<td class="sticky-col label-col">Head Tube Length</td>
<td>95</td>
<td>110</td>
<td>125</td>
<td>142</td>
<td>163</td>
<td>188</td>
</tr>

<tr>
<td class="sticky-col label-col">Head Tube Angle</td>
<td>70.5</td>
<td>70.75</td>
<td>71</td>
<td>71.5</td>
<td>71.5</td>
<td>71.5</td>
</tr>

<tr>
<td class="sticky-col label-col">BB Height</td>
<td>278</td>
<td>278</td>
<td>280</td>
<td>280</td>
<td>280</td>
<td>280</td>
</tr>

<tr>
<td class="sticky-col label-col">BB Drop</td>
<td>80</td>
<td>80</td>
<td>78</td>
<td>78</td>
<td>78</td>
<td>78</td>
</tr>

<tr>
<td class="sticky-col label-col">Trail</td>
<td>72</td>
<td>71</td>
<td>69</td>
<td>66</td>
<td>66</td>
<td>66</td>
</tr>

<tr>
<td class="sticky-col label-col">Fork Length, Full</td>
<td>401</td>
<td>401</td>
<td>401</td>
<td>401</td>
<td>401</td>
<td>401</td>
</tr>

<tr>
<td class="sticky-col label-col">Fork Rake/Offset</td>
<td>51</td>
<td>51</td>
<td>51</td>
<td>51</td>
<td>51</td>
<td>51</td>
</tr>

<tr>
<td class="sticky-col label-col">Front Center</td>
<td>594</td>
<td>604</td>
<td>613</td>
<td>626</td>
<td>644</td>
<td>665</td>
</tr>

<tr>
<td class="sticky-col label-col">Chainstay Length</td>
<td>425</td>
<td>425</td>
<td>425</td>
<td>425</td>
<td>425</td>
<td>425</td>
</tr>

<tr>
<td class="sticky-col label-col">Wheelbase</td>
<td>1008</td>
<td>1016</td>
<td>1026</td>
<td>1039</td>
<td>1057</td>
<td>1078</td>
</tr>

<tr>
<td class="sticky-col label-col">Top Tube Length, Horizontal</td>
<td>512</td>
<td>534</td>
<td>543</td>
<td>566</td>
<td>583</td>
<td>603</td>
</tr>

<tr>
<td class="sticky-col label-col">Bike Standover Height</td>
<td>753</td>
<td>766</td>
<td>781</td>
<td>803</td>
<td>823</td>
<td>849</td>
</tr>

<tr>
<td class="sticky-col label-col">Seat Tube Length</td>
<td>445</td>
<td>456</td>
<td>473</td>
<td>497</td>
<td>515</td>
<td>545</td>
</tr>

<tr>
<td class="sticky-col label-col">Seat Tube Angle</td>
<td>75.5</td>
<td>74.5</td>
<td>74.5</td>
<td>74</td>
<td>74</td>
<td>74</td>
</tr>

</tbody>
</table>
</div>
</div>
