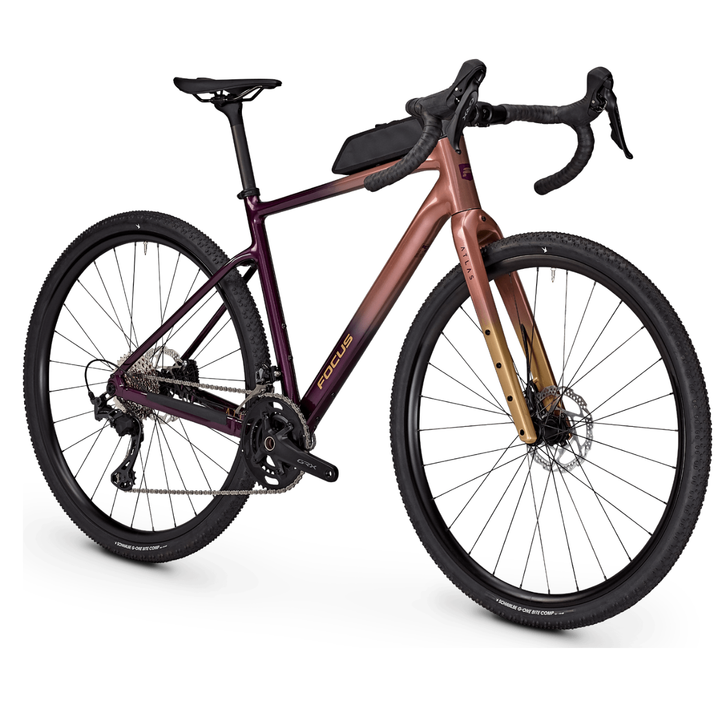

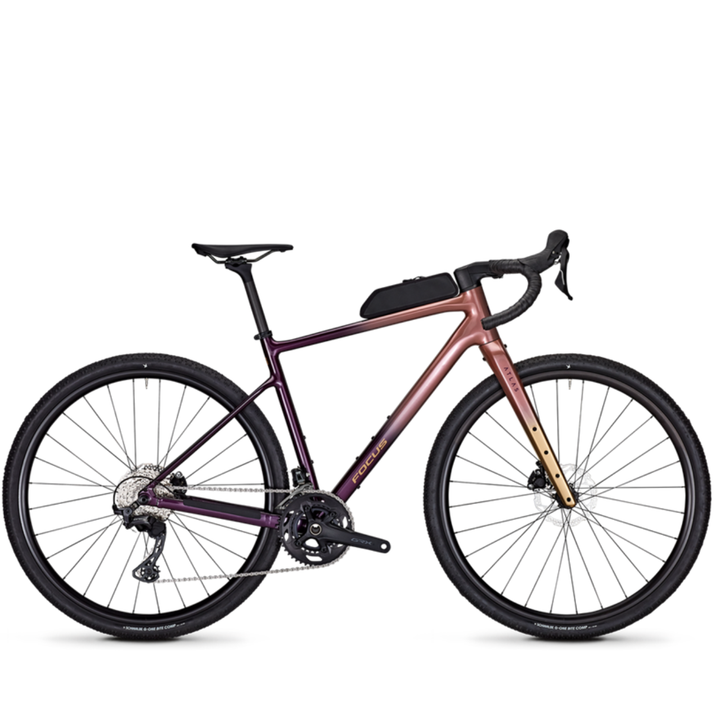

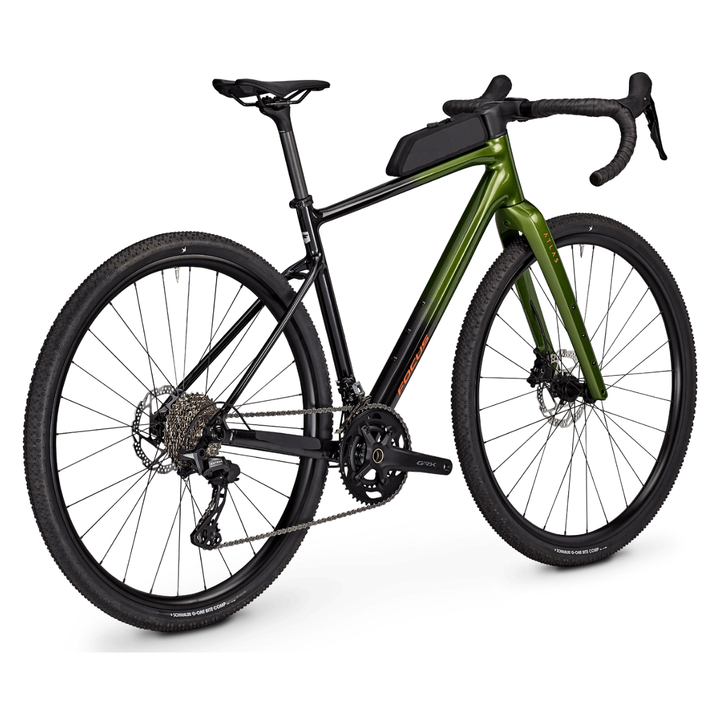

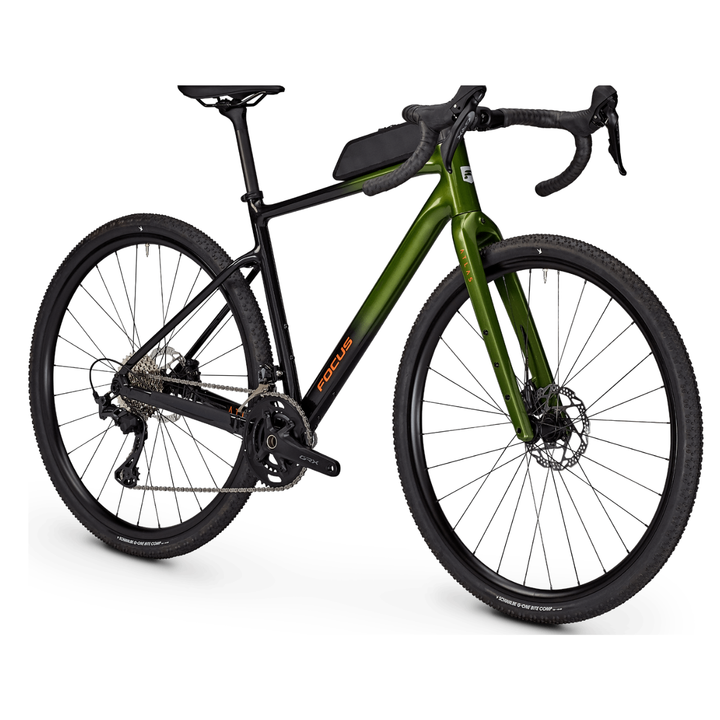

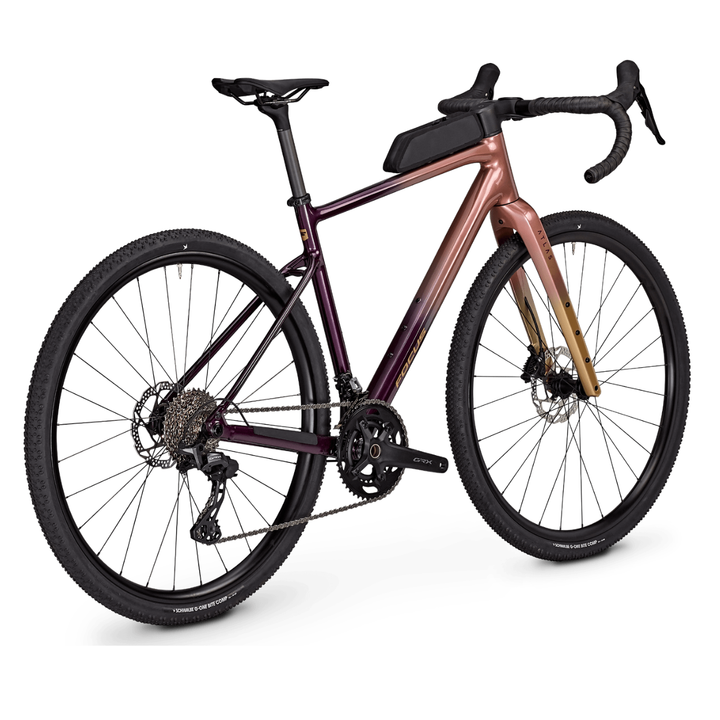

Focus - ATLAS 6.9 - 2021

$4,599.00
SKU N641019400

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

Color: MILK BROWN

Fields with * are required

  • DESCRIPTION
  • FEATURES
  • SPECS
  • GEOMETRY
  • BUYING A BIKE
  • PUSHES BOUNDARIES

    • Lightweight and robust aluminium frame & full-carbon fork with integrated C.I.S. cable routing, plus option to mount pannier racks, fenders and stand
    • Shimano GRX810 1x11 groupset with special gravel ergonomics and optimised transmission range
    • Maximum stability and high quality: Gravel Road Boost system wheels by DT Swiss

    Focus ATLAS Promo 1

  • Comfort and control on any terrain

    Whether bad weather, demanding surface, steep climbs or long distances – the fast and comfortable gravel bike offers full control and comfort thanks to wide handlebars with flare and disc brakes. The clean cockpit with cable routing from the handlebar directly into the headset avoids any hustle when installing a handlebar bag. To climb every mountain even with equipment, the Shimano GRX gravel groupset comes with a pleasant transmission ratio for everyone.

    Huge tyre clearance

    The ATLAS comes with 700c tyres, but is 650b-ready and can take tyre widths up to 47 mm. Therefore, you have plenty of opportunities to spec your ATLAS appropriate to your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the ATLAS fully supports your ride – even to the end of the world.

    Various options to mount equipment

    Three bottle cages can be mounted: On the seat tube, above the down tube and underneath the down tube. In the top tube bag, you can store all necessities. Additionally, the ATLAS can be equipped with various features thanks to many mounting options on the aluminium frame and carbon fork. The mounting points on the fork can take 3 kg each side.

  • FRAME Aluminium, disc, BSA, 148x12 mm thru axle, flat mount 160/160 mm, internal cable routing
    FRAME MATERIAL Aluminium
    FORK Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points
    SHIFTER Shimano GRX 800
    REAR DERAILLEUR Shimano GRX 812
    SPROCKET Shimano SLX
    CHAIN Shimano CN-HG601
    CRANKSET Shimano GRX 810
    TRANSMISSION OF DRIVE vorne: 40, hinten: 11-42
    BOTTOM BRACKET BSA
    HANDLEBAR FOCUS JD RA85, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10 degree
    STEM Aluminium, 31,8 mm, 6 degree
    HEADSET Acros IS 52/286-IS52/40, FOCUS integrated C.I.S.
    SADDLE WTB SL8
    SEATPOST BBB FlyPost SP-131, 27,2mm, set-back: 0mm, carbon
    BRAKES Shimano GRX 810
    BRAKE LEVER Shimano GRX BR-RX810
    BRAKE Disc
    WHEELSET DT Swiss LN Gravel, 622/24, disc, center lock, front: 110x12 mm, rear: 148x12 mm
    TIRES WTB Riddler, 700 x 45C, folding
    GEARS 11
    BIKE WEIGHT INCL. BATTERY IN KG. 10,50 kg
    SIZE 48,51,54,57,60

    * Subject to technical modification without notice. Errors and omissions excepted.

    ** Weight in size M, of standard specification and without pedals.

    • Focus - ATLAS 6.9 Geometry
    • Focus E-MTB Geometry Graph
  • All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

    The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

    Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
