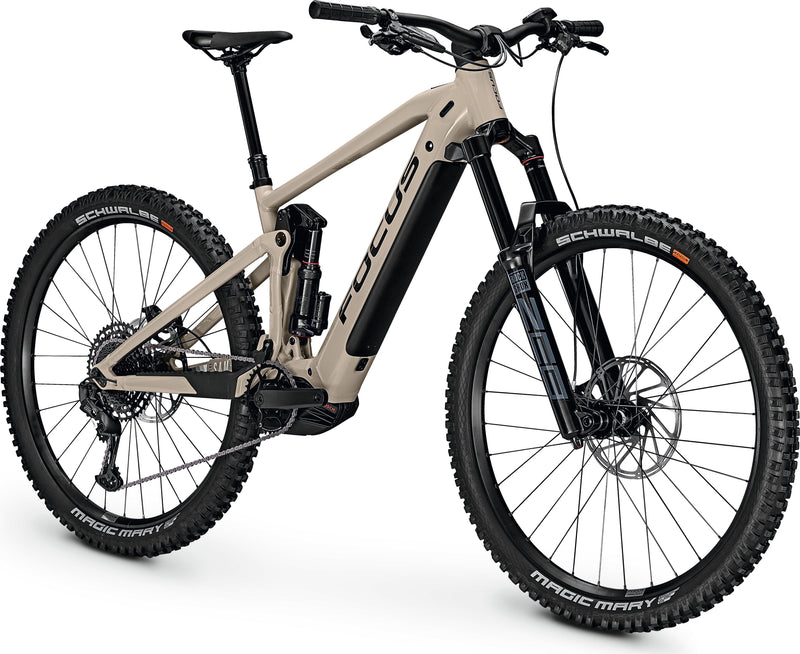

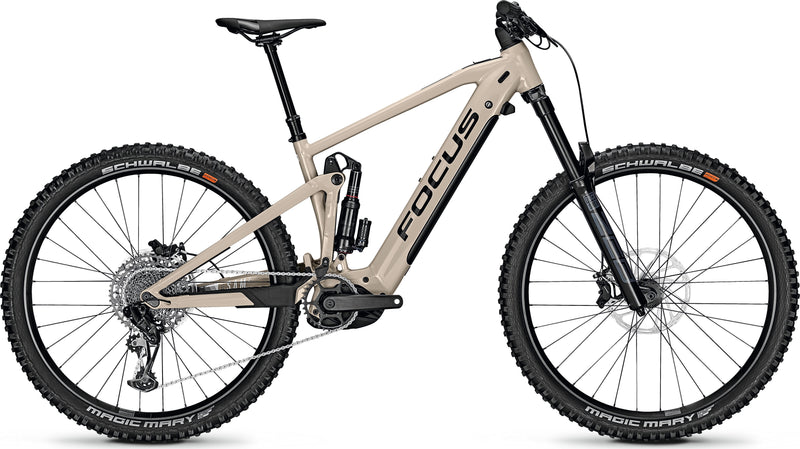

Focus - SAM2 6.8 - 2022

Focus - SAM² 6.8

SKU ND641518007
Save 32% Save 32%
$10,999.00
$10,999.00 - $10,999.00
$10,999.00
$7,499.00
$7,499.00 - $7,499.00
$7,499.00
Color: Brown
Size: 45L

Designed for down

Super powerful and dynamic e-motor

The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.

Optimal suspension performance in any situation

Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.

Designed for down

A modern, downhill-oriented geometry, 170 mm travel and fast 29" wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. Additionally, the fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5" wheels and super short chainstays (430 mm).

  • Powerful and agile Bosch Performance CX e-drive with Purion display and integrated, removable 625 Wh battery
  • 170 mm travel with F.O.L.D. kinematics: RockShox ZEB suspension fork with 38 mm stanchion and SuperDeluxe rear shock
  • Fully integrated C.I.S. cable routing with crisp SRAM GX Eagle shifting and strong Code brakes with 220 mm rotors
FRAME 7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic,148x12 mm thru axle, internal cable routing, post mount 203 mm
FRAME MATERIAL Aluminium
FORK Rock Shox ZEB 29 Boost, Charger R, DebonAir, 110x15 mm, 44 mm rake, 170 mm travel
TRAVEL FORK 170 mm
MOTOR Bosch Performance CX Gen4, 250 W, 85 Nm max torque

B
DISPLAY
Bosch Purion
SHIFTER SRAM GX Eagle, 12-speed
REAR DERAILLEUR SRAM GX Eagle, 12-speed
Cassette SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
CHAIN SRAM NX Eagle, 12-speed
BATTERY Bosch Powertube, 625 Wh, removeable, lockable
BOTTOM BRACKET Integrated in Drive Unit
TRANSMISSION OF DRIVE front: 34, rear: 11-50
HANDLEBAR FOCUS Trail, aluminium, riserbar, 780mm, rise: 30mm, backsweep: 9°
STEM Focus C.I.S. (Cockpit Integration Solution) integrated cable routing, aluminum, 50mm length, 0° rise, 35mm bar clamp
HEADSET ACROS, Focus C.I.S. (Cockpit Integration Solution) integrated cable routing, ZS56 upper/lower
SADDLE Focus Trail SL
SEATPOST Post Moderne dropper post PM-MT171, 31.6 mm
BRAKES FRONT / REAR SRAM Code R | SRAM Code R
Front brake disc 220 mm
Rear brake disc
 220 mm
Rim front
RODI TRYP30 FOCUS, eyelets
Rim rear
RODI TRYP30 FOCUS, eyelets
FRONT HUB
Novatec D041, 15x110 mm thru axle
Rear hub
Novatec D162 Disc, 12x148 mm
Tyres front | rear
Schwalbe Magic Mary 2.6 Super Trail Soft  | Schwalbe Magic Mary 2.6 Super Gravity Soft
SHOCK Rock Shox Super Deluxe Select+, 230 / 65 mm,
hardware: 25,0 x 8 mm

Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.

* Subject to technical modification without notice. Errors and omissions excepted.

** Weight in size M, of standard specification and without pedals.

  • Position high
  • Position low
  • S M L XL
    Size 41 42 45 49
    Size (MM) 410 420 450 490
    Handlebar width 780 780 780 780
    Stem Length (MM) 50 50 50 50
    Crankarm length 165 165 165 165
    Seat post length (MM) 125 150 170 170
    A Seat tube length (MM) 410 420 450 490
    B Effective Top Tube (MM) 589 610 644 678
    C Head Tube Angle (°) 64,1 64,1 64,1 64,1
    D Effective Seat Tube Angle (°) 75,1 75,1 75,1 75,1
    E Chainstay length (MM) 450 450 450 450
    F Bottom bracket drop (MM) 20 20 20 20
    G Head Tube Length (MM) 110 115 130 150
    H Fork construction height (MM) 581 581 581 581
    I Pre-raked fork (MM) 46 46 46 46
    J Wheelbase length (MM) 1215 1236 1273 1311
    K Stack (MM) 629 634 647 665
    L Reach (MM) 420 440 470 500
  • S M L XL
    Size 41 42 45 49
    Size (MM) 410 420 450 490
    Handlebar width 780 780 780 780
    Stem Length (MM) 50 50 50 50
    Crankarm length 165 165 165 165
    Seat post length (MM) 125 150 170 170
    A Seat tube length (MM) 410 420 450 490
    B Effective Top Tube (MM) 587 608 642 676
    C Head Tube Angle (°) 64,8 64,8 64,8 64,8
    D Effective Seat Tube Angle (°) 75,8 75,8 75,8 75,8
    E Chainstay length (MM) 430 430 430 430
    F Bottom bracket drop (MM) 10 10 10 10
    G Head Tube Length (MM) 110 115 130 150
    H Fork construction height (MM) 581 581 581 581
    I Pre-raked fork (MM) 44 44 44 44
    J Wheelbase length (MM) 1195 1216 1253 1291
    K Stack (MM) 631 636 649 667
    L Reach (MM) 428 448 478 507
Focus Geometry SAM2
