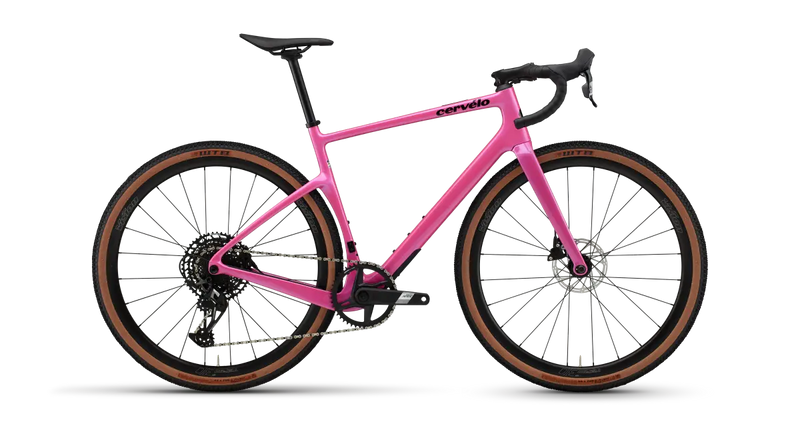

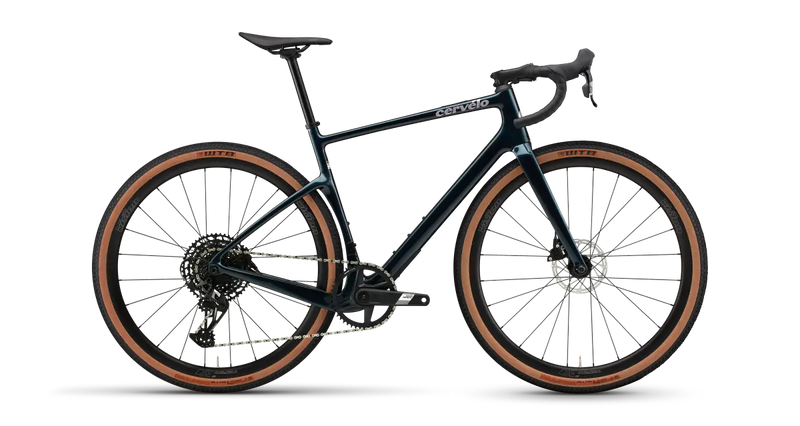

Cervélo Áspero Apex
Cervélo Áspero Apex

Cervélo Áspero Apex

SKU
$5,200.00 - $5,200.00
$5,200.00
$5,200.00 - $5,200.00
$5,200.00

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

Color: Quarry
Size: 48
ENQUIRY
HAUL ASS, NOT CARGO

The new Áspero remains true to its original brief, but with some improvements: a threaded BB shell, neater cable routing, and a UDH-compatible derailleur hanger for those who want to use SRAM’s Transmission drivetrains. And it’s more aero, of course. In the case of Áspero, aerodynamic performance is less about pure speed as a result of drag reduction, and more about conservation of energy. After a big day in a headwind, the three watts saved over the previous Áspero might add up to one less energy gel your stomach has to digest—WORTH IT.
In addition to the drag reduction, we also dropped the seat stays to give a bit more compliance out back, and reduced front-end stiffness slightly to make the last hours of a long race less painful. Between those dropped seat stays, we added in a bit more clearance for mud, too, taking what we learned from R5-CX (and the Unbound mudfest in 2023). It’s a lot of seemingly small improvements, but they add up to a lot. The result is a bike that feels a lot like the original Áspero, but is faster, more comfortable, and more versatile.

THREADED BOTTOM BRACKET

Áspero uses the asymmetrical T47a threaded bottom bracket we pioneered on R5-CX. It’s a simple, rider-serviceable interface that allows us to deliver the benefits of BBRight in a more user-friendly form.

UNIVERSAL DERAILLEUR HANGER

We used SRAM’s Universal Derailleur Hanger (UDH) standard on Áspero. It’s ideal if you want to live your best ‘business in the front, party in the back’ life with one of SRAM’s Transmission drivetrains today, and ensures compatibility for future drivetrain developments.

<div class="tech-specs">

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Sizes</p>
<p class="value">48cm, 51cm, 54cm, 56cm, 58cm, 61cm</p>
</div>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">Cervélo All-Carbon, Tapered Aspero Fork</p>
</div>

<div class="spec-item">
<p class="label">Headset</p>
<p class="value">FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°</p>
</div>

<div class="spec-item">
<p class="label">Front Thru Axle</p>
<p class="value">Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length</p>
</div>

<div class="spec-item">
<p class="label">Rear Thru Axle</p>
<p class="value">Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length</p>
</div>

</div>

<div class="spec-section">
<h4>Drivetrain</h4>

<div class="spec-item">
<p class="label">Shifter / Brake Levers</p>
<p class="value">SRAM Apex D1</p>
</div>

<div class="spec-item">
<p class="label">Rear Derailleur</p>
<p class="value">SRAM Apex EAGLE D1</p>
</div>

<div class="spec-item">
<p class="label">Crankset</p>
<p class="value">SRAM Apex 1, 46T, DUB Wide</p>
</div>

<div class="spec-item">
<p class="label">Crank Sizing</p>
<p class="value">
Size 48 - 165mm SRAM, 170mm Shimano<br>
Size 51 - 165mm SRAM, 170mm Shimano<br>
Size 54 - 170mm<br>
Size 56 - 170mm<br>
Size 58 - 172.5mm<br>
Size 61 - 172.5mm
</p>
</div>

<div class="spec-item">
<p class="label">Bottom Bracket</p>
<p class="value">SRAM DUB Wide, T47 BBright</p>
</div>

<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">SRAM PG 1210 Eagle, 12-Speed</p>
</div>

<div class="spec-item">
<p class="label">Chain</p>
<p class="value">SRAM S200 Eagle</p>
</div>

</div>

<div class="spec-section">
<h4>Brakes</h4>

<div class="spec-item">
<p class="label">Brake Rotors</p>
<p class="value">SRAM Centerline Centerlock</p>
</div>

</div>

<div class="spec-section">
<h4>Wheels &amp; Tires</h4>

<div class="spec-item">
<p class="label">Front Wheel</p>
<p class="value">Vision Team 30 Disc, 27mm IW, J-Bend, 12x100mm, centerlock, tubeless compatible</p>
</div>

<div class="spec-item">
<p class="label">Rear Wheel</p>
<p class="value">Vision Team 30 Disc, 27mm IW, J-Bend, 12x142mm, HG freehub, centerlock, tubeless compatible</p>
</div>

<div class="spec-item">
<p class="label">Tires</p>
<p class="value">WTB Vulpine TCS Light Fast Rolling Dual DNA 60tpi 700x45c</p>
</div>

</div>

<div class="spec-section">
<h4>Cockpit</h4>

<div class="spec-item">
<p class="label">Handlebar</p>
<p class="value">Cervélo HB23 Alloy 400mm</p>
</div>

<div class="spec-item">
<p class="label">Handlebar Sizing</p>
<p class="value">
Size 48 - 38cm<br>
Size 51 - 38cm<br>
Size 54 - 40cm<br>
Size 56 - 40cm<br>
Size 58 - 42cm<br>
Size 61 - 42cm
</p>
</div>

<div class="spec-item">
<p class="label">Stem</p>
<p class="value">Cervélo ST36 Alloy</p>
</div>

<div class="spec-item">
<p class="label">Stem Sizing</p>
<p class="value">
Size 48 - 70mm<br>
Size 51 - 80mm<br>
Size 54 - 90mm<br>
Size 56 - 90mm<br>
Size 58 - 100mm<br>
Size 61 - 100mm
</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">Cervélo Alloy 27.2</p>
</div>

<div class="spec-item">
<p class="label">Seatpost Sizing</p>
<p class="value">
Size 48 - 0mm<br>
Size 51 - 0mm<br>
Size 54 - 0mm<br>
Size 56 - 0mm<br>
Size 58 - 0mm<br>
Size 61 - 15mm
</p>
</div>

<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">Fizik Vento Argo X5</p>
</div>

</div>

<div class="spec-section">
<h4>Accessories</h4>

<div class="spec-item">
<p class="label">Included Accessories</p>
<p class="value">
Cervélo Smartpak Top Tube Storage Bag 400A<br>
Cervélo Front Computer/Accessory Mount 265
</p>
</div>

</div>

<div class="spec-section">
<h4>Weight</h4>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">9.63 kg</p>
</div>

</div>

<div class="spec-section">
<h4>Notes</h4>

<div class="spec-item">
<p class="label">Please Note</p>
<p class="value">Price and parts spec information is subject to change. Final weights may vary based on size, spec, and paint.</p>
</div>

</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col">Measurement</th>
<th>48</th>
<th>51</th>
<th>54</th>
<th>56</th>
<th>58</th>
<th>61</th>
</tr>
</thead>
<tbody>
<tr>
<td class="sticky-col">Reach (mm)</td>
<td>370</td>
<td>379</td>
<td>388</td>
<td>397</td>
<td>406</td>
<td>415</td>
</tr>
<tr>
<td class="sticky-col">Stack (mm)</td>
<td>505</td>
<td>530</td>
<td>555</td>
<td>580</td>
<td>605</td>
<td>630</td>
</tr>
<tr>
<td class="sticky-col">Head Tube Angle (°)</td>
<td>71</td>
<td>71.5</td>
<td>72</td>
<td>72</td>
<td>72</td>
<td>72</td>
</tr>
<tr>
<td class="sticky-col">Front Center (mm)</td>
<td>577/582</td>
<td>587/592</td>
<td>597/602</td>
<td>614/619</td>
<td>631/637</td>
<td>648/654</td>
</tr>
<tr>
<td class="sticky-col">Bottom Bracket Drop (mm)</td>
<td>78.5</td>
<td>78.5</td>
<td>76</td>
<td>76</td>
<td>73.5</td>
<td>73.5</td>
</tr>
<tr>
<td class="sticky-col">Head Tube Length (mm)</td>
<td>83</td>
<td>107</td>
<td>133</td>
<td>159</td>
<td>188</td>
<td>214</td>
</tr>
<tr>
<td class="sticky-col">Top Tube Length (mm)</td>
<td>512</td>
<td>532</td>
<td>553</td>
<td>575</td>
<td>591</td>
<td>608</td>
</tr>
<tr>
<td class="sticky-col">Seat Tube Angle (°)</td>
<td>74.5</td>
<td>74</td>
<td>73.5</td>
<td>73</td>
<td>73</td>
<td>73</td>
</tr>
<tr>
<td class="sticky-col">Standover Height (mm)</td>
<td>681</td>
<td>704</td>
<td>733</td>
<td>757</td>
<td>784</td>
<td>808</td>
</tr>
<tr>
<td class="sticky-col">Trail (mm)</td>
<td>62</td>
<td>62</td>
<td>62</td>
<td>62</td>
<td>62</td>
<td>62</td>
</tr>
<tr>
<td class="sticky-col">Wheel Size</td>
<td>700C</td>
<td>700C</td>
<td>700C</td>
<td>700C</td>
<td>700C</td>
<td>700C</td>
</tr>
<tr>
<td class="sticky-col">Fork Offset (mm)</td>
<td>52/57</td>
<td>49/54</td>
<td>46/51</td>
<td>46/51</td>
<td>46/51</td>
<td>46/51</td>
</tr>
<tr>
<td class="sticky-col">Wheelbase (mm)</td>
<td>990/995</td>
<td>999/1004</td>
<td>1010/1015</td>
<td>1028/1033</td>
<td>1046/1051</td>
<td>1063/1068</td>
</tr>
<tr>
<td class="sticky-col">Chainstay Length (mm)</td>
<td>425</td>
<td>425</td>
<td>425</td>
<td>425</td>
<td>425</td>
<td>425</td>
</tr>
</tbody>
</table>
</div>
</div>
