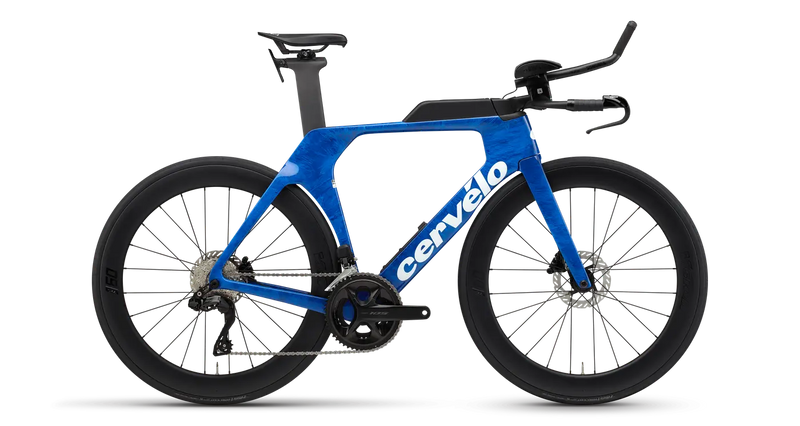

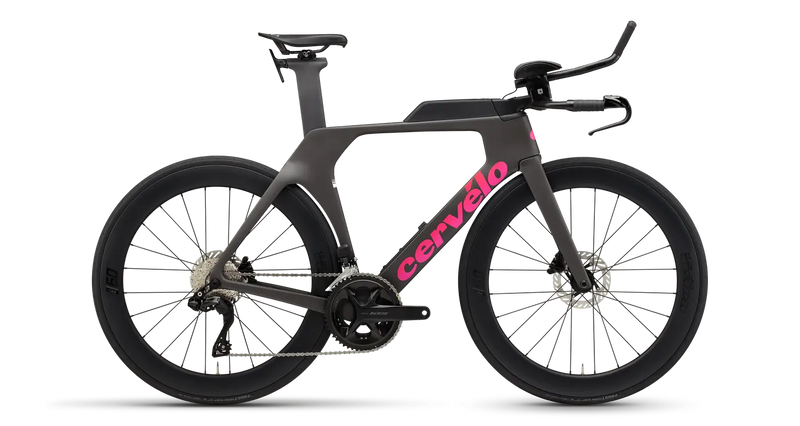

27 Cervelo P-series 105 Di2
27 Cervelo P-series 105 Di2

27 Cervelo P-series 105 Di2

SKU
$9,500.00 - $9,500.00
$9,500.00
$9,500.00 - $9,500.00
$9,500.00

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

Color: ABYSS
Size: 48
ENQUIRY
DESCENDED FROM GREATNESS

Take one look at the all-new P-Series, and you’ll notice a striking resemblance to our flagship TT bike, the P5. P-Series benefits from all the racing, wind tunnel time, and testing required to make the P5 the fastest TT bike in the World Tour, but adds a couple features that make it a perfect companion for a triathlon of any distance.

P-Series uses a fork with a D-shaped steerer tube and round stem interface. This means you can use whichever basebar and extensions you prefer, and make changes if your fit or preference changes. It’s also significantly more adaptable if you have very specific fit requirements.

Increased wheel and tire clearance, reduced aerodynamic drag, neater cable routing, and Cervelo’s first internal frame storage all add up to create the bike of choice for those looking to make the most of the time between T1 and T2.

FREE SPEED

The new P-Series frame is 5.9 grams faster than the outgoing one, but the added tire clearance makes room for the Reserve 52/63 wheels, and 29mm Vittoria tires, which combine for a 30 grams or 3.5 watts savings vs the Reserve 50/Vittoria 28 combo.

IN-FRAME STORAGE

New this year on the P-Series, the in-frame storage is designed for a tube, small multi-tool, and a CO2 canister. The hatch is easily removable with or without a bottle in place—just flip the lock and pull.

FUEL FOR THE RUN

In addition to the all-new in-frame storage, we still ship every P-Series with the Smartpak 400, our top tube-mounted bento box, which makes fueling on the bike much simpler without sacrificing aerodynamics.

FIT FOR SPEED

The P-Series is all about adapting to the athlete. Maximum stack increased to 53mm, and we include spacers to bring the basebar up that high. Fitting and positions are evolving, and P-Series offers the most flexibility in an incredibly fast package.

<div class="tech-specs">

<div class="spec-section">
<h4>General</h4>

<div class="spec-item">
<p class="label">Sizes</p>
<p class="value">48cm, 51cm, 54cm, 56cm, 58cm, 61cm</p>
</div>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">9.52 kg</p>
</div>

</div>

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">Cervélo All-Carbon, Tapered P Fork</p>
</div>

<div class="spec-item">
<p class="label">Headset</p>
<p class="value">FSA IS2 1-1/4", 45° x 45° / 1-3/8", 36° x 45°</p>
</div>

<div class="spec-item">
<p class="label">Bottom Bracket</p>
<p class="value">FSA BBright thread together for 24mm spindle</p>
</div>

<div class="spec-item">
<p class="label">Front Thru Axle</p>
<p class="value">Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length</p>
</div>

<div class="spec-item">
<p class="label">Rear Thru Axle</p>
<p class="value">Cervélo Aero Thru Axle Rear, M12x1.75mm, 170.5mm length</p>
</div>

</div>

<div class="spec-section">
<h4>Cockpit</h4>

<div class="spec-item">
<p class="label">Handlebar</p>
<p class="value">Profile Design Bracket Riser Kit, 30mm</p>
</div>

<div class="spec-item">
<p class="label">Aero Cockpit Assembly</p>
<p class="value">Profile Design Wing20C, 52A Cockpit Assembly</p>
</div>

<div class="spec-item">
<p class="label">Handlebar Sizing</p>
<p class="value">
Size 48: 38cm<br>
Size 51: 38cm<br>
Size 54: 38cm<br>
Size 56: 38cm<br>
Size 58: 38cm<br>
Size 61: 38cm
</p>
</div>

<div class="spec-item">
<p class="label">Stem</p>
<p class="value">Cervélo ST36 Alloy</p>
</div>

<div class="spec-item">
<p class="label">Stem Sizing</p>
<p class="value">
Size 48: 70mm<br>
Size 51: 70mm<br>
Size 54: 80mm<br>
Size 56: 80mm<br>
Size 58: 90mm<br>
Size 61: 90mm
</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">Cervélo SP23 Carbon</p>
</div>

<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">Fizik Transiro Aeris LD R5</p>
</div>

</div>

<div class="spec-section">
<h4>Drivetrain</h4>

<div class="spec-item">
<p class="label">Shifter / Brake Levers</p>
<p class="value">Riderever Triva Carbon Di2 for Shimano SW-R9150 Shift Switch</p>
</div>

<div class="spec-item">
<p class="label">Bar-End Satellite Shifter</p>
<p class="value">Shimano Dura-Ace SW-R9160</p>
</div>

<div class="spec-item">
<p class="label">Satellite Shifter</p>
<p class="value">Shimano Dura-Ace SW-R9150</p>
</div>

<div class="spec-item">
<p class="label">Front Derailleur</p>
<p class="value">Shimano 105 R7150</p>
</div>

<div class="spec-item">
<p class="label">Rear Derailleur</p>
<p class="value">Shimano 105 R7150</p>
</div>

<div class="spec-item">
<p class="label">Crankset</p>
<p class="value">Shimano 105 R7100, 52/36T</p>
</div>

<div class="spec-item">
<p class="label">Power Meter</p>
<p class="value">4iiii Precision GEN3+ Single Sided</p>
</div>

<div class="spec-item">
<p class="label">Crank Sizing</p>
<p class="value">
Size 48: 160mm<br>
Size 51: 160mm<br>
Size 54: 165mm<br>
Size 56: 165mm<br>
Size 58: 170mm<br>
Size 61: 172.5mm
</p>
</div>

<div class="spec-item">
<p class="label">Chain</p>
<p class="value">Shimano M7100</p>
</div>

<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">Shimano 105 R7101, 11-34T, 12-Speed</p>
</div>

</div>

<div class="spec-section">
<h4>Brakes</h4>

<div class="spec-item">
<p class="label">Brake Rotors</p>
<p class="value">Shimano CL700 Centerlock</p>
</div>

</div>

<div class="spec-section">
<h4>Wheels &amp; Tyres</h4>

<div class="spec-item">
<p class="label">Front Wheel</p>
<p class="value">Vision TC60 i23</p>
</div>

<div class="spec-item">
<p class="label">Rear Wheel</p>
<p class="value">Vision TC60 i23</p>
</div>

<div class="spec-item">
<p class="label">Tyres</p>
<p class="value">Vittoria Corsa N.EXT TLR G2.0, 700x29c</p>
</div>

</div>

<div class="spec-section">
<h4>Accessories</h4>

<div class="spec-item">
<p class="label">Included</p>
<p class="value">
Cervélo Rear Hydration Mount<br>
Cervélo Smartpak Top Tube Storage Bag 400<br>
Cervélo In-Frame Storage Rolls – Inner Tube Storage<br>
Cervélo In-Frame Storage Rolls – Flat Kit Storage<br>
Profile Design Axis Ultimate Carbon Water Bottle Cage (1 qty)<br>
Cervélo Front Computer/Accessory Mount 265
</p>
</div>

</div>

<div class="spec-section">
<h4>Notes</h4>

<div class="spec-item">
<p class="label">Important</p>
<p class="value">Price and parts specifications are subject to change. Final weights may vary depending on frame size, specification and paint finish.</p>
</div>

</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col">Measurement</th>
<th>48</th>
<th>51</th>
<th>54</th>
<th>56</th>
<th>58</th>
<th>61</th>
</tr>
</thead>
<tbody>

<tr>
<td class="sticky-col">Reach (mm)</td>
<td>378</td>
<td>395</td>
<td>409</td>
<td>422</td>
<td>434</td>
<td>443</td>
</tr>

<tr>
<td class="sticky-col">Stack (mm)</td>
<td>494</td>
<td>515</td>
<td>531</td>
<td>549</td>
<td>569</td>
<td>587</td>
</tr>

<tr>
<td class="sticky-col">Head Tube Angle (°)</td>
<td>71</td>
<td>72.5</td>
<td>72.5</td>
<td>72.5</td>
<td>72.5</td>
<td>72.5</td>
</tr>

<tr>
<td class="sticky-col">Front Center (mm)</td>
<td>581</td>
<td>583</td>
<td>602</td>
<td>620</td>
<td>638</td>
<td>653</td>
</tr>

<tr>
<td class="sticky-col">Bottom Bracket Drop (mm)</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
<td>80</td>
</tr>

<tr>
<td class="sticky-col">Head Tube Length (mm)</td>
<td>87.8</td>
<td>101.7</td>
<td>118.4</td>
<td>137.3</td>
<td>158.3</td>
<td>177.2</td>
</tr>

<tr>
<td class="sticky-col">Standover Height (mm)</td>
<td>734</td>
<td>755</td>
<td>770</td>
<td>787</td>
<td>806</td>
<td>823</td>
</tr>

<tr>
<td class="sticky-col">Trail (mm)</td>
<td>62.1</td>
<td>62.1</td>
<td>62.1</td>
<td>62.1</td>
<td>62.1</td>
<td>62.1</td>
</tr>

<tr>
<td class="sticky-col">Wheel Size</td>
<td>700C</td>
<td>700C</td>
<td>700C</td>
<td>700C</td>
<td>700C</td>
<td>700C</td>
</tr>

<tr>
<td class="sticky-col">Fork Offset (mm)</td>
<td>52</td>
<td>43</td>
<td>43</td>
<td>43</td>
<td>43</td>
<td>43</td>
</tr>

<tr>
<td class="sticky-col">Wheelbase (mm)</td>
<td>973</td>
<td>974</td>
<td>993</td>
<td>1012</td>
<td>1030</td>
<td>1045</td>
</tr>

<tr>
<td class="sticky-col">Chainstay Length (mm)</td>
<td>405</td>
<td>405</td>
<td>405</td>
<td>405</td>
<td>405</td>
<td>405</td>
</tr>

<tr>
<td class="sticky-col">Effective Top Tube @ 75° Seat Tube (mm)</td>
<td>510</td>
<td>533</td>
<td>551</td>
<td>569</td>
<td>587</td>
<td>600</td>
</tr>

<tr>
<td class="sticky-col">Effective Top Tube @ 79° Seat Tube (mm)</td>
<td>474</td>
<td>495</td>
<td>512</td>
<td>529</td>
<td>545</td>
<td>557</td>
</tr>

<tr>
<td class="sticky-col">Effective Seat Tube Angle @ 75° (°)</td>
<td>75</td>
<td>75</td>
<td>75</td>
<td>75</td>
<td>75</td>
<td>75</td>
</tr>

<tr>
<td class="sticky-col">Effective Seat Tube Angle @ 79° (°)</td>
<td>79</td>
<td>79</td>
<td>79</td>
<td>79</td>
<td>79</td>
<td>79</td>
</tr>

</tbody>
</table>
</div>
</div>
