| rims |
| WHEEL SIZE/ETRTO |
622 × 21 (700c) |
| TUBELESS COMPATIBILITY |
Yes |
| INSERT COMPATIBILITY |
Yes |
| BRAKE COMPATIBILITY |
Disc (Centerlock) |
| RIM CONSTRUCTION |
Carbon Clincher Hooked |
| VALVE STEM LENGTH |
Roval Tubeless Vlave, Alloy 70mm |
| HOLE COUNT |
Front: 18H, Rear: 24H |
| REAR RIM |
Rapide CL III Carbon Clincher, 700c (CR2473) |
| REAR RIM DIMENSIONS |
Depth: 48mm, External Width (at widest point): 31.3mm, Internal Width: 21mm, Bead Hook Width: (4.1)mm |
| FRONT RIM |
Rapide CLX II Carbon Clincher, 700c (CR2472) |
| FRONT RIM DIMENSIONS |
Depth: 51mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (5.5)mm |
| HUBS |

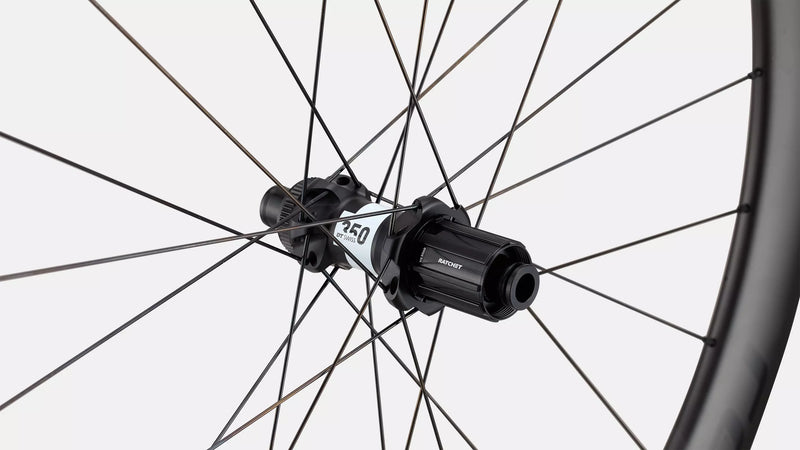

| REAR HUB |
DT Swiss 350 Straight Pull, Center Lock, 12x142mm |
| REAR FREEHUB BODY |
DT Swiss Ratchet (36T): Shim. RD. 11SP HG freehub |
| REAR HUB BEARING |
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm) |

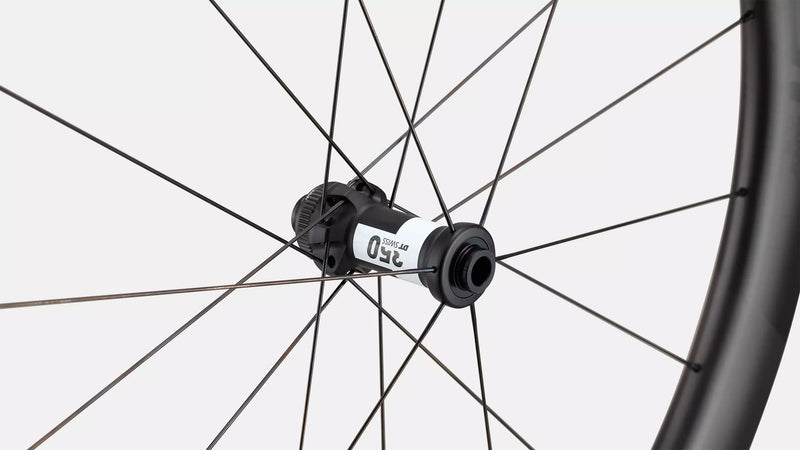

| FRONT HUB |
DT Swiss 350 Straight Pull, Center Lock, 12x100mm |
| FRONT HUB BEARING |
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm) |
| SPOKES & NIPPLES |
| NIPPLES |
DT Swiss Hex Prolock Al 2.0x14mm |
| REAR SPOKES |
DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 24qty, (DS: 268mm, NDS: 271mm) |
| REAR LACING PATTERN |
One-Cross / Three-Cross (2:1), Not Tucked |
| FRONT SPOKES |
DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 18qty, (DS: 258mm, NDS: 270mm) |
| FRONT LACING PATTERN |
Two-Cross / Radial (2:1), Not Tucked |
| TIRE INFO |
| TUBELESS TAPE WIDTH |
25mm |
| TIRE TYPE |
Clincher Tubeless and Clincher Tube Type |
| DESIGN TIRE |
RapidAir TLR, 28mm |
| APPROVED TIRE WIDTHS |
24mm-38mm |
| MAX PRESSURE |
Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi) |
| GENERAL |
| WARRANTY |
Limited Lifetime Warranty |
| ASSEMBLY METHOD |
Hand Built |
| WEIGHT LIMIT |
275 lbs. / 125 kg. |
| CERTIFICATION |
ISO 5775-2, UCI Approved |
| E-BIKE APPROVED |
Yes, SL style systems or max 350W |
| EXTRAS |
4 Extra Spokes and Nipples |
| Weight |
| WHEELSET WEIGHT |
1555g (with valves and tape) |
| REAR WEIGHT |
839g (with valves and tape) |
| FRONT WEIGHT |
716g (with valves and tape) |
