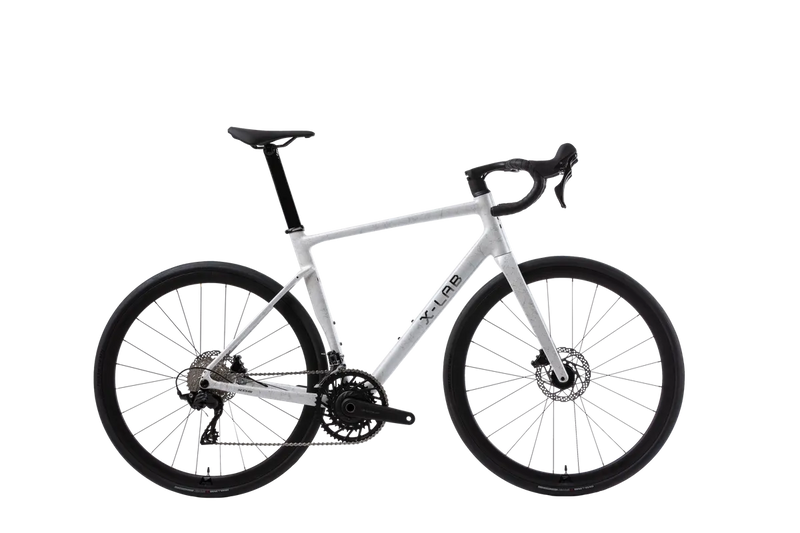

X-LAB RS5 105 12sp Wavebreaker White
X-LAB RS5 105 12sp Wavebreaker White

X-LAB RS5 105 12sp Wavebreaker White

SKU BXL9250-00042
$2,599.90 - $2,599.90
$2,599.90
$2,599.90 - $2,599.90
$2,599.90

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

Choose a Size
ENQUIRY

Balanced comfort and function, forĀ wherever the road takes you.

X-LAB RS5

The RS5 delivers the X-LAB riding experience in a versatile and approachable form.

Built with durableĀ X6 aluminum alloyĀ and a semi-integrated cockpit, it offers reliable performance, confident handling, and lasting comfort.

Whether you're discovering the sport or simply enjoying the ride, the RS5 is designed to make every mile feel smooth, responsive, and rewarding.

Integrated Design, Real-World Road Bike

RS5 brings the X-LAB fluent design and engineering language to an alloy platform, with a clean cockpit integration paired with Shimano 105 performance so the bike looks and rides like it belongs far above its category.

Alloy Done the X-LAB Way

A precision-engineered alloy frame delivers the kind of durability and ride quality riders trust. The RS5 is built for long miles, daily commutes, and everything in between.

Power + Security, Standard

Brantaā€™s in-house alloy crankset integrates a power meter and Find My tech, turning the RS5 into a smarter bike to train on, track, and own, without asking riders to bolt on costly extras.

Key Features

Shimano groups

38mm tire clearance

Semi-integrated alloy cockpit

Aero carbon seatpost

Ā

<div class="tech-specs">

<!-- Frameset -->
<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Frame</p>
<p class="value">XDS X6 Alloy Frame, UDH Compatible</p>
</div>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">XDS Carbon Fork, 100x12mm thru-axle</p>
</div>

<div class="spec-item">
<p class="label">Frame Sizes</p>
<p class="value">XS / S / M / L / XL</p>
</div>
</div>

<!-- Drivetrain -->
<div class="spec-section">
<h4>Drivetrain</h4>

<div class="spec-item">
<p class="label">Rear Derailleur</p>
<p class="value">Shimano 105 RD-R7100</p>
</div>

<div class="spec-item">
<p class="label">Front Derailleur</p>
<p class="value">Shimano 105 FD-R7100</p>
</div>

<div class="spec-item">
<p class="label">Shifters</p>
<p class="value">Shimano 105 ST-R7120</p>
</div>

<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">CS-R9012, 12-speed, 11-34T</p>
</div>

<div class="spec-item">
<p class="label">Crankset</p>
<p class="value">Branta Alloy Power Meter Crankset, 52/36T, 24mm steel spindle, Apple Find My anti-theft compatible</p>
</div>

<div class="spec-item">
<p class="label">Bottom Bracket</p>
<p class="value">BSA 24mm</p>
</div>

<div class="spec-item">
<p class="label">Chain</p>
<p class="value">SUMC SX12</p>
</div>
</div>

<!-- Brakes -->
<div class="spec-section">
<h4>Brakes</h4>

<div class="spec-item">
<p class="label">Brakes</p>
<p class="value">Shimano 105 BR-R7170 hydraulic disc</p>
</div>

<div class="spec-item">
<p class="label">Rotors</p>
<p class="value">Shimano SM-RT56-S, Front: 160mm / Rear: 160mm</p>
</div>
</div>

<!-- Wheels & Tires -->
<div class="spec-section">
<h4>Wheels & Tires</h4>

<div class="spec-item">
<p class="label">Wheelset</p>
<p class="value">Branta A35 SL alloy rims</p>
</div>

<div class="spec-item">
<p class="label">Tires</p>
<p class="value">Branta R332, 700x32C, 60TPI</p>
</div>
</div>

<!-- Cockpit -->
<div class="spec-section">
<h4>Cockpit</h4>

<div class="spec-item">
<p class="label">Handlebar / Stem</p>
<p class="value">Branta Alloy Integrated</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">XDS Carbon Seatpost, Aero Profile</p>
</div>

<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">Branta R302, steel rails</p>
</div>
</div>

<!-- Weight -->
<div class="spec-section">
<h4>Weight</h4>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">9.54 kg / 21.03 lbs (Size L)</p>
</div>
</div>

</div>

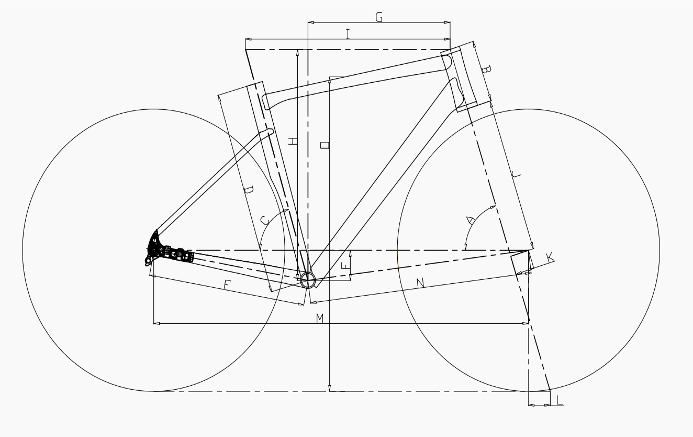

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col label-col">Frame</th>
<th>XS</th>
<th>S</th>
<th>M</th>
<th>L</th>
<th>XL</th>
</tr>
</thead>

<tbody>

<tr>
<td class="sticky-col label-col">Head Tube Angle (deg)</td>
<td>71</td>
<td>72</td>
<td>73</td>
<td>73</td>
<td>73</td>
</tr>

<tr>
<td class="sticky-col label-col">Head Tube Length (mm)</td>
<td>115</td>
<td>135</td>
<td>155</td>
<td>180</td>
<td>205</td>
</tr>

<tr>
<td class="sticky-col label-col">Seat Tube Angle (deg)</td>
<td>75</td>
<td>74</td>
<td>74</td>
<td>73</td>
<td>73</td>
</tr>

<tr>
<td class="sticky-col label-col">Seat Tube Length (mm)</td>
<td>440</td>
<td>480</td>
<td>510</td>
<td>540</td>
<td>560</td>
</tr>

<tr>
<td class="sticky-col label-col">Chainstay Length (mm)</td>
<td>420</td>
<td>420</td>
<td>420</td>
<td>420</td>
<td>420</td>
</tr>

<tr>
<td class="sticky-col label-col">BB Drop (mm)</td>
<td>75</td>
<td>75</td>
<td>75</td>
<td>75</td>
<td>75</td>
</tr>

<tr>
<td class="sticky-col label-col">Reach (mm)</td>
<td>371</td>
<td>375</td>
<td>381</td>
<td>387</td>
<td>394</td>
</tr>

<tr>
<td class="sticky-col label-col">Stack (mm)</td>
<td>530</td>
<td>553</td>
<td>575</td>
<td>599</td>
<td>623</td>
</tr>

<tr>
<td class="sticky-col label-col">Top Tube Length (mm)</td>
<td>515</td>
<td>530</td>
<td>548</td>
<td>568</td>
<td>585</td>
</tr>

<tr>
<td class="sticky-col label-col">Fork Length (mm)</td>
<td>386</td>
<td>386</td>
<td>386</td>
<td>386</td>
<td>386</td>
</tr>

<tr>
<td class="sticky-col label-col">Fork Rake / Offset (mm)</td>
<td>50</td>
<td>50</td>
<td>50</td>
<td>50</td>
<td>50</td>
</tr>

<tr>
<td class="sticky-col label-col">Trail (mm)</td>
<td>71</td>
<td>65</td>
<td>58</td>
<td>58</td>
<td>58</td>
</tr>

<tr>
<td class="sticky-col label-col">Wheelbase (mm)</td>
<td>999</td>
<td>1001</td>
<td>1004</td>
<td>1018</td>
<td>1033</td>
</tr>

<tr>
<td class="sticky-col label-col">Front Center (mm)</td>
<td>590</td>
<td>592</td>
<td>596</td>
<td>609</td>
<td>624</td>
</tr>

<tr>
<td class="sticky-col label-col">Stand-over Height (mm)</td>
<td>725</td>
<td>758</td>
<td>784</td>
<td>810</td>
<td>831</td>
</tr>

<tr class="section-row">
<td class="sticky-col label-col">Components</td>
<td>XS</td>
<td>S</td>
<td>M</td>
<td>L</td>
<td>XL</td>
</tr>

<tr>
<td class="sticky-col label-col">Stem</td>
<td>80</td>
<td>80</td>
<td>100</td>
<td>100</td>
<td>100</td>
</tr>

<tr>
<td class="sticky-col label-col">Handlebar</td>
<td>380</td>
<td>380</td>
<td>400</td>
<td>400</td>
<td>420</td>
</tr>

<tr>
<td class="sticky-col label-col">Crankset</td>
<td>165</td>
<td>165</td>
<td>170</td>
<td>170</td>
<td>172.5</td>
</tr>

<tr>
<td class="sticky-col label-col">Seat Post</td>
<td>300</td>
<td>300</td>
<td>300</td>
<td>400</td>
<td>400</td>
</tr>

</tbody>
</table>
</div>
</div>
