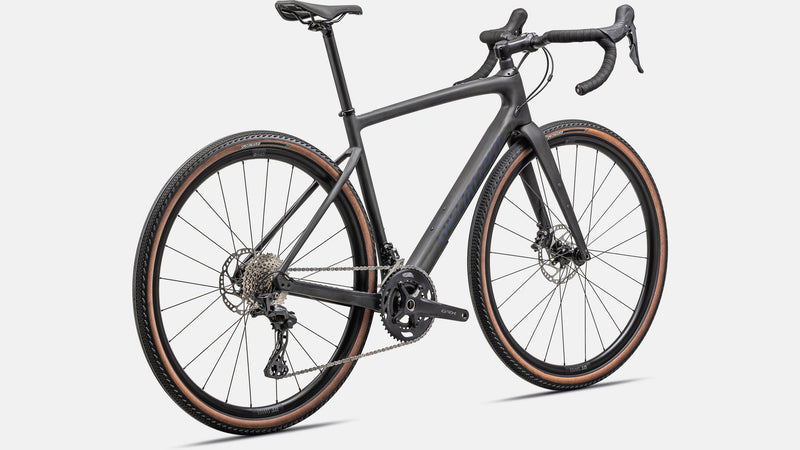

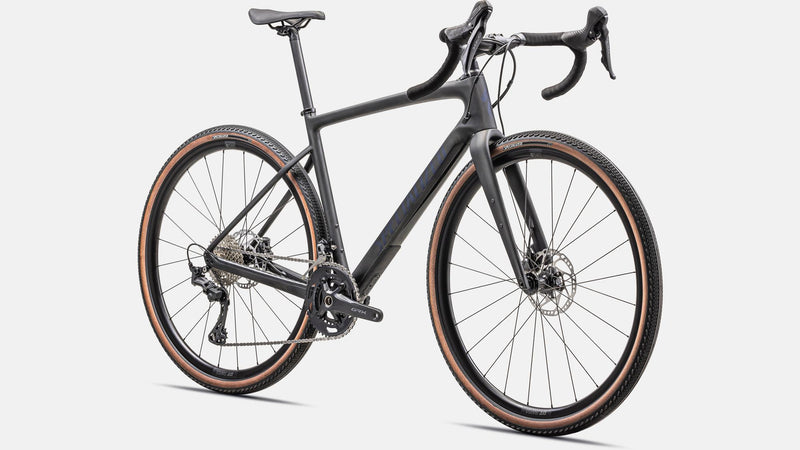

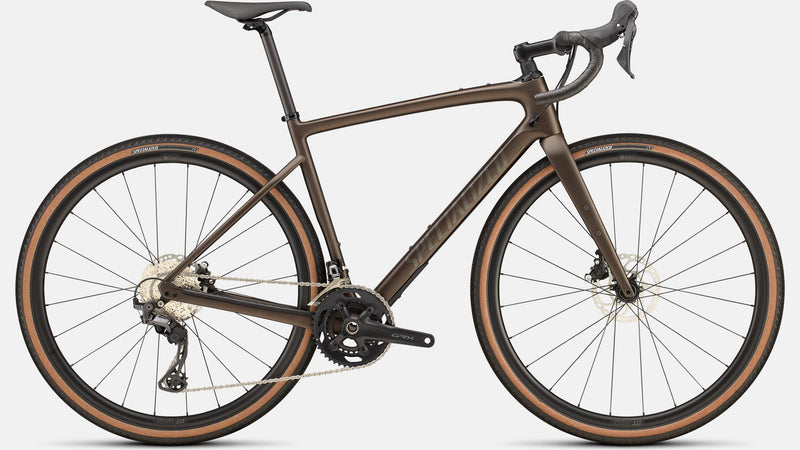

Specialized - Diverge Sport Carbon

SKU 95425-6044
Original price $0.00 - Original price $0.00
Original price
$4,900.00
$4,900.00 - $4,900.00
Current price $4,900.00
Colour: Satin Carbon / Blue Onyx
Size: 44

Whether your goal is to escape on gravel back roads, far from cars and crowds, or drop the hammer at the front of your favorite gravel race, no bike does it better than the new Diverge. It's quite simply the fastest, most capable - and just maybe the most fun - bike we've ever made, delivering a ride that's quick and lively under power, but stable and confidence inspiring when the terrain gets rough. From Future Shock 1.5 and all-new gravel geometry, to category leading tire clearance, the new Diverge represents everything we've learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It's the ultimate getaway vehicle.

Gravel riding may be a "new" sport, but our Diverge Sport Carbon has been developed thanks to over four decades of experience. It’s got our Future Shock 1.5 and a FACT 8r carbon frame for a fast, confident and comfortable ride on road, in the dirt, and over thick gravel. With Unbound-winning Pathfinder Pro 42mm tires, the same rubber we spec on the S-Works Diverge, you’re ready to ride as fast and as far as you want.

  • With a FACT 8r carbon frame, the Diverge Sport frame is incredible capable and race bike light. Pin it for your local dirt climb KOM, or grind up a giant back country peak, the light and lively Diverge will get you there faster.
  • Speed, control and confidence - Future Shock 1.5 is ideal technology for the gravel rider. With 20mm of axial compliance, Future Shock 1.5 is progressively tuned specifically for gravel riding. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh.
  • We tossed gravel geometry ‘status-quo’ out the window. The new Diverge has the most progressive geometry we’ve ever created for a drop bar bike, giving riders a capable and stable bike in the dirt, that still feels responsive and nimble on the road. We’ve increased the frame’s reach, introduced a slacker head tube and a longer offset fork. All this creates incredible confidence with a planted feeling in the dirt, while spec’ing shorter stems keeps the overall cockpit length the same and the steering lively. We’ve kept the bike’s BB low to increase stability, but high enough to utilize with 650b wheels if that’s your jam.
  • We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out. Note: all carbon models will need an aftermarket seatpost clamp with rack mount to install a rear rack. (Part Number: S184700001).
  • Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive side chain stay utilizing a solid beam of carbon behind the chain rings we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.
Frameset
FRAME Specialized Diverge FACT 8r carbon, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
SEAT BINDER

Specialized Alloy, 30.8mm

Suspension
FORK Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Cockpit
SEATPOST Carbon, single-bolt, 27.2mm
STEM Future Stem, Comp
SADDLE Body Geometry Power Sport, steel rails
TAPE SUPACAZ Super Sticky Kush
HANDLEBARS Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Brakes
FRONT BRAKE Shimano GRX RX400
REAR BRAKE Shimano GRX RX400
Drivetrain
SHIFT LEVERS Shimano GRX RX610, 2x12-speed
FRONT DERAILLEUR Shimano GRX RX820
REAR DERAILLEUR Shimano GRX RX820, 12-speed
CASSETTE Shimano 105 12-speed 11-36
CHAIN Shimano SLX, M7100, 12-speed
CRANKSET Shimano GRX RX610
BOTTOM BRACKET Shimano Threaded BSA BB
CHAINRINGS 46/30T
Wheels & Tires
FRONT WHEEL DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
REAR WHEEL DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
FRONT TIRE Pathfinder Pro 2BR, Tan sidewall, 700x42
REAR TIRE Pathfinder Pro 2BR, Tan sidewall, 700x42
INNER TUBES 700x28/38mm, 48mm Presta valve
Weight
WEIGHT 10.10kg (22 lb, 4.3 oz)
WEIGHT SIZE 56

* Specifications are subject to change without notice

4449525456586164
Crank Length165165170172.5172.5175175175
Handlebar Width380380400420420440440440
Stem Length6060708090100100110
Saddle Width155155155143143143143143
Seatpost Length350350350400400400400400
Stack568571577592610634659684
Reach357365374383392401410419
Head Tube Length9999104116133159185209
Head Tube Angle69.57070.571.2571.7571.7571.7572.25
BB Height270270270270270270270270
BB Drop8080808080808080
Trail6661575757547269
Fork Length, Full390390390390390390390390
Fork Rake/Offset5555555555555555
Front Center604607614620630647664675
Chainstay Length425425425425425425425425
Wheelbase10161019102610321042105910761088
Top Tube Length, Horizontal573589605628515529542558
Bike Standover Height683700725754779805832859
Seat Tube Length363390430470500530560590
Seat Tube Angle74.57473.7573.573.573.573.573

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
