Whether your goal is to escape on gravel back roads, far from cars and crowds, or drop the hammer at the front of your favorite gravel race, no bike does it better than the new Diverge. It’s quite simply the fastest, most capable - and just maybe the most fun - bike we’ve ever made, delivering a ride that’s quick and lively under power, but stable and confidence inspiring when the terrain gets rough. From Future Shock 2.0 and all-new gravel geometry, to internal storage and category leading tire clearance, the new Diverge represents everything we’ve learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It’s the ultimate getaway vehicle.

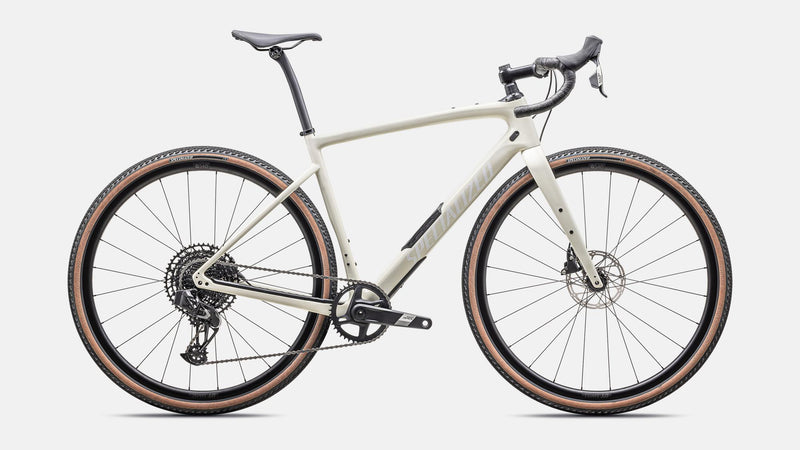

With a FACT 9r carbon frame and Future Shock 2.0, the Diverge Comp will have you riding faster and more confidently over more terrain than you ever imagined possible. SRAM’s wireless Apex eTap AXS 12-speed groupset delivers quick, crisp shifting and alloy DT Swiss G540 wheels keep you rolling efficiently, while Unbound winning Pathfinder Pro 42mm tires deliver performance across smooth pavement, dirt roads and gravel tracks. To give the Diverge Comp a perfectly balanced ride we spec Roval’s Terra seat post.
- Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive-side chain stay utilizing a solid beam of carbon behind the chainrings, we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.
- With a FACT 9r carbon frame, the Diverge frame is incredibly capable and race bike light. Pin it for your local dirt climb KOM, or grind up a giant backcountry peak, the light and lively Diverge will get you there faster.
- Speed, control, and confidence - Future Shock 2.0 is the ultimate technology for the gravel rider. With 20mm of axial compliance and a hydraulic damper, Future Shock 2.0 suspends the rider, not the bike. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick, loose gravel while keeping your hands, arms, and neck fresh. Since Future Shock 2.0’s damper is adjustable, you’ll be ready for the rough stuff and efficient on smooth pavement.
- We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out. Note: all carbon models will need an aftermarket seatpost clamp with rack mount to install a rear rack. (Part Number: S184700001).
Frameset FRAME Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc Suspension FORK Future Shock 2.0 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc Cockpit SEATPOST Roval Terra Carbon Seat Post, 20mm Offset STEM Future Stem, Comp SADDLE Body Geometry Power Sport, steel rails TAPE Supacaz Super Sticky Kush HANDLEBARS Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare SEAT BINDER Specialized Alloy, 30.8mm Brakes FRONT BRAKE SRAM Apex eTAP AXS, hydraulic disc REAR BRAKE SRAM Apex eTAP AXS, hydraulic disc Drivetrain SHIFT LEVERS SRAM Apex eTap AXS REAR DERAILLEUR SRAM X1 Eagle AXS CASSETTE SRAM PG1210, 12-Speed, 11-50t CHAIN SRAM, NX Eagle, 12-speed CRANKSET SRAM Apex DUB Wide BOTTOM BRACKET SRAM DUB BSA CHAINRINGS 40T Wheels & Tires FRONT WHEEL DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples REAR WHEEL DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples FRONT TIRE Pathfinder Pro 2BR, Tan sidewall, 700x42 REAR TIRE Pathfinder Pro 2BR, Tan sidewall, 700x42 INNER TUBES 700x28/38mm, 48mm Presta valve ACCESSORIES SWAT Integrated SWAT door, internal storage system Product Details PRODUCT ID 223498 Weight WEIGHT 9.99kg/22lbs, .4oz WEIGHT SIZE 56 49 52 54 56 58 61 Crank Length 165 170 172.5 172.5 175 175 Handlebar Width 380 400 420 420 440 440 Stem Length 60 70 80 90 100 100 Saddle Width 155 155 143 143 143 143 Seatpost Length 330 330 380 380 380 380 Stack 571 577 592 610 634 659 Reach 365 374 383 392 401 410 Head Tube Length 99 104 116 133 159 185 Head Tube Angle 70 70.5 71.25 71.75 71.75 71.75 BB Height 270 270 270 270 270 270 BB Drop 80 80 80 80 80 80 Trail 69 66 61 57 57 57 Fork Length, Full 389 389 389 389 389 389 Fork Rake/Offset 55 55 55 55 55 55 Front Center 607 614 620 630 647 664 Chainstay Length 425 425 425 425 425 425 Wheelbase 1019 1026 1032 1042 1059 1076 Top Tube Length, Horizontal 529 542 558 573 589 605 Bike Standover Height 700 725 754 779 805 832 Seat Tube Length 390 430 470 500 530 560 Seat Tube Angle 74 73.75 73.5 73.5 73.5 73.5 All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.
The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.
Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
