Specialized Diverge 4 Pro SRAM Force XPLR

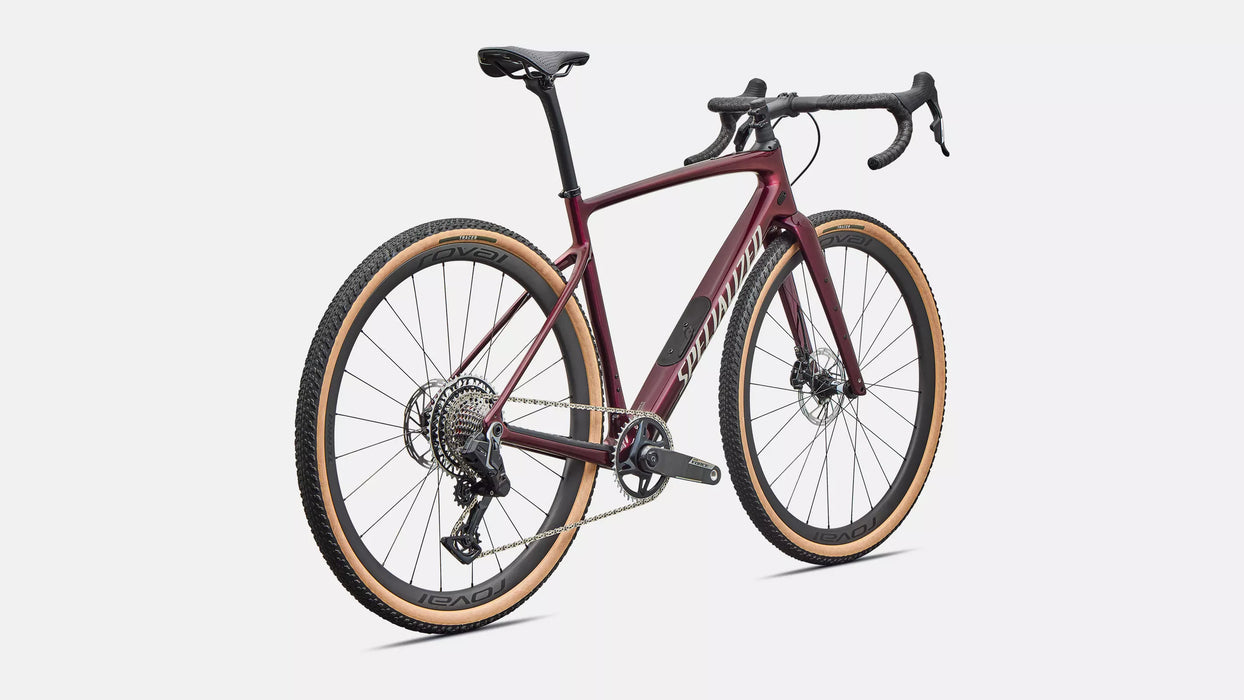

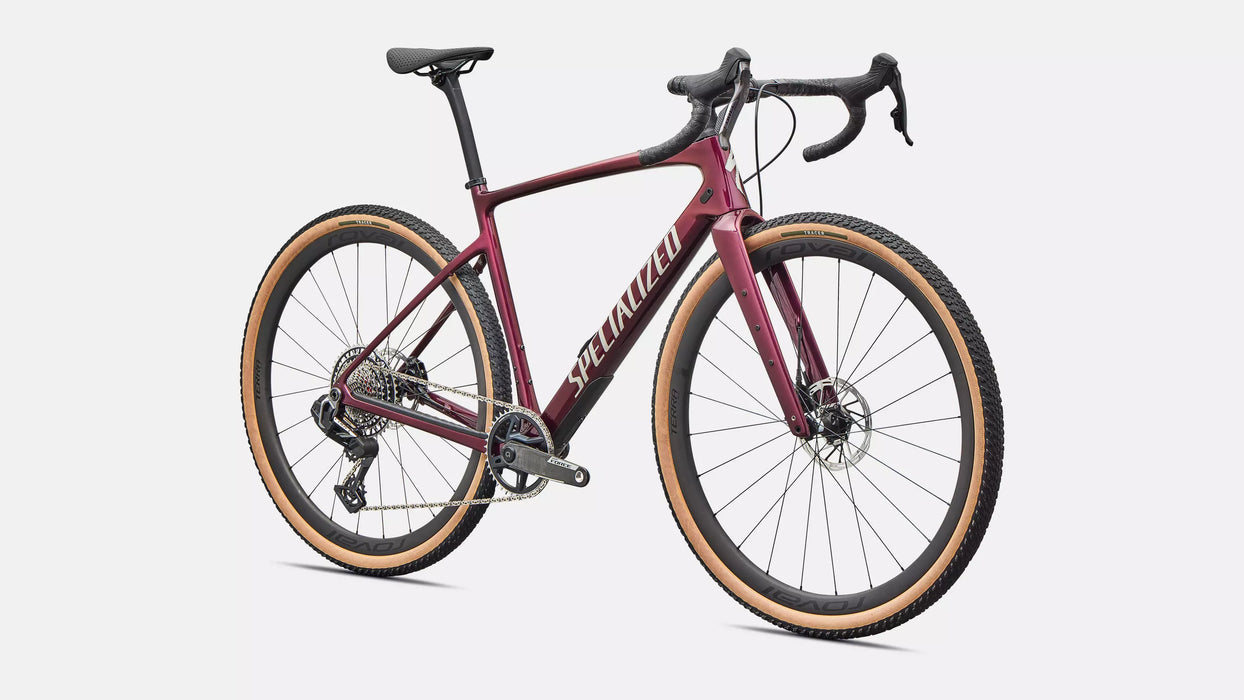

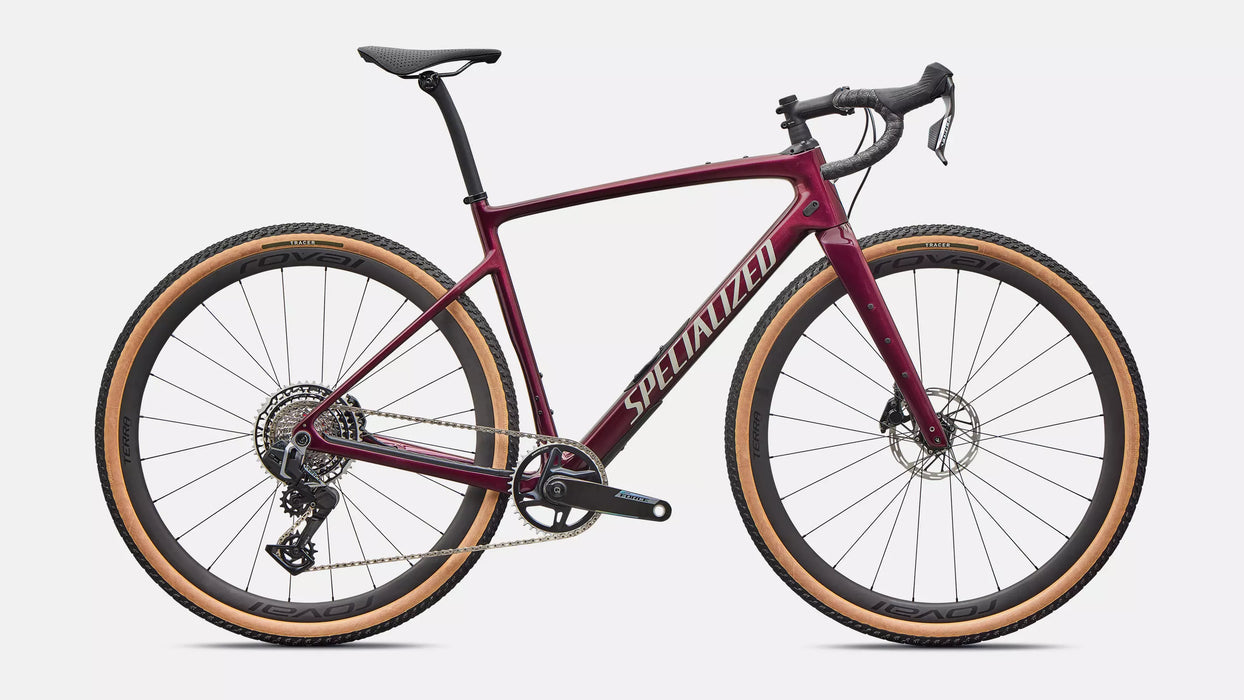

Name: Specialized Diverge 4 Pro SRAM Force XPLR
Brand: SPECIALIZED
SKU: 95426-1052
Price: 12900.0 NZD
Availability: InStock

SKU 95426-1052

$0.00 - $0.00

$12,900.00

$12,900.00 - $12,900.00

$12,900.00

Colour: Bordeaux Metallic/pearl/dolomite

Bordeaux Metallic/pearl/dolomite

Size: 52

52

54

56

58

❯ ❯ ❯ DESCRIPTION

ETA - DEC '25

The Ultimate Getaway Vehicle

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.

At a Glance

Use

Gravel Adventure/Race

Frameset

FACT 9r Carbon

Suspension

Future Shock 3.3

Drivetrain/Wheels

SRAM Force AXS XPLR / Roval Terra CL

Storage

SWAT 4.0

Weight

Diverge Pro: 8.39kg

❯ ❯ ❯ SPECIFICATIONS

Frameset
FRAME	Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
FORK	Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Cockpit
SEATPOST	Roval Terra Carbon Seat Post, 20mm Offset
STEM	Specialized Pro SL, alloy, 4-bolt
SADDLE	Power Pro Mirror, Hollow Ti rails
TAPE	Supacaz Super Sticky Kush

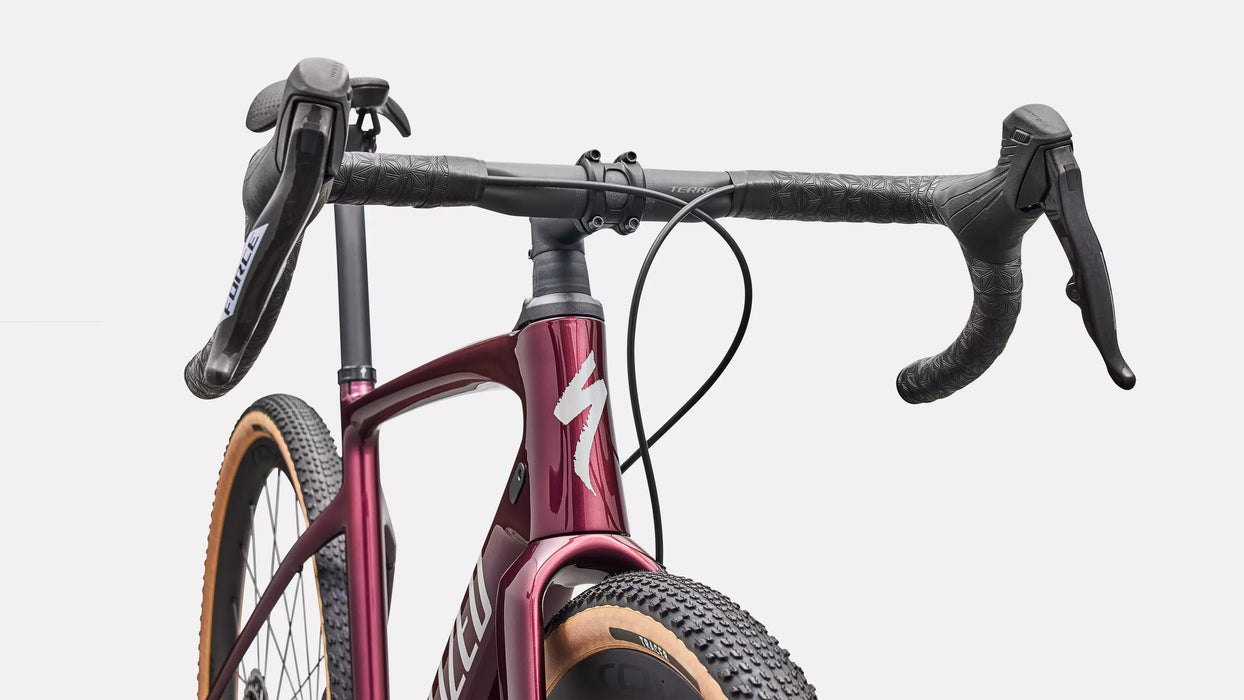

HANDLEBARS	Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
SEAT BINDER	Specialized Alloy, 30.8mm
Brakes
FRONT BRAKE	New SRAM Force E1, hydraulic disc
REAR BRAKE	New SRAM Force E1, hydraulic disc
Drivetrain
SHIFT LEVERS	New SRAM Force AXS E1
REAR DERAILLEUR	New SRAM Force AXS E1 XPLR
CASSETTE	New SRAM Force E1 XPLR 10-46t, 13sp
CHAIN	New SRAM Force XPLR, 13sp
CRANKSET	New SRAM Force E1 XPLR, DUB WIDE, 40t, Quarq Power Meter
BOTTOM BRACKET	SRAM DUB BSA 68 Wide
Wheels & Tires
FRONT WHEEL	Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
REAR WHEEL	Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
FRONT TIRE	Tracer 700x45, Tan Sidewall, Tubeless Ready
REAR TIRE	Tracer 700x45, Tan Sidewall, Tubeless Ready
INNER TUBES	Presta, 700x32-50mm
accessories
SWAT	SWAT 4.0 internal downtube storage
Weight
WEIGHT	8.39 kg (18 lb, 7.9 oz)
WEIGHT SIZE	56

❯ ❯ ❯ GEOMETRY

	49	52	54	56	58	61
Crank Length	165	170	172.5	172.5	175	175
Handlebar Width	380	400	420	420	440	440
Stem Length	60	70	80	90	100	100
Saddle Width	155	155	143	143	143	143
Seatpost Length	330	330	380	380	380	380
Stack	563	578	592	610	634	659
Reach	365	374	387	400	412	425
Head Tube Length	90	104	116	135	161	187
Head Tube Angle	70	70.5	71	71	71	71
BB Drop	85	85	85	85	85	85
Trail	72	68	65	65	65	65
Fork Length, Full	391	391	391	391	391	391
Fork Rake/Offset	55	55	55	55	55	55
Front Center	604	613	626	645	665	686
Chainstay Length	430	430	430	430	430	430
Wheelbase	1019	1031	1041	1060	1081	1102
Top Tube Length, Horizontal	521	537	556	575	593	613
Bike Standover Height	700	725	754	779	805	832
Seat Tube Length	400	430	470	500	530	560
Seat Tube Angle	74.5	74	74	74	74	74

❯ ❯ ❯ BUYING A BIKE

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
