Specialized Diverge 4 Comp Alloy SRAM Apex

Name: Specialized Diverge 4 Comp Alloy SRAM Apex
Brand: SPECIALIZED
SKU: 95426-5256
Price: 4399.0 NZD
Availability: InStock

SKU 95426-5256

$0.00 - $0.00

$4,399.00

$4,399.00 - $4,399.00

$4,399.00

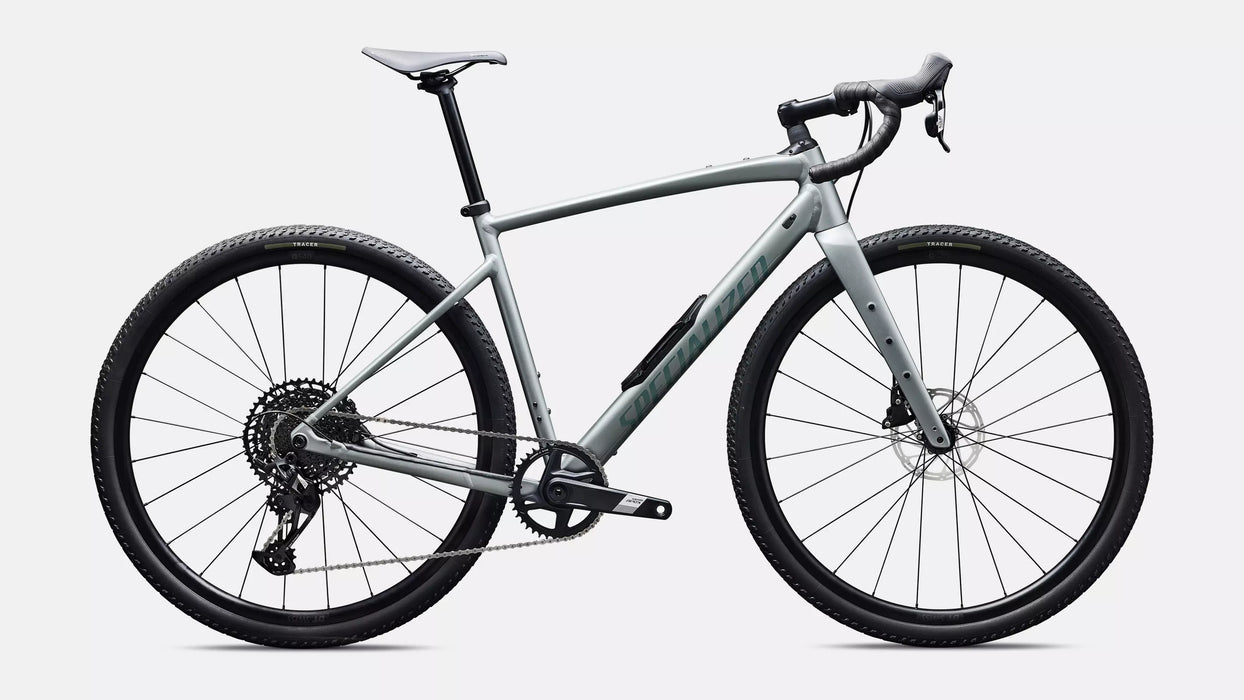

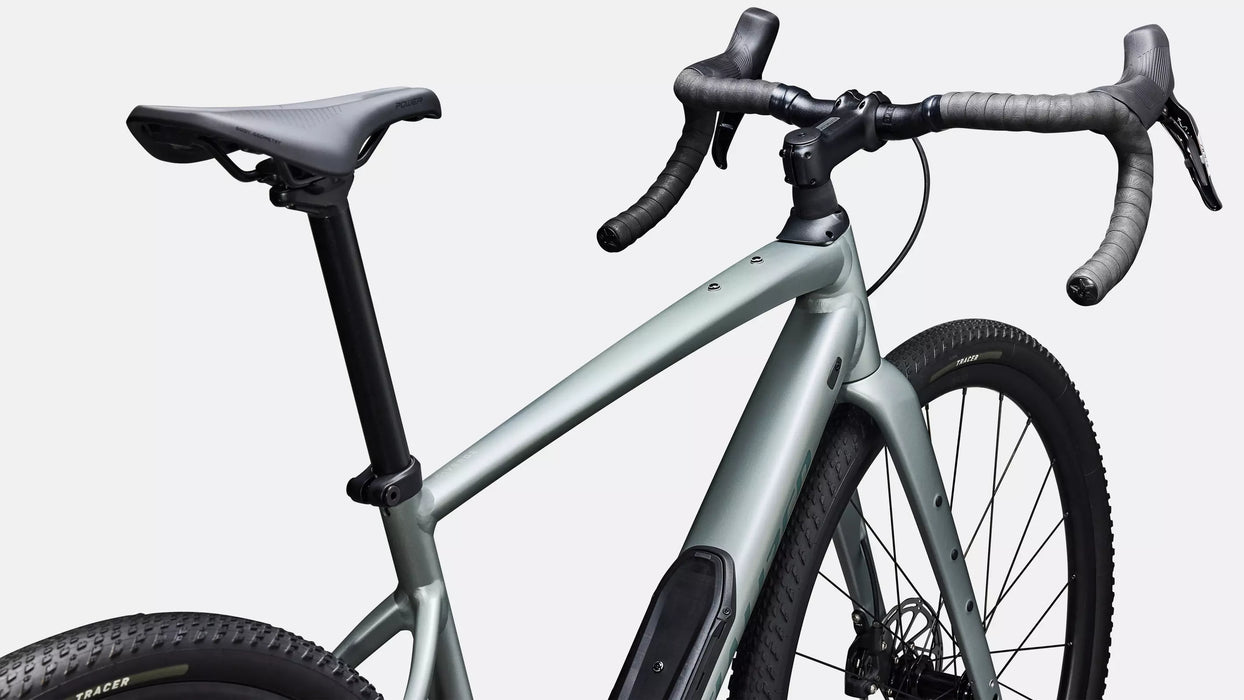

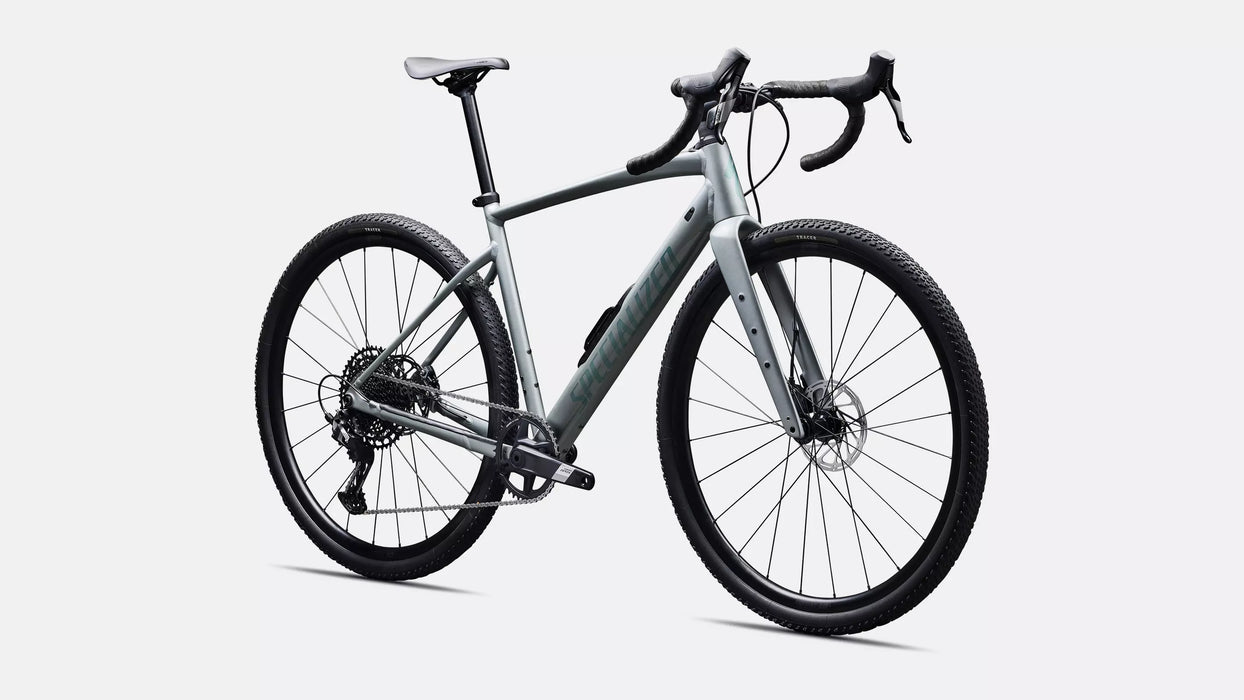

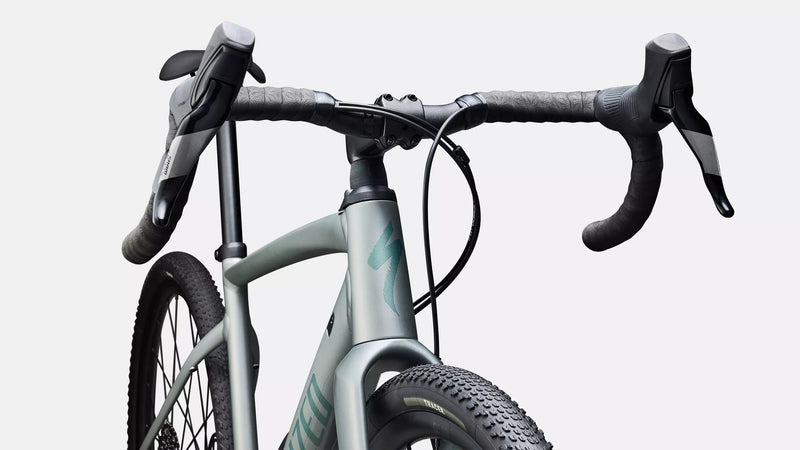

Color: Satin Shadow Silver / Fjord Metallic

Size: 56

49

52

54

56

58

61

❯ ❯ ❯ DESCRIPTION

Diverge 4 Alloy
The Ultimate Getaway Vehicle

Race-tuned. Adventure-approved. The Diverge 4 gravel bike in E5 Alloy is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and internal storage for the first time ever on an alloy bike, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.

At a Glance

Use

Gravel Adventure/Race

Frameset

E5 Premium Alloy

Suspension

Future Shock 3.1

Drivetrain/Wheels

SRAM Apex Eagle 1x12 / DT G540

Storage

SWAT 3.0

Weight

Diverge Alloy Comp: 10.6kg

❯ ❯ ❯ SPECIFICATIONS

Frameset
FRAME	Specialized Diverge E5 Premium Aluminum, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
FORK	Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Cockpit
SEATPOST	Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
STEM	Future Stem, Comp
SADDLE	Body Geometry Power Sport, steel rails
TAPE	Supacaz Suave
HANDLEBARS	Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
SEAT BINDER	Alloy, 30.8mm
Brakes
FRONT BRAKE	SRAM Apex, Hydraulic disc
REAR BRAKE	SRAM Apex, Hydraulic disc
Drivetrain
SHIFT LEVERS	SRAM Apex
REAR DERAILLEUR	SRAM Apex Eagle 12-speed
CASSETTE	SRAM PG-1210 Eagle, 11-50t
CHAIN	SRAM NX Eagle, 12-speed
CRANKSET	SRAM Apex DUB Wide, 40t
BOTTOM BRACKET	SRAM DUB BSA 68 Wide
Wheels & Tires
FRONT WHEEL	DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
REAR WHEEL	DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
FRONT TIRE	Tracer 700x45, Tubeless Ready
REAR TIRE	Tracer 700x45, Tubeless Ready
INNER TUBES	Presta, 700x32-50mm
accessories
SWAT	SWAT 3.0 internal downtube storage
Weight
WEIGHT	10.6 kg (23 lb, 5.9 oz)
WEIGHT SIZE	56

❯ ❯ ❯ GEOMETRY

	49	52	54	56	58	61
Crank Length	165	170	172.5	172.5	175	175
Handlebar Width	380	400	420	420	440	440
Stem Length	60	70	80	90	100	100
Saddle Width	155	155	143	143	143	143
Seatpost Length	350	350	400	400	400	400
Stack	563	578	592	610	634	659
Reach	365	374	387	400	412	425
Head Tube Length	90	104	116	135	161	187
Head Tube Angle	70	70.5	71	71	71	71
BB Drop	85	85	85	85	85	85
Trail	72	68	65	65	65	65
Fork Length, Full	391	391	391	391	391	391
Fork Rake/Offset	55	55	55	55	55	55
Front Center	604	613	626	645	665	686
Chainstay Length	430	430	430	430	430	430
Wheelbase	1019	1031	1041	1060	1081	1102
Top Tube Length, Horizontal	521	537	556	575	593	613
Bike Standover Height	700	725	754	779	805	832
Seat Tube Length	400	430	470	500	530	560
Seat Tube Angle	74.5	74	74	74	74	74

❯ ❯ ❯ BUYING A BIKE

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
