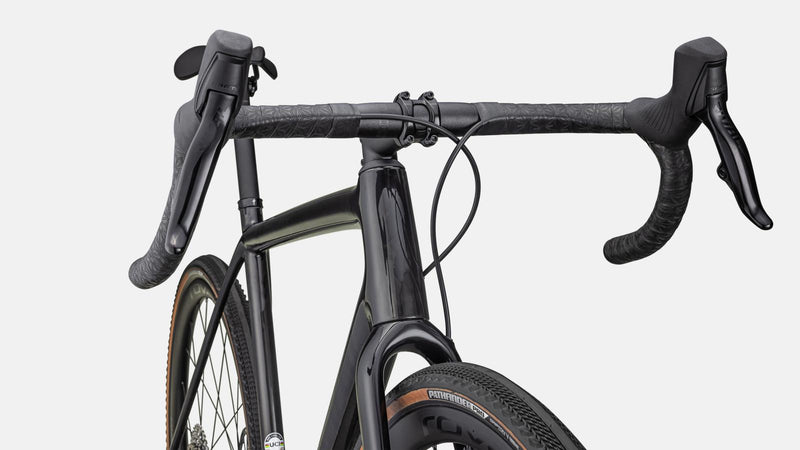

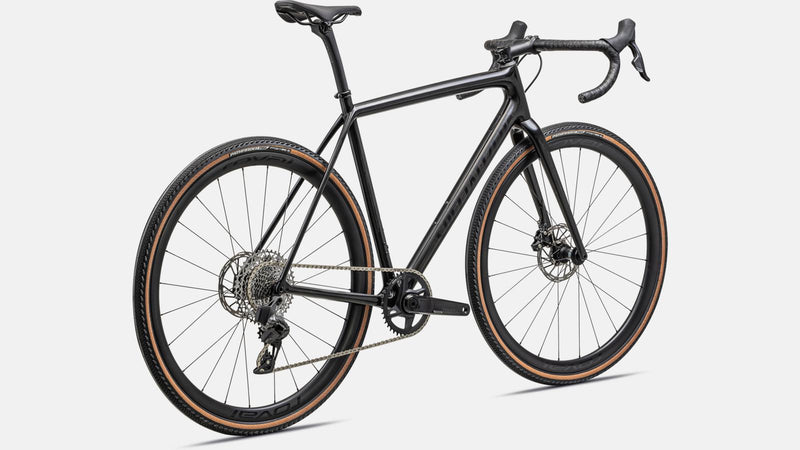

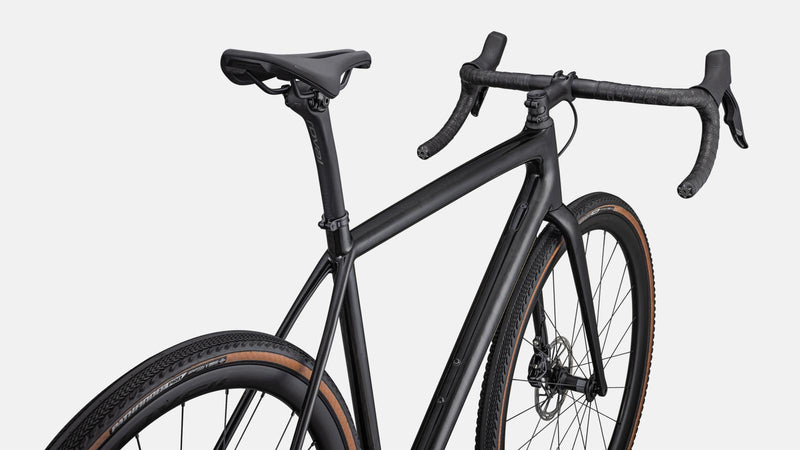

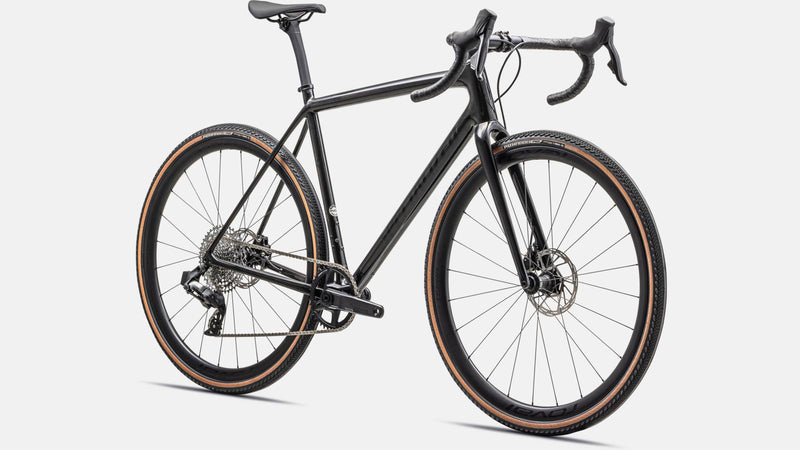

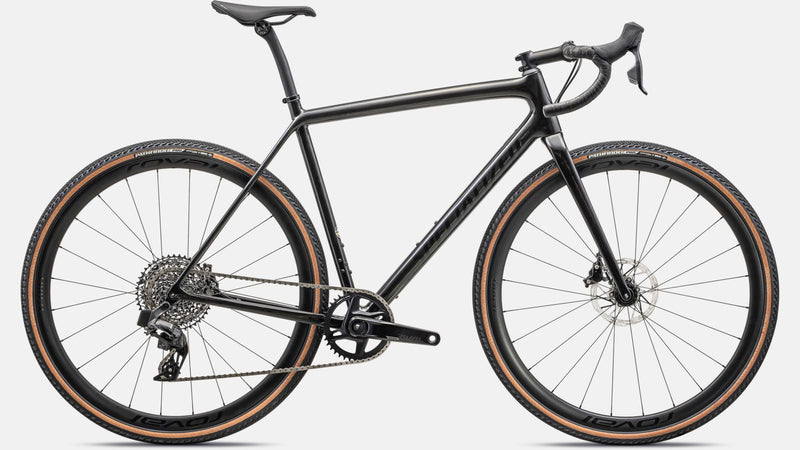

Specialized - Crux Expert

Name: Specialized - Crux Expert
Brand: SPECIALIZED
SKU: 91423-3054
Price: 8900.0 NZD
Availability: InStock

SKU 91423-3054

$0.00 - $0.00

$8,900.00

$8,900.00 - $8,900.00

$8,900.00

Color: GLOSS CARBON/TARMAC BLACK

Size: 54

54

56

❯ ❯ ❯ DESCRIPTION

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment. This Crux Pro comes spec'd with a accurate and quick-shifting SRAM Force eTap AXS hydraulic disc groupset, lightweight and durable Roval Terra CL Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.

❯ ❯ ❯ FEATURES

Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.

❯ ❯ ❯ SPECIFICATION

Wheels & Tires
INNER TUBES	700x28/38mm, 48mm Presta valve
REAR TIRE	Pathfinder Pro 2BR, Tan Sidewall, 700x38
FRONT TIRE	Pathfinder Pro 2BR, Tan Sidewall, 700x38
REAR WHEEL	Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 hub, 24h, DT Swiss Comp Race spokes
FRONT WHEEL	Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 hub, 24h, DT Swiss Comp Race spokes
Cockpit
SADDLE	Body Geometry Power Expert, titanium rails
SEATPOST	Roval Terra Carbon Seat Post, 20mm Offset
SEAT BINDER	Specialized Alloy, 30mm
HANDLEBARS	Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
STEM	Specialized Pro SL, alloy, 4-bolt, 6-degree rise
TAPE	Supacaz Super Sticky Kush
Frameset
FRAME	Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
Suspension
FORK	FACT 12R Carbon, 12x100mm thru-axle, flat-mount disc
Drivetrain
CHAIN	SRAM Rival 12-speed
CASSETTE	SRAM XPLR, XG-1251, 12-speed, 10-44t
BOTTOM BRACKET	SRAM DUB BSA
SHIFT LEVERS	SRAM Rival eTAP AXS
CRANKSET	SRAM Rival 1x
REAR DERAILLEUR	SRAM Rival XPLR eTap AXS
CHAINRINGS	40T
Brakes
REAR BRAKE	SRAM Rival eTAP AXS, hydraulic disc
FRONT BRAKE	SRAM Rival eTAP AXS, hydraulic disc
Weight
WEIGHT SIZE	56
WEIGHT	8.16kg (17 lb, 15.8 oz)

* Specifications are subject to change without notice

❯ ❯ ❯ GEOMETRY

	49	52	54	56	58	61
Crank Length	165	170	172.5	172.5	175	175
Handlebar Width	380	400	420	420	440	440
Stem Length	70	80	90	100	110	110
Saddle Width	155	155	143	143	143	143
Seatpost Length	330	330	330	380	380	380
Stack	530	547	560	578	598	621
Reach	375	382	388	397	405	415
Head Tube Length	100	115	130	147	167	190
Head Tube Angle	70.5	71.25	71.5	72	72.25	72.5
BB Height	284	284	286	286	286	286
BB Drop	74	74	72	72	72	72
Trail	74	69	67	64	62	60
Fork Length, Full	401	401	401	401	401	401
Fork Rake/Offset	50	50	50	50	50	50
Front Center	594	600	608	618	630	644
Chainstay Length	425	425	425	425	425	425
Wheelbase	1008	1014	1023	1033	1045	1059
Top Tube Length, Horizontal	512	539	549	568	582	599
Bike Standover Height	749	772	794	816	841	866
Seat Tube Length	466	496	521	546	576	606
Seat Tube Angle	75.5	74	74	73.5	73.5	73.5

❯ ❯ ❯ BUYING A BIKE

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
