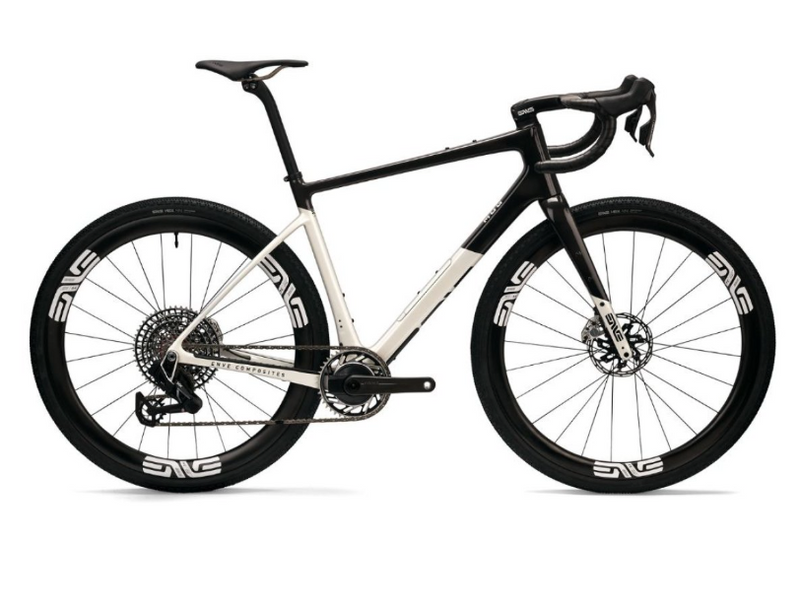

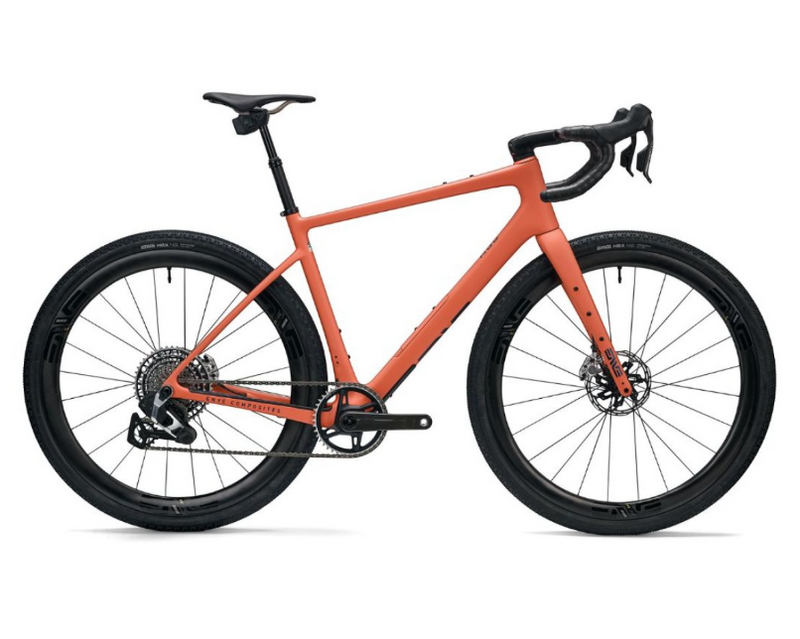

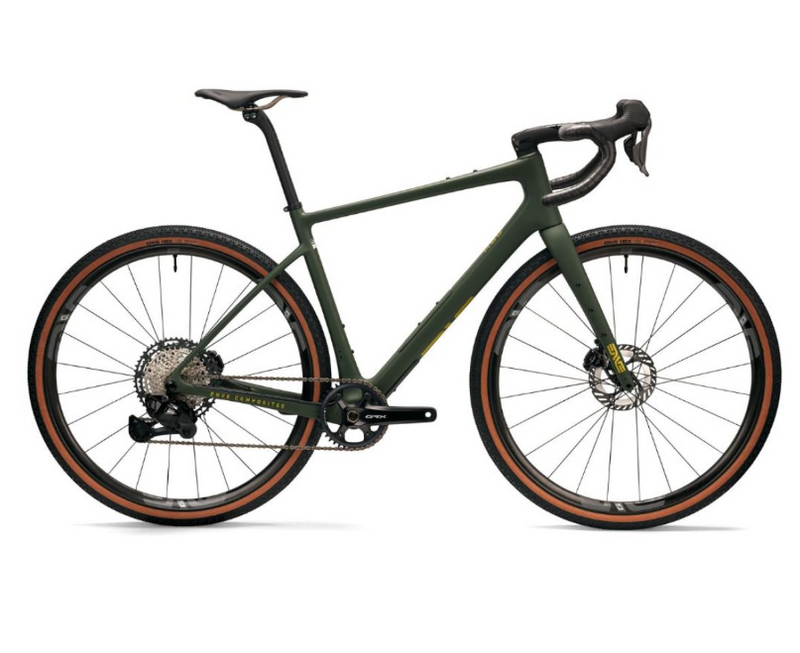

Enve - Mog Gravel Bike - Pro Build
Enve - Mog Gravel Bike - Pro Build
Enve - Mog Gravel Bike - Pro Build
Enve - Mog Gravel Bike - Pro Build

Enve - Mog Gravel Bike - Pro Build

SKU MOG-COMPLETE-CORAL-PRO
$22,699.00 - $22,699.00
$22,699.00
$22,699.00 - $22,699.00
$22,699.00

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

Color: ENVE MOG Pro Bike - Coral - SRAM Red XPLR AXS - G SES PRO
ENQUIRY

The MOG is a high-performance carbon gravel bike built for riders who push the boundaries of distance and rolling exploration. MOG is a noun, a verb, an acronym, and unequivocally a state of mind for those who embrace every challenge. There’s no road too long, no course too tough for those willing to MOG. Designed for racing and adventure, it delivers superior durability, generous tire clearance, and integrated storage for all your rides.

<p>
The <strong>Pro Build</strong> is our top-tier offering for the <strong>MOG Bike</strong>. The MOG chassis includes the <strong>SES AR One-Piece handlebar/stem</strong>, <strong>ENVE Seatpost</strong> and <strong>ENVE X Selle Italia SLR saddle</strong>. SRAM's superlative <strong>RED XPLR AXS groupset</strong> and <strong>ENVE G SES Pro wheels</strong> offer category-dominating performance, complemented with <strong>ENVE C.I.M. Cages</strong> and <strong>Handlebar Tape</strong> for the perfect finishing touches.
</p>

<div class="tech-specs">

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Frame and Fork</p>
<p class="value">ENVE MOG</p>
</div>
</div>

<div class="spec-section">
<h4>Drivetrain</h4>

<div class="spec-item">
<p class="label">Groupset</p>
<p class="value">SRAM Red XPLR AXS</p>
</div>
</div>

<div class="spec-section">
<h4>Wheels &amp; Tires</h4>

<div class="spec-item">
<p class="label">Wheelset</p>
<p class="value">ENVE G SES Pro 4.5 or 6.7</p>
</div>

<div class="spec-item">
<p class="label">Tires</p>
<p class="value">ENVE Hex</p>
</div>
</div>

<div class="spec-section">
<h4>Cockpit</h4>

<div class="spec-item">
<p class="label">Handlebar</p>
<p class="value">ENVE SES AR One-Piece Handlebar</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">ENVE 27.2 x 400mm</p>
</div>

<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">ENVE X Selle Italia SLR Boost</p>
</div>

<div class="spec-item">
<p class="label">Handlebar Tape</p>
<p class="value">ENVE Black</p>
</div>
</div>

<div class="spec-section">
<h4>Accessories</h4>

<div class="spec-item">
<p class="label">Bottle Cages</p>
<p class="value">ENVE C.I.M. Top-Loading</p>
</div>
</div>

</div>

<div class="tech-specs">

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Frame Material</p>
<p class="value">ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible</p>
</div>

<div class="spec-item">
<p class="label">Fork Material</p>
<p class="value">ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible</p>
</div>

<div class="spec-item">
<p class="label">Frame Sizes</p>
<p class="value">49, 52, 54, 56, 58, 60cm</p>
</div>

<div class="spec-item">
<p class="label">Fork Rake</p>
<p class="value">57, 55, 53mm</p>
</div>

<div class="spec-item">
<p class="label">Fork Axle To Crown</p>
<p class="value">395mm</p>
</div>

<div class="spec-item">
<p class="label">Frame Size / Fork Rake</p>
<p class="value">49cm / 57mm<br>52cm / 57mm<br>54cm / 55mm<br>56cm / 55mm<br>58cm / 53mm<br>60cm / 53mm</p>
</div>

<div class="spec-item">
<p class="label">Frame Weight</p>
<p class="value">950g +/- 2% (Size 56, Painted, No Hardware)</p>
</div>

<div class="spec-item">
<p class="label">Headset</p>
<p class="value">ENVE Integrated IS52/IS52 Internal Drop-In</p>
</div>

<div class="spec-item">
<p class="label">Headset Bearing</p>
<p class="value">1.5" IS52 Upper and Lower</p>
</div>

<div class="spec-item">
<p class="label">Seat Post Diameter</p>
<p class="value">27.2mm</p>
</div>

<div class="spec-item">
<p class="label">BB Type</p>
<p class="value">T47 Inboard Bearing</p>
</div>

<div class="spec-item">
<p class="label">Frame Routing</p>
<p class="value">ENVE IN-Route Internal</p>
</div>
</div>

<div class="spec-section">
<h4>Brakes</h4>

<div class="spec-item">
<p class="label">Brake Mount</p>
<p class="value">Flat Mount</p>
</div>

<div class="spec-item">
<p class="label">Brake Rotor Compatibility</p>
<p class="value">Front: 160/180mm<br>Rear: 140/160mm (Adapters Required)</p>
</div>
</div>

<div class="spec-section">
<h4>Wheels &amp; Tires</h4>

<div class="spec-item">
<p class="label">Front Axle</p>
<p class="value">12x100 (Total Length: 122, TP: 1.5, TL: 15)</p>
</div>

<div class="spec-item">
<p class="label">Rear Axle</p>
<p class="value">12x142 (Total Length: 168, TP: 1.0, TL: 14)</p>
</div>

<div class="spec-item">
<p class="label">Wheel Size</p>
<p class="value">700C (650b Not Recommended)</p>
</div>

<div class="spec-item">
<p class="label">Minimum Tire Size</p>
<p class="value">700 x 36c</p>
</div>

<div class="spec-item">
<p class="label">Optimal Tire Size</p>
<p class="value">700 x 40c-44c</p>
</div>

<div class="spec-item">
<p class="label">Maximum Listed Tire Clearance</p>
<p class="value">700 x 50c</p>
</div>
</div>

<div class="spec-section">
<h4>Accessories</h4>

<div class="spec-item">
<p class="label">Water Bottle Capacity</p>
<p class="value">3</p>
</div>

<div class="spec-item">
<p class="label">Top Tube Mounts</p>
<p class="value">Yes</p>
</div>

<div class="spec-item">
<p class="label">Fender Mount Compatible</p>
<p class="value">Yes</p>
</div>
</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col">Measurement</th>
<th>49</th>
<th>52</th>
<th>54</th>
<th>56</th>
<th>58</th>
<th>60</th>
</tr>
</thead>
<tbody>

<tr>
<td class="sticky-col">Reach (mm)</td>
<td>367</td><td>378</td><td>389</td><td>397</td><td>405</td><td>415</td>
</tr>

<tr>
<td class="sticky-col">Stack (mm)</td>
<td>520</td><td>543</td><td>565</td><td>587</td><td>605</td><td>630</td>
</tr>

<tr>
<td class="sticky-col">Top Tube (mm)</td>
<td>511</td><td>534</td><td>554</td><td>571</td><td>588</td><td>611</td>
</tr>

<tr>
<td class="sticky-col">Fork Rake (mm)</td>
<td>57</td><td>57</td><td>55</td><td>55</td><td>53</td><td>53</td>
</tr>

<tr>
<td class="sticky-col">Seat Tube Length (C to Top) (mm)</td>
<td>439</td><td>459</td><td>480</td><td>500</td><td>518</td><td>540</td>
</tr>

<tr>
<td class="sticky-col">Max Saddle Rail Height (w/ 400mm Post) (mm)</td>
<td>764</td><td>784</td><td>805</td><td>825</td><td>843</td><td>865</td>
</tr>

<tr>
<td class="sticky-col">Max Saddle Height (w/ ENVE SLR Saddle) (mm)</td>
<td>800</td><td>820</td><td>841</td><td>861</td><td>879</td><td>901</td>
</tr>

<tr>
<td class="sticky-col">Seat Tube Angle (°)</td>
<td>74.5</td><td>74</td><td>73.75</td><td>73.5</td><td>73.2</td><td>72.75</td>
</tr>

<tr>
<td class="sticky-col">Head Tube Angle (°)</td>
<td>71</td><td>71</td><td>71.25</td><td>71.25</td><td>71.5</td><td>71.5</td>
</tr>

<tr>
<td class="sticky-col">Head Tube Length (mm)</td>
<td>92</td><td>117</td><td>140</td><td>163</td><td>183</td><td>209</td>
</tr>

<tr>
<td class="sticky-col">BB Drop (mm)</td>
<td>77</td><td>77</td><td>75</td><td>75</td><td>73</td><td>73</td>
</tr>

<tr>
<td class="sticky-col">Chainstay Length (mm)</td>
<td>420</td><td>420</td><td>420</td><td>420</td><td>420</td><td>420</td>
</tr>

<tr>
<td class="sticky-col">Wheelbase (mm)</td>
<td>993</td><td>1012</td><td>1027</td><td>1042</td><td>1053</td><td>1071</td>
</tr>

<tr>
<td class="sticky-col">Front Center (mm)</td>
<td>580</td><td>599</td><td>613</td><td>629</td><td>639</td><td>657</td>
</tr>

<tr>
<td class="sticky-col">Rear Center (mm)</td>
<td>412.9</td><td>412.9</td><td>413.2</td><td>413.2</td><td>413.6</td><td>413.6</td>
</tr>

<tr>
<td class="sticky-col">BB Height (50mm Tire) (mm)</td>
<td>289</td><td>289</td><td>291</td><td>291</td><td>293</td><td>293</td>
</tr>

<tr>
<td class="sticky-col">BB Height (44mm Tire) (mm)</td>
<td>279</td><td>279</td><td>281</td><td>281</td><td>283</td><td>283</td>
</tr>

<tr>
<td class="sticky-col">BB Height (40mm Tire) (mm)</td>
<td>277</td><td>277</td><td>279</td><td>279</td><td>281</td><td>281</td>
</tr>

<tr>
<td class="sticky-col">BB Height (35mm Tire) (mm)</td>
<td>273</td><td>273</td><td>275</td><td>275</td><td>277</td><td>277</td>
</tr>

<tr>
<td class="sticky-col">Standover (50mm Tire) (mm)</td>
<td>714</td><td>734</td><td>756</td><td>776</td><td>796</td><td>819</td>
</tr>

<tr>
<td class="sticky-col">Standover (44mm Tire) (mm)</td>
<td>705</td><td>725</td><td>747</td><td>767</td><td>787</td><td>809</td>
</tr>

<tr>
<td class="sticky-col">Standover (40mm Tire) (mm)</td>
<td>702</td><td>722</td><td>744</td><td>764</td><td>784</td><td>807</td>
</tr>

<tr>
<td class="sticky-col">Standover (35mm Tire) (mm)</td>
<td>698</td><td>718</td><td>740</td><td>760</td><td>780</td><td>803</td>
</tr>

<tr>
<td class="sticky-col">Trail (50mm Tire) (mm)</td>
<td>65.5</td><td>65.6</td><td>66</td><td>66</td><td>66.4</td><td>66.4</td>
</tr>

<tr>
<td class="sticky-col">Trail (44mm Tire) (mm)</td>
<td>62.3</td><td>62.3</td><td>62.8</td><td>62.8</td><td>63.2</td><td>63.2</td>
</tr>

<tr>
<td class="sticky-col">Trail (40mm Tire) (mm)</td>
<td>61.4</td><td>61.4</td><td>61.9</td><td>61.9</td><td>62.4</td><td>62.4</td>
</tr>

<tr>
<td class="sticky-col">Trail (35mm Tire) (mm)</td>
<td>60.1</td><td>60.1</td><td>60.6</td><td>60.6</td><td>61.1</td><td>61.1</td>
</tr>

</tbody>
</table>
</div>
</div>
