SKU WHKADRS-L
Save 13% Save 13%
$11,999.00
$11,999.00 - $11,999.00
$11,999.00
$10,499.00
$10,499.00 - $10,499.00
$10,499.00

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

Choose a Color
Choose a Size
ENQUIRY

RIDE BEYOND EXPECTATIONS

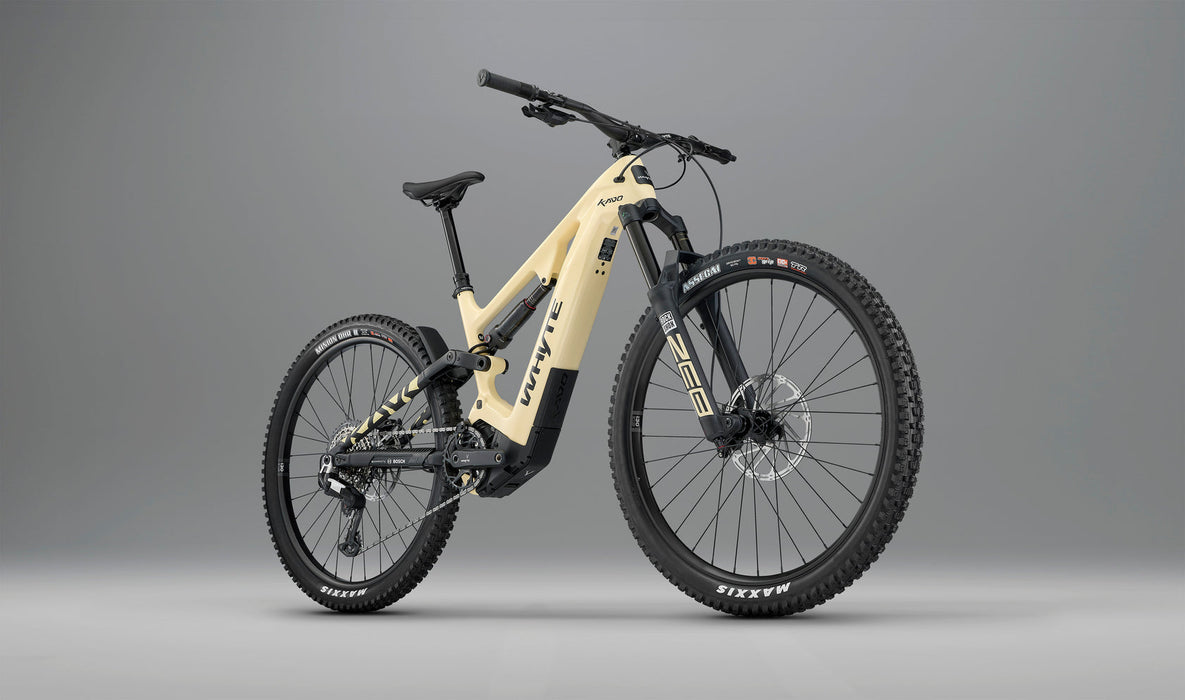

Our mid-range Kado RS is a capable and confidence-inspiring full-power, full-torque eMTB that will help you realise your riding dreams.
With an empowering ride; confidence-inspiring handling; the range to go for miles and miles; Bosch’s refined and reliable motor; an easy to remove 800Wh internal battery; our game-changing low centre of gravity design; meticulously tuned suspension for perfect control; specially curated parts, and more, Kado RS is ready to help you ride beyond your expectations – everywhere.
HIGHLIGHTS
– 160mm front + 150mm rear of custom-tuned suspension travel.
– Carbon fibre mainframe + alloy back end is light and tough.
– Bosch's fifth generation Performance Line CX full-torque (85Nm), full-power (600W) motor.
– 800Wh removeable internal battery so you can ride further.
– 29in trail-smoothing wheels front and rear.
– Optimised low centre of gravity gives you exceptional, confidence-inspiring handling.

RIDES LIKE A DREAM
We’ve poured everything into Kado RS to give you the best handling and ride performance possible: an optimised low centre of gravity to give you exceptional cornering agility and balanced handling on any terrain; custom-tuned suspension for the very best grip, feedback and control; confidence-inspiring geometry, and much more. All masterfully combined to help you realise your riding dreams.

CHARGE TIME: 50% in 2.3hrs from empty, and to 100% in 6.9hrs with 4A Charger.

THE RANGE TO ROAM
With an 800Wh internal battery as standard and compatibility with Bosch’s aftermarket 250Wh ‘PowerMore’ range extender (available separately; fits size M–XL frames), Kado RS is ready to give you up to a 1050Wh of combined battery capacity. But more than that: Bosch’s latest, most efficient ‘PowerTube 800’ battery also gives you more range for less weight than its ‘PowerTube 750’ predecessor. All so you can ride as far – and as wide – as you wish.

REFINED AND RELIABLE PERFORMANCE
Quieter and lighter than ever, the fifth generation Performance Line CX motor gives you Bosch’s most refined, reliable and efficient motor performance. 600W of peak, trail-usable power. 85Nm of torque. All tuneable to your tastes using the Bosch eBike Flow app., and ready to be boosted further via incoming software updates. Add in a further improved motor response and smart power delivery and you’ve the power and control to conquer any trail.

SLIDE IN, SLIDE OUT
Removing the Kado RS’s internal battery is a dream for storage, battery swaps, or off-the-bike charging: just open the battery cover, undo the captive bolt, and slide the battery out. To replace, just do the reverse. Simple. Every Kado can also take both 600Wh and 800Wh batteries so if you decide to buy a spare so you can change the stock 800Wh battery out for a smaller capacity battery for shorter rides – or for racing – you can.

<div class="tech-specs">

<div class="spec-section">
<h4>General</h4>
<div class="spec-item">
<p class="label">Colour</p>
<p class="value">Gloss dune tan yellow with matte black</p>
</div>
<div class="spec-item">
<p class="label">Weight</p>
<p class="value">25.4 kg (size M, without pedals, with inner tubes)</p>
</div>
</div>

<div class="spec-section">
<h4>Frameset</h4>
<div class="spec-item">
<p class="label">Frame</p>
<p class="value">Uni-directional carbon mainframe, tapered head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2, 12x148mm Boost dropouts</p>
</div>
<div class="spec-item">
<p class="label">Rear Shock</p>

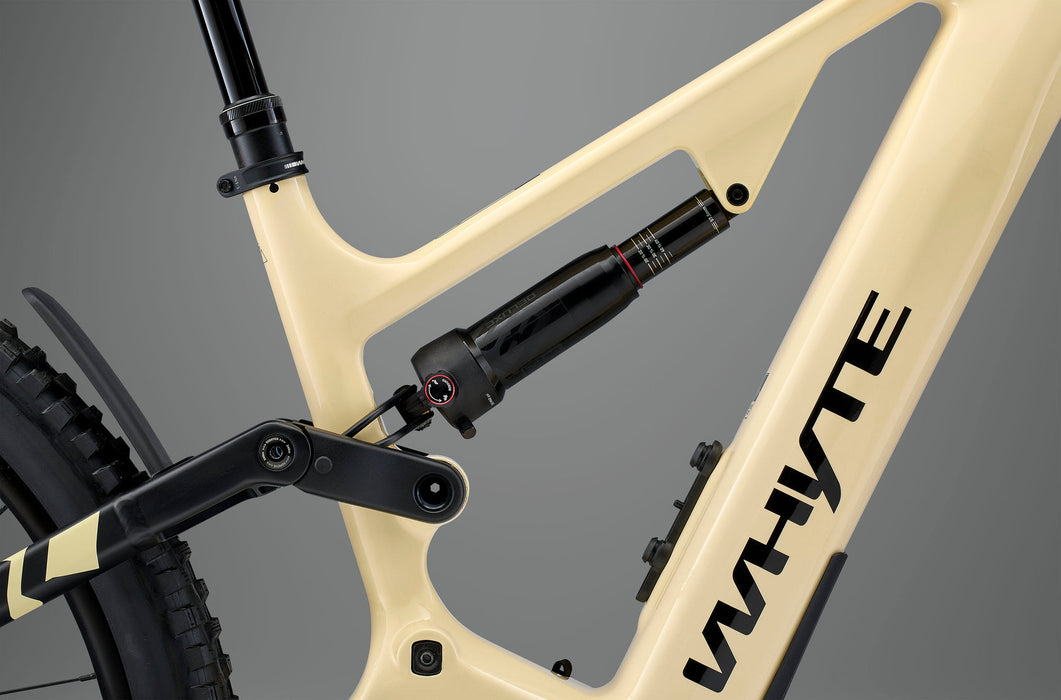

<p class="value">RockShox Deluxe Select R, DebonAir, adjustable rebound, custom tuned for Whyte</p>
</div>
<div class="spec-item">
<p class="label">Headset</p>
<p class="value">Token TK19506, 1 1/8&quot; upper and 1.5&quot; lower, sealed bearings</p>
</div>
<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">TranzX +RAD 34.9mm, adjustable (S: 150mm, M: 170mm, L/XL: 200mm travel)</p>
</div>
</div>

<div class="spec-section">
<h4>Suspension</h4>
<div class="spec-item">
<p class="label">Fork</p>

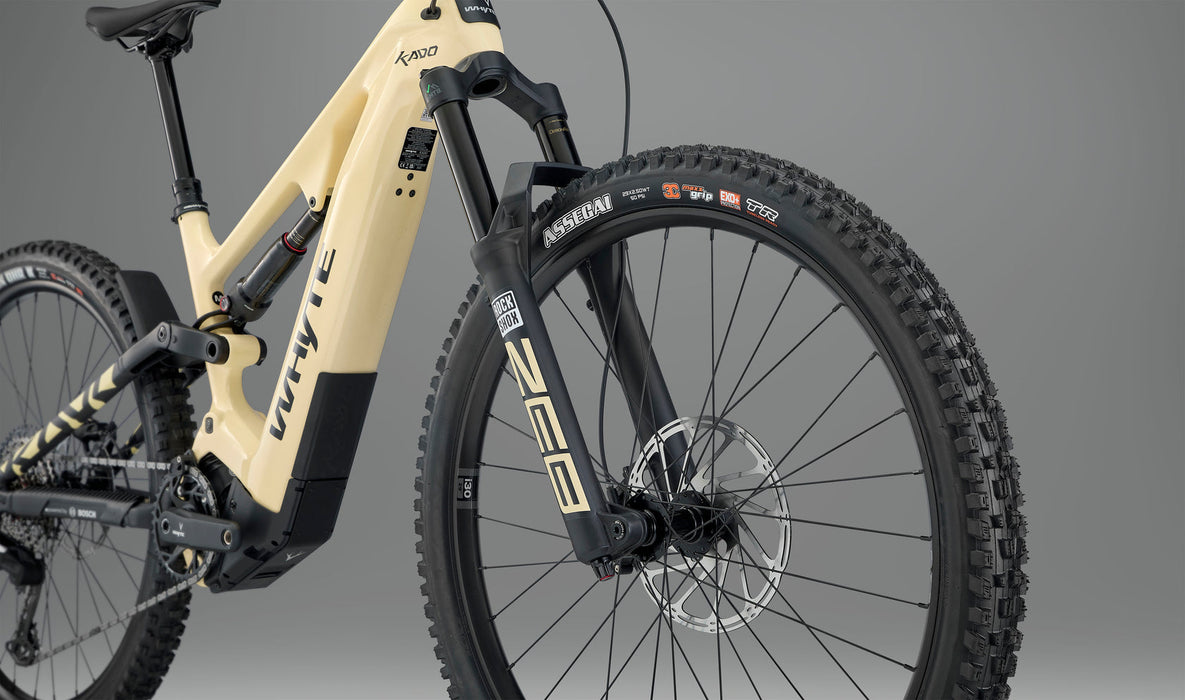

<p class="value">RockShox ZEB Select, 160mm travel, DebonAir, Charger RC damper, 44mm offset, Boost 15x110mm</p>
</div>
</div>

<div class="spec-section">
<h4>Drivetrain</h4>
<div class="spec-item">
<p class="label">Shift Levers</p>
<p class="value">SRAM Eagle 70, 12-speed</p>
</div>
<div class="spec-item">

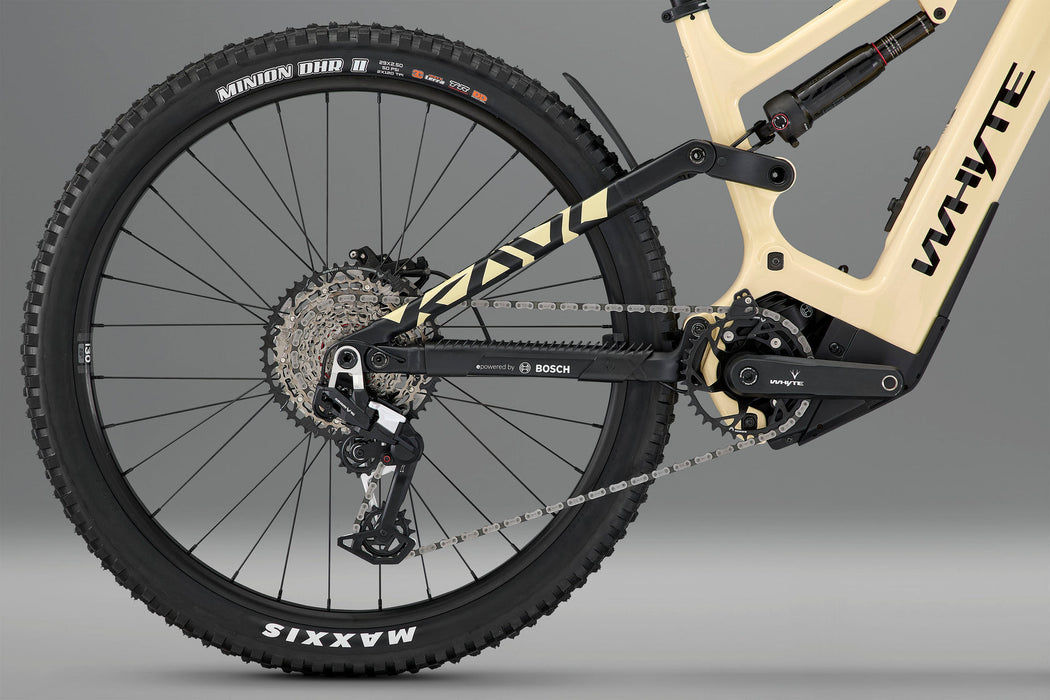

<p class="label">Rear Derailleur</p>
<p class="value">SRAM Eagle 90 T-Type, 12-speed</p>
</div>
<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">SRAM XS 1270, T-Type, 10–52T</p>
</div>
<div class="spec-item">
<p class="label">Chain</p>
<p class="value">SRAM Eagle 70</p>
</div>
<div class="spec-item">
<p class="label">Crankset</p>
<p class="value">Whyte ISIS arms, 155mm, SRAM direct mount 36T chainring (T-Type)</p>
</div>
</div>

<div class="spec-section">
<h4>Brakes</h4>
<div class="spec-item">
<p class="label">Front Brake</p>
<p class="value">SRAM DB8 Stealth, 4-piston, 220mm Centreline rotor</p>
</div>
<div class="spec-item">
<p class="label">Rear Brake</p>

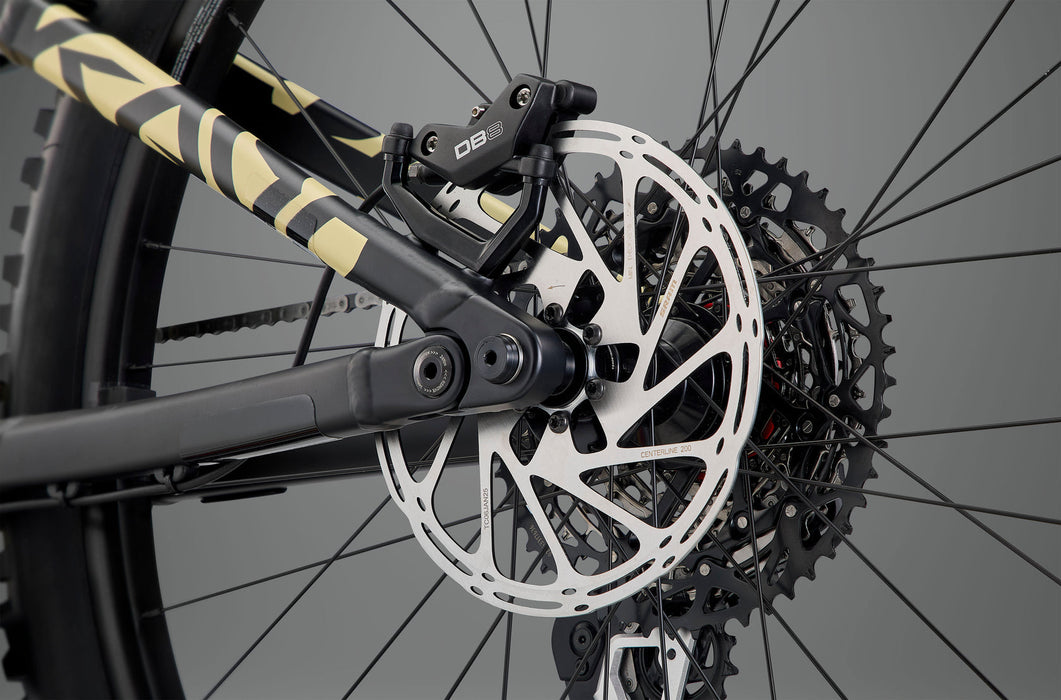

<p class="value">SRAM DB8 Stealth, 4-piston, 200mm Centreline rotor</p>
</div>
<div class="spec-item">
<p class="label">Brake Levers</p>
<p class="value">SRAM DB8 Stealth</p>
</div>
</div>

<div class="spec-section">
<h4>Wheels &amp; Tires</h4>
<div class="spec-item">
<p class="label">Rims</p>
<p class="value">WTB ST Tough (front), WTB HTZ Trail (rear), 30mm internal width</p>
</div>
<div class="spec-item">
<p class="label">Front Hub</p>
<p class="value">Alloy, sealed cartridge bearings, 12x100mm thru-axle, 32h</p>
</div>
<div class="spec-item">
<p class="label">Rear Hub</p>
<p class="value">Alloy, sealed cartridge bearings, 12x148mm Boost, 4-pawl, 9° engagement, 32h</p>
</div>
<div class="spec-item">
<p class="label">Spokes</p>
<p class="value">14g stainless steel, black, brass nipples</p>
</div>
<div class="spec-item">
<p class="label">Front Tire</p>
<p class="value">Maxxis Assegai WT, 29x2.5, EXO+, 3C MaxxGrip</p>
</div>
<div class="spec-item">
<p class="label">Rear Tire</p>
<p class="value">Maxxis Minion DHR II WT, 29x2.4, DoubleDown, 3C MaxxTerra</p>
</div>
</div>

<div class="spec-section">
<h4>Cockpit</h4>
<div class="spec-item">
<p class="label">Handlebar</p>
<p class="value">Whyte Custom 6061 alloy, 800mm width, 30mm rise, 35mm clamp</p>
</div>
<div class="spec-item">
<p class="label">Stem</p>
<p class="value">Whyte, 35mm extension, 35mm bar clamp</p>
</div>
<div class="spec-item">
<p class="label">Grips</p>
<p class="value">Whyte Enduro lock-on</p>
</div>
<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">Whyte Custom</p>
</div>
<div class="spec-item">
<p class="label">Pedals</p>
<p class="value">Fibre reinforced composite platform</p>
</div>
</div>

<div class="spec-section">
<h4>E-Bike System</h4>
<div class="spec-item">
<p class="label">Motor</p>
<p class="value">Bosch Performance Line CX Smart System, 85Nm</p>
</div>
<div class="spec-item">
<p class="label">Battery</p>
<p class="value">Bosch PowerTube 800Wh, removable, PowerMore compatible</p>
</div>
<div class="spec-item">
<p class="label">Charger</p>
<p class="value">Bosch 4A Charger (230V)</p>
</div>
<div class="spec-item">
<p class="label">Display</p>

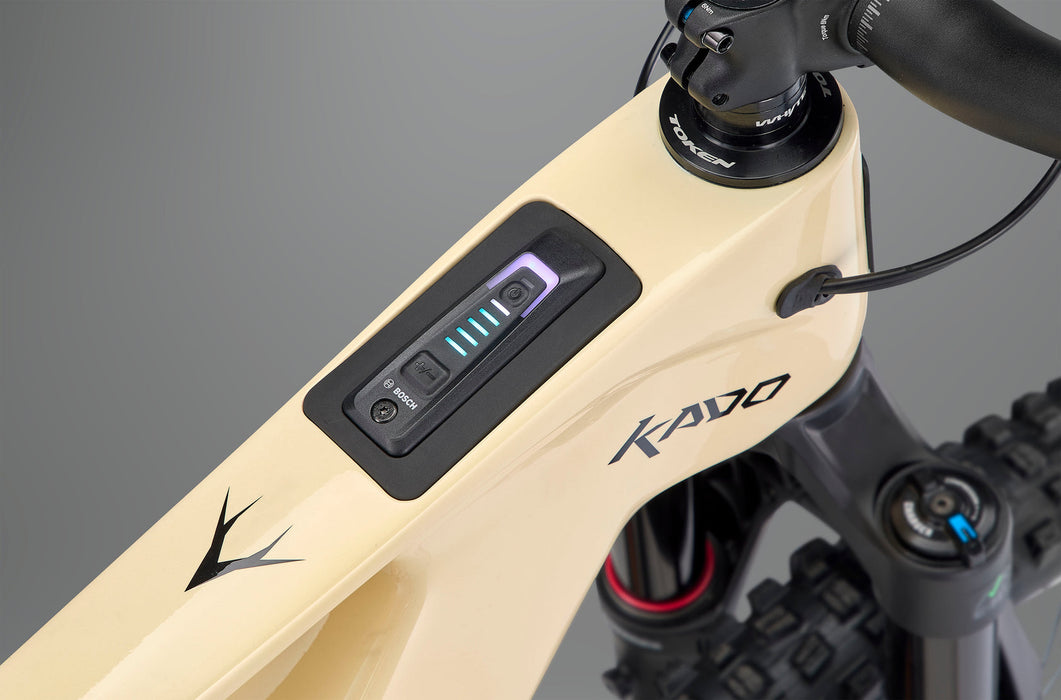

<p class="value">Bosch System Controller with Mini Remote and Purion 400, eBike Flow App compatible</p>
</div>
</div>

</div>

<div class="curve-geo-static">
<img
src="https://cdn.shopify.com/s/files/1/0089/4972/7298/files/whyte_kado_s_geometry.png?v=1768578456"
alt="Geometry Diagram"
loading="lazy"
/>
</div>

<style>
.curve-geo-static {
width: 100%;
display: flex;
flex-direction: column;
align-items: center;
margin: 16px 0 24px;
}

.curve-geo-static img {
max-width: 900px;
width: 100%;
height: auto;
display: block;
}
</style>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col"></th>
<th>Small</th>
<th>Medium</th>
<th>Large</th>
<th>Extra Large</th>
</tr>
</thead>

<tbody>
<tr>
<th class="sticky-col">Reach (mm)</th>
<td>436</td>
<td>460</td>
<td>485</td>
<td>510</td>
</tr>

<tr>
<th class="sticky-col">Stack (mm)</th>
<td>623</td>
<td>634.4</td>
<td>646.2</td>
<td>659.8</td>
</tr>

<tr>
<th class="sticky-col">Head Angle (°)</th>
<td>65 (64.4)</td>
<td>65 (64.4)</td>
<td>65 (64.4)</td>
<td>65 (64.4)</td>
</tr>

<tr>
<th class="sticky-col">Seat Angle (°)</th>
<td>77.9</td>
<td>77.8</td>
<td>77.7</td>
<td>77.5</td>
</tr>

<tr>
<th class="sticky-col">BB Height (mm)</th>
<td>350 (342)</td>
<td>350 (342)</td>
<td>350 (342)</td>
<td>350 (342)</td>
</tr>

<tr>
<th class="sticky-col">Wheelbase (mm)</th>
<td>1213.1</td>
<td>1243.2</td>
<td>1273.7</td>
<td>1305</td>
</tr>

<tr>
<th class="sticky-col">Rear Centre / Chainstay (mm)</th>
<td>450</td>
<td>450</td>
<td>450</td>
<td>450</td>
</tr>

<tr>
<th class="sticky-col">Standover Height (mm)</th>
<td>765</td>
<td>768</td>
<td>771</td>
<td>774</td>
</tr>

<tr>
<th class="sticky-col">Seat Tube Length (mm)</th>
<td>395</td>
<td>420</td>
<td>445</td>
<td>470</td>
</tr>

<tr>
<th class="sticky-col">Head Tube Length (mm)</th>
<td>104</td>
<td>116</td>
<td>129</td>
<td>144</td>
</tr>
</tbody>
</table>
</div>
</div>
