Specialized Chisel Hardtail Comp

Specialized Chisel Hardtail Comp

SKU 91725-5003
$0.00 - $0.00
$2,900.00
$2,900.00 - $2,900.00
$2,900.00
Colour: Gloss Metallic Deep Marine / White
Size: M

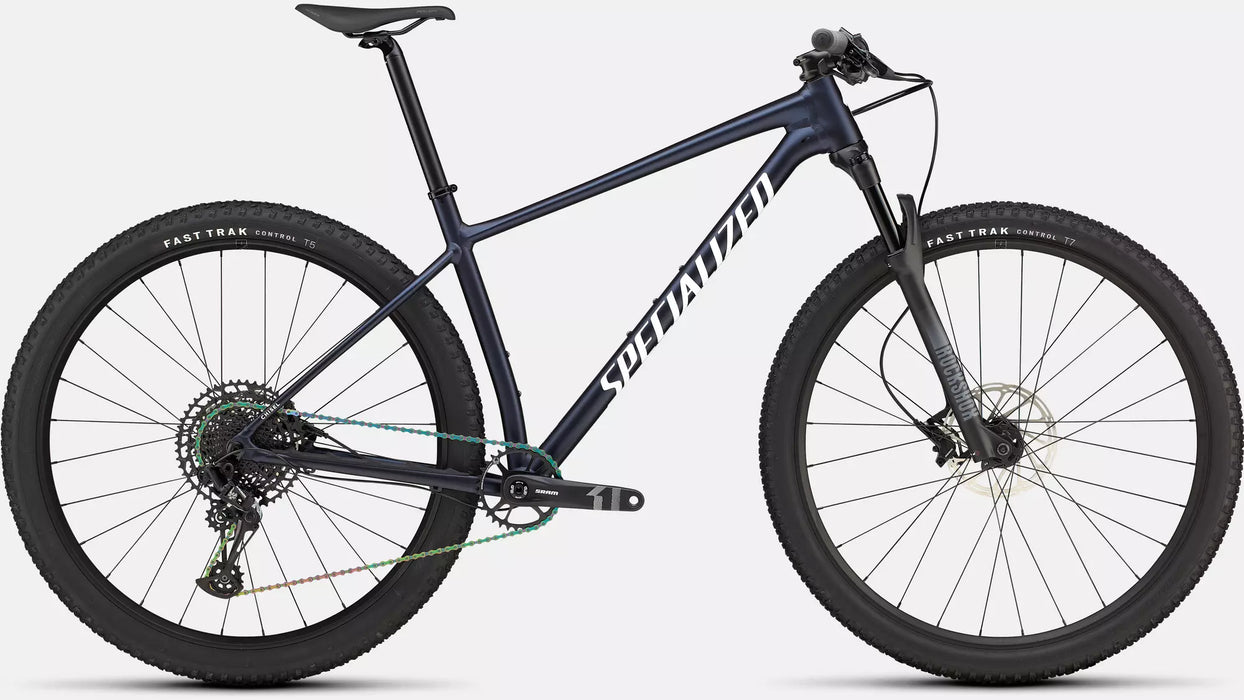

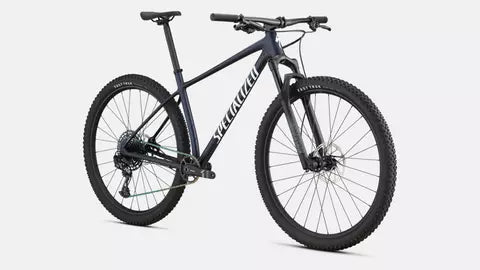

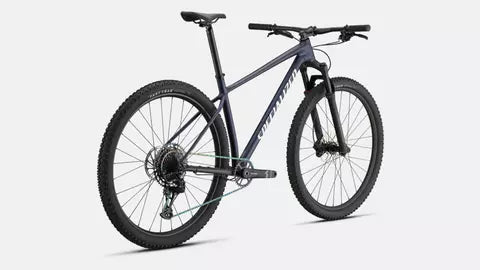

The Chisel has been purpose-built to tackle modern cross-country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.

This Chisel comes with SRAM's tried and true NX Eagle 1x12 speed drivetrain and Level T hydraulic disc brakes, a RockShox Judy Gold fork, and 27mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires

  • We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
  • The Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Frameset
FRAME Specialized D''Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
SEAT BINDER Specialized Alloy, 34.9mm
Suspension
FORK RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
Cockpit
SEATPOST Specialized Alloy, Single Bolt, 30.9mm
STEM Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
SADDLE Body Geometry Power Sport, steel rails
GRIPS Specialized Trail Grips
HANDLEBARS Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Brakes
FRONT BRAKE SRAM Level T hydraulic disc, 2-Piston Caliper
REAR BRAKE SRAM Level T hydraulic disc, 2-Piston Caliper
Drivetrain
SHIFT LEVERS SRAM NX Eagle, trigger, 12-speed
REAR DERAILLEUR SRAM NX Eagle, 12-speed
CASSETTE SRAM NX Eagle, 12-speed, 11-50t
CHAIN SRAM XX1 Eagle solid-pin, 12-speed
CRANKSET SRAM X1000 Eagle, DUB, 165/170/175mm
BOTTOM BRACKET SRAM DUB, BSA 73mm, Threaded
CHAINRINGS 32t
Wheels & Tires
RIMS Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h
FRONT HUB Alloy front hub, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
REAR HUB Alloy rear hub, sealed cartridge bearings, 12x148mm thru-axle, 6-bolt, 28h
SPOKES Stainless, 14g
FRONT TIRE Specialized Fast Trak, Control Casing, T7 Compound, 29x2.35
REAR TIRE Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
INNER TUBES Standard 40mm PV 29x1.75-2.4
Weight
WEIGHT 11.76 kg (25 lb, 14.8 oz)
WEIGHT SIZE LG

* Specifications are subject to change without notice

XSSMLXL
Crank Length165170170175175
Handlebar Width750750750750750
Stem Length6060707070
Saddle Width155155143143143
Seatpost Length350350400400400
Stack591605605619633
Reach385405430455480
Head Tube Length959595110125
Head Tube Angle6868686868
BB Height304309309309309
BB Drop6863636363
Trail103103103103103
Fork Length, Full486506506506506
Fork Rake/Offset4444444444
Front Center647674699730760
Chainstay Length432432432432432
Wheelbase10701099112411541185
Top Tube Length, Horizontal555578603632661
Bike Standover Height732762792816847
Seat Tube Length367400430470520
Seat Tube Angle7474747474

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
