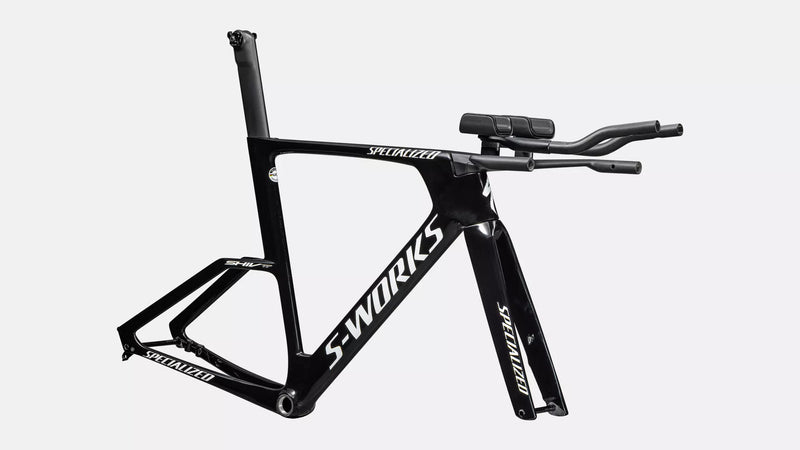

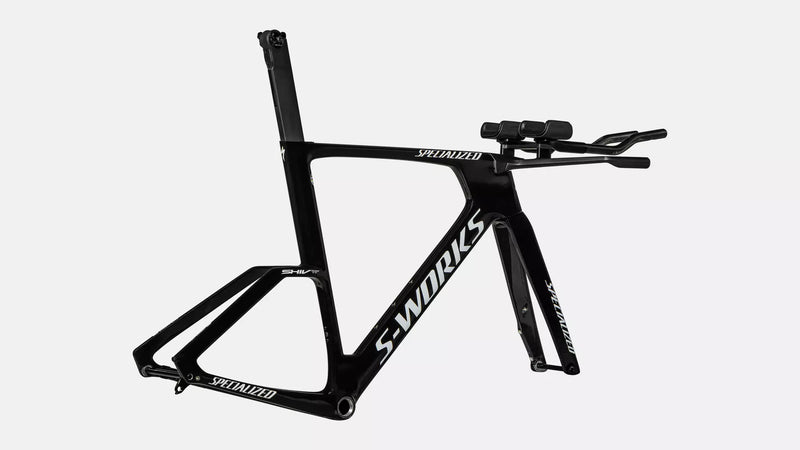

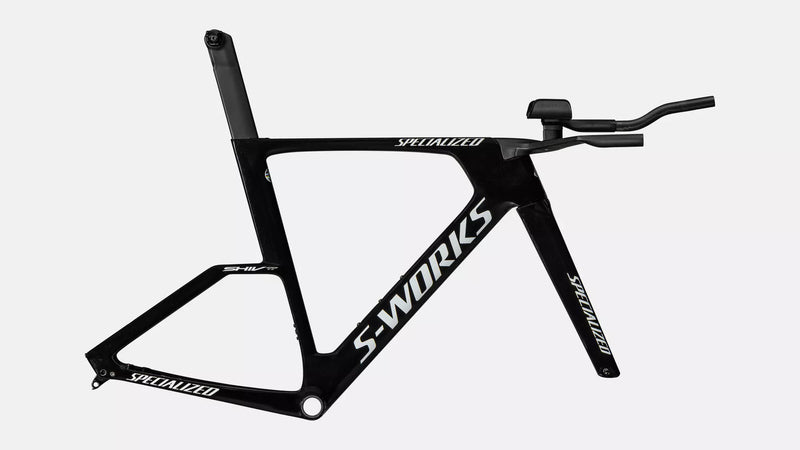

Specialized - S-Works Shiv TT Module
Specialized - S-Works Shiv TT Module
Specialized - S-Works Shiv TT Module

Specialized - S-Works Shiv TT Module

SKU 77425-0203
Save 24% Save 24%
$8,500.00
$8,500.00 - $8,500.00
$8,500.00
$6,499.00
$6,499.00 - $6,499.00
$6,499.00

Please email us or use the ENQUIRY FORM below to check your size and availability.

The frame may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY NATIONWIDE.

NOTE: Afterpay is unavailable on frame purchases.

Choose a Colour
Choose a Size
ENQUIRY

For years, time trial bikes have had very similar attributes—skinny, deep airfoils, sketchy handling, subpar braking, and heavy frames. For the 'flat and fast' courses of yesteryear, these qualities may have been acceptable, but with today's technically demanding courses, TT bikes needed a change. And with this in mind, we've pushed UCI regulations to their limits adding disc brakes, dropping weight, and dialing in the fit for the new Shiv TT. Is it the most adjustable TT bike out there? Yeah, but don't think it gave anything up to aerodynamics. Here's to another decade of gold medals.

The S-Works Shiv TT Disc Module is the perfect canvas to start constructing your TT dream rig.

  • As time-trial courses have become more technical and demanding, it's important to capitalize on years of R&D and pro rider feedback to create the fastest time trial bike—for all courses. From technical inner-city prologues, to rolling courses with steep grades, it's not just about making the fastest bike for a straight line. With this in mind, we've cut the weight and greatly increased the handling characteristics of the Shiv TT with an all-new silhouette
  • Fit was also one of the biggest design pillars of the new Shiv TT. With years of Retül data, and professional rider data, we've completely re-done the geometry and front-end of the bike. The updated spacers, bridge, and armrests lock in fit, improving stability and confidence, while the one-piece bar and stem simplifies and lightens the weight of the front-end, balancing the overall feel.
  • Disc brakes are now a necessity in TTs with variable weather, tight corners, and rough surfaces. Not only do they let you late-brake into corners and shift on the bars, but they also create a more stable chassis in corners and when accelerating. And don't worry, they don't lend themselves to any additional drag.

<div class="tech-specs">

<div class="spec-section">
<h4>Frameset</h4>

<div class="spec-item">
<p class="label">Frame</p>
<p class="value">S-Works FACT 11r carbon, Win Tunnel Engineered, UCI Legal, internal electric-only cable routing, BSA threaded bottom bracket, 12x142mm thru-axle, flat-mount disc</p>
</div>

</div>

<div class="spec-section">
<h4>Suspension</h4>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">S-Works FACT carbon, UCI Legal, 12x100mm thru-axle, flat-mount disc</p>
</div>

</div>

<div class="spec-section">
<h4>Cockpit</h4>

<div class="spec-item">
<p class="label">Handlebars</p>
<p class="value">Specialized Shiv TT Integrated Bar/Stem Aerobar</p>
</div>

<div class="spec-item">
<p class="label">Stem</p>
<p class="value">Shiv TT Basebar with integrated stem cover</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">2019 S-Works Venge Aero Seatpost, FACT carbon, Di2-compatible</p>
</div>

<div class="spec-item">
<p class="label">Seat Binder</p>
<p class="value">Shiv TT Integrated Wedge</p>
</div>

</div>

<div class="spec-section">
<h4>Weight</h4>

<div class="spec-item">
<p class="label">Weight</p>
<p class="value">2.69 kg (5 lb, 14.9 oz)</p>
</div>

<div class="spec-item">
<p class="label">Weight Size</p>
<p class="value">MD</p>
</div>

</div>

</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col">Measurement</th>
<th>XS</th>
<th>S</th>
<th>M</th>
<th>L</th>
</tr>
</thead>
<tbody>

<tr>
<td class="sticky-col">Handlebar Width (mm)</td>
<td>400</td>
<td>400</td>
<td>400</td>
<td>400</td>
</tr>

<tr>
<td class="sticky-col">Stem Length (mm)</td>
<td>75</td>
<td>75</td>
<td>75</td>
<td>75</td>
</tr>

<tr>
<td class="sticky-col">Seatpost Length (mm)</td>
<td>390</td>
<td>390</td>
<td>390</td>
<td>390</td>
</tr>

<tr>
<td class="sticky-col">Effective Reach to Center of Pad (Rearward Position) (mm)</td>
<td>436</td>
<td>448</td>
<td>463</td>
<td>478</td>
</tr>

<tr>
<td class="sticky-col">Effective Stack to Pad Holder (Highest Position) (mm)</td>
<td>680</td>
<td>690</td>
<td>690</td>
<td>690</td>
</tr>

<tr>
<td class="sticky-col">Trail (mm)</td>
<td>70</td>
<td>63</td>
<td>63</td>
<td>63</td>
</tr>

<tr>
<td class="sticky-col">Stack (mm)</td>
<td>485</td>
<td>495</td>
<td>495</td>
<td>495</td>
</tr>

<tr>
<td class="sticky-col">Fork Length (Full) (mm)</td>
<td>363</td>
<td>363</td>
<td>363</td>
<td>363</td>
</tr>

<tr>
<td class="sticky-col">Top Tube Length (Horizontal) (mm)</td>
<td>512</td>
<td>527</td>
<td>538</td>
<td>546</td>
</tr>

<tr>
<td class="sticky-col">Seat Tube Length (mm)</td>
<td>504</td>
<td>564</td>
<td>563</td>
<td>562</td>
</tr>

<tr>
<td class="sticky-col">Reach (mm)</td>
<td>378</td>
<td>390</td>
<td>405</td>
<td>420</td>
</tr>

<tr>
<td class="sticky-col">Head Tube Angle (°)</td>
<td>71</td>
<td>72</td>
<td>72</td>
<td>72</td>
</tr>

<tr>
<td class="sticky-col">BB Drop (mm)</td>
<td>70</td>
<td>72</td>
<td>72</td>
<td>72</td>
</tr>

<tr>
<td class="sticky-col">Front Center (mm)</td>
<td>573</td>
<td>579</td>
<td>594</td>
<td>609</td>
</tr>

<tr>
<td class="sticky-col">Head Tube Length (mm)</td>
<td>90</td>
<td>95</td>
<td>95</td>
<td>95</td>
</tr>

<tr>
<td class="sticky-col">Chainstay Length (mm)</td>
<td>410</td>
<td>410</td>
<td>410</td>
<td>410</td>
</tr>

<tr>
<td class="sticky-col">Effective Stack to Pad Holder (Lowest Position) (mm)</td>
<td>535</td>
<td>545</td>
<td>545</td>
<td>545</td>
</tr>

<tr>
<td class="sticky-col">Bike Standover Height (mm)</td>
<td>769</td>
<td>802</td>
<td>802</td>
<td>802</td>
</tr>

<tr>
<td class="sticky-col">Effective Reach to Center of Pad (Forward Position) (mm)</td>
<td>464</td>
<td>476</td>
<td>491</td>
<td>506</td>
</tr>

<tr>
<td class="sticky-col">BB Height (mm)</td>
<td>269</td>
<td>270</td>
<td>270</td>
<td>270</td>
</tr>

<tr>
<td class="sticky-col">Wheelbase (mm)</td>
<td>972</td>
<td>978</td>
<td>993</td>
<td>1008</td>
</tr>

<tr>
<td class="sticky-col">Fork Rake / Offset (mm)</td>
<td>45</td>
<td>45</td>
<td>45</td>
<td>45</td>
</tr>

<tr>
<td class="sticky-col">Seat Tube Angle (°)</td>
<td>74.5</td>
<td>74.5</td>
<td>75</td>
<td>75.75</td>
</tr>

</tbody>
</table>
</div>
</div>
