Focus - SAM ² 6.7

Focus - SAM ² 6.7

SKU ND644517001
Save 30% Save 30%
$9,999.00
$9,999.00 - $9,999.00
$9,999.00
$6,999.00
$6,999.00 - $6,999.00
$6,999.00
Color: SLATE GRAY
Size: 41/S

Designed for down

Super powerful and dynamic e-motor

The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.

Optimal suspension performance in any situation

Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.

Designed for down

A modern, downhill-oriented geometry, 170 mm travel and fast 29" wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. Additionally, the fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5" wheels and super short chainstays (430 mm).

  • Powerful and agile Bosch Performance CX e-drive with Purion display and integrated, removable 625 Wh battery
  • 170 mm travel with F.O.L.D. kinematics: RockShox ZEB suspension fork with 38 mm stanchion and SuperDeluxe rear shock
  • Fully integrated C.I.S. cable routing with crisp SRAM GX Eagle shifting and strong Code brakes with 220 mm rotors
FRAME 7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, post mount 203 mm
FRAME MATERIAL Aluminium
FORK Rock Shox ZEB 29 Boost, Charger R, DebonAir, 110x15 mm rake, 44 mm rake
TRAVEL FORK 170 mm
MOTOR Performance Line CX
DISPLAY
Bosch LED Remote
SHIFTER SRAM GX Eagle, 12-speed
REAR DERAILLEUR SRAM GX Eagle, 12-speed
Cassette SRAM PG-1230 NX Eagle, 12-speed
CHAIN SRAM NX Eagle, 12-speed
CRANKSET Samox EC40 ISIS
BOTTOM BRACKET Integrated in Drive Unit
TRANSMISSION OF DRIVE front: 36, rear: 11-50
HANDLEBAR Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
STEM FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET ACROS ZS56/ZS60 (ICR), FOCUS C.I.S. Integrated angle headset
SADDLE Focus Trail SL
SEATPOST Post Moderne dropper post PM-214, 34.9 mm
BRAKES FRONT / REAR SRAM Code R | SRAM Code R
Front brake disc 220 mm
Rear brake disc
 220 mm
Rim front
RODI TRYP30, 30-622
Rim rear
RODI TRYP30, 30-622
FRONT HUB
Novatec D041, 15x110 mm thru axle
Rear hub
Novatec D462, 12x148 mm
Spokes
Niro, black
Tyres front | rear
Maxxis Minion DHF, EXO, 29 x 2,5" | Maxxis Minion DHF, EXO, 29 x 2,5"
Permissible system weight
150 kg
SHOCK Rock Shox Deluxe Select, 230/65 mm, hardware: 25,0 x 8.0 mm, no Bushing

Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.

* Subject to technical modification without notice. Errors and omissions excepted.

** Weight in size M, of standard specification and without pedals.

S M L XL
Size 41 42 45 49
Size (MM) 410 420 450 490
Handlebar width 800 800 800 800
Stem Length (MM) 50 50 50 50
Crankarm length 165 165 165 165
Seat post length (MM) 125 150 170 170
A Seat tube length (MM) 410 420 450 490
B Effective Top Tube (MM) 587 608 642 676
C Head Tube Angle (°) 65 65 65 65
D Effective Seat Tube Angle (°) 76 76 76 76
E Chainstay length (MM) 450 450 450 450
F Bottom bracket drop (MM) 20 20 20 20
G Head Tube Length (MM) 110 115 130 150
H Fork construction height (MM) 581 581 581 581
I Pre-raked fork (MM) 46 46 46 46
J Wheelbase length (MM) 1215 1236 1273 1311
K Stack (MM) 629 634 648 666
L Reach (MM) 430 450 480 510

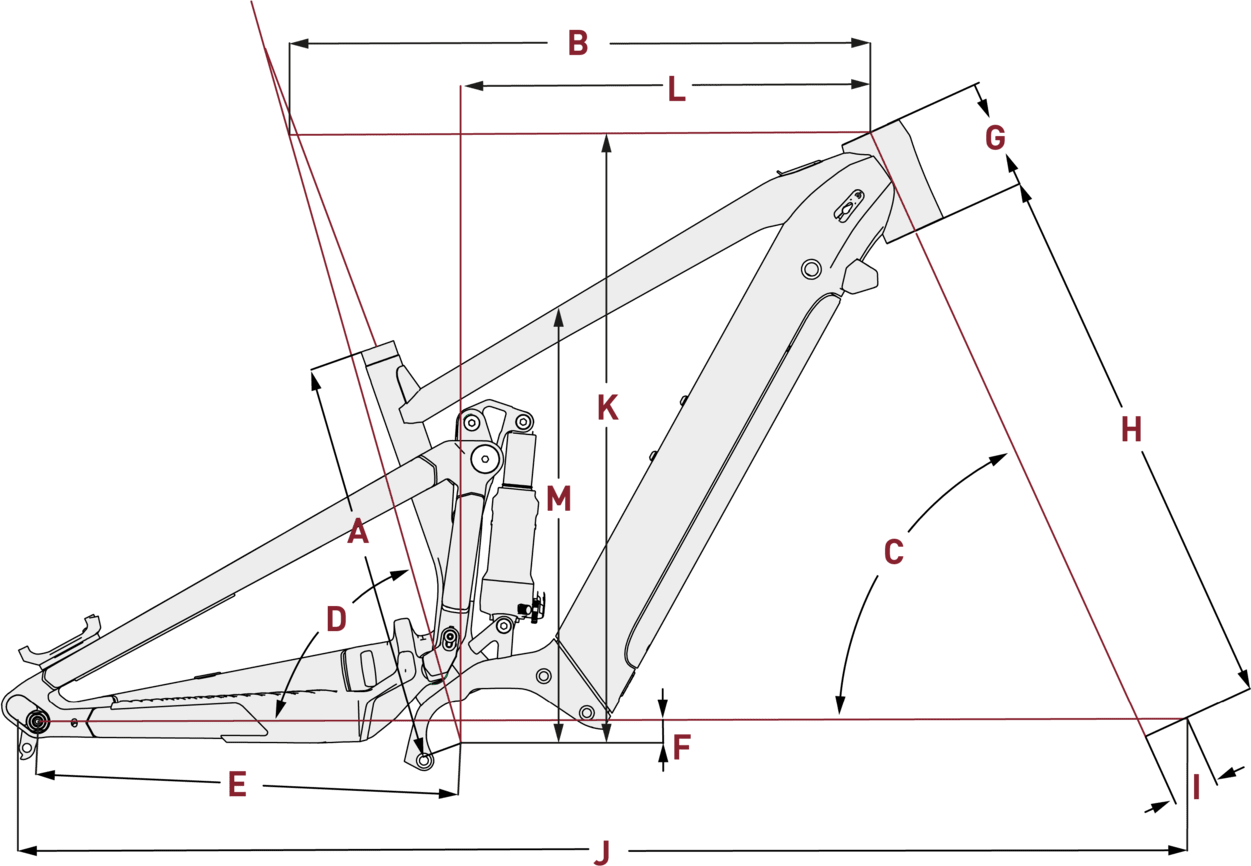

Focus Geometry SAM2

All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.

The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.

Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
