SKU AWEL150RSX2MV1
Save 17% Save 17%
$14,999.00
$14,999.00 - $14,999.00
$14,999.00
$12,499.00
$12,499.00 - $12,499.00
$12,499.00

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

Choose a Color
Choose a Size
ENQUIRY

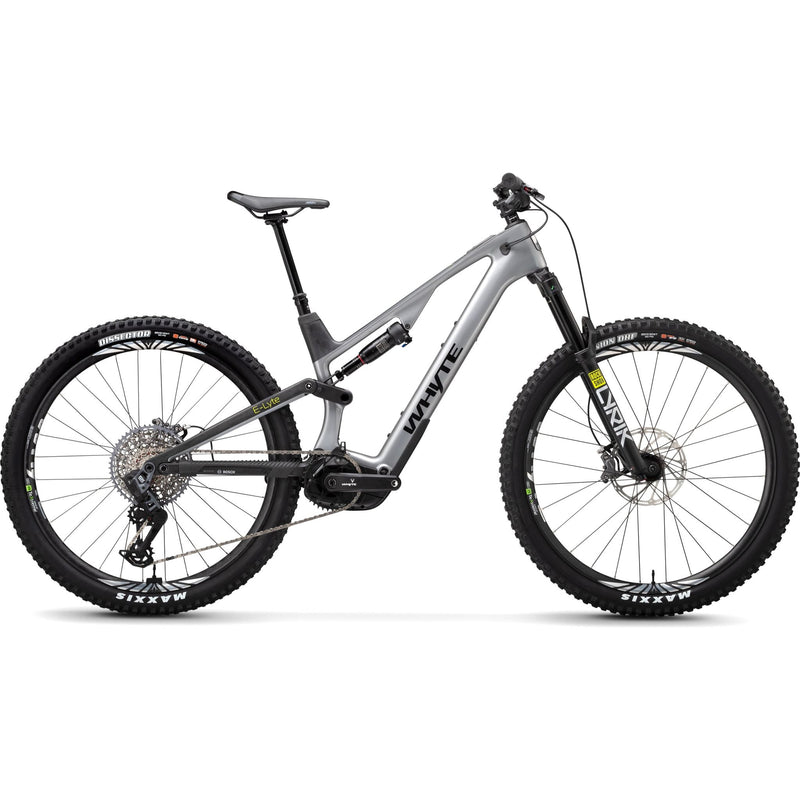

The ELyte 150 RSX delivers the very best lightweight, natural mountain bike handling and ride feel together with the capability of full power electric mountain bikes (eMTBs). At just 18.9kg (size M) with 55Nm of torque, 600W of peak power, and 400Wh of battery, it packs the power to do it all: the climb, the singletrack, the all-day epic, the home trail hot laps, the drop-ins, the descents, the tech and the climbs back out. With the ELyte 150 RSX you can have your trail bike cake and eat it: lightweight, mid-torque, full power. Zero compromises.
150mm front + 142mm rear of custom-tuned suspension travel.

  • 150mm front + 142mm rear of custom-tuned suspension travel.
  • Uni-directional carbon fibre frame is light and reassuringly strong.
  • Bosch Performance Line SX lightweight, mid-torque (55Nm), full power (600W) motor.
  • 400Wh internal battery.
  • 29er wheels front and rear for balanced handling.


Confidence by design
This bike is designed with our holistic Whyte Total Geometry approach to deliver you the most extraordinary confidence-inspiring ride, every ride.

Pitch perfect parts
The E-Lyte 150 RSX is dressed in a curated parts list of trail-proven, real-world kit that will serve you brilliantly both now and for the long haul: SRAM GX T-Type AXS 1x12 wireless electronic gearing, Maxxis tyres, feedback-rich SRAM Code Bronze four-piston brakes, and more. Our own custom-tuned suspension from RockShox has also been meticulously tuned to deliver you outstanding, ground-hugging grip with the support you need to right from your first pedal stroke.

Beautifully light, reassuringly strong

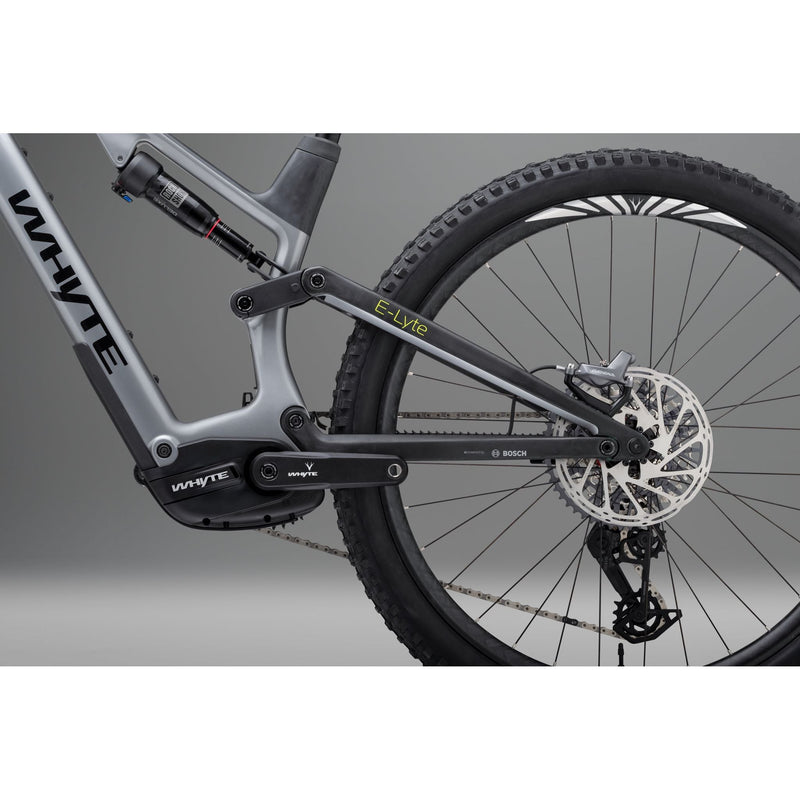

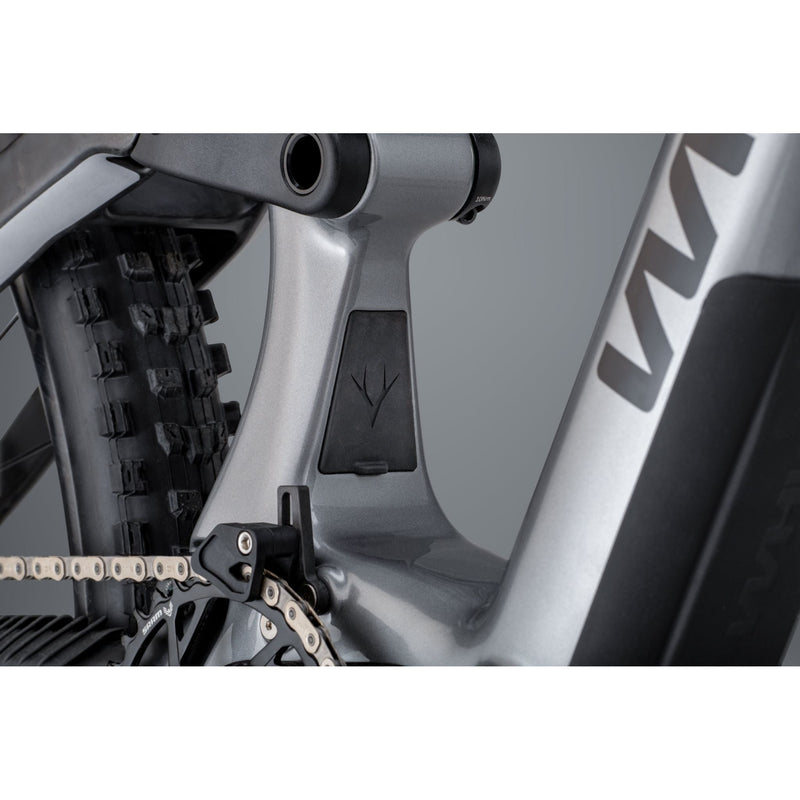

The beating heart of the E-Lyte 150 RSX is an all-new, lightweight yet strong carbon fibre chassis that carefully packages Bosch's light and powerful Performance Line SX mid-torque (55Nm), full power (600W) motor – and the 400Wh internal battery – seamlessly so you can fly under the radar as stealthily as you'll fly down the trails. We've also carefully positioned the lower 750ml water bottle mount – which also mounts the aftermarket Bosch PowerMore range extender (sold seperately) – as low in the frame as possible to optimise the bike's centre of gravity and deliver an exceptional handling bike.

Your bike, your way

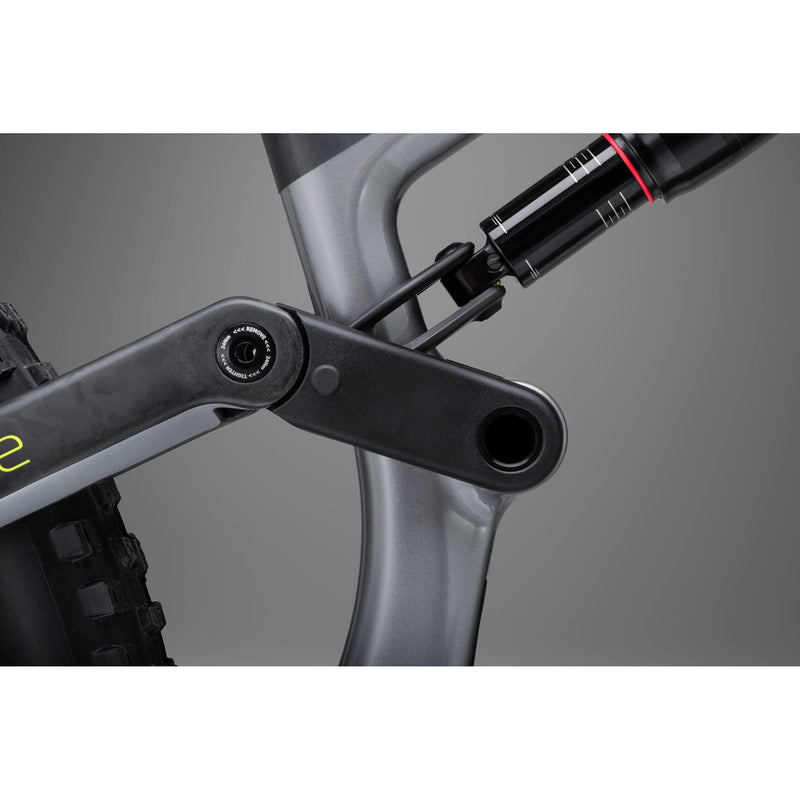

We’ve engineered the E-Lyte 150 RSX to give you the option to set it up and ride it as you want. Want to run a bottle, or even two? The frame has two bottle positions: a lower for a full 750ml bottle (using the included bottle cage adaptor), and a higher Fidlock position for a smaller 400ml bottle (on sizes M-XL). Or you can use the Fidlock mounts for tool or tube mounting (all sizes). Want to slacken the geometry out? The ‘Shape.it Link V2’ geometry adjustment lets you change between the stock high to its low setting for a lower, slacker geometry for more downhill grins. Want to pedal further? Keep it in its higher, more all-day ride-friendly position. Want more battery? The E-Lyte 150 RSX is compatible with Bosch’s 250Wh PowerMore range extender (sold seperately) – that mounts in the lower bottle boss position – to give you a total battery capacity of 650Wh for bigger days on the hills.

Engineered for the best – and worst – conditions
We’ve designed, tested and proven every E-Lyte in our native UK, riding all year round through the best and the worst weathers, and have added a whole host of touches that will keep you riding sweeter and for longer. Things such as: a fully weather-sealed seat-clamp gaiter, and sealed cable and hose ports to keep the water out; positioning the charge port at the base and to the front of the seat tube out of the firing line of the rear wheel spray; clearance for up to 2.5in tyres between the seat and chainstays to prevent mud and gunk slowing you down; Phosphate-coated and marine grease packed pivot bearings to maximise pivot bearing service life; as well as frame protection on the lower downtube and chainstay to keep the frame in great shape, and much more.

Bike classification grading: 4 Enduro
This bike is intended for all-mountain and enduro use over rough terrain, where loss of contact between the wheels and surface is common, up to speeds of 40km/h.

<div class="tech-specs">

<div class="spec-section">
<h4>General</h4>
<div class="spec-item">
<p class="label">Colour</p>
<p class="value">Silver / Carbon</p>
</div>
<div class="spec-item">
<p class="label">Weight</p>
<p class="value">18.9kg (size M)</p>
</div>
</div>

<div class="spec-section">
<h4>Frameset</h4>
<div class="spec-item">
<p class="label">Frame</p>
<p class="value">
Uni-directional carbon mainframe and seatstays, tapered head tube,
ISCG 2 guide mounts, internal cable routing, Shape.it Link V2,
12x148mm Boost dropouts
</p>
</div>
<div class="spec-item">
<p class="label">Headset</p>
<p class="value">
FSA No.69/56/SRS, 1-1/8&quot; upper &amp; 1.5&quot; lower,
sealed angular contact cartridge bearings
</p>
</div>
<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">
Whyte drop.it II Adjust, 30.9mm
(S/M: 140–170mm drop · L/XL: 170–200mm drop),
MMX paddle remote
</p>
</div>
<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">Fizik Terra Aidon, 145mm, Wingflex, S-Alloy Mobius rail</p>
</div>
</div>

<div class="spec-section">
<h4>Suspension</h4>
<div class="spec-item">

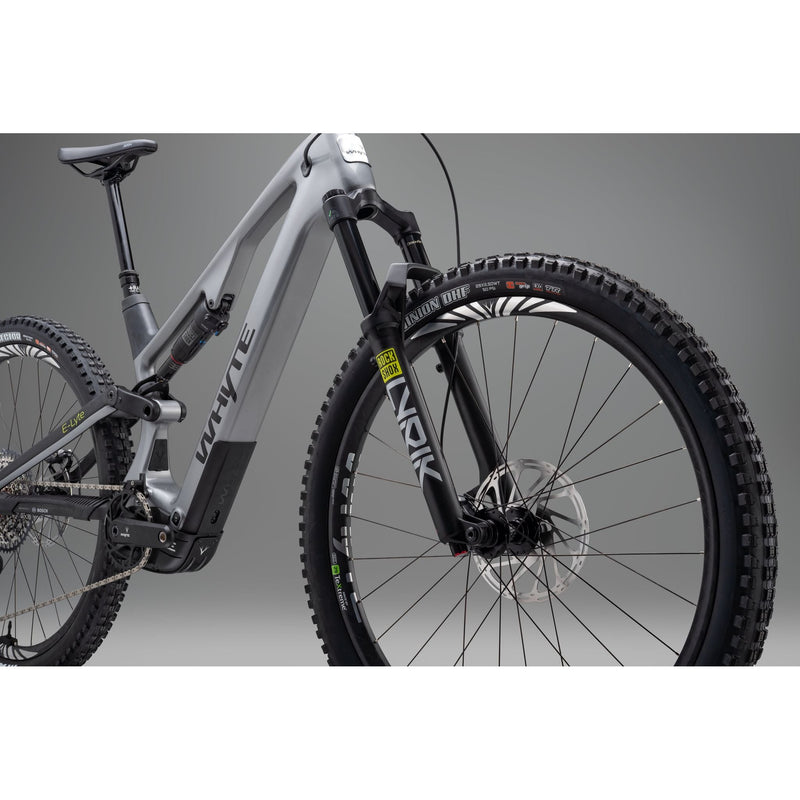

<p class="label">Fork</p>
<p class="value">
RockShox Lyrik Select+ 29&quot;, 150mm travel,
DebonAir+, Charger 3 RC2 damper,
44mm offset, Boost 110x15mm
</p>
</div>
<div class="spec-item">

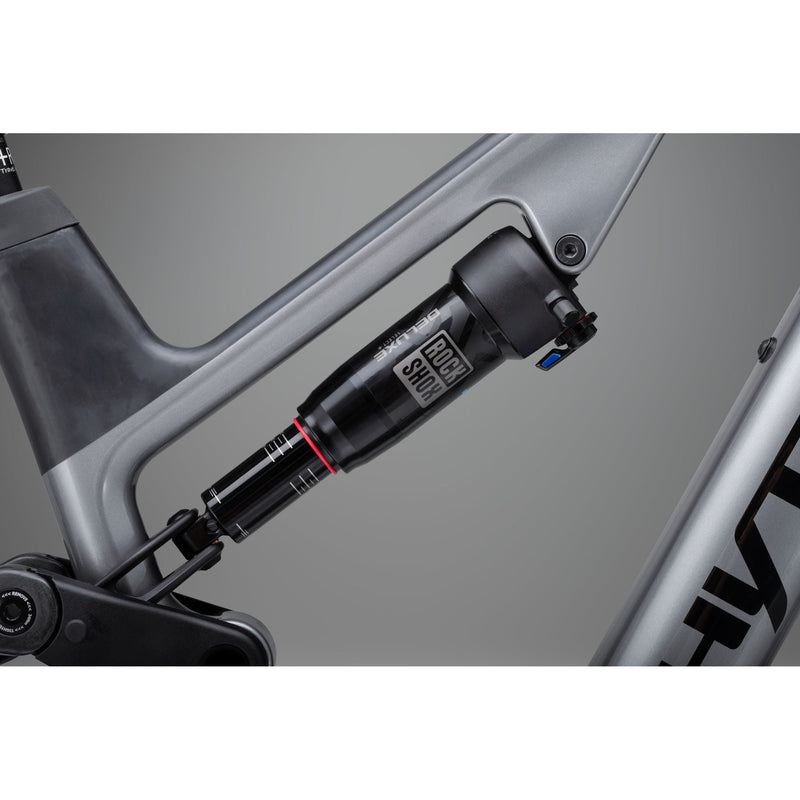

<p class="label">Rear Shock</p>
<p class="value">
RockShox Deluxe Select+ RT, DebonAir,
adjustable rebound and 2-position compression
</p>
</div>
<div class="spec-item">
<p class="label">Shock Stroke / Sag</p>
<p class="value">50mm / 14mm</p>
</div>
</div>

<div class="spec-section">
<h4>Drivetrain</h4>
<div class="spec-item">
<p class="label">Shifters</p>
<p class="value">SRAM AXS Pod, MMX, 12-speed</p>
</div>
<div class="spec-item">

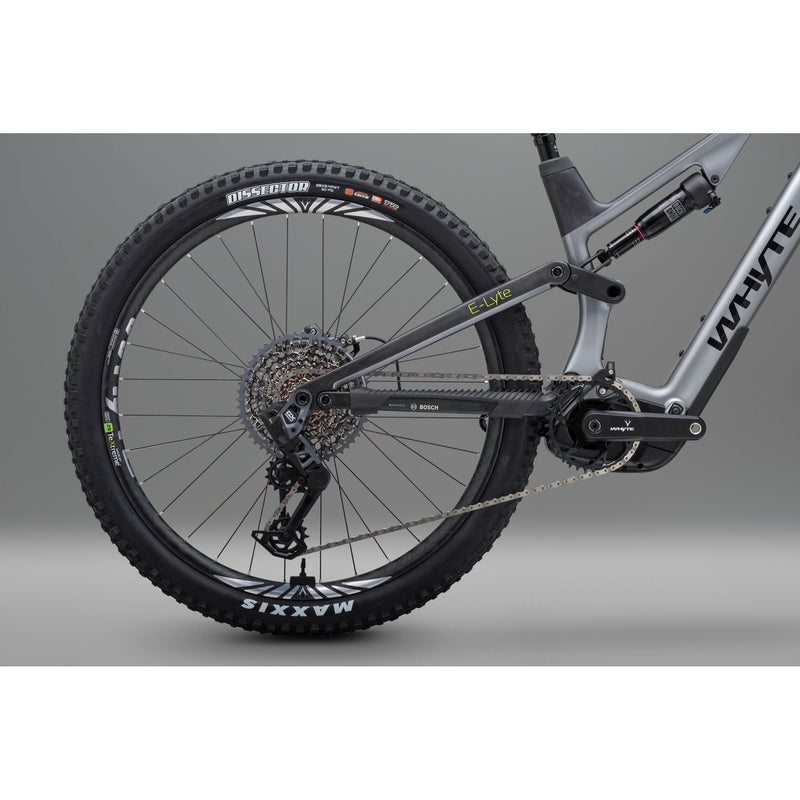

<p class="label">Rear Derailleur</p>
<p class="value">SRAM GX T-Type AXS, 12-speed</p>
</div>
<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">SRAM XS-1275 T-Type, 10–52T, 12-speed</p>
</div>
<div class="spec-item">
<p class="label">Chain</p>
<p class="value">SRAM GX T-Type, 12-speed</p>
</div>
<div class="spec-item">

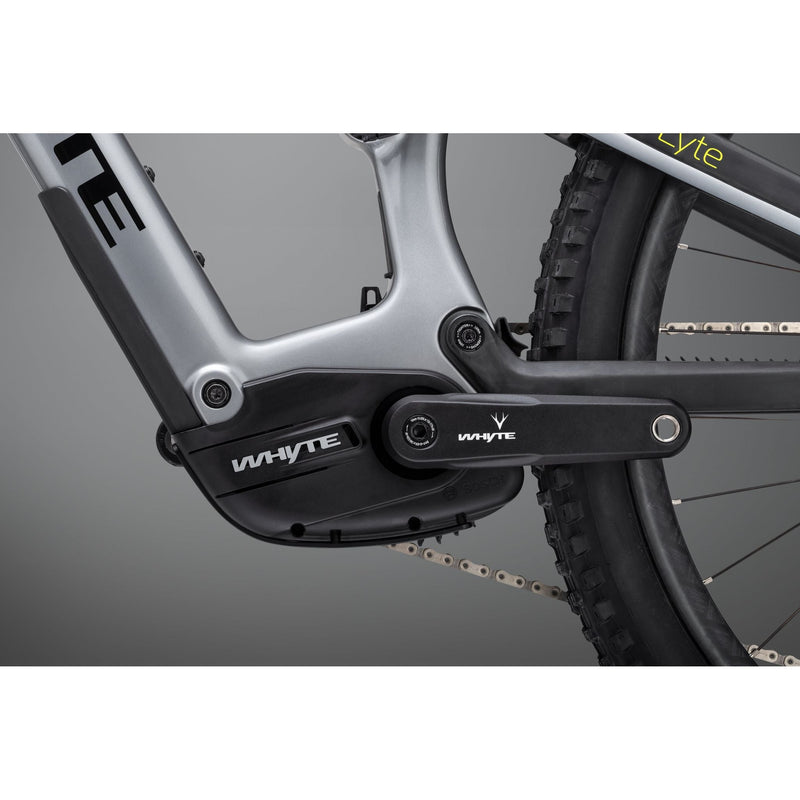

<p class="label">Crankset</p>
<p class="value">

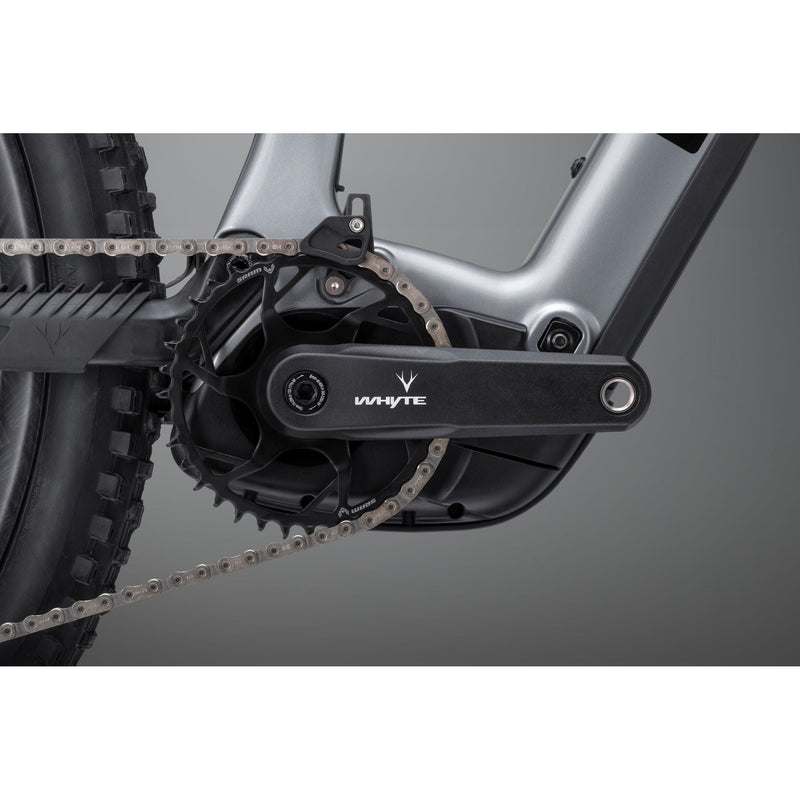

Whyte 155mm ISIS arms, GX Gen4 direct mount 36T chainring
</p>
</div>
</div>

<div class="spec-section">
<h4>Brakes</h4>
<div class="spec-item">
<p class="label">Front Brake</p>
<p class="value">SRAM Code Bronze Stealth, 4-piston, 200mm rotor</p>
</div>
<div class="spec-item">
<p class="label">Rear Brake</p>
<p class="value">SRAM Code Bronze Stealth, 4-piston, 200mm rotor</p>
</div>
</div>

<div class="spec-section">
<h4>Wheels &amp; Tyres</h4>
<div class="spec-item">
<p class="label">Rims</p>
<p class="value">DT Swiss rims with Champion 2.0mm spokes</p>
</div>
<div class="spec-item">
<p class="label">Front Hub</p>
<p class="value">Alloy, sealed bearings, Boost 15x110mm, 28H</p>
</div>
<div class="spec-item">
<p class="label">Rear Hub</p>
<p class="value">Alloy, sealed bearings, Boost 12x148mm, 32H</p>
</div>
<div class="spec-item">
<p class="label">Tyres</p>
<p class="value">
Front: Maxxis Minion DHF 29x2.5 EXO TR MaxxGrip<br>
Rear: Maxxis Dissector 29x2.4 EXO+ TR MaxxTerra
</p>
</div>
</div>

<div class="spec-section">
<h4>Cockpit</h4>
<div class="spec-item">
<p class="label">Handlebar</p>
<p class="value">Whyte Custom 6061 alloy, 20mm rise, 800mm width, 35mm clamp</p>
</div>
<div class="spec-item">
<p class="label">Stem</p>
<p class="value">Whyte Trail CNC, 32mm length, 35mm clamp</p>
</div>
<div class="spec-item">
<p class="label">Grips</p>
<p class="value">Whyte Enduro lock-on</p>
</div>
</div>

<div class="spec-section">
<h4>E-Bike System</h4>
<div class="spec-item">
<p class="label">Motor</p>
<p class="value">
Bosch Performance Line SX,
55Nm torque, 600W peak power
</p>
</div>
<div class="spec-item">
<p class="label">Battery</p>
<p class="value">
Bosch Compact PowerTube 400Wh,
compatible with PowerMore 250Wh range extender
</p>
</div>
<div class="spec-item">
<p class="label">Charger</p>
<p class="value">Bosch 4A Charger (230V)</p>
</div>
<div class="spec-item">
<p class="label">Display / Controls</p>
<p class="value">

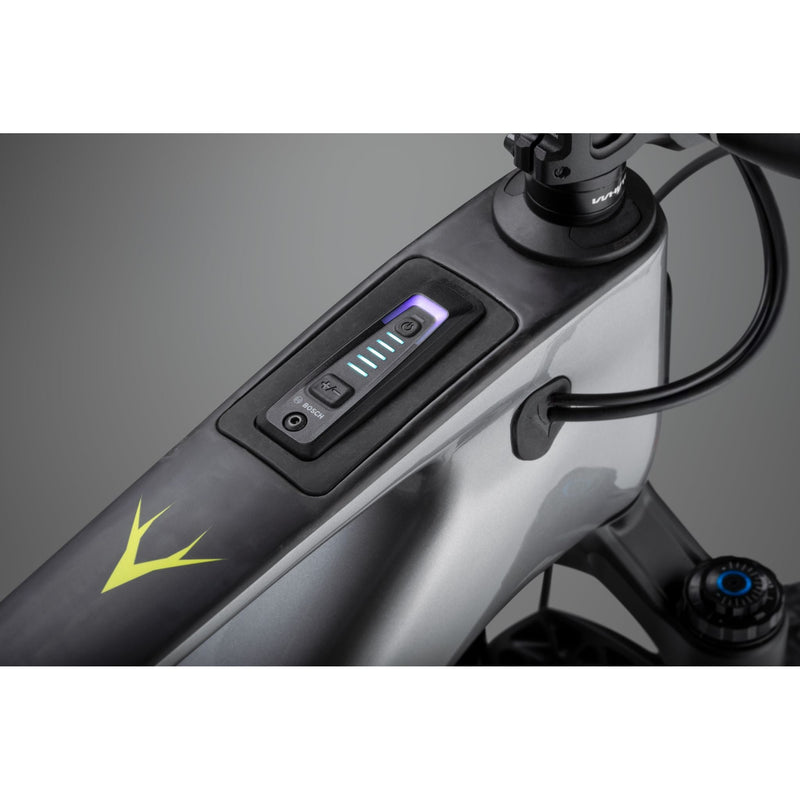

Bosch System Controller (top tube) with Mini Remote,
Bosch eBike Flow app compatible
</p>
</div>
</div>

</div>

<div class="curve-geo-static">
<img
src="https://cdn.shopify.com/s/files/1/0089/4972/7298/files/Whyte_E-Lyte_150_RSX_Geometry_graph.png?v=1768579282"
loading="lazy"
/>
</div>

<style>
.curve-geo-static {
width: 100%;
display: flex;
flex-direction: column;
align-items: center;
margin: 16px 0 24px;
}

.curve-geo-static img {
max-width: 900px;
width: 100%;
height: auto;
display: block;
}
</style>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col"></th>
<th>Small</th>
<th>Medium</th>
<th>Large</th>
<th>Extra Large</th>
</tr>
</thead>

<tbody>
<tr>
<th class="sticky-col">Reach (mm)</th>
<td>431</td>
<td>456</td>
<td>481</td>
<td>506</td>
</tr>

<tr>
<th class="sticky-col">Stack (mm)</th>
<td>628.7</td>
<td>640.5</td>
<td>652.3</td>
<td>663.2</td>
</tr>

<tr>
<th class="sticky-col">Head Angle (°)</th>
<td>64.6 (64)</td>
<td>64.6 (64)</td>
<td>64.6 (64)</td>
<td>64.6 (64)</td>
</tr>

<tr>
<th class="sticky-col">Seat Angle (°)</th>
<td>77.5</td>
<td>77.3</td>
<td>77.1</td>
<td>76.9</td>
</tr>

<tr>
<th class="sticky-col">BB Height (mm)</th>
<td>341.9 (333.9)</td>
<td>341.9 (333.9)</td>
<td>341.9 (333.9)</td>
<td>341.9 (333.9)</td>
</tr>

<tr>
<th class="sticky-col">Wheelbase (mm)</th>
<td>1211.6</td>
<td>1242.1</td>
<td>1272.6</td>
<td>1302.7</td>
</tr>

<tr>
<th class="sticky-col">Rear Centre (mm)</th>
<td>450.4</td>
<td>450.4</td>
<td>450.4</td>
<td>450.4</td>
</tr>

<tr>
<th class="sticky-col">Standover Height (mm)</th>
<td>741</td>
<td>741</td>
<td>741</td>
<td>741</td>
</tr>

<tr>
<th class="sticky-col">Seat Tube Length (mm)</th>
<td>395</td>
<td>420</td>
<td>445</td>
<td>470</td>
</tr>

<tr>
<th class="sticky-col">Head Tube Length (mm)</th>
<td>114</td>
<td>127</td>
<td>140</td>
<td>152</td>
</tr>
</tbody>
</table>
</div>
</div>
