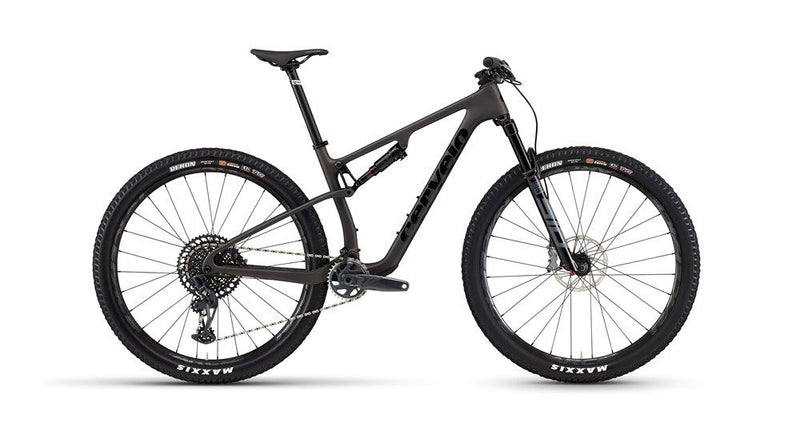

2025 Cervelo ZFS-5 GX Eagle Trail

2025 Cervelo ZFS-5 GX Eagle Trail

SKU 0I0FSAXG1ASM
Save 20% Save 20%
$8,300.00
$8,300.00 - $8,300.00
$8,300.00
$6,640.00
$6,640.00 - $6,640.00
$6,640.00

Interested in this bike? Please email us or use the ENQUIRY FORM below to check your size and availability.

The bike may be available from the supplier if not in-store.

WE CAN ORGANISE DELIVERY OF BIKES NATIONWIDE.

NOTE: Afterpay is unavailable on bike purchases.

Choose a Colour
Choose a Size
ENQUIRY

READY FOR YOUR CALL-UP

Progressive but racy, ZFS-5 was built for today’s evolving XCO courses—it has to pedal well and handle quickly, but also take on the chunks, jumps, and drops littering the circuit. ZFS-5’s 67.8-degree head tube angle delivers the precision required for elbow-to-elbow hole shot sprints, and the confidence to let off the brakes when the track gets rough. And in 120mm-outfitting, the 66.6-degree head angle will give you the extra confidence to push harder, and ride faster, even when the trail gets a bit...hellish.

FLAT BARS, SUSPENSION, CERVÉLO?

World Cup season is here, and we’re all-in. The Z bikes—the ZHT-5 and the ZFS-5, our hardtail and full-suspension, respectively—made their race debut at the Nove Mesto World Cup. The pilots? World Cup veteran and former Dutch National XCO Champion Milan Vader alongside reigning Cyclocross World Champion Fem van Empel.

CALL IT A COMEBACK

Milan Vader is a veteran XC racer and former Dutch National Champion. He was set to race the Z bikes in 2022, but a life-changing crash at Itzulia Basque Country meant his priorities were re-learning to walk and ride. He’s recovered phenomenally well and much faster than the doctors expected, and will be racing the entire World Cup circuit this year.

DOUBLE DUTCH

Fem van Empel is one of Team Jumbo-Visma’s most recent signings, and she’s already made the rainbow connection. Following a decisive World Cyclocross Championships win in Hoogerheide, she traded knobbies for slicks this Spring, and has now set her sights on improving her best-ever World Cup results and landing on the podium.

<div class="tech-specs">

<div class="spec-section">
<div class="spec-item">
<p class="label">Sizes</p>
<p class="value">SM, MD, LG, XL</p>
</div>

<div class="spec-item">
<p class="label">Fork</p>
<p class="value">RockShox SID SL Select, DebonAir spring, Charger RL damper, tapered steerer, 15x110mm, Maxle Stealth, 44mm offset, 100mm travel</p>
</div>

<div class="spec-item">
<p class="label">Shock</p>
<p class="value">RockShox SIDLuxe Select+, RL 3-position remote damper, 190 x 40mm</p>
</div>

<div class="spec-item">
<p class="label">Handlebar</p>
<p class="value">Race Face Turbine Alloy, 35mm clamp, 760mm width, 10mm rise</p>
</div>

<div class="spec-item">
<p class="label">Stem</p>
<p class="value">Race Face Aeffect Alloy, 35mm clamp, 6°</p>
</div>

<div class="spec-item">
<p class="label">Seatpost</p>
<p class="value">Race Face Ride XC Alloy, 30.9mm</p>
</div>

<div class="spec-item">
<p class="label">Saddle</p>
<p class="value">Cervélo Saddle</p>
</div>

<div class="spec-item">
<p class="label">Bottom Bracket</p>
<p class="value">SRAM DUB, BSA 73mm</p>
</div>

<div class="spec-item">
<p class="label">Headset</p>
<p class="value">FSA IS2 1-1/2" x 1-1/2"</p>
</div>

<div class="spec-item">
<p class="label">Crankset</p>
<p class="value">SRAM GX Eagle, 32T, Boost 148 DUB</p>
</div>

<div class="spec-item">
<p class="label">Chain</p>
<p class="value">SRAM GX Eagle, 12-speed</p>
</div>

<div class="spec-item">
<p class="label">Cassette</p>
<p class="value">SRAM GX Eagle, 10–52T, 12-speed</p>
</div>

<div class="spec-item">
<p class="label">Rear Derailleur</p>
<p class="value">SRAM GX Eagle, 12-speed</p>
</div>

<div class="spec-item">
<p class="label">Shifters</p>
<p class="value">SRAM GX Eagle, 12-speed</p>
</div>

<div class="spec-item">
<p class="label">Brakes</p>
<p class="value">SRAM Level Bronze Stealth 4-piston (levers & calipers)</p>
</div>

<div class="spec-item">
<p class="label">Brake Rotor</p>
<p class="value">SRAM Centerline, 6-bolt</p>
</div>

<div class="spec-item">
<p class="label">Wheels</p>
<p class="value">
Front: Race Face ARC Offset 27, 27mm IW, DT Swiss 370, 15x110mm, 24H, 6-bolt, tubeless compatible<br>
Rear: Race Face ARC Offset 27, 27mm IW, DT Swiss 370, 12x148mm, XD freehub, 28H, 6-bolt, tubeless compatible
</p>
</div>

<div class="spec-item">
<p class="label">Tyres</p>
<p class="value">Maxxis Rekon Race, EXO, 120 TPI, 29 x 2.4"</p>
</div>

<div class="spec-item">
<p class="label">Max Tyre Width (Actual)</p>
<p class="value">60mm (2.4")</p>
</div>

<div class="spec-item">
<p class="label">Thru Axles</p>
<p class="value">Cervélo thru-axle, 12x148mm rear</p>
</div>

</div>
</div>

<div class="bike-geometry-table">
<div class="bike-geometry-table__scroller">
<table>
<thead>
<tr>
<th class="sticky-col"></th>
<th>S</th>
<th>M</th>
<th>L</th>
<th>XL</th>
</tr>
</thead>
<tbody>

<tr>
<th class="sticky-col">Reach (mm)</th>
<td>409</td>
<td>433</td>
<td>457</td>
<td>484</td>
</tr>

<tr>
<th class="sticky-col">Stack (mm)</th>
<td>593</td>
<td>600</td>
<td>610</td>
<td>624</td>
</tr>

<tr>
<th class="sticky-col">Head Tube Angle</th>
<td>66.6°</td>
<td>66.6°</td>
<td>66.6°</td>
<td>66.7°</td>
</tr>

<tr>
<th class="sticky-col">Seat Tube Angle</th>
<td>75.3°</td>
<td>75.1°</td>
<td>75.0°</td>
<td>74.9°</td>
</tr>

<tr>
<th class="sticky-col">Top Tube Length (mm)</th>
<td>561.6</td>
<td>589.1</td>
<td>617.3</td>
<td>649.1</td>
</tr>

<tr>
<th class="sticky-col">Head Tube Length (mm)</th>
<td>96</td>
<td>102</td>
<td>114</td>
<td>128</td>
</tr>

<tr>
<th class="sticky-col">Chainstay Length (mm)</th>
<td>432</td>
<td>435</td>
<td>437</td>
<td>440</td>
</tr>

<tr>
<th class="sticky-col">Front Center (mm)</th>
<td>700</td>
<td>726</td>
<td>755</td>
<td>787</td>
</tr>

<tr>
<th class="sticky-col">Wheelbase (mm)</th>
<td>1130</td>
<td>1159</td>
<td>1190</td>
<td>1225</td>
</tr>

<tr>
<th class="sticky-col">Bottom Bracket Drop (mm)</th>
<td>33</td>
<td>33</td>
<td>33</td>
<td>33</td>
</tr>

<tr>
<th class="sticky-col">Standover Height (mm)</th>
<td>756</td>
<td>754</td>
<td>754</td>
<td>754</td>
</tr>

<tr>
<th class="sticky-col">Wheel Size</th>
<td>29"</td>
<td>29"</td>
<td>29"</td>
<td>29"</td>
</tr>

<tr>
<th class="sticky-col">Fork Offset (mm)</th>
<td>44</td>
<td>44</td>
<td>44</td>
<td>44</td>
</tr>

</tbody>
</table>
</div>
</div>
