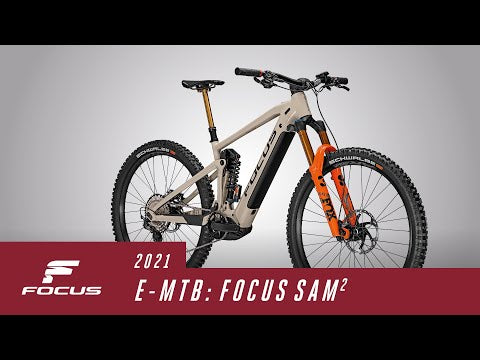

DESIGNED FOR DOWN
- Powerful dynamic Bosch Performance CX e-drive with integrated, removable 625 Wh battery
- 170 mm F.O.L.D. Chassis: Brandnew FOX 38 Factory suspension fork in racing orange and FOX VAN Coil rear shock plus the new FOX Transfer Factory dopper post
- Fully integrated C.I.S. cable routing with reliable precise Shimano XT 1x12 shifting and strong XT 4-piston brakes
-
Super powerful and dynamic e-motor
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.
Optimal suspension performance in any situation
Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.
Made for down
A modern, downhill-oriented geometry, 170 mm travel and fast 29" wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. The fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5" wheels and super short chainstays (430 mm).
-
| FRAME MATERIAL |
Aluminium |
| FRAME |
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm |
| FORK |
FOX 38 Float Factory 29, E-Bike, Grip 2, 110 x 15 mm, 44 mm rake, 170 mm travel |
| TRAVEL FORK |
170 mm |
| SHOCK |
FOX Van Performance Coil, 230/65 mm, hardware: 25,0 x 8mm |
| MOTOR |
Bosch Performance CX Gen4, 85 Nm, 250 W |
| BATTERY WATT-HOURS |
625 Wh |
| BATTERY AMPERE HOURS |
16,7 Ah |
| DISPLAY |
Bosch Purion |
| SHIFTER |
Shimano Deore XT M8100, 12-speed |
| REAR DERAILLEUR |
Shimano Deore XT M8100, 12-speed |
| SPROCKET |
Shimano SLX M7100, 12-speed |
| CHAIN |
Shimano SLX CN-M7100 |
| CRANKSET |
Samox EC40 ISIS |
| TRANSMISSION OF DRIVE |
front: 34, rear: 10-51 |
| BOTTOM BRACKET |
Integraded in Drive Unit |
| HANDLEBAR |
RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8degree |
| GRIPS |
RaceFace Getta Grip |
| STEM |
FOCUS C.I.S. integrated, 50 mm, 0 degrees, 35 mm, aluminium |
| HEADSET |
Acros AZX-212 AH [1-1/8", tapered, 44/286-ZS56/40] |
| SADDLE |
Proxim W350 |
| SEATPOST |
FOX Transfer RL Factory, 31,6mm |
| BRAKES |
Shimano XT M8120, 4 piston |
| BRAKE LEVER DESCRIPTION |
Shimano XT M8120, 4 piston |
| BRAKE |
Disc |
| RIMS |
RaceFace AR30 Offset |
| REAR HUB |
Novatec D162 Disc, 12x148 mm |
| FRONT HUB |
Novatec D041, 15x110 mm |
| TIRES |
Schwalbe Magic Mary 2.6 Super Trail Soft |
| REAR TIRE |
Schwalbe Magic Mary 2.6 Super Gravity Soft |
| GEARS |
12 |
| BIKE WEIGHT INCL. BATTERY IN KG. |
25,95 kg |
| SIZE |
41,42,49,45 |
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
-
-
All bikes purchased from iRIDE will have been pre-assembled by our mechanics and test ridden. You will also receive a multi point checklist of all the safety checks and bike build elements we work through to ensure you bike is correctly assembled, and then tested so that it runs as it should. Bikes being sent to a customer who is unable to collect it from iRIDE, will have it boxed, wheels, saddle and bars generally off and re-packaged.
The delivery of bikes will be organized once a freight fee can be determined based on weight and delivery location.
Assembly should take no longer than 10-20 minutes. It is recommended that a skilled mechanic assemble, or check the bike. If possible your local bike shop is likely best placed to do this from a safety perspective to ensure all is as it should be. If a rider is having any issues we can hook up an online video chat, or talk over the phone. If this service is required email us at workshop@iride.net.nz to organise a time that suits all parties.
